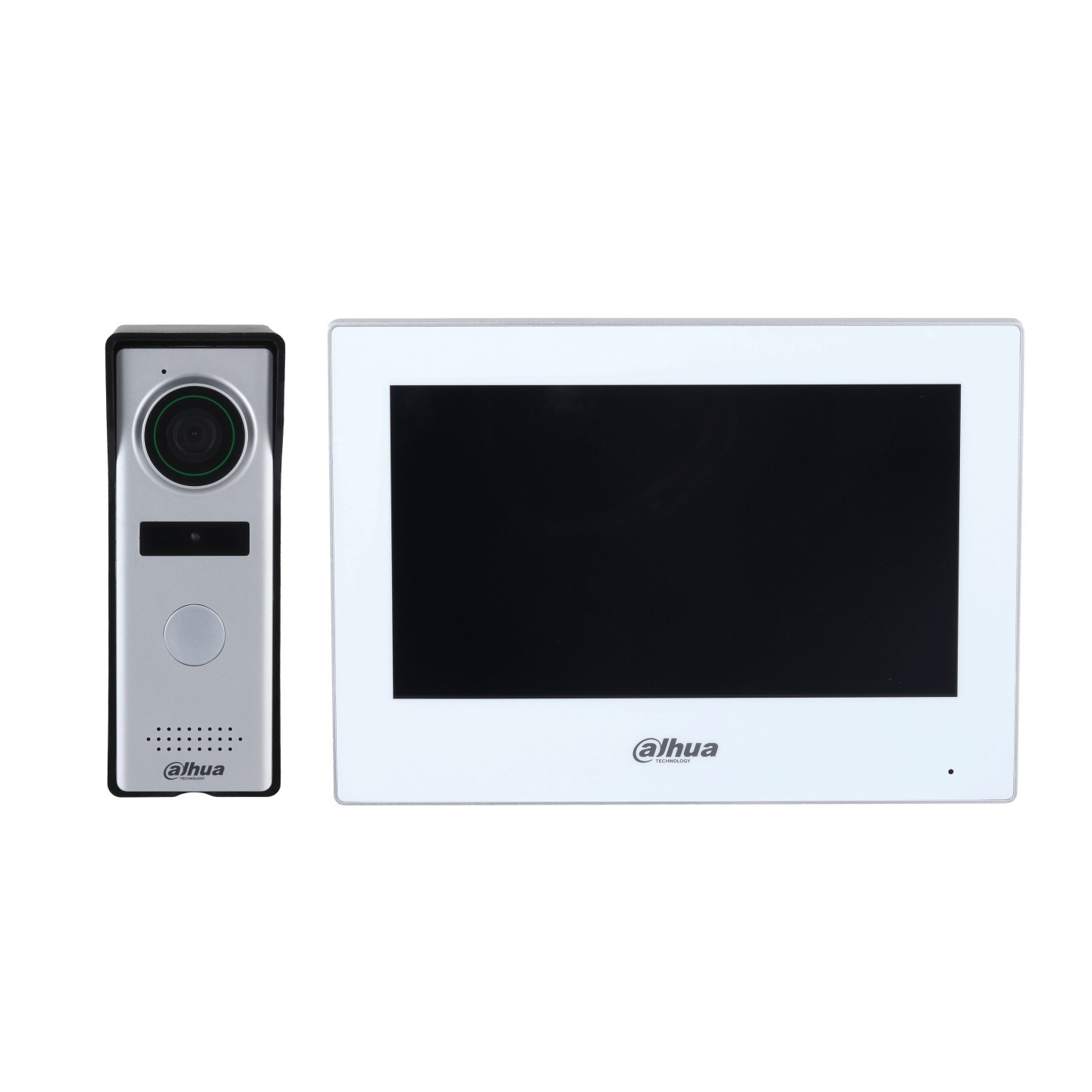

Dahua VD 4-Wire Doorphone KIT With Wi-Fi - KTH01 - 4-Wire Doorphone KIT With Wi-Fi

• 7" TFT capacitive touch screen, 1024 × 600
• Wi-Fi
• H.264 video decoding.Connects to analog and digital VTOs, and analog and digital VTHs
• Connects to IPCs
• Features group call.Supports recording videos and capturing snapshots (SD card is required)
• 6-channel alarm input and 1-channel alarm output
• Supports app management, receiving calls and alarm messages, and monitoring and opening the door
• Standard PoE
• Surface mount

VTO

• Unlock, voice call, video call and volume adjustment
• Multiple bell sounds
• Supports digital wide dynamic range (DWDR)
• Mechanical button
• IP66

DHI-VTH2624GW-WP

System

• Main Processor : Embedded Processor
• Operating System : Embedded operating system
• Network Protocol : UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP
•  Interoperability : ONVIF

Basic

• Screen Type : Capacitive Touchscreen
• Display Screen : 7" TFT
• Screen Resolution : 1024 (H) × 600 (V)
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1 channel
• Audio Output : Built-in speaker
• Audio Mode : Two-way audio with VTO (half–duplex); Two-way audio with app (full–duplex)
• Audio Enhancement : Echo suppression/digital noise reduction
• Audio Bit Rate : 16 KHz; 16 Bit

Function

• Communication Mode : Full digital; Analog
• Information Release : Receive and view text information released by the management center
• Leave Videos : Yes (SD card needed)
• DND Mode : Do not disturb period can be set; Do not disturb mode can be set
• Number of Extensions : Villa: 9 digital extensions and 2 analog extensions / Apartment: 4 digital extensions and 2 analog extensions
• Wi-Fi : Yes
• Wireless Standard : IEEE802.11b; 802.11g; 802.11n
• Wireless Frequency Range : 2.4 GHz
• Storage ; Micro SD card (up to 64 GB)

Port

• RS-485 : 1
• Alarm Input : 6
• Alarm Output : 1
• Power Output : 1 (12 V, 200 mA)
• Door Bell : Yes (use the alarm input port)
• Network Port : 1 × RJ-45 10/100 Mbps Ethernet port
• 4-wire : 4

Performance

• Casing Material : PC and ABS

General

• Appearance Color : White
• Power Supply : 12 VDC, 1 A / Standard PoE
• Power Adapter : Optional
• Installation : Surface Mount
• Certifications : CE
• Product Dimensions : 189.57 mm × 134.57 mm × 26 mm
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 10%–90% (RH)
• Operating Altitude : 0 m–3000 m
• Power Consumption : ≤3.8 W (standby), ≤8.9 W (working)
• Gross Weight : 604 g
• Storage Temperature : 0 °C to 40 °C
• Storage Humidity : 30%–75%
• Anti-corrosion Level : Basic Protection
• Operating Environment : Indoor

Accessory Included

• Power cord
• 485 and Power output ribbon cable
• alarm ribbon cable
• bracket

DHI-VTO1000J

System

• Button Type : Mechanical

Basic

• Camera : 1.3MP CMOS
• Field of View : Horizontal: 70° / Vertical: 40°
• WDR : DWDR
• Illuminator Type : Auto IR
• Day/Night : ICR auto switch
• Audio Input : 1 channel to the microphone; pickup distance 0.5 m
• Audio Output : 1 channel to the speaker
• Status Indicator : 1 indicator light / Green: Power on

Function

• Communication Mode : Analog
• Unlock Mode : Local unlock

Performance

Casing : PC + ABS

Port

• Exit Button : 1
• Door Status Detection : 1

General

• Color : Silver
• Power Supply : Powered by indoor monitor
• Installation : Surface mount
• Certifications : CE/FCC
• Accessory : Rain cover (included)
• Dimensions : 131.45 mm × 46.00 mm × 33.80 mm
• Protection Grade : IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
• Operating Temperature : -30°C to +60°C
• Operating Humidity : 10%RH–95%RH
• Power Consumption : ≤ 1W (standby) / ≤ 3W (working)
• Net Weight : 0.18 kg
• Gross Weight : 0.38 kg
