Sonoff WiFi Smart Switch Dry Contact - MINI-D - WiFi Dry Contact
MINI-D Wi-Fi dry-contact smart switch for AC/DC power; controls motors, garage doors, and other dry-contact devices with remote and voice control.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smart Switches - Type | 1-Gang |
|---|---|
| Smart Switches - Protocol | Wi-Fi |

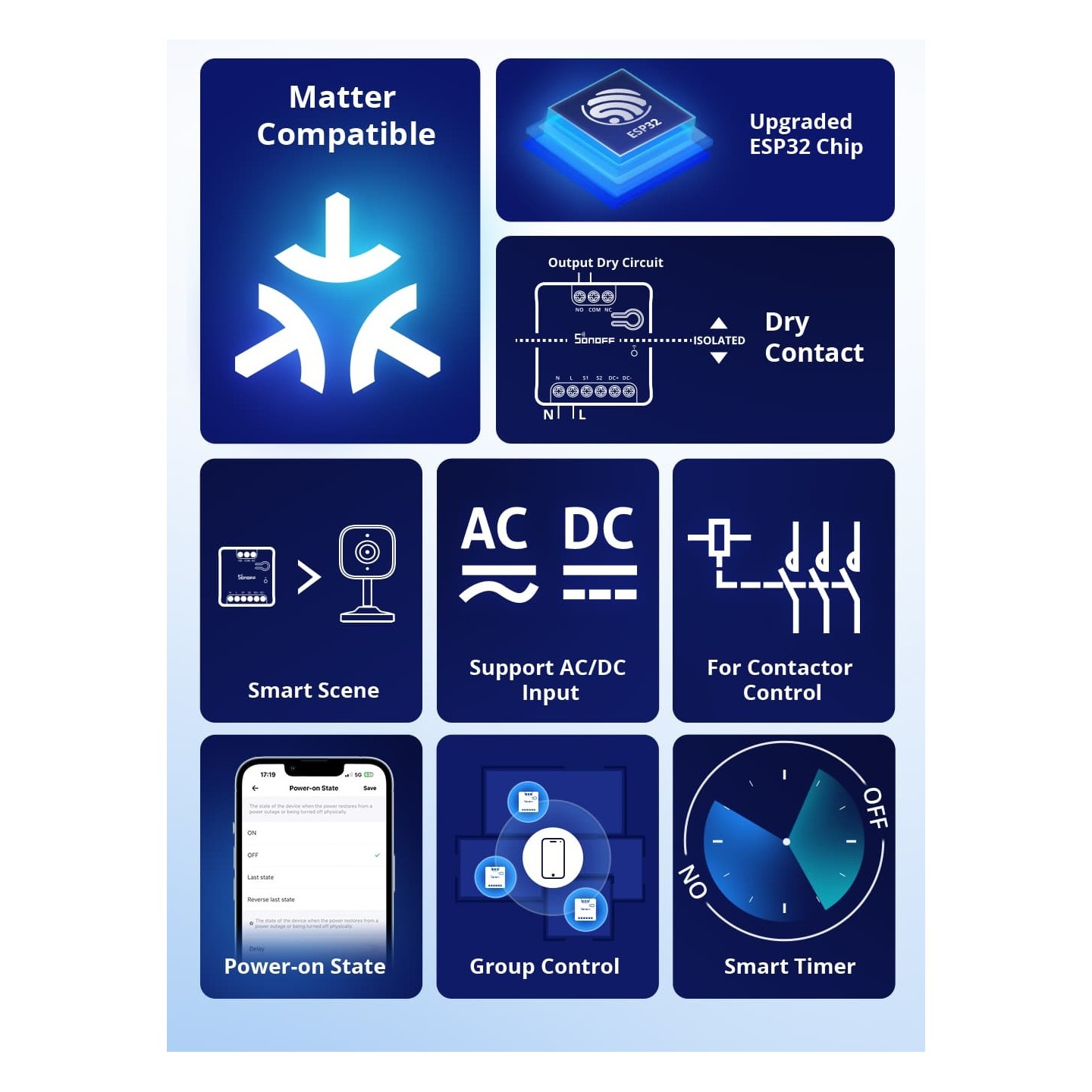

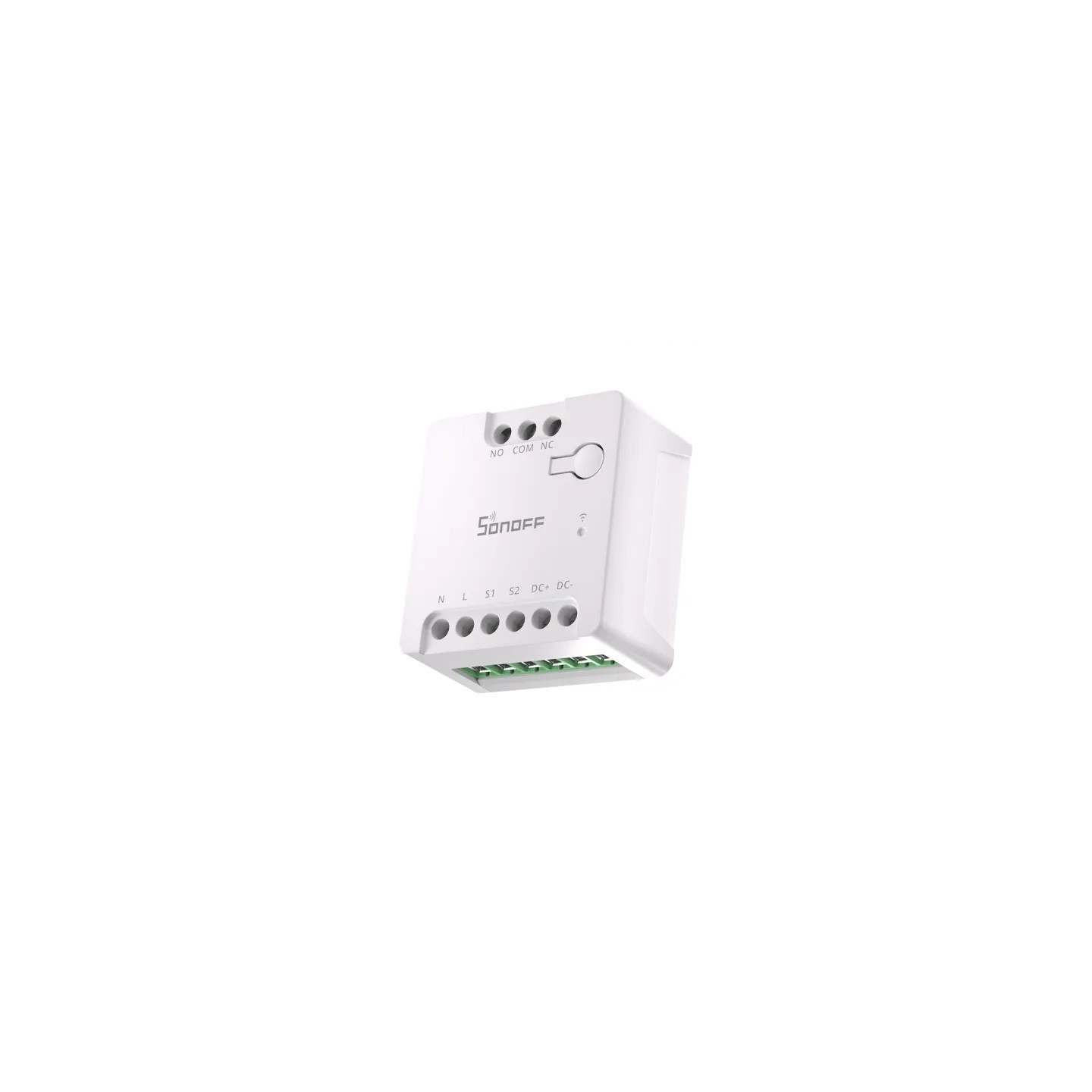

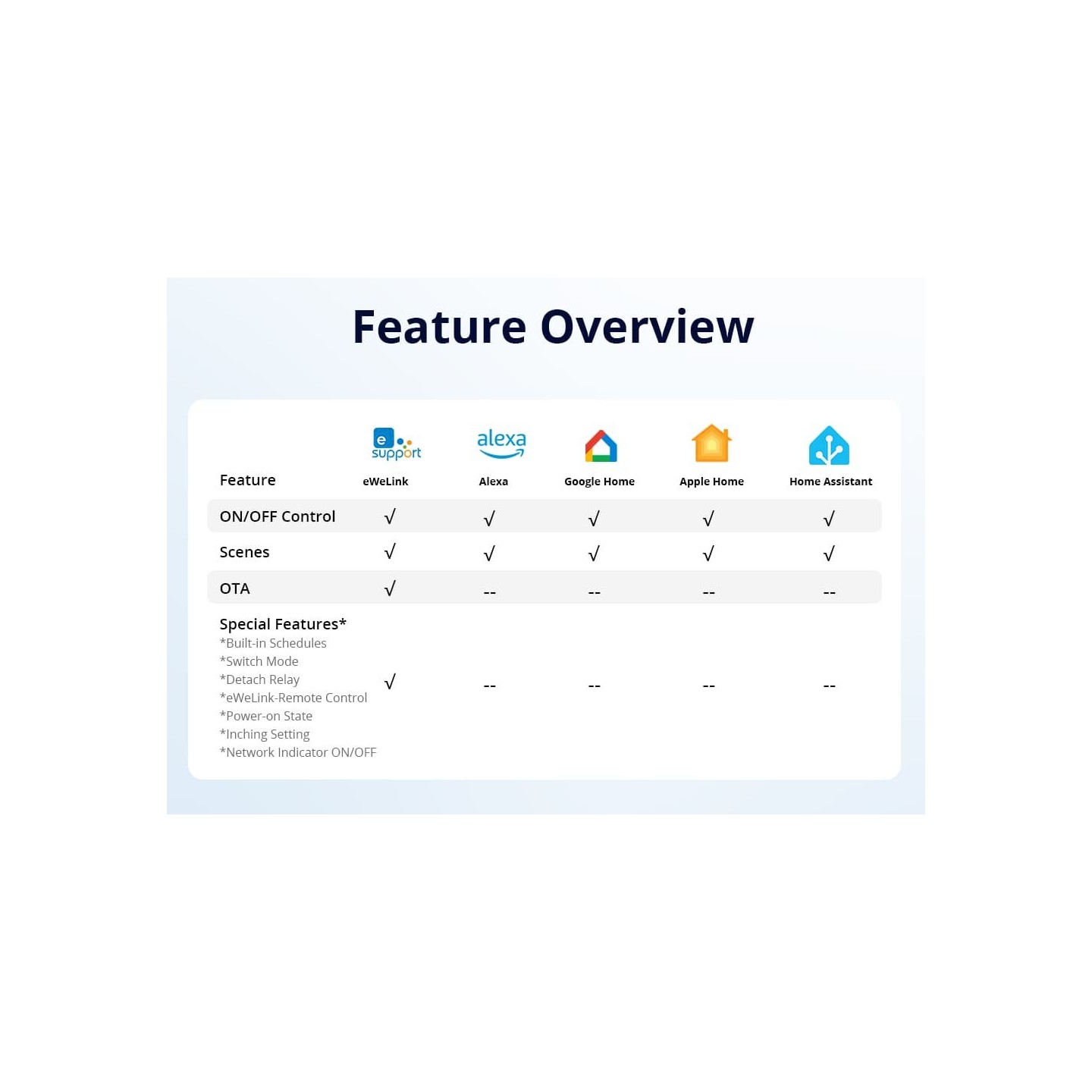

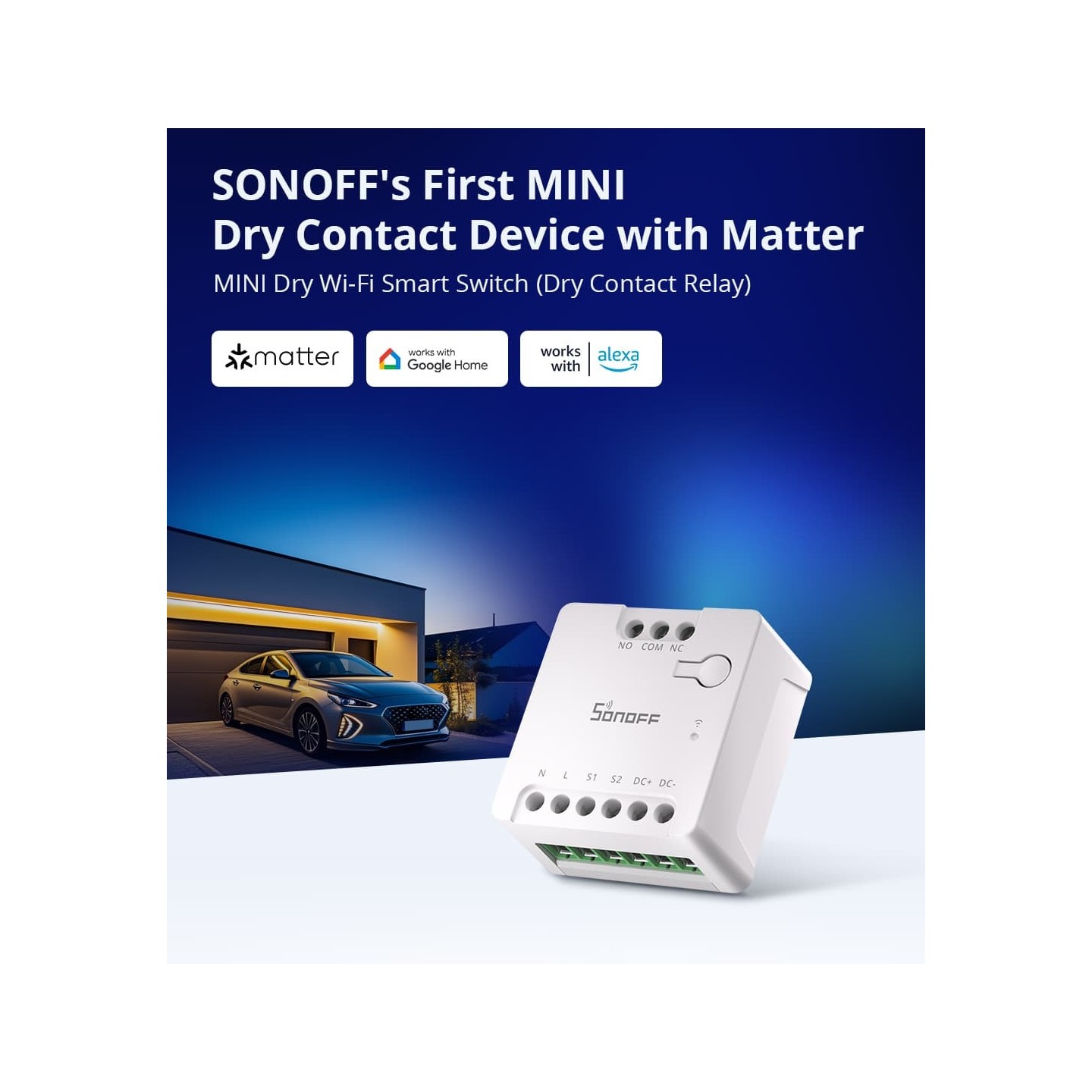

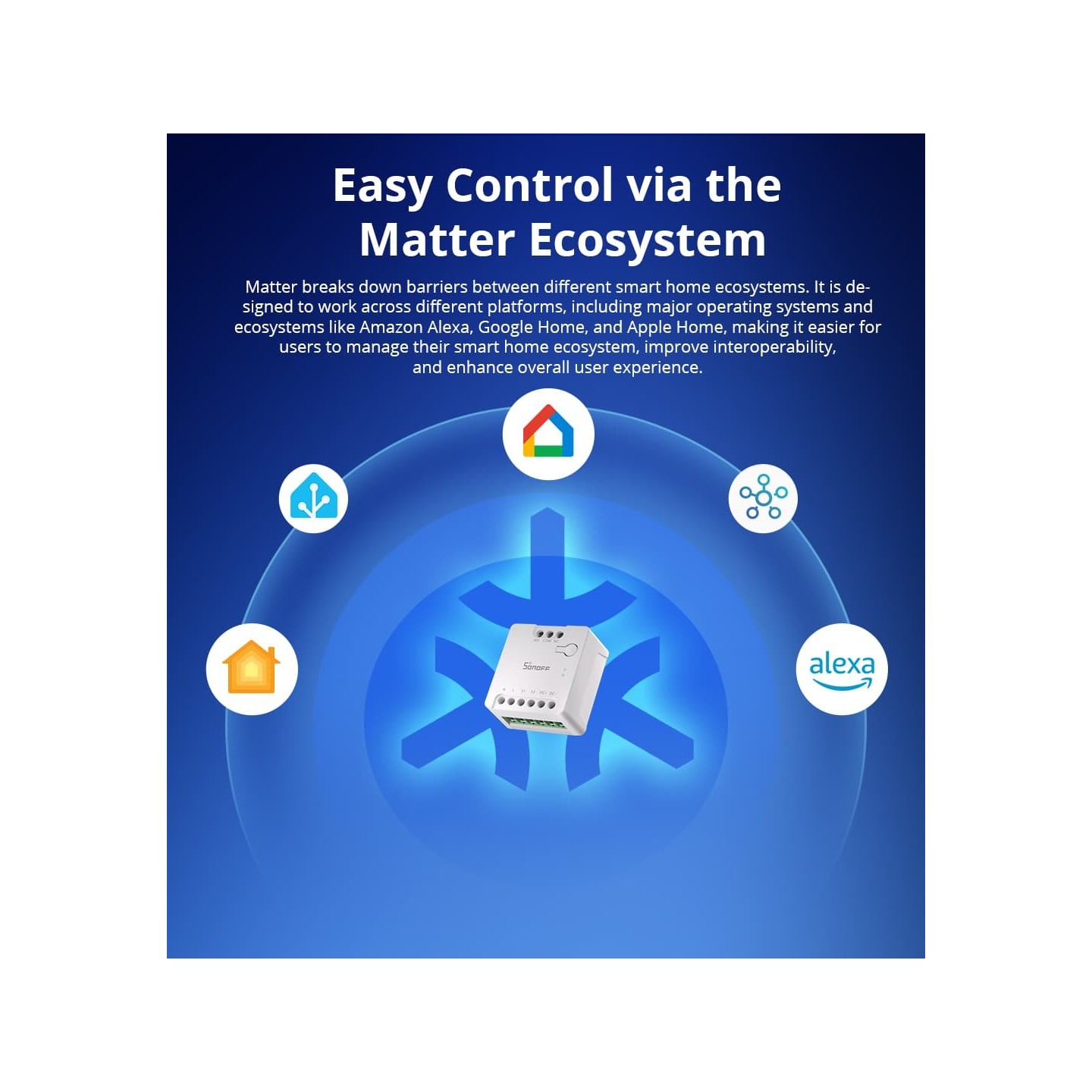

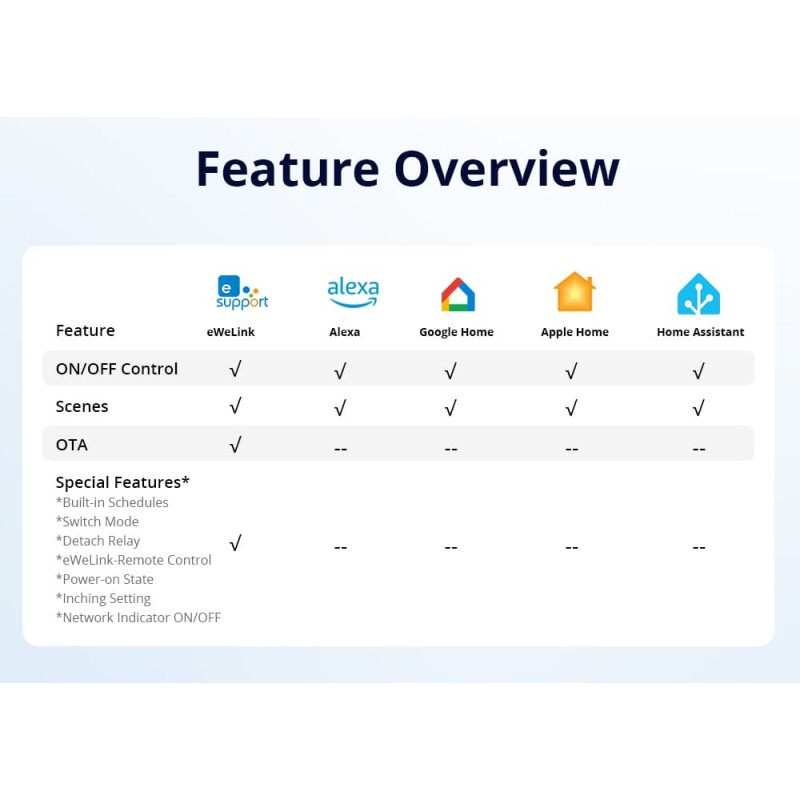

- MINI-D is a Wi-Fi dry contact smart switch that supports AC/DC power supply. It can be used to control motors, garage doors, and other dry contact input devices, offering remote control, voice control, and other functions through the APP. With Matter protocol support, it can work across various third-party platforms like Amazon Alexa, Google Home, Apple Home and Home Assistant, making it easier for users to manage their smart home ecosystem, and enjoy a seamless smart home experience.

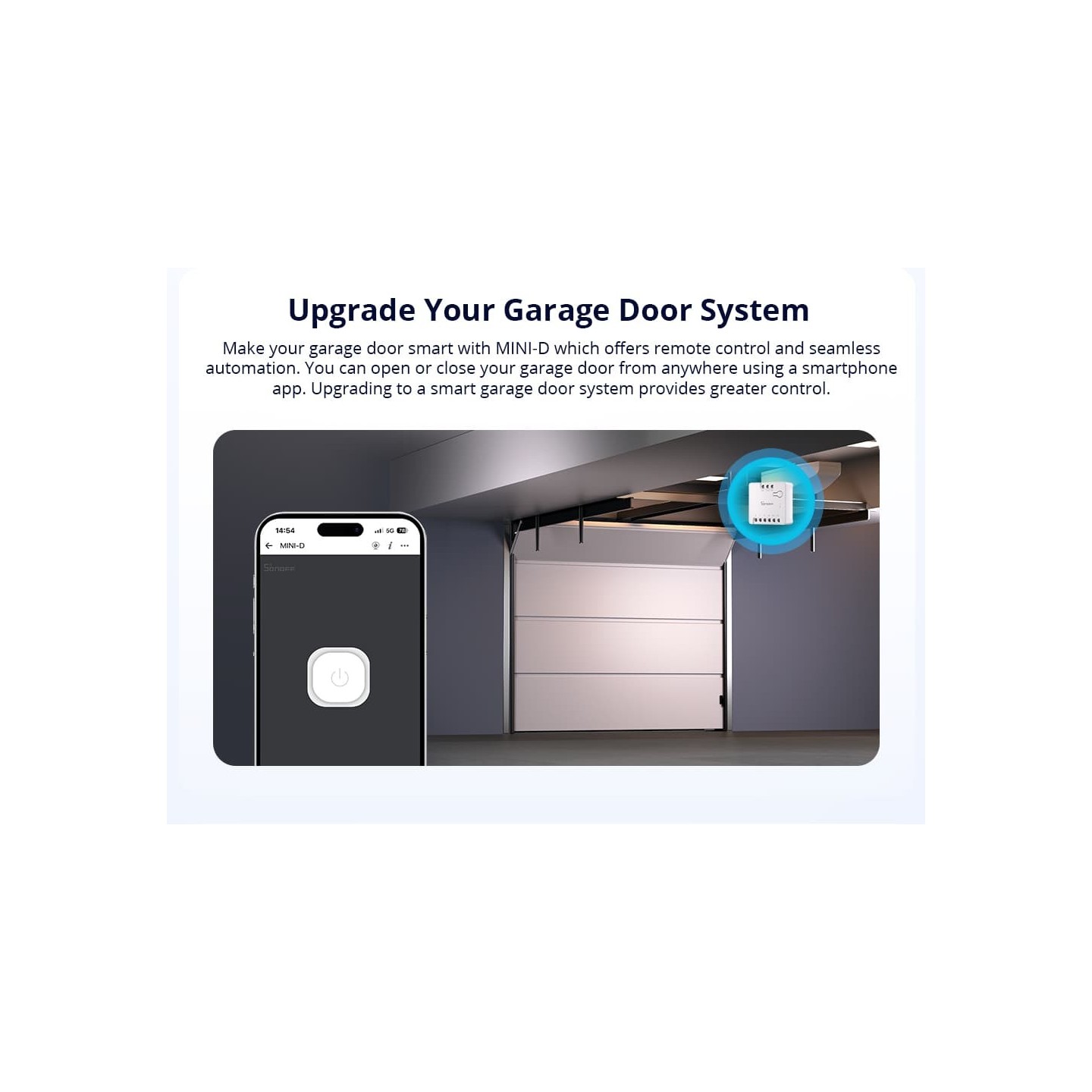

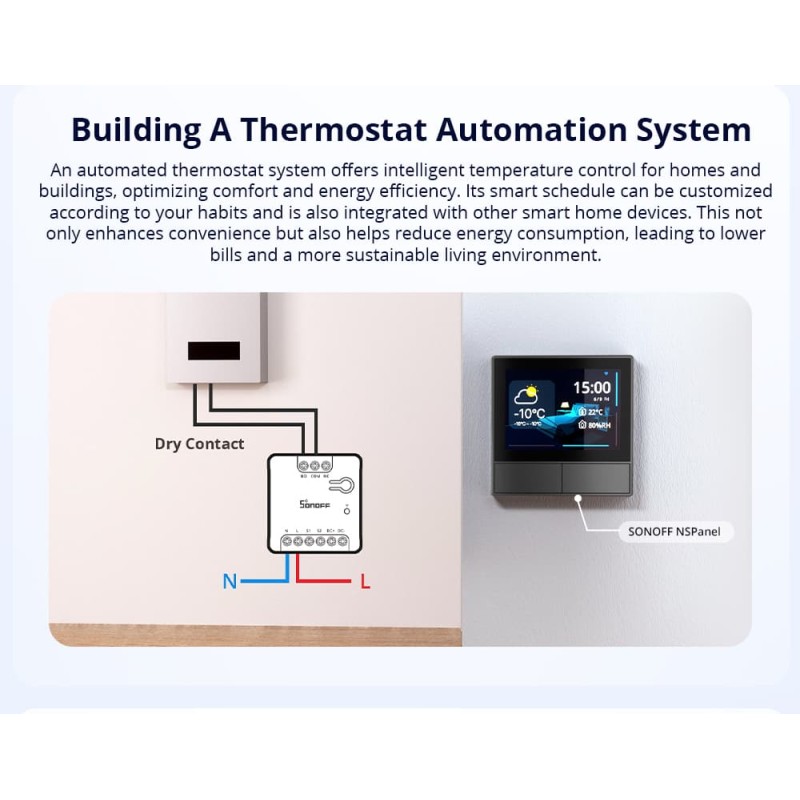

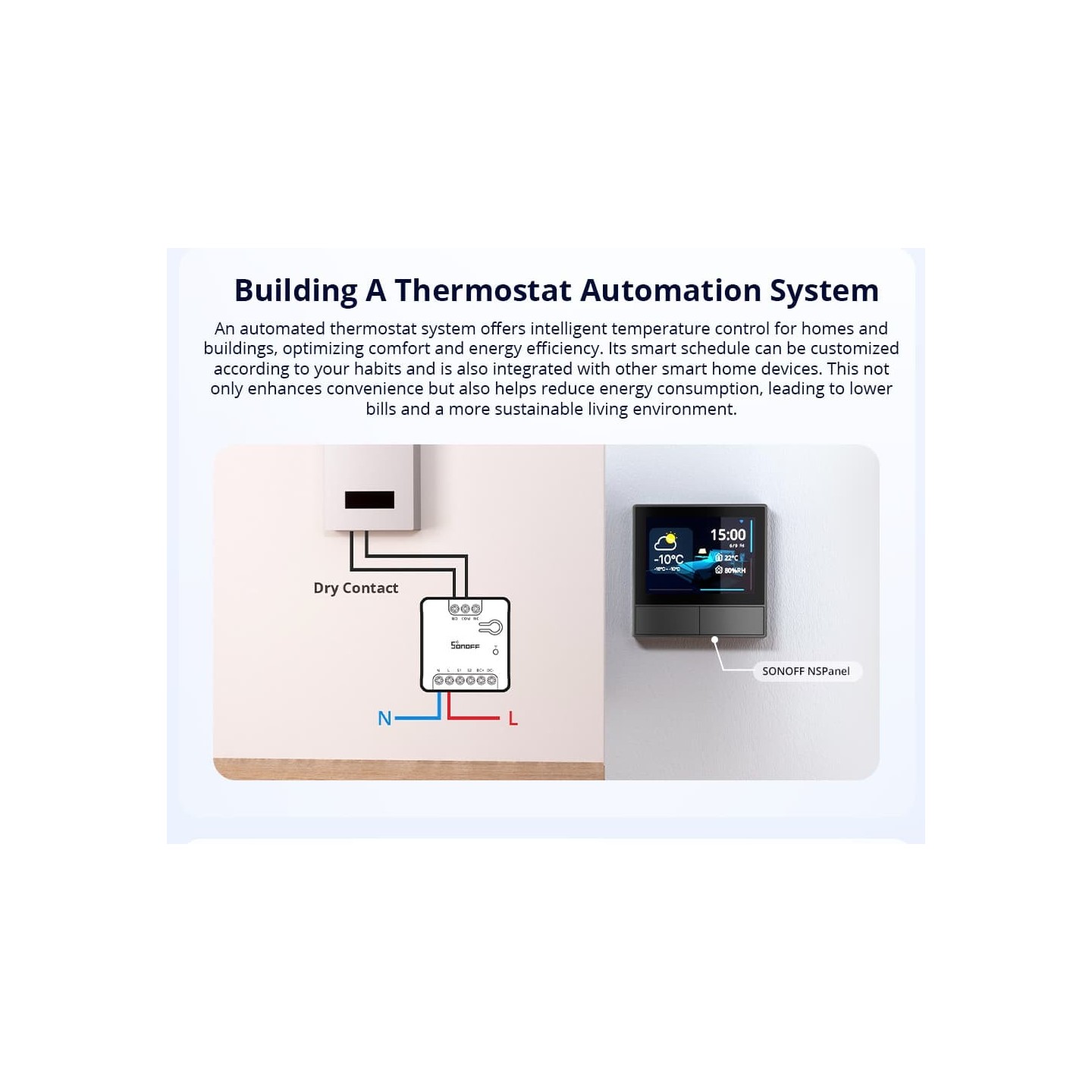

- With the MINI-D dry contact, it is easy to make your existing electrical devices such as garage doors, boilers, and more into smart, You can open or close your garage door from anywhere using a smartphone app; you also can build a thermostat automation system for homes and buildings to optimize comfort and energy efficiency. Its smart schedule can be customized according to your habits and is also integrated with other smart home devices like SONOFF Zigbee thermostatic radiator valve, leading to lower bills and a more comfortable living environment.

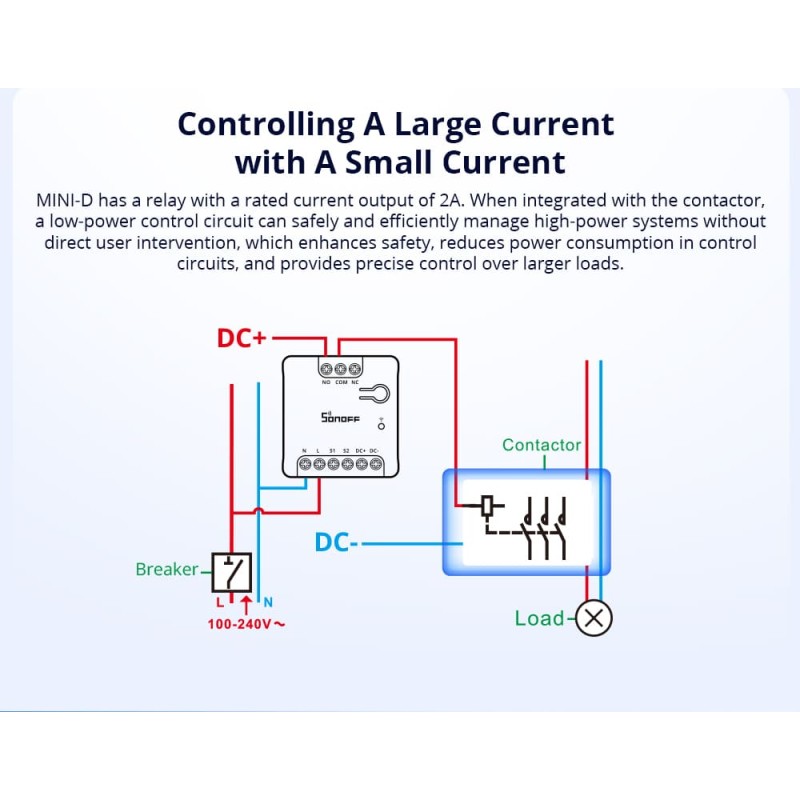

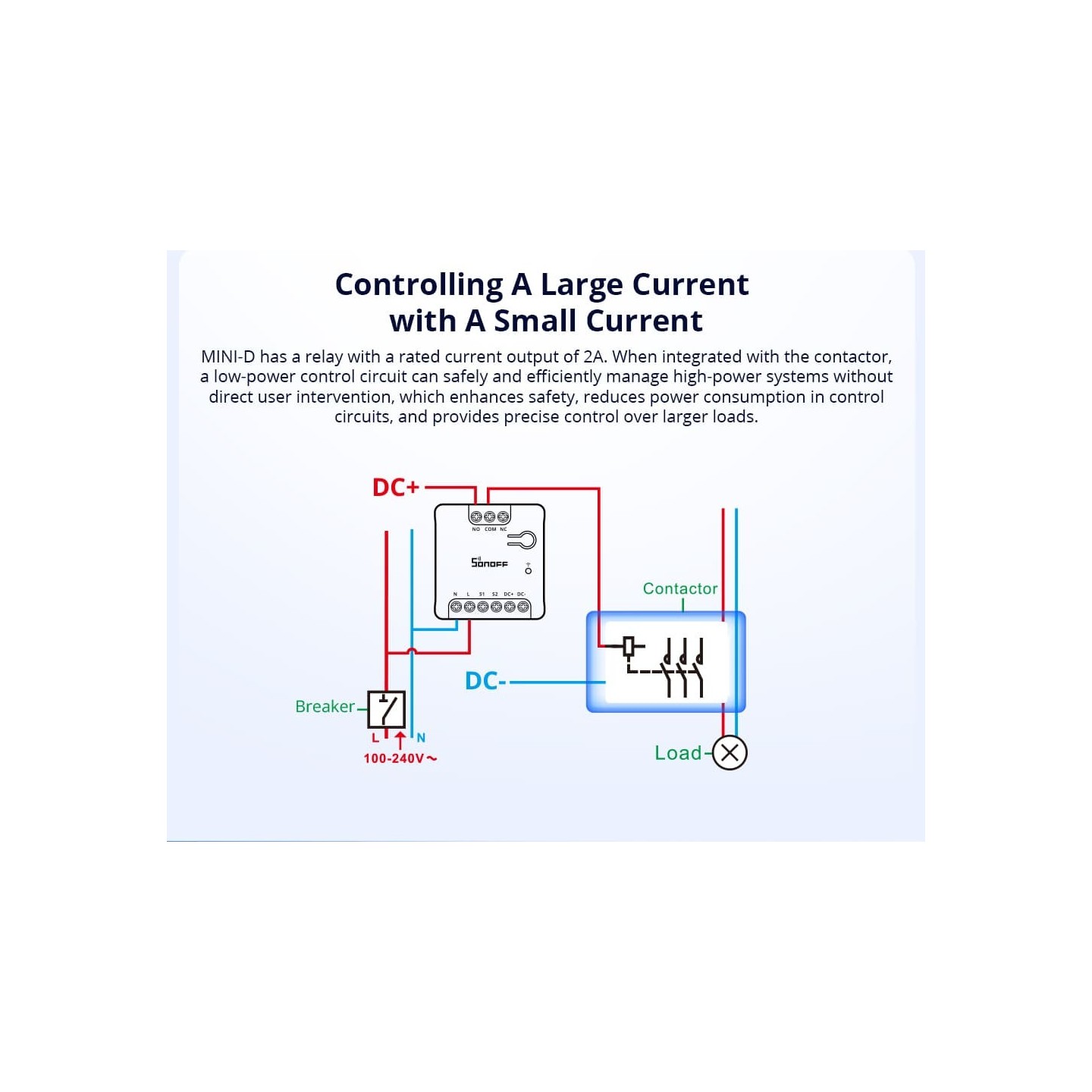

- MINI-D has a relay with a rated current output of 2A. When integrated with the contactor, a low-power control circuit can safely and efficiently manage high-power systems without direct user intervention, which enhances safety, reduces power consumption in control circuits, and provides precise control over larger loads.

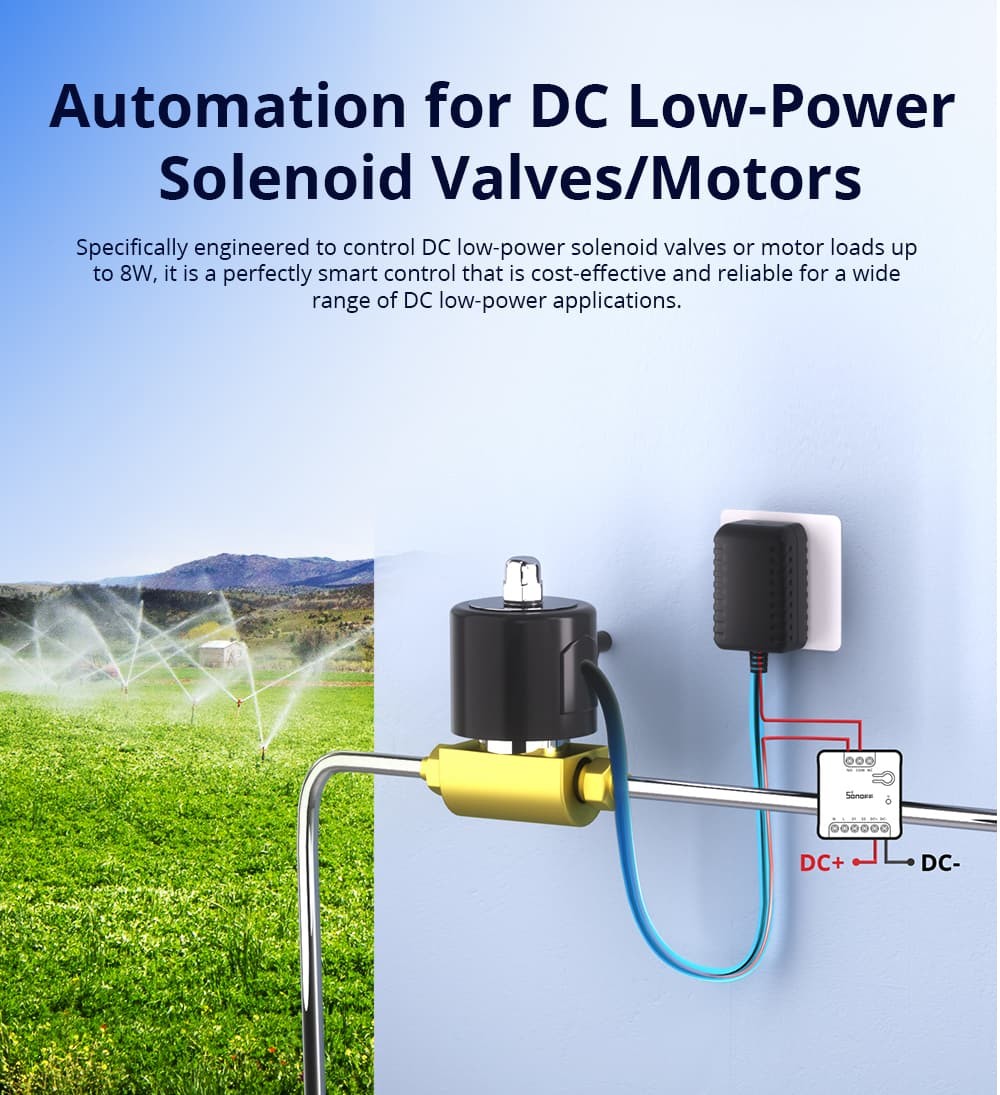

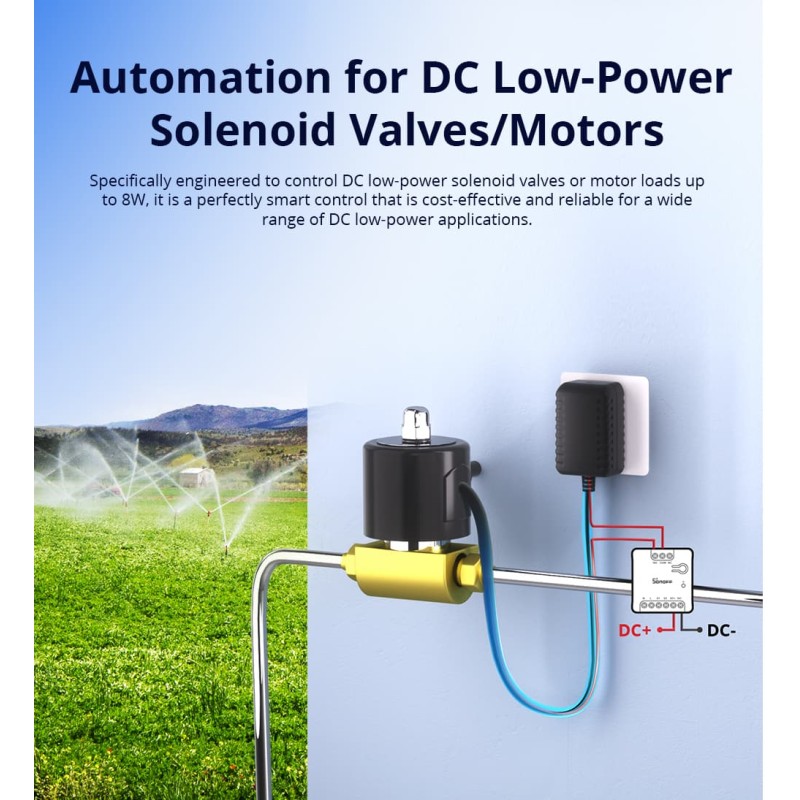

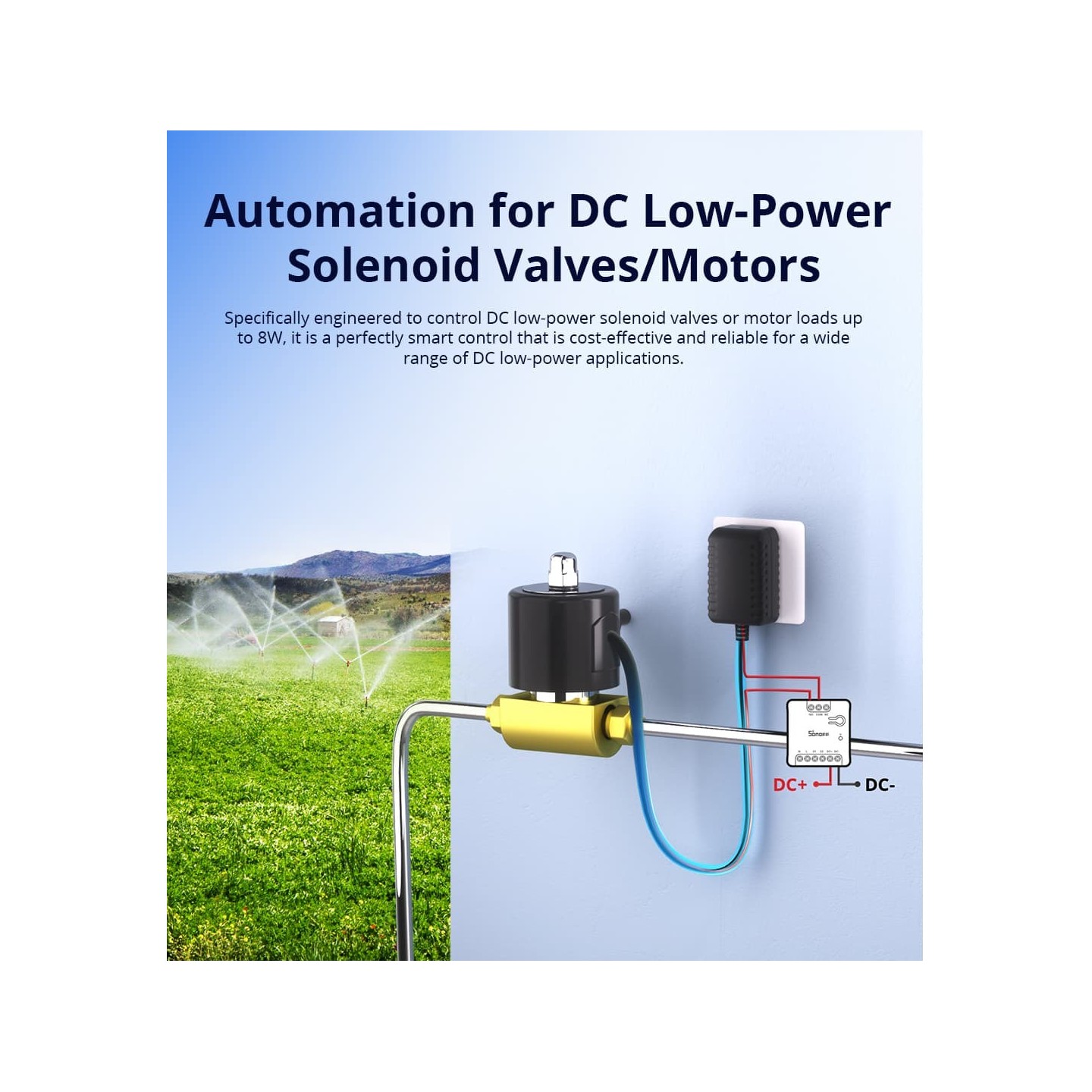

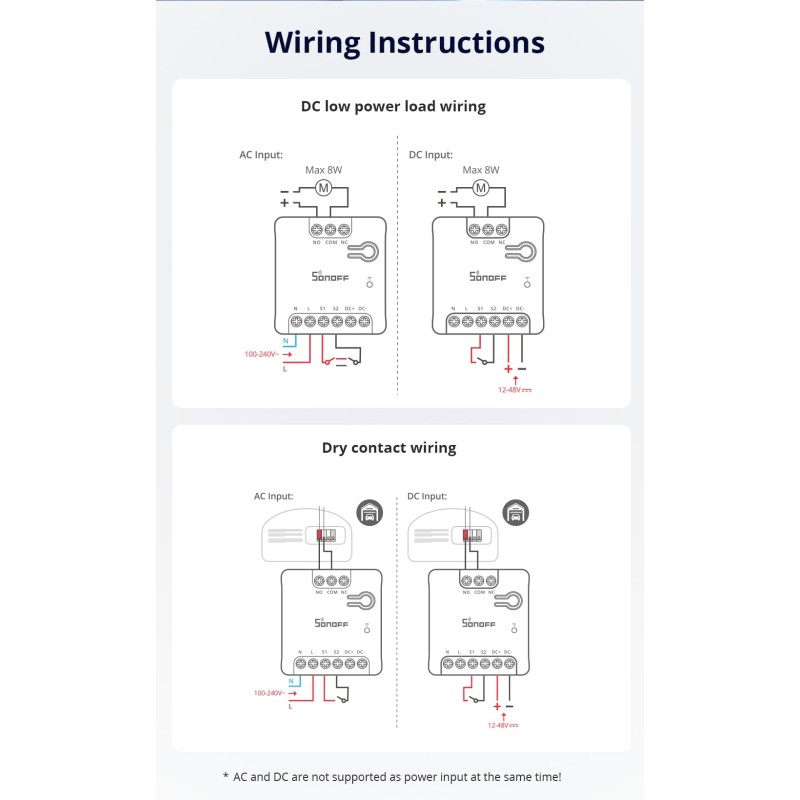

- SONOFF MINI-D specifically engineered to control DC low-power solenoid valves or motor loads up to 8W, it is a perfectly smart control that is cost-effective and reliable for a wide range of DC low-power applications.
- Wireless Connection : Wi-Fi: IEEE 802.11 b/g/n 2.4GHz

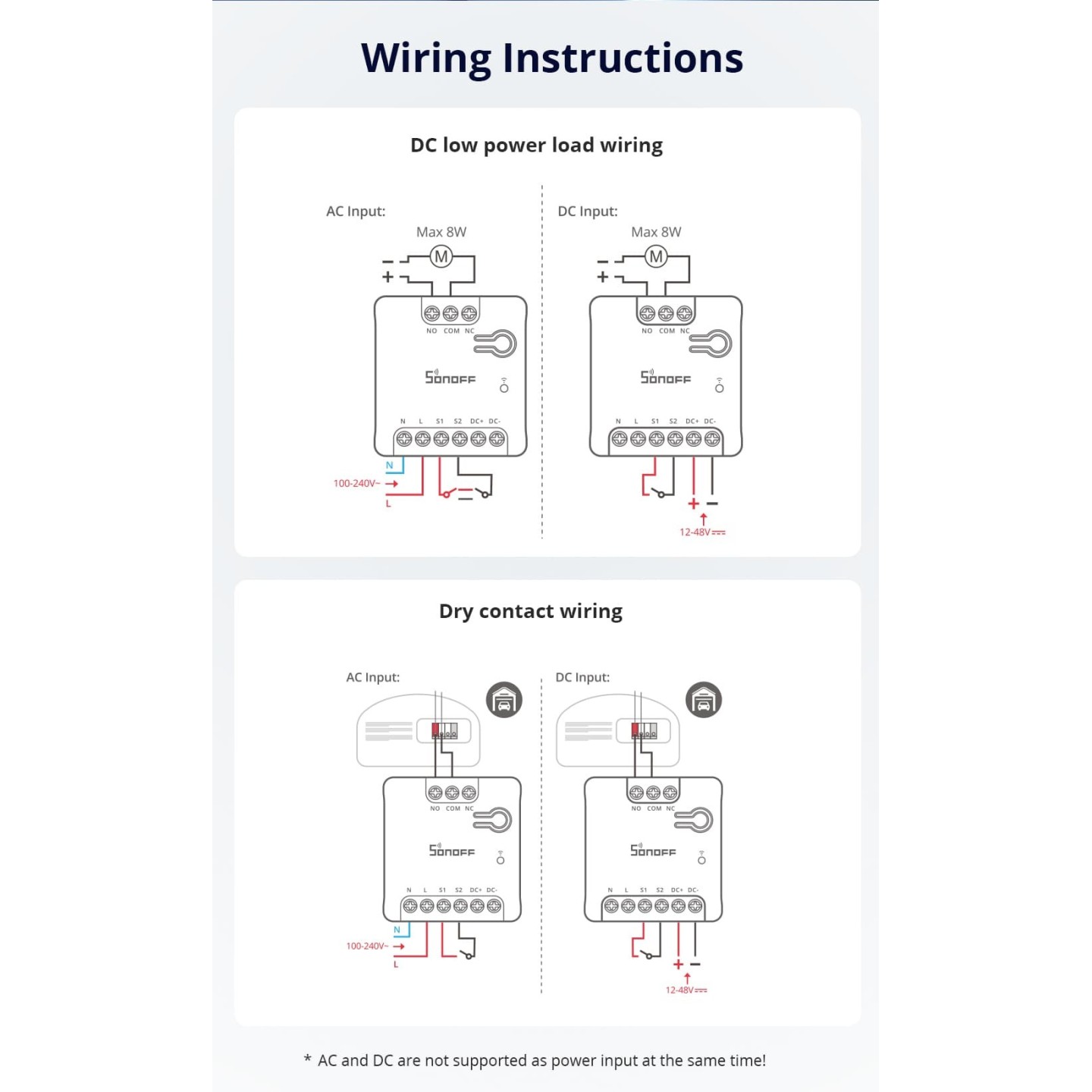

- Max.Load : 24V⎓2A Max Resistive load OR 12/24V⎓8W Motor Load
- Rating : 100-240V~50/60Hz 0.1A Max OR 12-48V⎓1A Max μ
- Color : White
- Casing Material : PC
- Net Weight : 34.5g
| Current | 2A |
| Wifi | Yes |

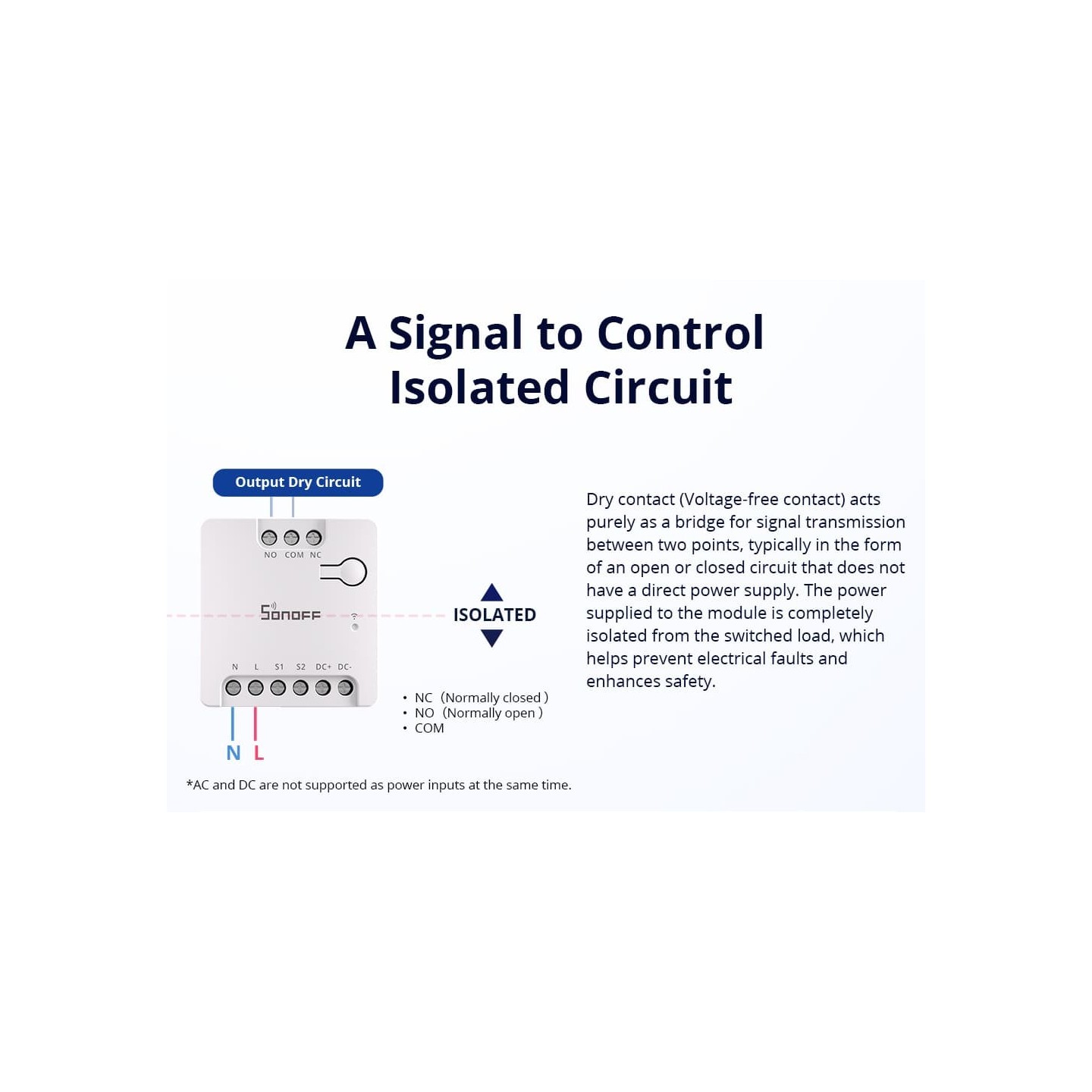

| Output | 1 X Dry Contact |
| Wattage | 8W |
