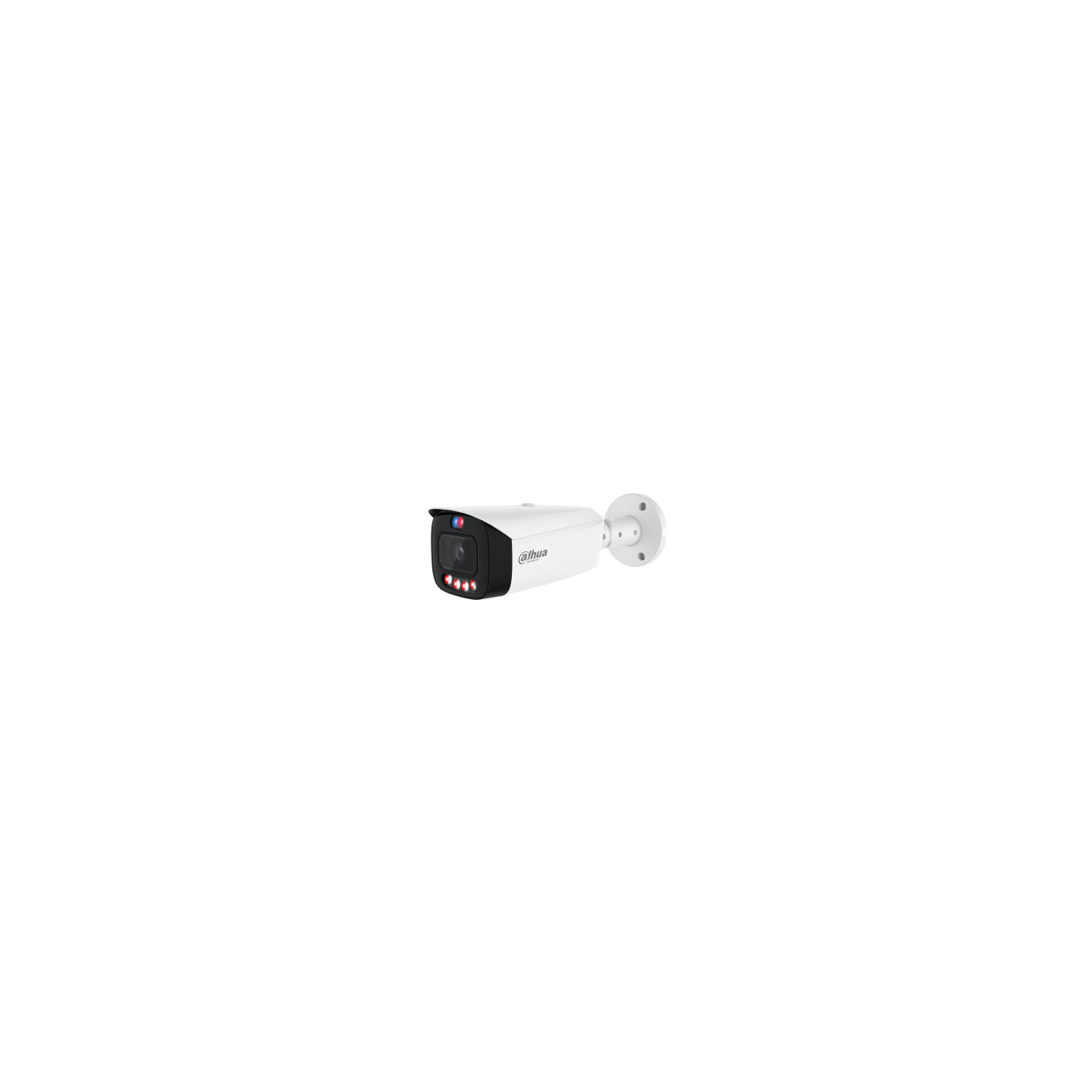

Dahua IP Lite AI 6.0MP - HFW3649T1-AS-PV-0280B-PRO - Bull 2.8mm

• 6-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 6 MP (3288 × 1850)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. · ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
• 12 VDC/PoE power supply.
• IP67 protection.
• Sound and light alarm (red and blue lights).
• SMD 4.0.
• Supports AI SSA and one-tap arming and disarming.
• SMD area can be set in warm light areas that support triggering alarms.

Camera

• Image Sensor: 1/1.8" CMOS

• Max. Resolution: 3288 (H) × 1850 (V)

• ROM: 256 MB

• RAM: 2 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination: 0.0005 Lux@F1.0 (Color, 30 IRE) / 0.0004 Lux@F1.0 (B/W, 30 IRE) / 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: Up to 30 m (98.43 ft) (IR) / Up to 30 m (98.43 ft) (Warm light)

• Illuminator On/Off Control: Auto; Manual

• Illuminator Number: 2 (Multi-core (IR + warm) light)

Lens

• Lens Type: Fixed-focal

• Lens Mount: M16

• Focal Length: 2.8 mm; 3.6 mm

• Max. Aperture: F1.0

• Field of View: 2.8 mm: H: 109°; V: 59°; D: 131

• Iris Control: Fixed

• Close Focus Distance: 2.8 mm: 3.2 m (10.50 ft)

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire (supports vehicle and human classification and accurate detection)

• SMD: SMD 4.0

• AcuPick: Uses deep learning algorithms to accurately match targets, such as people and motor vehicles, and quickly search through live and recorded videos to locate targets

• AI SSA: Adjusts the image parameters to suit the conditions using deep learning algorithms

• Smart Search: Works with Smart NVR to refine intelligent search, event extraction, and merging of event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

• Smart Codec: Smart H.265+; Smart H.264+

• AI Coding: AI H.265 (Compression rate ≥25%) / AI H.264 (Compression rate ≥25%)

• Video Frame Rate: Main stream: 3288 × 1850@(1 fps–25/30 fps) / Sub stream: 1920 × 1080@(1–25/30 fps) / Third stream: 1920 × 1080@(1–25/30 fps)

• Stream Capability: 3 streams

• Resolution: 6M (3288 × 1850/3200 × 1800) 4M (2688 × 1520/2560 × 1440) / 3M (2304 × 1296) / 1080p (1920 × 1080) / 720p (1280 × 720) / D1 (704 × 576/704 × 480) / VGA (640 × 480) / CIF (352 × 288/352 × 240)

• Bit Rate Control: CBR/VBR/ABR

• Video Bit Rate: H.264: 3 kbps–16384 kbps / H.265: 3 kbps–16384 kbps

• Day/Night: Auto (ICR)/Color/B/W

• BLC: Yes

• HLC: Yes

• WDR: 120 dB

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: OFF/ON (4 areas, rectangular)

• Region of Interest (RoI): Yes (4 areas)

• Smart Illumination: Yes

• Smart Dual Light: Yes

• Defog: Yes

• Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)

• Mirror: Yes

• Privacy Masking: 8 areas

• LDC: Yes

Audio

• Built-in MIC: Yes, built-in dual Mic

• Built-in Speaker: Yes, built-in speaker

• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm

• Alarm Event:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK and API: Yes

• Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

• Interoperability: ONVIF (Profile S; Profile G; Profile T); CGI

• User/Host: 20 (Total bandwidth: 64 M)

• Storage: FTP; SFTP; Micro SD card (support max. 512 GB); NAS

• Browser: IE11; Chrome; Firefox

• Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care

• Mobile Client: iOS; Android

Cyber Security

• Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certification

• Certifications:

  • CE-LVD: EN 62368-1

  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

• Audio Input: 1 channel (RCA port)

• Audio Output: 1 channel (RCA port)

• Alarm Input: 1 channel in: wet contact, 5 mA 3–5 VDC

• Alarm Output: 1 channel out: wet contact, 300 mA 12 VDC

Power

• Power Supply: 12 VDC; PoE

• Dual Power Backup: When the power adapter and PoE provide power simultaneously, disconnect one of them. The device will continue to work, but will not restart.

• Power Consumption:

  • Basic: 4.1 W (12 VDC); 6 W (PoE)

  • Max: 8.2 W (12 VDC); 10 W (PoE) (H.265+ WDR + warm light + siren and light active deterrence + intelligence on)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)

• Operating Humidity: ≤95%

• Protection: IP67

Structure

• Casing Material: Metal

• Product Dimensions: Φ122.0 mm × 116.1 mm (4.80" × Φ4.57")

• Net Weight: 0.8 kg (1.76 lb)

• Gross Weight: 1.0 kg (2.20 lb)
