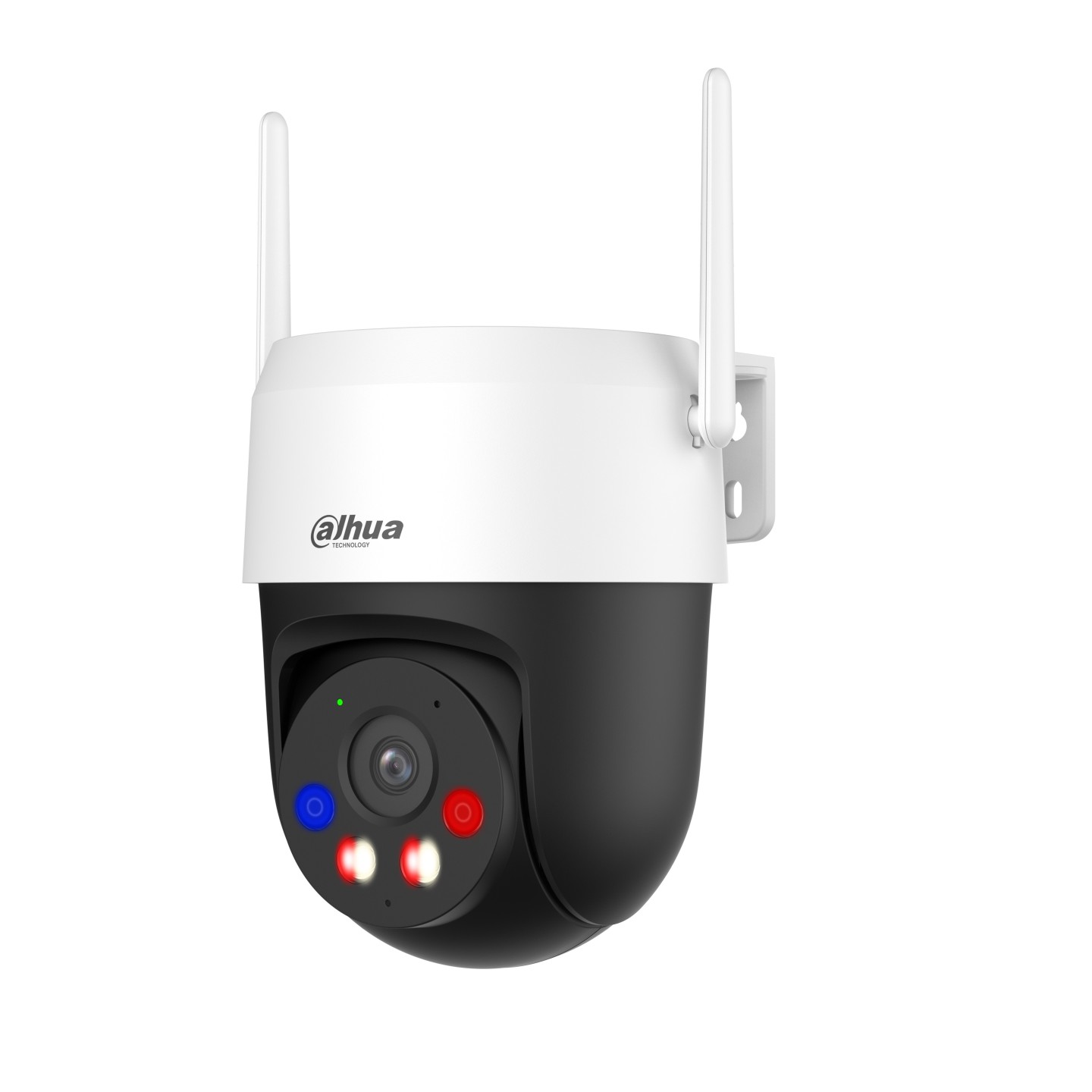

Dahua IP 5.0MP 4.0mm Wifi PT Dome Dual Illumination - SD-P5AS-PV - 5.0MP, 4.0mm, Wifi, PT Dome, Dual Illumination

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. Additionally, it includes smart dual illuminators that not only reduce light pollution, but also intelligently turn on when they are triggered by an event to assist the camera with capturing clear, full-color videos.

Camera

• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 2880 (H) × 1620 (V)
• Min. Illumination: 0.007 lux@F1.6 (Color, 30 IRE) / 0.0007 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
• Illumination Distance: Up to 30 m (98.43 ft) (IR) / Up to 30 m (98.43 ft) (Warm light)
• Illuminator Number: 2 (Multi-core (IR + warm) light)
• Angle Adjustment: Pan: 0° to 345° / Tilt: 0° to 90° / Rotation: 0° to 345°

Lens

• Lens Type: Fixed-focal
• Focal Length: 4.0 mm
• Max. Aperture: F1.6
• Field of View: H: 78°; V: 42°; D: 92°

Intelligence

• Human Detection: Yes
• Vehicle Detection: Yes

Audio and Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
• Video Frame Rate: Main stream: 2880 × 1620@(1–25/30 fps) / Sub stream: 640 × 360@(1–25/30 fps) / Values above are maximum per stream; total limited by encoding capacity.
• Video Bit Rate: H.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps
• Day/Night: Auto (ICR)/Color/B/W
• WDR: DWDR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Image Rotation: 0°/180°
• Built-in MIC: Yes, built-in Mic
• Built-in Speaker: Yes, built-in speaker
• Audio Compression: G.711a; G.711Mu; PCM

Network

• Network Port: RJ-45 (10/100 Base-T)
• Wi-Fi: IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤20 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE)
• Wi-Fi Pairing: Bluetooth pairing
• Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI
• Storage: Micro SD card (support max. 256 GB)
• Management Software: Smart PSS Lite; DSS; DMSS
• Mobile Client: Android; iOS

Function

• Abnormal Sound Alarm: Yes

General

• Certifications: CE
• Power Supply: 12 VDC (±30%)
• Power Consumption: Basic: 2 W (12 VDC); Max.: 14 W (12 VDC) (illuminator intensity + red and blue active deterrence + speaker on + PT rotation + Wi-Fi pulling stream + WDR)
• Operating Temperature: –30 °C to +55 °C (–22 °F to +122 °F)
• Operating Humidity: ≤95% (RH), non-condensing
• Protection: IP66
• Camera Button: Reset button
• Casing Material: Plastic
• Product Dimensions: 125.4 mm × 110 mm × 140.3 mm (4.94" × 4.37" × 5.52") (L × W × H)
• Net Weight: 0.4 kg (0.88 lb)
