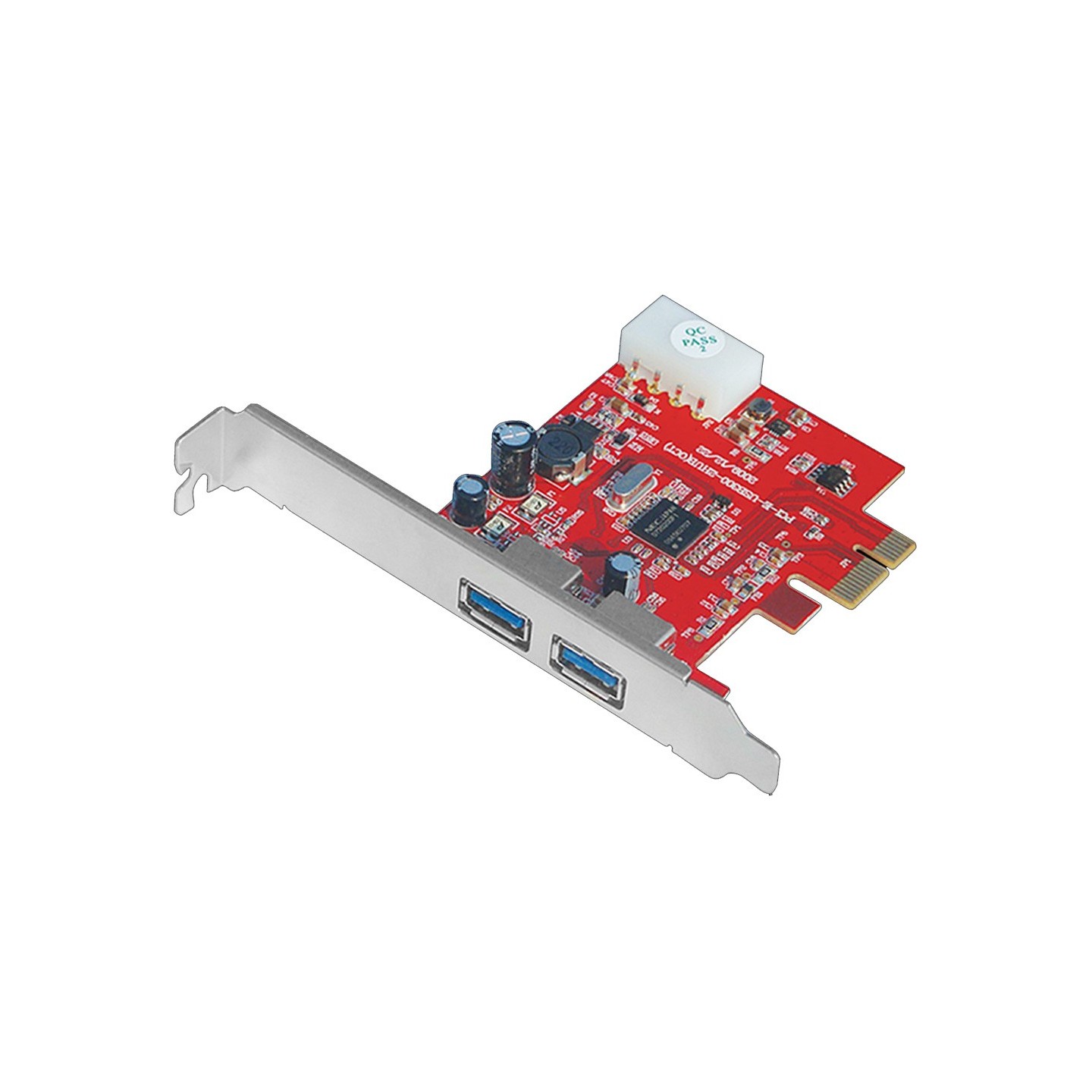

Unitek Y-7301 2-Port USB 3.0 PCIe x1 Card (Boxed)
Unitek Y-7301 adds 2x USB 3.0 ports (5Gbps) via NEC UPD720200 chipset. PCIe 2.0 x1 interface, xHCI 0.95 compliant, supports USB 3.0/2.0/1.1. Max 900mA/port. Includes low/full profile brackets.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 |
| Expansion Cards - Form Factor | Low Profile Half-Height Standard Profile Full-Height |
| Expansion Cards - External Connectivity | USB Type-A |
The Unitek Y-7301 is a reliable 2-port USB 3.0 PCI Express expansion card designed to enhance connectivity on desktop systems lacking sufficient high-speed USB ports. Featuring the proven NEC UPD720200 chipset, it delivers SuperSpeed USB 3.0 performance at up to 5Gbps per port while maintaining backward compatibility with USB 2.0 and 1.1 devices.
Compliant with PCI Express Base Specification 2.0 and utilizing a PCIe x1 bus interface, this card integrates seamlessly into modern motherboards. It adheres to xHCI Revision 0.95 for optimal driver support across Windows, Linux, and macOS. Each port supports up to 900mA power delivery, suitable for powering most USB peripherals. The card ships with both standard full-height and low-profile brackets for flexible installation in various PC cases.
- NEC UPD720200 chipset
- PCI Express 2.0 x1 interface
- 2x USB 3.0 Type-A ports (5Gbps)
- Max 900mA per port
- Supports USB 3.0/2.0/1.1
- Includes low-profile bracket
| Chipset | NEC UPD720200 |
| Host Interface | PCI Express 2.0 x1 |
| USB Ports | 2 x USB 3.0 Type-A |
| Max Data Transfer Rate | 5Gbps (USB 3.0 SuperSpeed) |
| Power per Port | 900mA max |
| USB Standards Supported | USB 3.0 / 2.0 / 1.1 |
| Controller Standard | xHCI Rev 0.95 |
| Brackets Included | Full-height & Low-profile |
| Weight | 0.150 kg |
