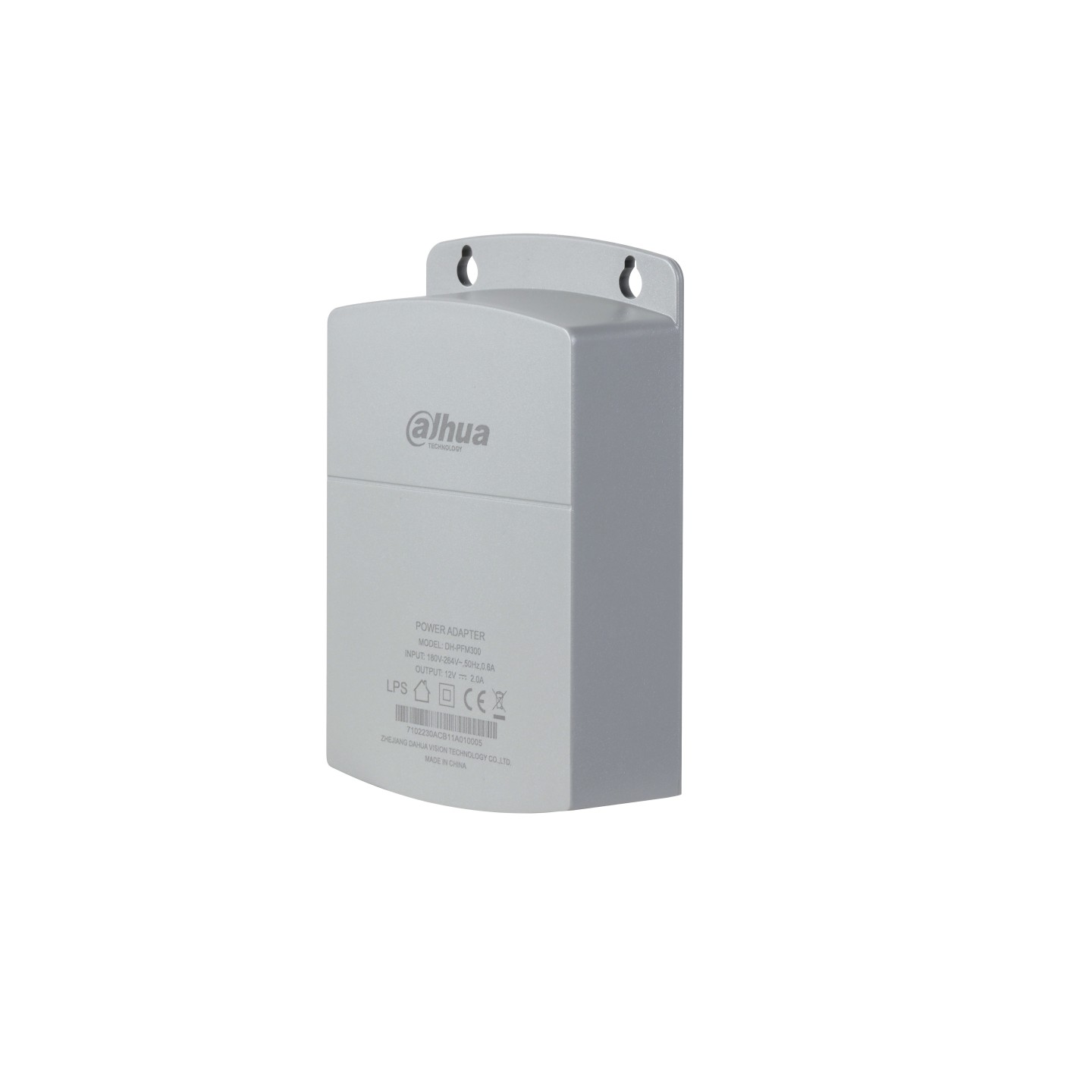

Dahua Waterproof Switching Power Supply - PFM300 - 240V to DC12V 2A
Easy installation with wall mounting and waterproof design; operates -30°C to +70°C; full-load efficiency up to 100%.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | 12V DC Adaptor |
|---|---|
| Power Supplies - Output Current | 2 A |
- Easy installation and wall mount, structural water-proof
- Support -30 ℃ ~+70 ℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
- With junction function for camera wiring or can place video balun with HDCVI/AHD/TVI/CVBS cameras
- Made of PC environmental protection material, which meets “V0” fire protection;
- Accurate over current, voltage load protection
- Rated input : AC180~264V, 50/60Hz, 0.6A
- Efficiency : 82%
- no-load power consumption : <0.5W
- Output voltage : DC12V (±5%)
- Output current : 2A (±2%)
Protection/Environmental
- Protection : Accurate over current, voltage load protection / “V0” fire protection
- Working temperature : -30℃~+70℃(-22℉~+158℉)
- Working humidity : <90% RH
Physical Properties
- Weight : 160g(0.35lb)
- Dimension : 88mmx37mmx138mm
- Installation : Wall mount
- Color : Grey
- Input : Palisade terminal
- Output : DC output wire 60mm (interface: φ5.5×φ2.1)
Safety Standards
- Certification : CE
| Type | Compact |
| Voltage | 12V |
| Ampers | 2A |
| Current | 2A |
