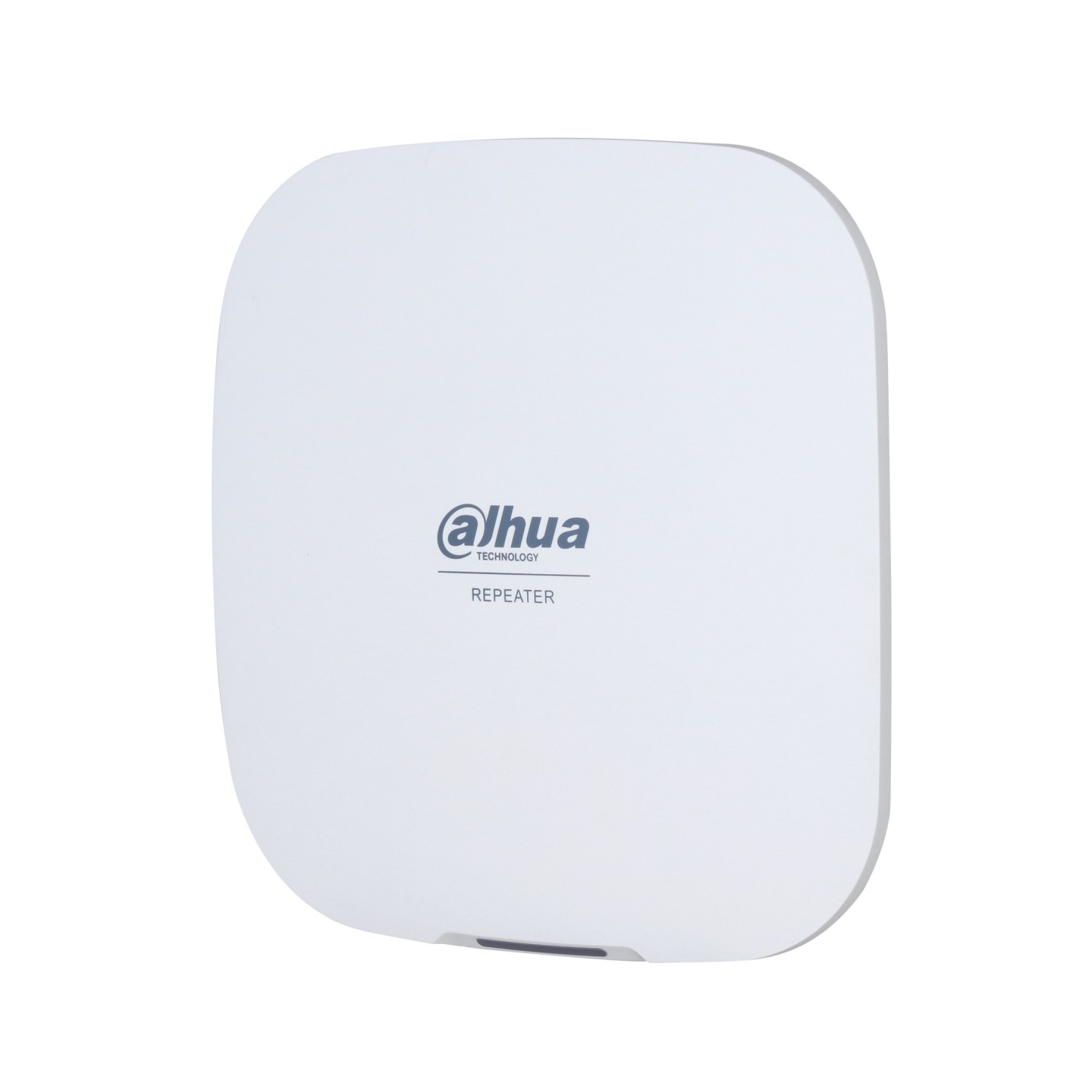

Dahua Alarm Wireless Repeater - ARA43-W2(868) - Wireless
Extends RF distance with 2-way RF communication, LED status indicator, supports manual and auto pairing, connects up to 32 peripherals.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Alarm Kits - System Type | Wireless |
|---|---|
| Alarm Kits - Battery Backup | Yes |
- Connects up to 32 peripherals
- Two-way RF communication
- LED indicator displays device status
- Supports manual and auto paring, extending RF distance for your security system
- Auto switches from dual antennas to reduce blind areas
- Cloud update and auto recovery of update failure
- Battery backs device working for over 35 hours when external power supply fails
Input/Output
- Wireless Zone : 32 × wireless peripherals
Port
- Storage Battery : Built-in lithium battery
- Indicator Light : 1 that indicates pairing and working
- Power Switch : 1 × power switch
Function
- Pairing Mode : Auto/Manual
- Tamper Alarm : Yes
- Remote Update : Cloud update
- Power Failure Protection for Configured Parameters : Yes
- Disconnection Detection of External Power Supply : Yes
- Low Battery Alarm : Yes
- Search : Signal strength detection
Wireless
- Carrier Frequency : 868.0 MHz–868.6 MHz
- Communication Distance : Up to 1,600 m in an open space
- Communication Mechanism : Two-way
- Encryption Mode : AES128
- Frequency Hopping : Yes
General
- Power Supply : 12 VDC, 1.5 A
- Battery Life : Battery standby time: 35 h
- Operating environment : –10 °C to +55 °C (indoor)
- Operating Humidity : 10%–90% (RH)
- Product Dimensions : 163.0 mm × 163.0 mm × 32.0 mm
- Packaging Dimensions : 219.0 mm × 187.0 mm × 91.0 mm
- Installation : Wall mount, Desktop
- Net Weight : 0.32 kg
- Gross Weight : 0.74 kg
- Certifications : CE
- Casing : PC+ABS
| Connectivity | Wireless |
| Battery | Up to 35 Hours |
| Communication | 2 Way Communication |
| Devices | Up to 32 |
| Certification | Grade 2, CE |
| Range | Up to 1600 meters |
| Installation | Wall |
