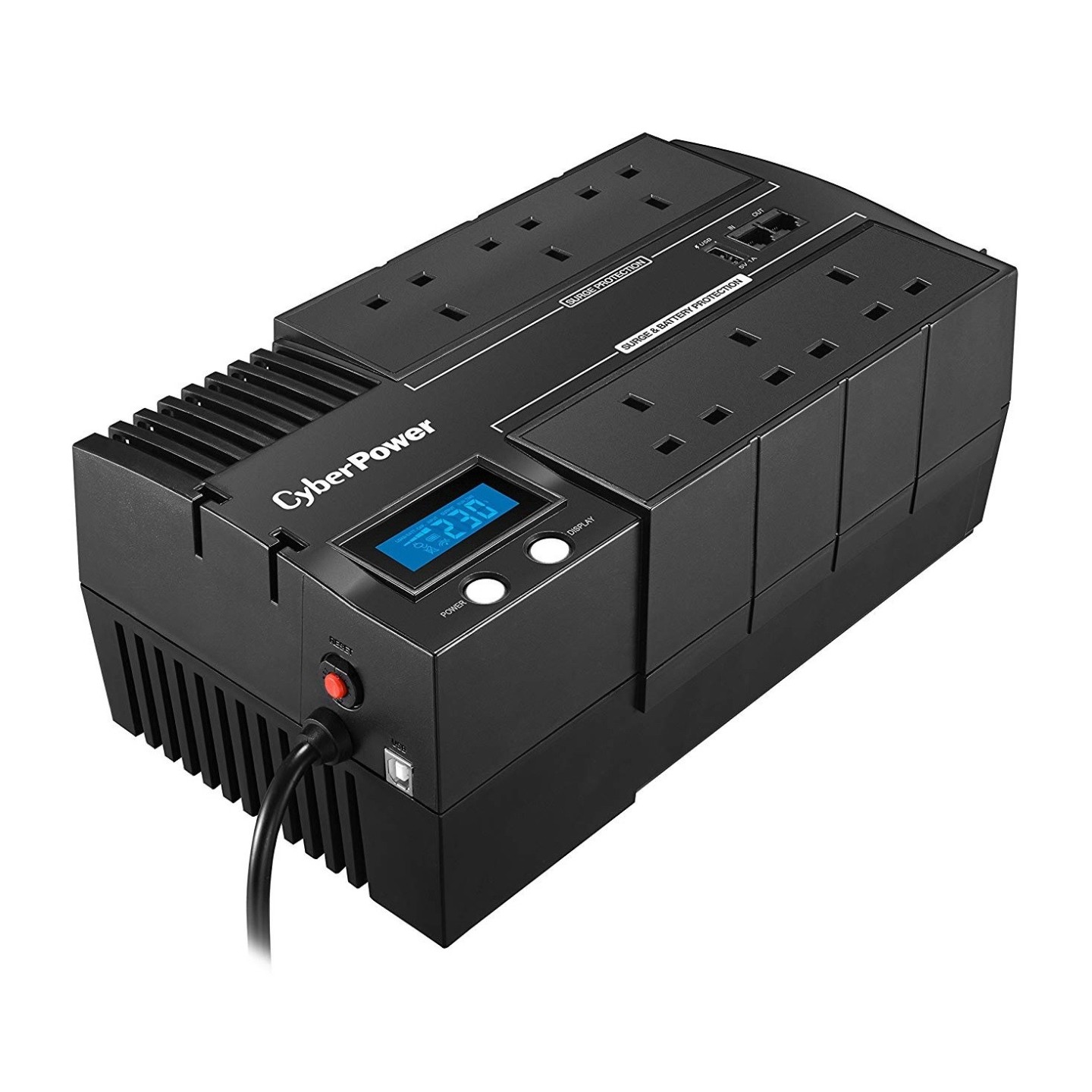

CyberPower UPS - BR1000ELCD - 1000VA 600W Brick Line Interactive UPS LCD
Reliable battery backup and surge protection for home/office devices with 1000VA/600W, Brick Line Interactive UPS with LCD display.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Type | Line-Interactive |
|---|---|
| UPS & Power Backup - Capacity (VA) | 1000 VA |
| UPS & Power Backup - Output Power (W) | 600 W |
| UPS & Power Backup - Output Receptacles | UK |
| UPS & Power Backup - Outlets (Qty) | 6 |
CyberPower BR1000ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.
The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surge/spikes and other power irregularities. Users can access precise information of critical power/battery conditions by switching to the LCD status monitor.
FEATURES
- Line-interactive UPS Topology
- Energy Saving Technology
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- USB Charging Port
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- LCD Status Display
- Brick Form Factor
TYPICAL APPLICATION
- PCs & Workstations
- Computers & Laptops
- SOHO Networking Devices
- Phone/Fax/Modem
- Video/Audio Equipment
- NAS & Servers
- Home Theater Systems
- DVRs/Surveillance Systems
- POS Systems
- Home Desktop
- Home Office
- Office Desktop
- Back Office
To download the latest Power Panel software please visit the website below:
https://www.cyberpower.com/uk/en/product/sku/BR1000ELCD
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 165 ~ 290
Input Frequency (Hz): 50 ± 5, 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 4.55
Input Connector Type: UK
OUTPUT
Capacity (VA): 1000
Capacity (Watts): 600
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker

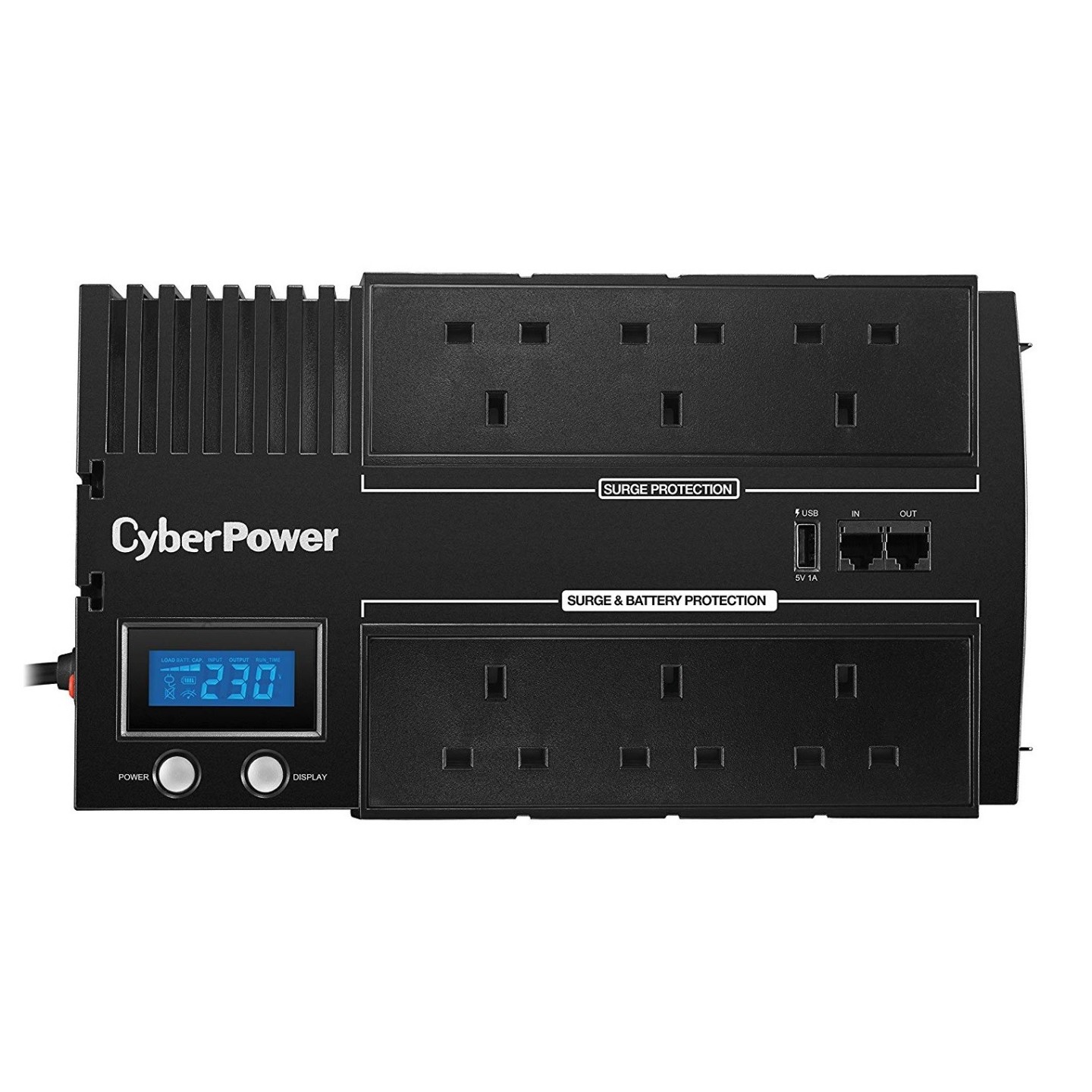

Outlet(s) - Total: 6
Outlet Type: UK x 6
Outlet(s) - Battery & Surge Protected: 3
Outlet(s) - Surge-Only Protected: 3
USB Charging Port(s): 1
USB Charging Current (A): 1
Typical Transfer Time (ms): 4
BATTERY

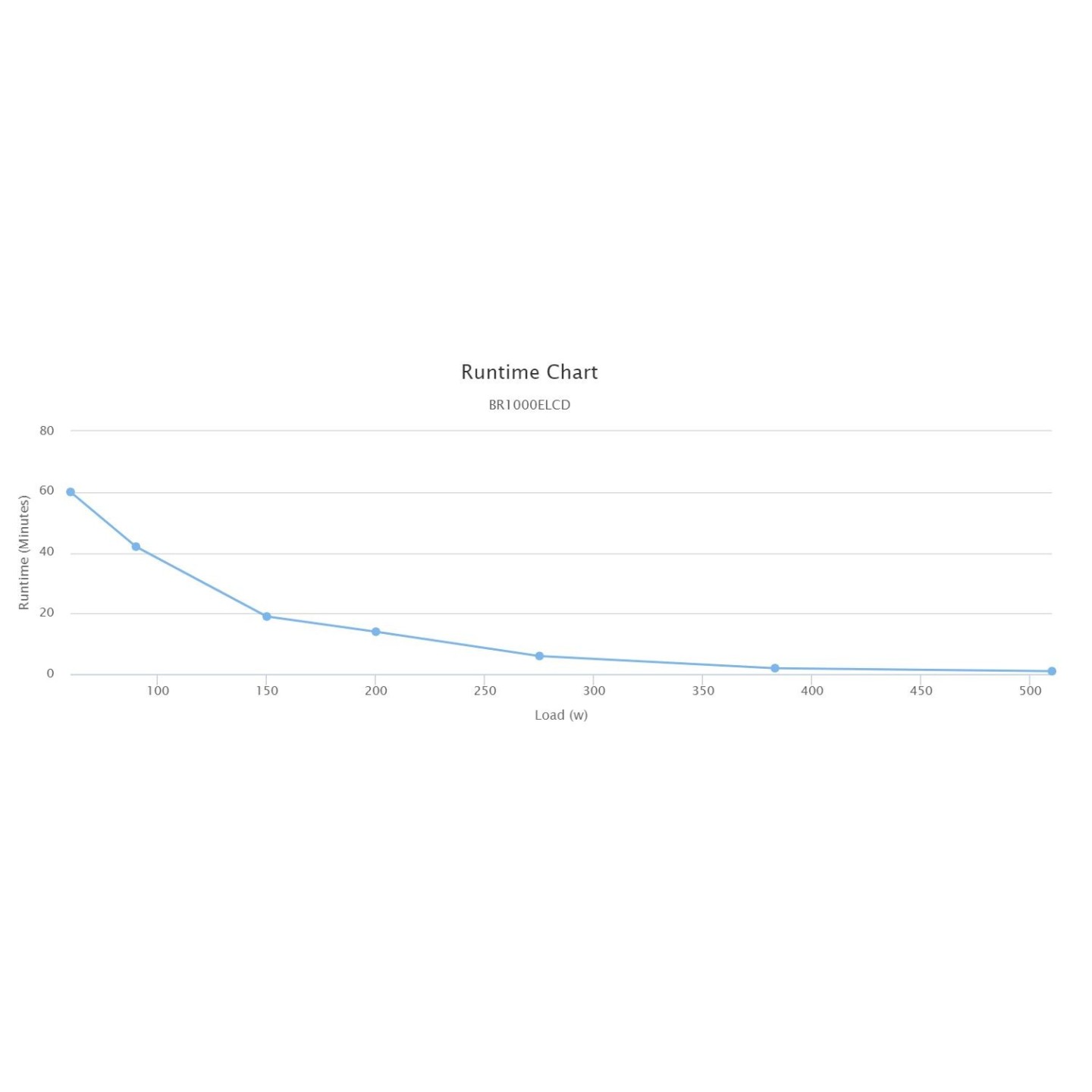

Runtime at Half Load (min): 6
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery: Yes
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0117
RBP Quantity (pcs): 1
SURGE PROTECTION & FILTERING
Surge Suppression (Joules):125
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
MANAGEMENT & COMMUNICATIONS
LCD Panel: Yes
LCD Information Display: Power Status , Battery Status , Load Status , Other Information
LCD Setting & Control: Alarm Setting
LED Indicators: Power On , Line Mode , Battery Mode , Low Battery
HID Compliant USB Port(s): 1
Audible Alarms: Battery Mode , Low Battery , Overload , UPS Fault
Power Management Software: PowerPanel® Personal Edition
PHYSICAL
Form Factor: Brick
Enclosure Construction: Plastic
Color: Black
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (mm.): 166 x 118 x 288
Weight (kg.): 6.5
ENVIRONMENTAL
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%): 0 ~ 90
Operating Elevation (feet/meters): 0-10,000 feet (0-3,000 meters)
Storage Temperature (°C): -20 ~ 50
Storage Relative Humidity (Non-condensing) (%): 0 ~ 90
Online Thermal Dissipation (BTU/hr): 102
CERTIFICATIONS
Certifications: CE
RoHS: Yes
| Type | Line Interactive |
| Waveform | Simulated Sine Wave |
| Output VA | 1000VA |
| Output Watts | 600W |
| Outlet Type | UK Socket |
| Outlet Number | 6 |
| Surge Protected | Yes |
| LCD Display | Yes |
| USB/RS232 | USB only |
| USB Charging Port | Yes |
| Management Software | Power Panel Personal |
| RJ11/RJ45 Protection | Yes |
| Overload Protection | Circuit Breaker |
| Energy Saving | Yes |
