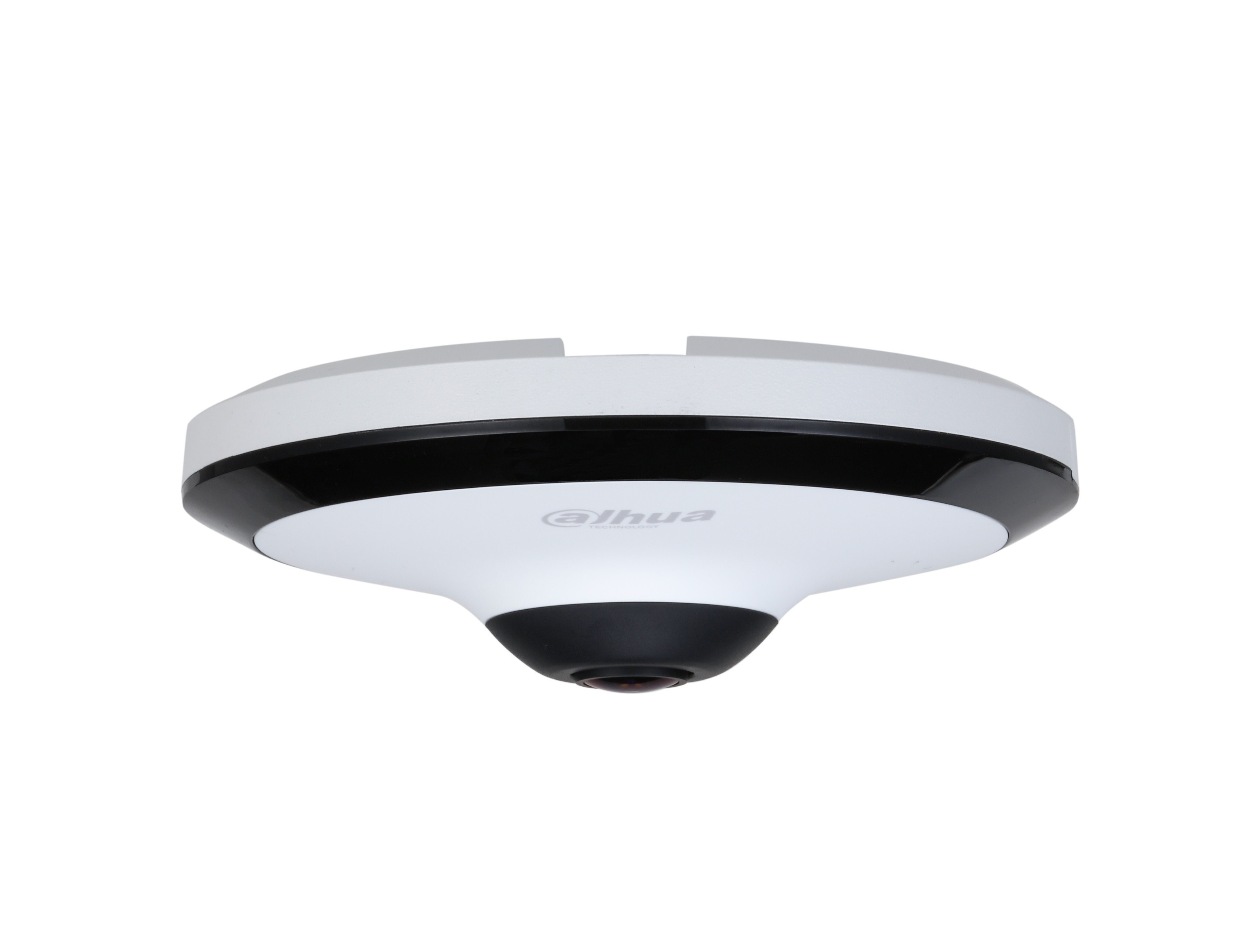

Dahua IP 5MP Panoramic Fisheye Camera - EW5541-AS - Panoramic Fisheye Camera

• 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
• Outputs max. 5MP (2592 × 1944) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in efficient IR illuminator, and the max. illumination distance: 10 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire, people counting in area
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
• 12V DC/PoE power supply, easy for installation
• Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported

Camera

• Image Sensor : 1/2.7” 5Megapixel progressive scan CMOS
• Effective Pixels :2592(H)x1944(V)
• RAM/ROM :512MB/128MB
• Scanning System :Progressive
• Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
• Minimum Illumination : 0.006 Lux@F2.0 (Color, 30IRE) / 0.0006 Lux@F2.0 (B/W, 30IRE) / 0 Lux (Illuminator on)
• S/N Ratio : More than 56dB
• Illumination Distance : 10 m
• Illuminator On/Off Control : Auto/Manual
• Illuminator Number : 3 (IR LED)

Lens

• Lens Type : Fixed
• Mount Type : Board-in
• Focal Length : 1.4mm
• Max. Aperture : F2.0
• Angle of View : H: 180°, V: 180°,D: 180°
• Close Focus Distance : 0.2m

Smart Event

• Heat Map : Yes

Professional, intelligent

• IVS (Perimeter Protection) : Tripwire; intrusion
• People Counting : Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
• Intelligent Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec : Smart H.265+/ Smart H.264+
• Streaming Capability : 3 Streams
• Resolution : 5M(2592×1944)/3M(2048×1536)/UXGA(1600×1200)/1.3M(1280×960)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate : Main Stream:5M(1~25fps) / Sub Stream: D1(1~25/30fps)
• Bit Rate Control : CBR/VBR
• Bit Rate : H.264: 3 kbps–8192 kbps / H.265: 3 kbps–8192 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detetion : Off / On (4 Zone, Rectangle)
• Region of Interest : Off / On (4 Zone)
• Scene Self-adaptation (SSA) : Yes
• Smart Illumination : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Compression : G.711a/ G.711Mu/ AAC/ G.726

Alarm

• Alarm Event : No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception

Network

• SDK and API : Yes
• Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
• Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
• User/Host : 20 (Total bandwidth: 64 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser : IE: IE8, IE9 and IE11 / Chrome / Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Phone : IOS; Android

Certifications

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B
• UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

• Audio Input : 1 channel (RCA port)
• Audio Output : 1 channel (RCA port)
• Alarm Input : 1 channel in: 5mA 3V–5V DC
• Alarm Output : 1 channel out: 300mA 12V DC

Electrical

• Power Supply : DC12V, PoE
• Power Consumption : Basic power consumption: 3.6W (12V DC); 4.4W (PoE) / Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE)

Environmental

• Operating Conditions : -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
• Strorage Conditions : -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Construction

• Casing : Metal + plastic
• Dimensions : 44.6 mm × Φ126.2 mm
• Net Weight : 0.299Kg
• Gross Weight : 0.441Kg
