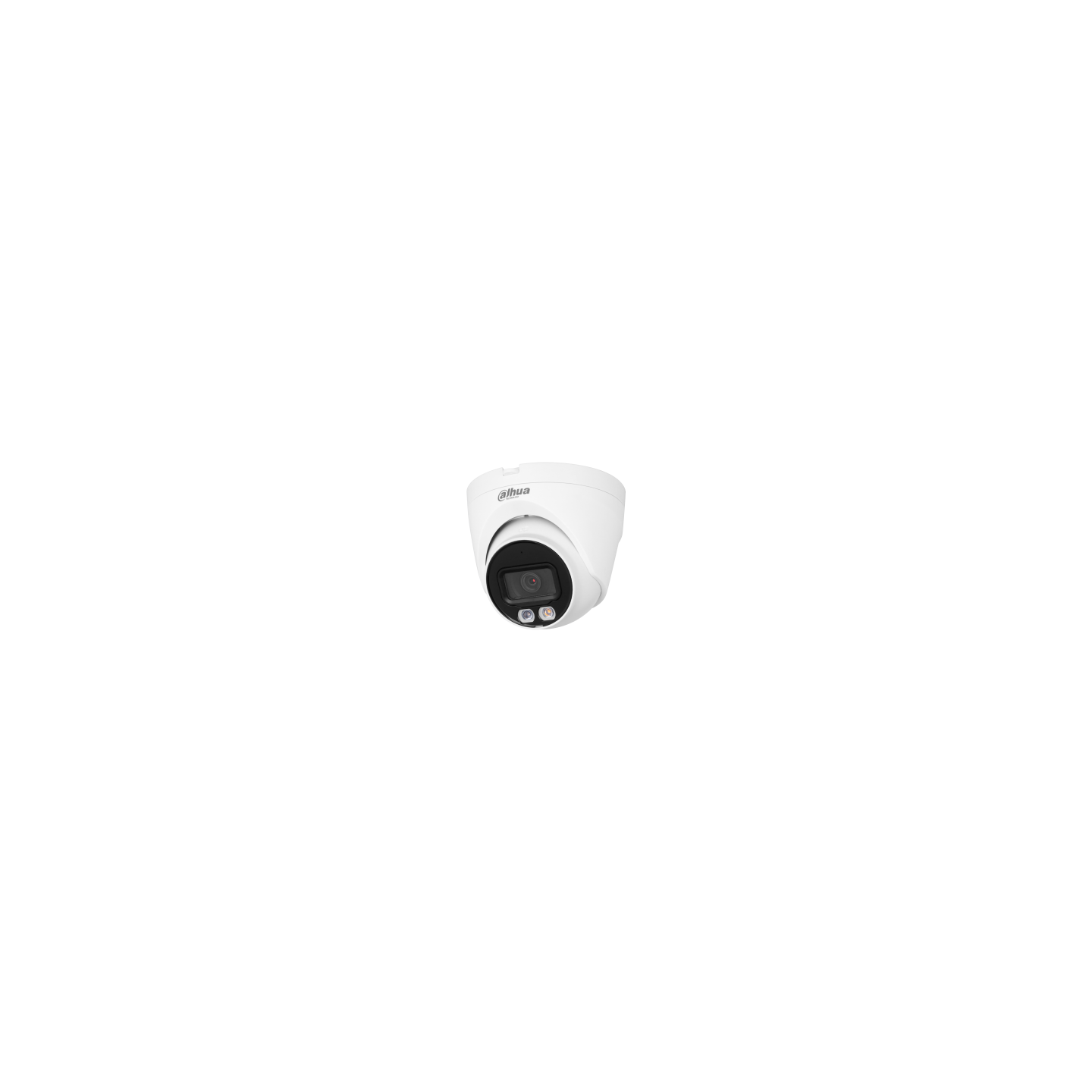

Dahua IP - HDW1439V-A-IL - 4.0MP Dome 2.8mm Dual Illumination WDR
4.0MP IP dome camera with a 1/2.9" CMOS sensor, 2.8mm fixed lens, dual illumination, 120dB WDR, and H.265+/H.265/H.264+/H.264 codecs, built-in mic.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Dome |
|---|---|
| IP Cameras - Resolution | 4 MP (2K) |
| IP Cameras - Audio | Mic |
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560× 1440)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
- Built in Mic.
- 12 VDC/PoE power supply,
- IP67 protection.
- Supports human detection.
Camera
- Image Sensor : 1/2.9" CMOS
- Max. Resolution : 2560 (H) × 1440 (V)
- ROM : 128 MB
- RAM : 128 MB
- Scanning System : Progressive
- Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination : 0.005 lux@F1.6 (Color,30 IRE) / 0.0005 lux@F1.6 (B/W,30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >56 dB
- Illumination Distance : Up to 30 m (IR LED) / Up to 30 m (Warm light)
- Illuminator On/Off Control : Auto;Manual
- Illuminator Number : 1 (IR LED); 1 (Warm light)
Lens
- Lens Type : Fixed-focal
- Lens Mount : M12
- Focal Length : 2.8 mm;3.6 mm
- Max. Aperture : F1.6
- Field of View : 2.8 mm: H: 94°; V: 52°; D: 111° / 3.6 mm: H: 78°; V: 41°; D: 94°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 1.1 m / 3.6 mm: 1.7 m
Intelligence
- Human Detection : Support the classification and accurate detection of human
- Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
- Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Smart Codec : Smart H.265+; Smart H.264+
- Video Frame Rate : Main stream:2560 × 1440@(1–25/30 fps) / Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
- Stream Capability : 2 streams
- Resolution : 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- Bit Rate Control : CBR/VBR
- Video Bit Rate : H.264: 32 kbps–4096 kbps / H.265: 12 kbps–4096 kbps
- Day/Night : Auto(ICR)/Color/B/W
- BLC : Yes
- HLC : Yes
- WDR : 120dB
- White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control : Auto;Manual
- Noise Reduction : 3D NR
- Motion Detection : OFF/ON (4 areas, rectangular)
- Region of Interest (RoI) : Yes (4 areas)
- Smart Illumination : Yes
- Image Rotation : 0°/180°
- Mirror : Yes
- Privacy Masking : 4 areas
Audio
- Built-in MIC : Yes, built-in Mic
- Audio Compression : G.711a; G.711Mu; PCM; G.726
Alarm
- Alarm Event : Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Network
- Network Port : RJ-45 (10/100 Base-T)
- SDK and API : Yes
- Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- Interoperability : ONVIF (Profile S; Profile T); CGI
- User/Host : 6 (Total bandwidth: 24 M)
- Storage : FTP
- Browser : IE; Chrome; Firefox
- Management Software : Smart PSS Lite; DSS; DMSS
- Mobile Client : iOS;Android
- Cyber Security : Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption
Certification
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
- Power Supply : 12 VDC/PoE (802.3af)
- Power Consumption : Basic: 1.8 W (12 VDC); 2.3 W (PoE) / Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.6 W (12 VDC); 5.7 W (PoE)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : ≤95%
- Storage Temperature : –40 °C to +60 °C
- Storage Humidity : ≤95%
- Protection : IP67
Structure
- Casing Material : Inner core: Metal+plastic
- Cover: Plastic
Product Dimensions : 100.9 mm × Φ109.9 mm
- Net Weight : 0.33 kg
- Gross Weight : 0.45 kg
| AI Features | PersonDetection |
| Camera Resolution | 4.0MP |
| Housing Type | Dome |
| Compression | Smart H.265+/H.265/ Smart H.264+/H.264 |
| Full-Color | Yes |
| Illumination Distance | Up to 30m |
| Lens | Fixed |
| Lens Size | 2.8mm |
| WDR | 120dB true WDR |
| Audio | Built-in Mic |
