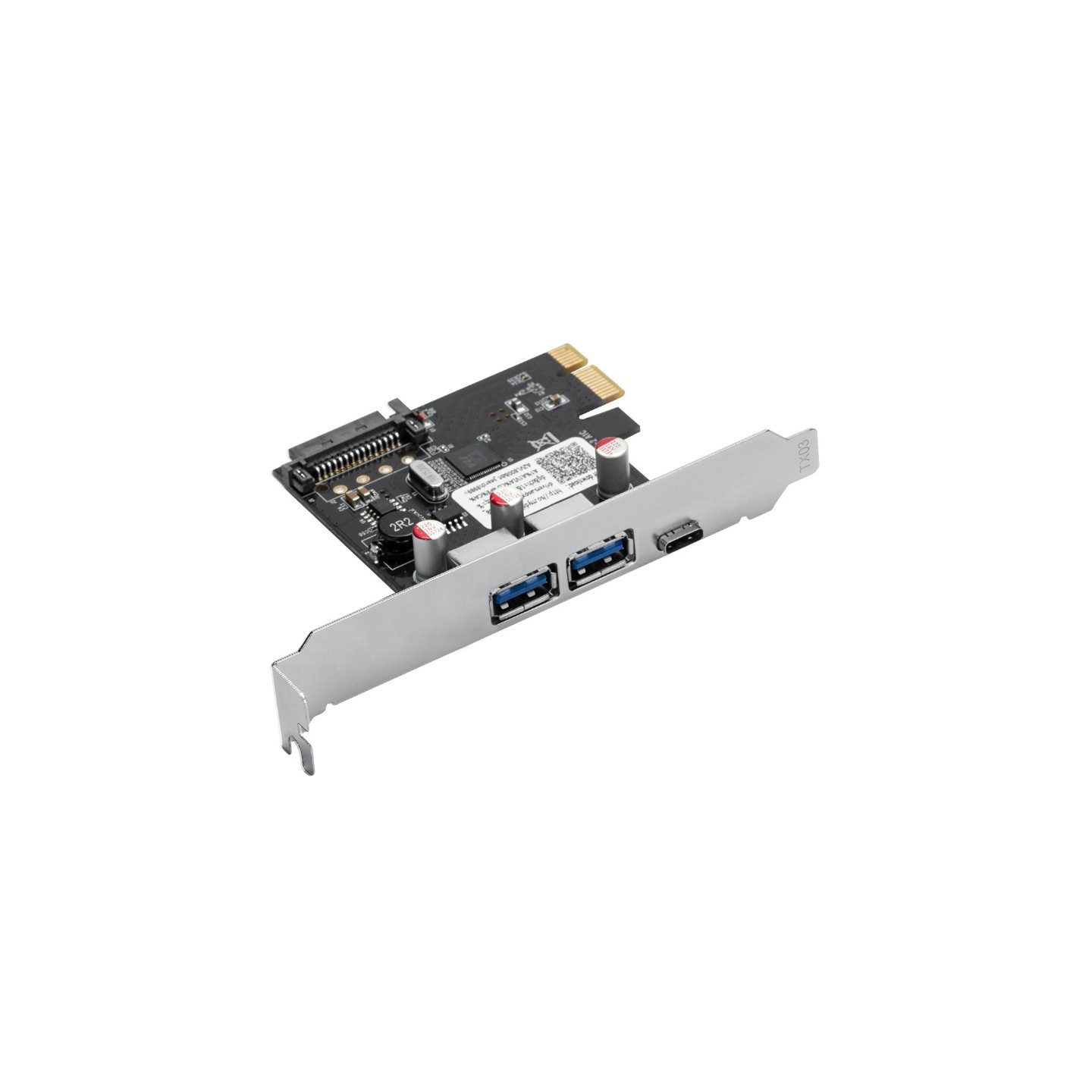

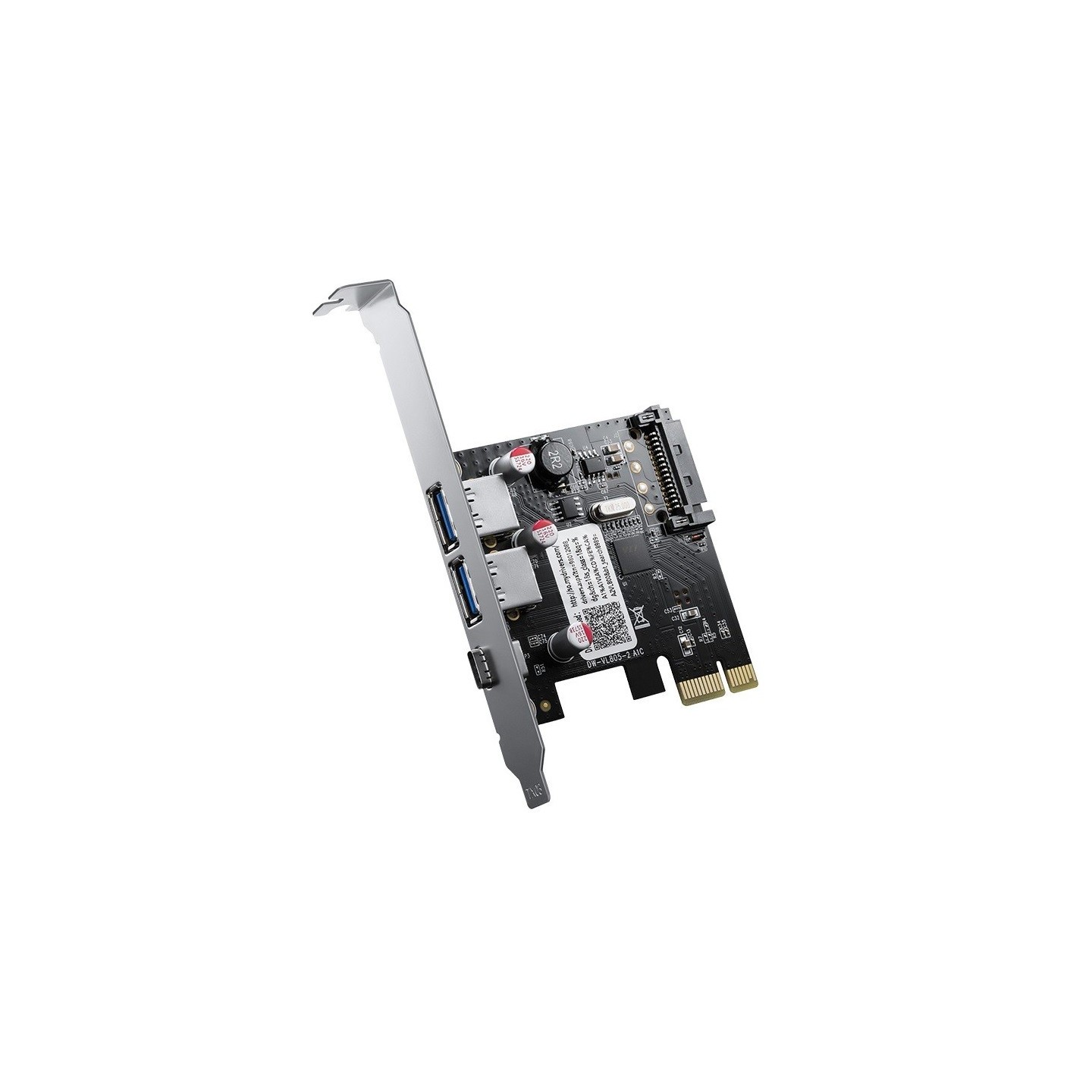

ORICO PNU-2A1C PCI Express Card 2xUSB3.0 1xUSB-C (Retail)
USB 3.0 PCI Express x1 expansion card with 2x Type-A and 1x Type-C ports. Delivers up to 5 Gbps transfer speeds with low-profile design. Compatible with Windows, Mac, and Linux systems.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 |
| Expansion Cards - Internal Connectivity | External Only |
| Expansion Cards - Form Factor | Low Profile Half-Height |
| Expansion Cards - External Connectivity | USB Type-A USB Type-C and Thunderbolt |
The ORICO PNU-2A1C is a compact PCI Express x1 expansion card designed to add high-speed USB 3.0 connectivity to desktop computers. Featuring a low-profile form factor with a metal baffle and black PCBA construction, this card is ideal for systems with limited case space while maintaining robust durability and professional aesthetics.
This expansion card provides three USB 3.0 ports—two Type-A connectors and one Type-C connector—enabling simultaneous connection of multiple high-speed peripherals. With data transfer speeds of up to 5 Gbps, users can efficiently transfer large files, backup data, and connect external storage devices. The card requires a 15-pin auxiliary power connector for stable operation and is compatible with standard PCI Express x1 slots found on most modern motherboards.
The ORICO PNU-2A1C supports Windows, Mac OS, and Linux operating systems, making it a versatile solution for diverse computing environments. Installation is straightforward, requiring only a free PCI Express slot and basic driver installation.
- 2x USB 3.0 Type-A ports and 1x USB 3.0 Type-C port
- Transfer speeds up to 5 Gbps
- Low-profile design for compact cases
- Requires 15-pin auxiliary power connector
- Compatible with Windows, Mac OS, and Linux
- Black PCBA with metal baffle construction
| Model | PNU-2A1C |
| Product Type | IO Port Expansion Card |
| Host Interface | PCI Express 1x |
| Input Interface | PCI Express 1x (With 15Pin power supply port) |
| Output Interface | USB 3.0 Type-A x2, USB 3.0 Type-C x1 |
| Data Rate | 5 Gbps |
| Form Factor | Low Profile |
| Material | Black PCBA, Metal baffle |
| Dimensions | 7 x 6.8 x 1.4 cm |
| Compatible Operating Systems | Windows XP/Vista/7/8/10, Windows Server, Mac OS 10.x and higher, Linux 2.4.x and higher |
| Power Requirement | 15-pin auxiliary power connector |
| External Connectivity | USB 3.0 Type-A x2, USB 3.0 Type-C x1 |
