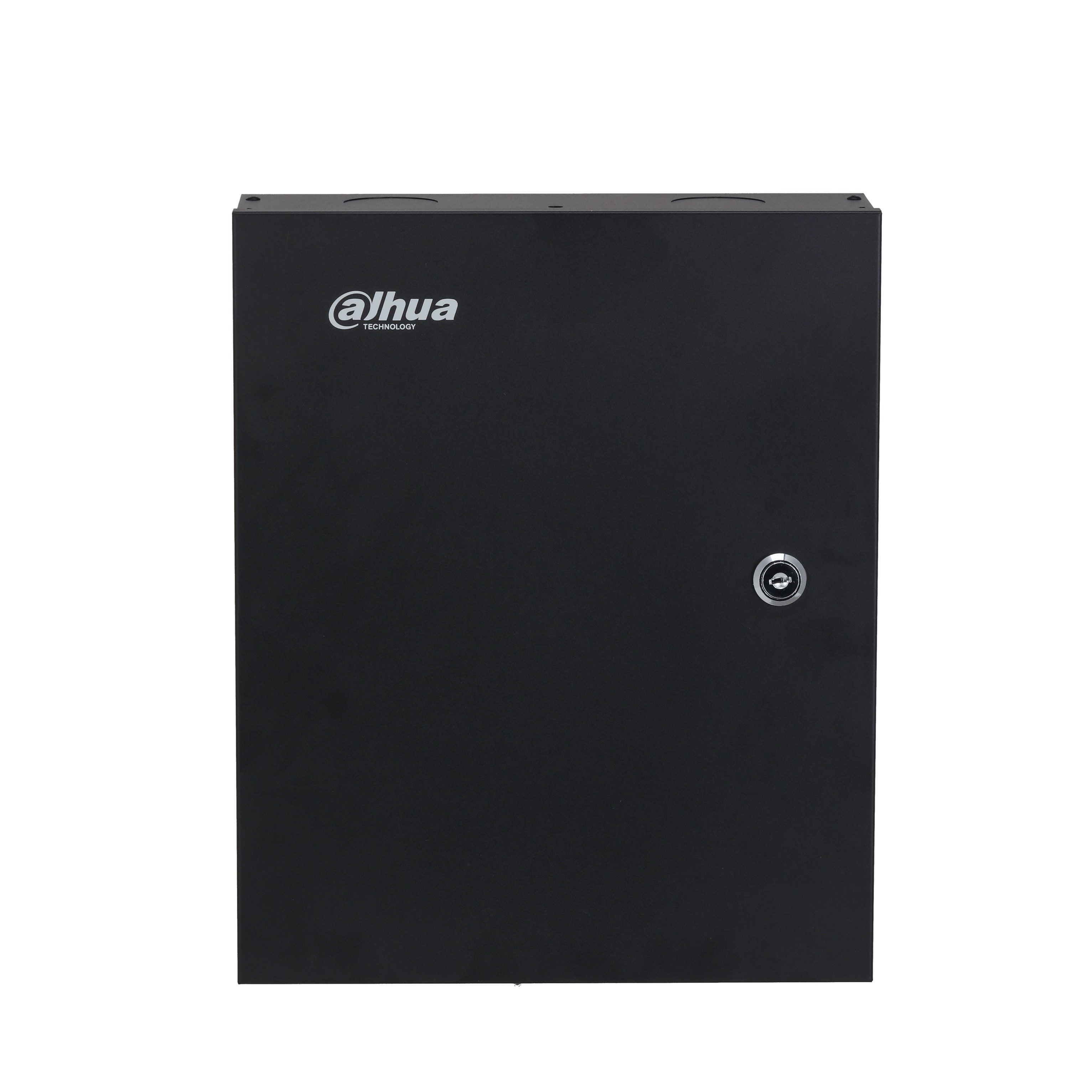

Dahua AC - ASC2208C-S - Eight Door One Way
Eight-door access controller with TCP/IP, RS-485 and Wiegand; stores 100,000 users and 500,000 card swipes; supports multi-door interlock, multi-user unlock, and anti-passback.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Control - Type | Controller |
|---|
- TCP/IP communication
- Two communication protocols: RS-485 and Wiegand
- Supports storing 100,000 user and 500,000 card-swiping records
- Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock
- Supports reader tamper alarm, intrusion alarm, unlocking timeout alarm, duress alarm, invalid card exceeding threshold alarm, and incorrect password alarm
- Supports built-in RTC, manual time fixing, and automatic time fixing
- Data can be saved permanently in case of power failure; supports online upgrade
- Power supply through storage battery
- Supports watchdog mechanism to ensure the operation stability
System
- Main Processor : Embedded processor
- Internet Protocol : IPv4; TCP; UDP
- OSDP Protocol : Yes
- SDK : Yes
Basic
- Product Appearance : Type C Iron Container
- Buzzer : Yes
- Casing Material : SECC steel board
Function
- Unlock Mode : Card swiping; Remote; Password; Fingerprint
- Period List : 128
- Holiday Period : 128
- Network Update : Yes
- First-Card Unlock : Yes
- Remote Verification : Yes
- Blocklist/Allowlist : Yes
- Peripheral Card Reader : 8-Channel RS-485 card reader / 8-Channel Wiegand card reader
- Multi-door Interlock : Yes
- Group Combination : Card swiping; password; fingerprint
- Real-Time Surveillance : Yes
- Multiple Authentication : Yes
User
- User (Card) Type : General user; VIP user; patrol user; guest user; blocklist user; other user
Capacity
- User : 100,000
- Fingerprint : 3,000
- Card : 100,000
- Record Capacity : 500,000
Port
- RS-485 Port : 9 × RS-485 ports
- Wiegand : 8 × Wiegand ports
- Network : 1 × 10/100 Mbps Ethernet port
- Alarm Input : 8 (digital quantity)
- Alarm Output : 8 (relay)
- Alarm Linkage : Yes
- Exit Button : 8
- Door Status Detection : 8
- Lock Control : 8 channels, NO by default
Alarm
- Anti-Passback : Yes
- Tamper : Yes
- Duress : Yes
- Door Unlock Timeout : Yes
- Intrusion : Yes
- Illegal Card Exceeding Threshold : Yes
- Duress Fingerprint : Yes
General
- Power Supply : 100-240 V AC
- IP Rating : IP20; Ik04
- Power Consumption :≤ 0.8 W (standby), ≤ 39.6 W (working)
- Product Dimensions : 337 mm × 272 mm × 90 mm (H × W × D)
- Packaging Dimensions : 472 mm × 352 mm × 163 mm (H × W × D) (one product in an inner carton)
- Operating Temperature : –30°C to +60°C (–22 °F to +140 °F)
- Operating Humidity : 5%–95% RH (non-condensing)
- Operating Environment : Indoor
- Gross Weight : 3.5 kg
- Installation : Surface mount
Certification
- CE; FCC; UL
| Reader Frequency | IC/ID |
| Tcp/Ip | Yes |
| Remote Verification | Yes |
