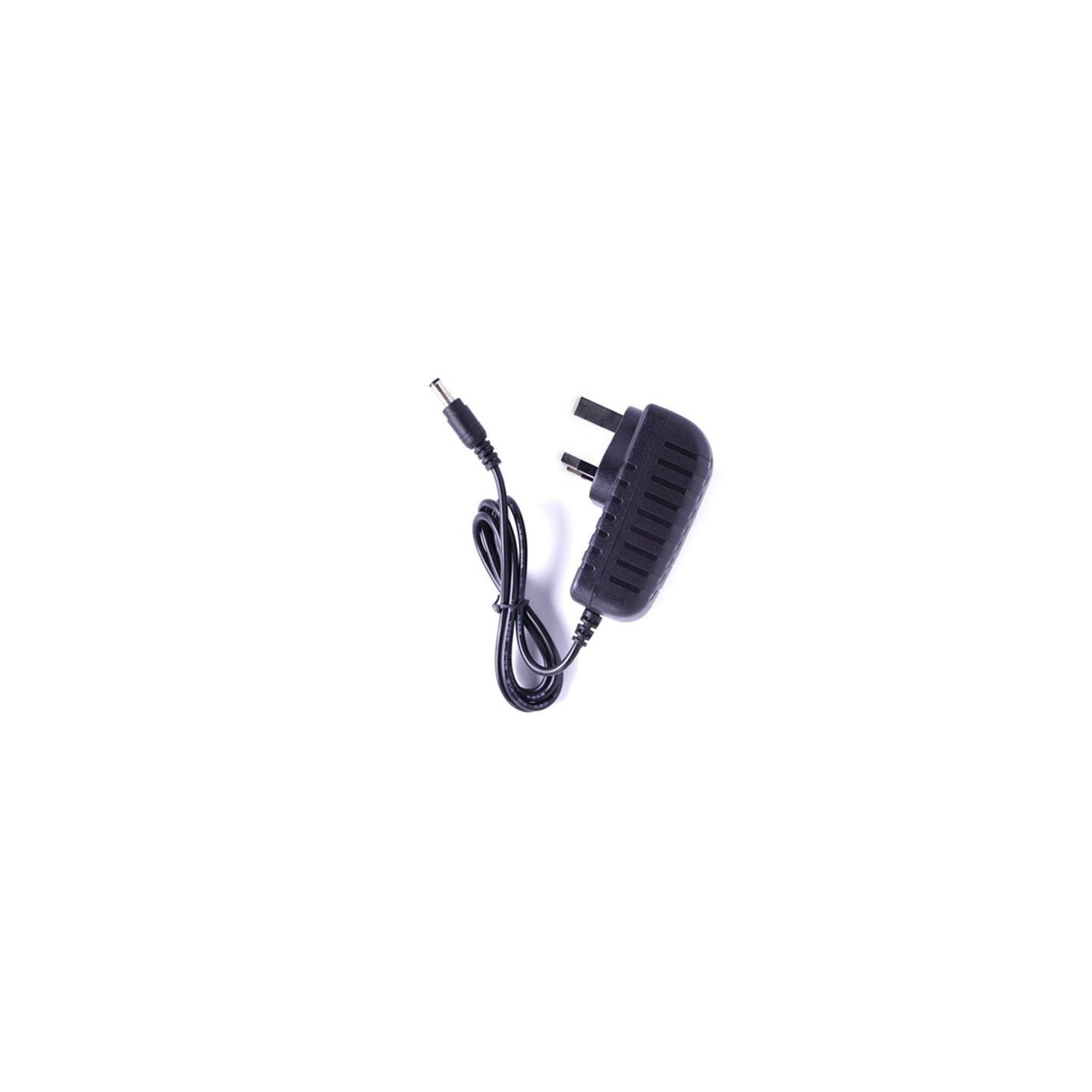

DigitMX Power Supply - DMX-PSU1201C - 12V 1A
Input: 100-240V AC 50/60Hz; Output: 12V DC 1A; DC adjustment ±10%; Input voltages 90-245V AC 50-60Hz; Inrush 30-75A; Leakage <0.7mA/230V AC; Output voltage 12V.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | 12V DC Adaptor |
|---|---|
| Power Supplies - Output Current | 1 A |
Input: 100-240V 50/60Hz
Output: 12V/1A
DC adjustment range: ±10%
Input voltages range: 90-245V AC 50-60Hz
Inrush current: 30-75A
Leakage current: <0.7mA/230V AC
Output voltage: 12V
Output current: 1A
DC adjustment range: ±10%
Overload protection: 105%-135% rated output power
Over-voltage protection: 105%-135% hiccup mode, auto-recovery
Withstand voltage:
I/P-O/P: 3kV AC
I/P-FG: 1.5kV AC
O/P-F/G: 0.5kV AC
Working temperature: -20 to ±70°C
Certifications: CE, RoHS Directive-compliant, FCC
| Type | Compact |
| Voltage | 12V |
| Ampers | 1A |
| Current | 1A |
