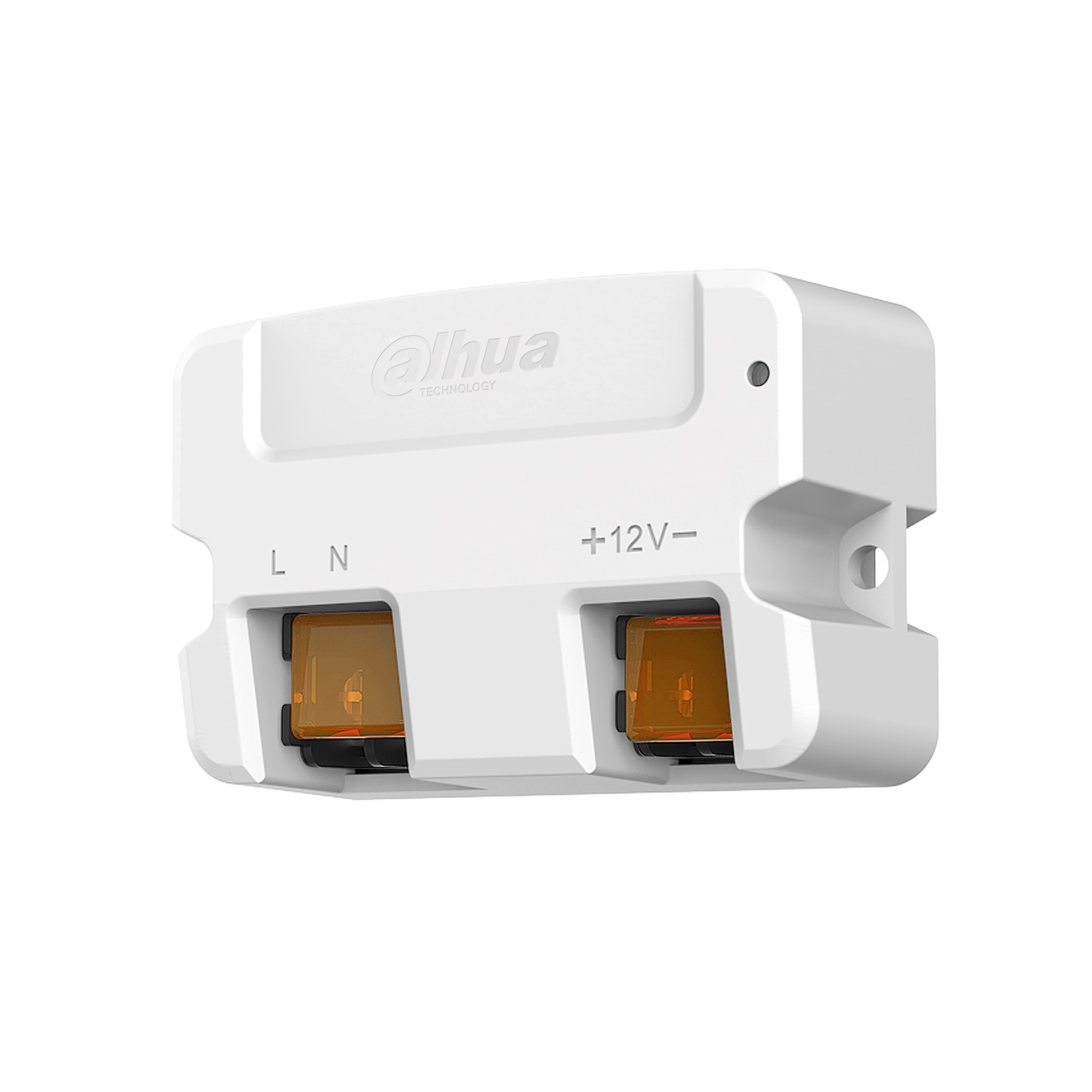

Dahua Switching Power Supply - PFM320D - 240V to DC12V 1.5A
Easy installation; supports indicator light; 240V input to 12V DC output at 1.5A; wide operating temperature -30 to +70°C; full-load efficiency up to 100%.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | 12V DC Adaptor |
|---|
- Easy installation
- Support working with indicator light
- Support -30 ~+70 degrees wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
- Accurate overcurrent, overvoltage protection
Electrical Specification
- Rated input : AC100~240V, 50/60Hz, 0.6A
- Output voltage : DC12V (+7%, -3%)
- Output current : Max. 1.5A (+70?)
Protection/Environmental
- Protection : Surge protection, over temperature protection, over current, voltage load protection / ESD: EN61000-4-2 / +/-6kV Contact; +/-8kV Air / Surge: EN61000-4-5 / Combination Wave: Common Mode ±4KV(12 ohms) / Differential Mode ±2kV(2 ohms)
- Working temperature : -30?~+70?(-22?~+158?)
- Working humidity : 5%~95% RH
Physical Properties
- Weight : 95g(0.21lb)
- Dimension(LxWxH) : 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
- Installation : Plane installation, can be installed in junction boxes and wall mount brackets
- Color : White
- Input plug : 2-pin plug(L/N)
- Output plug : 2-pin plug(+12V-)
Safety Standards
- Certification : CE, FCC
| Type | Compact |
| Voltage | 12V |
| Ampers | 1.5A |
| Current | 1.5A |
