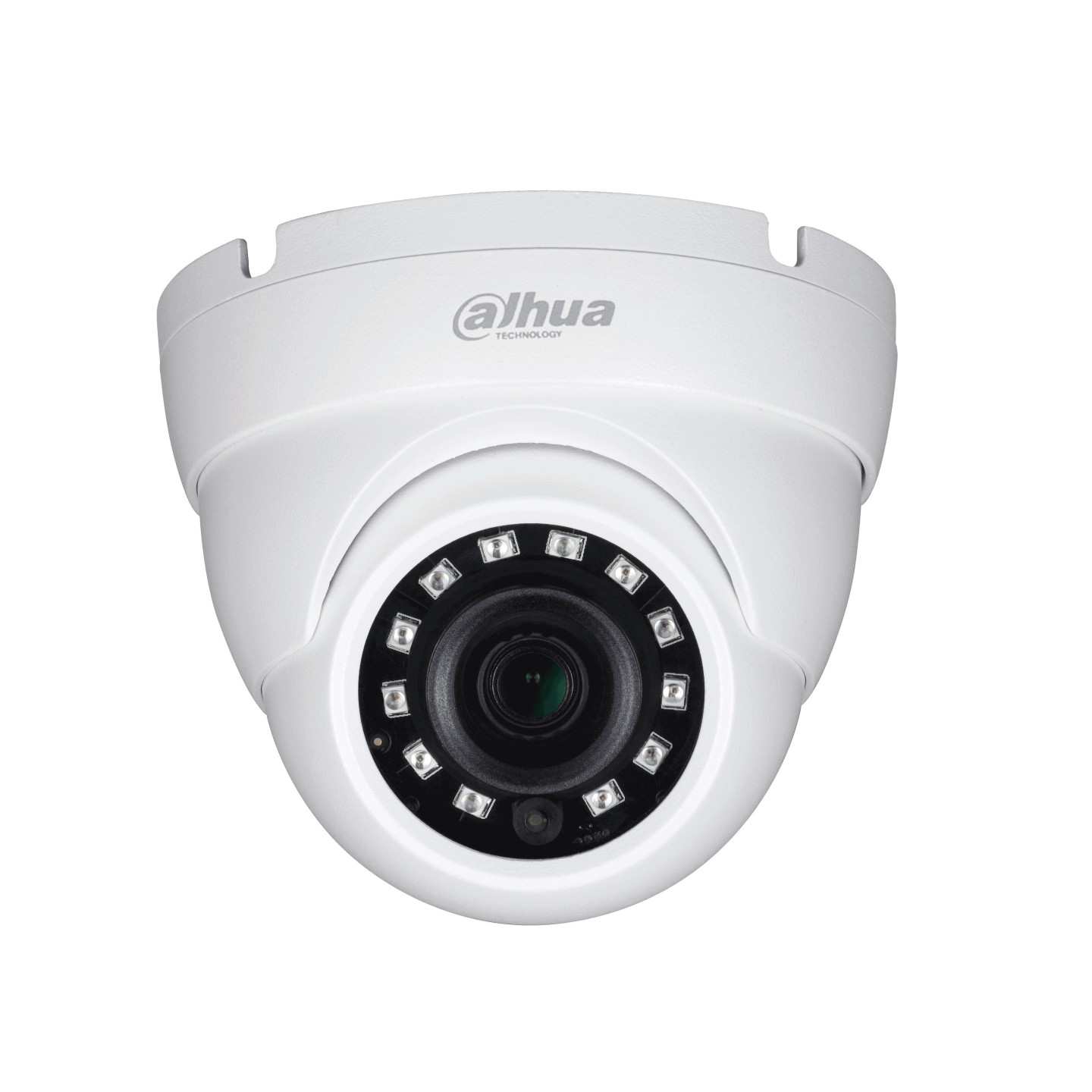

Dahua HDCVI 8.0MP Dome 2.8mm - HDW1800M - HDCVI 8.0MP Dome 2.8mm
Dahua HDCVI 8.0MP dome camera with up to 4K, switchable CVI/CVBS/AHD/TVI, fixed 2.8mm lens, up to 30m IR, IP67, 12V±30% DC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Max. 4K resolution, real-time video transmission
- CVI/CVBS/AHD/TVI switchable
- Fixed lens (2.8mm; 3.6mm;6mm optional)
- Max. IR length 30m, Smart IR
- IP67, 12V±30%DC
Camera
- Image Sensor : 1/2.7 inch CMOS
- Effective Pixels : 3840 (H)× 2160 (V), 4K
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25s–1/100000s / NTSC: 1/30s–1/100000s
- S/N Ratio : >65dB
- Minimum Illumination : 0.03Lux/F2.0, 30IRE, 0Lux IR on
- Fill Light Working Distance : 30 m (98.4 ft)
- IR On/Off Control : Auto; manual
- IR LED Number : 12
Lens
- Lens Type : Fixed-focal
- Mount Type : M12
- Focal Length : 2.8mm
- Max. Aperture : F2.0
- Angle of View : 2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical)
- Iris Type : Fixed iris
- Close Focus Distance : 2.8mm: 1.0 m (3.3 ft)
Video
- Frame Rate : CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; / AHD: 4K@15fps; / TVI: 4K@15fps; / CVBS: 960H
- Resolution : 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
- Day/Night : Auto switch by ICR
- BLC : BLC/HLC/WDR
- WDR : DWDR
- White Balance : Auto; manual
- Gain Control : Auto; manual
- Noise Reduction : 2D NR
- Smart IR : Yes
- Mirror : Off/On
- Privacy Masking : Off/On (8 area, rectangle)
Certifications
- CE (EN55032, EN55024, EN50130-4,EN60950-1)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
- UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
- Power Supply : 12V ±30% DC
- Power Consumption : Max 4.3W (12V DC, IR on)
Environment
- Operating Temperature : -40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
- Storage Temperature : -40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
- Protection Grade : IP67
Structure
- Casing : Metal throughout the whole casing
- Camera Dimensions : φ93.4mm×79.4mm ( φ3.68"×3.13" )
- Net Weight : 0.27 Kg
- Gross Weight : 0.35 Kg
| Housing Type | Dome |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Camera Resolution | 8.0 MP |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 30m |
| WDR | DWDR |
