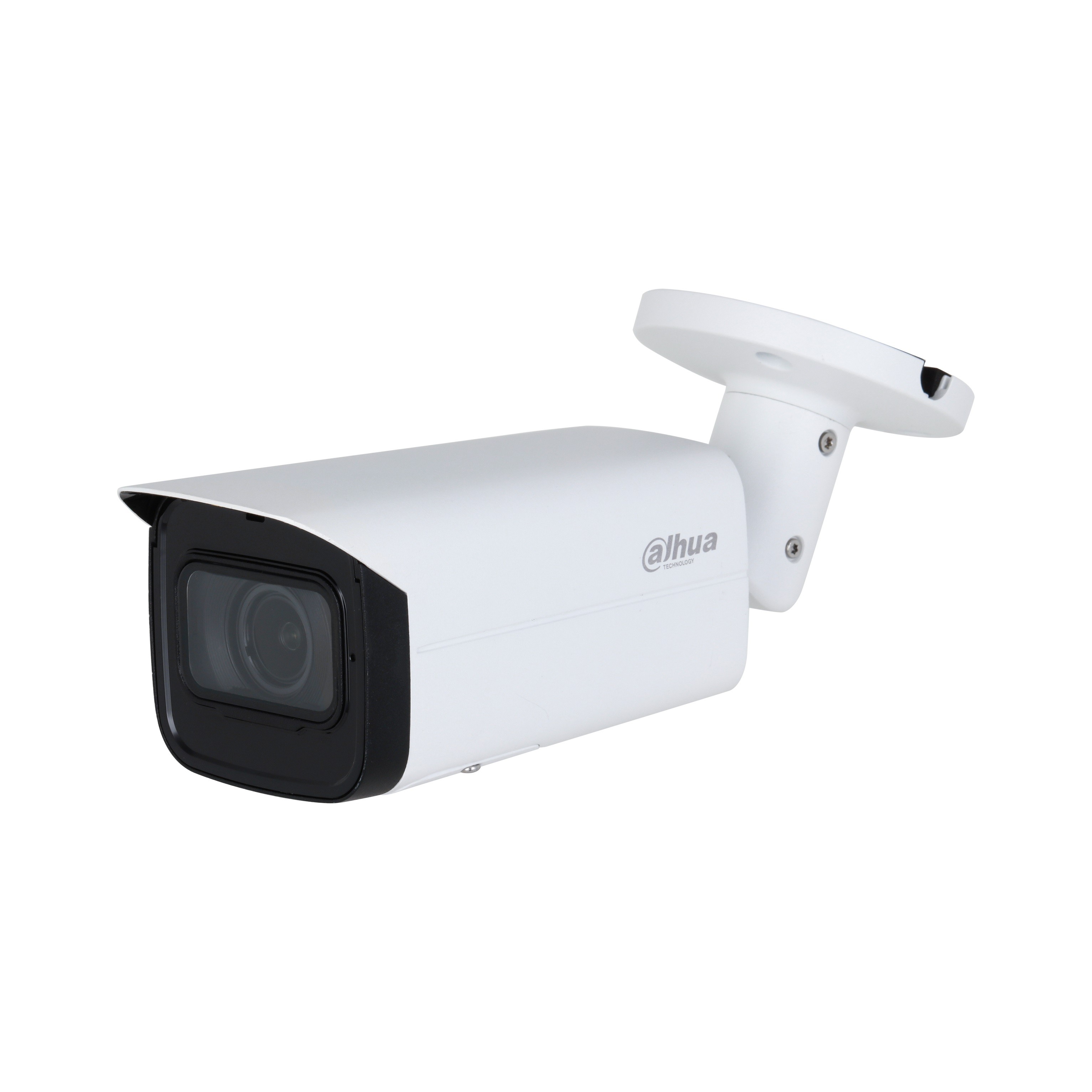

Dahua IP Lite AI 5.0MP 2.7-13.5mm Bul - HFW3541T-ZAS-S2 - Bul

• 5-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images
• Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, max. IR distance: 60 m
• ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card. built-in Mic
• 12 VDC/PoE power supply, easy for installation
• IP67, IK10 (optional) protection
• SMD 4.0, AI SSA

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2960 (H) × 1668 (V)
• ROM : 128 MB
• RAM : 512 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.005 lux@F1.5 (Color, 30 IRE) / 0.0005 lux@F1.5 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : 60 m
• Illuminator On/Off Control : Auto/Manual
• Illuminator Number : 4 (IR LED)
• Pan/Tilt/Rotation Range : Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

• Lens Type : Motorized vari-focal
• Lens Mount : φ14
• Focal Length : 2.7 mm–13.5 mm
• Max. Aperture : F1.5
• Field of View : Horizontal: 99°–28° / Vertical: 71°–21° / Diagonal: 134°–35°
• Iris Control : Fixed
• Close Focus Distance : 0.8 m

Intelligence

• IVS (Perimeter Protection) : Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
• AI SSA : Yes
• Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec : Smart H.265+ / Smart H.264+
• AI Coding : AI H.265 / AI H.264
• Video Frame Rate : Main stream: 2880 × 1620 @ (1–20) fps /2960 × 1668 @ (1–20) fps /2688 × 1520@(1–25/30 fps) / Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) / Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
• The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
• Stream Capability : 3 streams
• Resolution : 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 3 kbps–8192 kbps / H.265: 3 kbps–8192 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• Scene Self-adaptation (SSA) : Yes
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Image Stabilization : Electronic Image Stabilization (EIS)
• Region of Interest (RoI) : Yes (4 areas)
• Defog : Yes
• AFSA : Yes
• Image Rotation : 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas
• Audio
• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723

Alarm

• Alarm Event -ZAS: : No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Cyber Security : Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
• User/Host : 20 (Total bandwidth: 64 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser : IE: IE11 / Chrome / Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Client : iOS; Android

Certification

Certifications

• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• FCC: 47 CFR FCC Part 15, Subpart B;
• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

• Audio Input : 1 channel (RCA port) (Only - ZAS supports)
• Audio Output : 1 channel (RCA port) (Only - ZAS supports)
• Alarm Input : 1 channel in: 5 mA 3–5 VDC (Only - ZAS supports)
• Alarm Output : 1 channel out: 300 mA 12 VDC (Only - ZAS supports)

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption : Basic: 2.8 W (12 VDC); 3.4 W (PoE)Max. (WDR + IR intensity + Intelligence): 7.4W (12 VDC); 8.5 W (PoE)

Environment

• Operating Temperature : –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% (RH)
• Storage Temperature : –40°C to +60°C (–40°F to 140°F)
• Protection : IP67

Structure

• Casing : Metal
• Product Dimensions : 244.1 mm × 79.0 mm × 75.9 mm (L × W × H)
• Net Weight : 820 g
• Gross Weight : 1090 g
