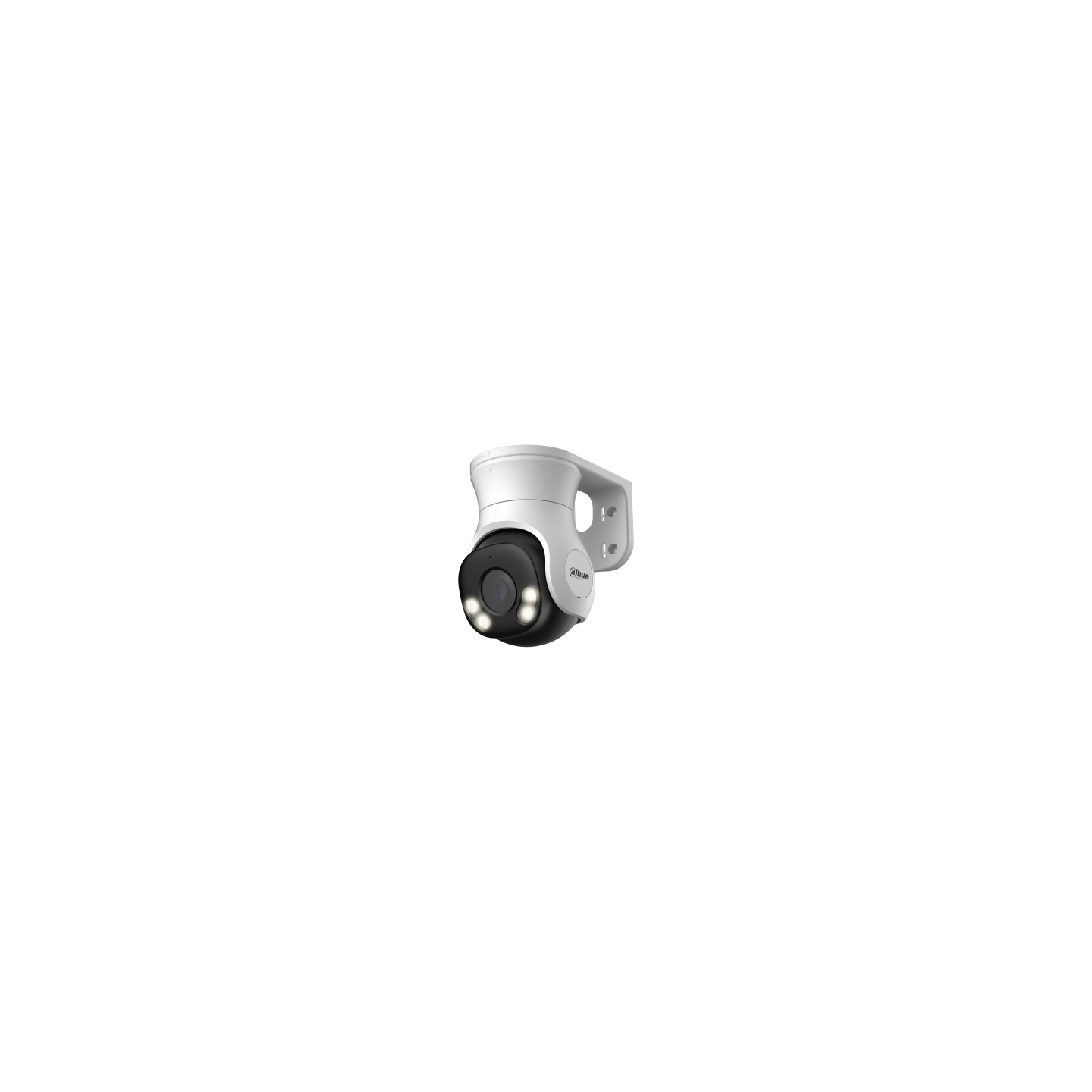

Dahua HDCVI 5.0MP PT Dual Illumination - PT1500A-IL-A - 2.8mm
5.0MP PT Dual Illumination camera with 2.8mm lens; full color, up to 40m illumination and IR distance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
* The parameters and datasheets below can only be applied to PT1200-IL-S6 series.
* In order to use the 5MP 16:9 andSmart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max. 25 fps@5MP (16:9 video output).
- Smart Dual Light.
- Smart Area Lighting.
- Pan & Tilt.
- 40 m illumination distance.
- Super Adapt.
- Built-in Mic.
- Quick-to-install structure saves installation time.
- 2.8 mm fixed lens
- IP66, 12 VDC.
Camera
- Image Sensor : 5 MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100,000 s; / NTSC: 1/30 s–1/100,000 s
- Min. Illumination : 0.05 lux@F2.0 (Color, 30 IRE) / 0.005 lux@F2.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 40 m (131.23 ft) / Warm light: 40 m (131.23 ft)
- Illuminator On/Off Control : Auto
- Illuminator Number : 4 (Warm light);4 (IR light)
- Angle Adjustment : Pan: 0°–355° / Tilt: 0°–90°
*DO NOT adjust the angle of the main body or enclosure manually
Lens
- Lens Type : Fixed-focal
- Auto Focus : No
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : F2.0
- Field of View : 2.8 mm: H: 112°; V: 58°; D: 134°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.9 m
Video
- CVI: / PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps / AHD: / PAL: 4M@25 fps; / NTSC: 4M@30 fps / TVI: / PAL: 4M@25 fps; / NTSC: 4M@30 fps / CVBS: / PAL: 960H; / NTSC: 960H - Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night : Auto(ICR)/Color/B/W
- BLC : BLC; HLC; DWDR
- WDR : DWDR
- White Balance : Auto;Manual
- Gain Control : Auto;Manual
- Noise Reduction : 2D NR
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
Certification
- Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in Mic
Power
- Power Supply : 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
- Power Consumption : Max 6.4 W (12 V DC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity : <95% (RH), non-condensing
- Protection : IP66
- Anti-corrosion Level : Basic Protection
Structure
- Casing Material : Plastic
- Product Dimensions : 92.9 mm × 91.3 mm × 130 mm
- Net Weight : 0.39 kg
- Gross Weight : 0.64 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
| Housing Type | PTZ |
| Full-Color | Yes |
| Camera Resolution | 5.0 MP |
| Illumination | Up to 40m |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 40m |
| WDR | DWDR |
| Audio | 1ch in,Built-in Mic |
