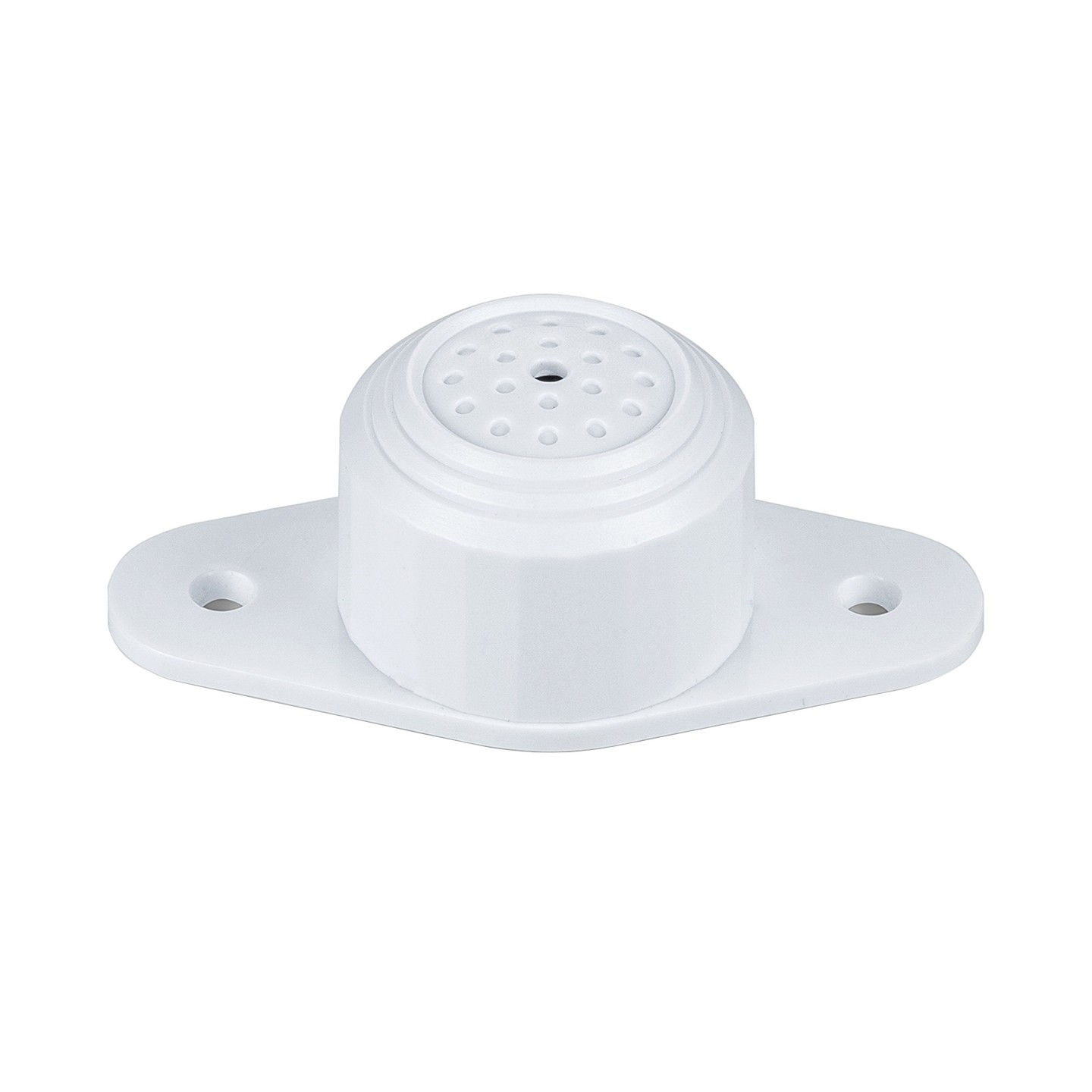

Dahua Microphone Pinhole Pickup - HAP100 - Pinhole Pickup
Omni-directional pinhole microphone with high fidelity; 30kV ESD protection, lightning protection, polarity reversal protection, and electrostatic protection; pinhole design for hidden installation with audio-enabled cameras or storage devices.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Omni-directional condenser microphone, high fidelity
- 30KV Air contact ESD, built-in Lightning Protection, power supply polarity reversal protection and electrostatic protection
- Pinhole design, hidden installation; match with cameras or storage devices which have audio function
General
- Scope : 5-40m2
- Sensitivity : -40dB(-45~-20dB adjustable)
- Frequency response : 20Hz?20kHz
- Directional characteristic : Omni-directional
- SNR : 70dB(1m 40dB sound source SPL)
- Dynamic range : 104dB(1KHz at Max dB SPL)
- Max. sustainable sound pressure : 120dB SPL(1KHz, THD 1%)
- Output impedance : 600?(non-equilibrium)
- Output signal amplitude : 2.5Vpp/-25dB
- Working voltage : DC 12V(9~15V)
- Working current : 60mA(50~100mA)
- Working temperature : -30??+70?(-22?~+158?)
- Color : White
- Outer shell : PC
- Dimension : 63mmx30mmx22mm(2.48”x1.18”x0.87”)
- Weight : 34g(0.07lb)
- Carried standard : CE/FCC
