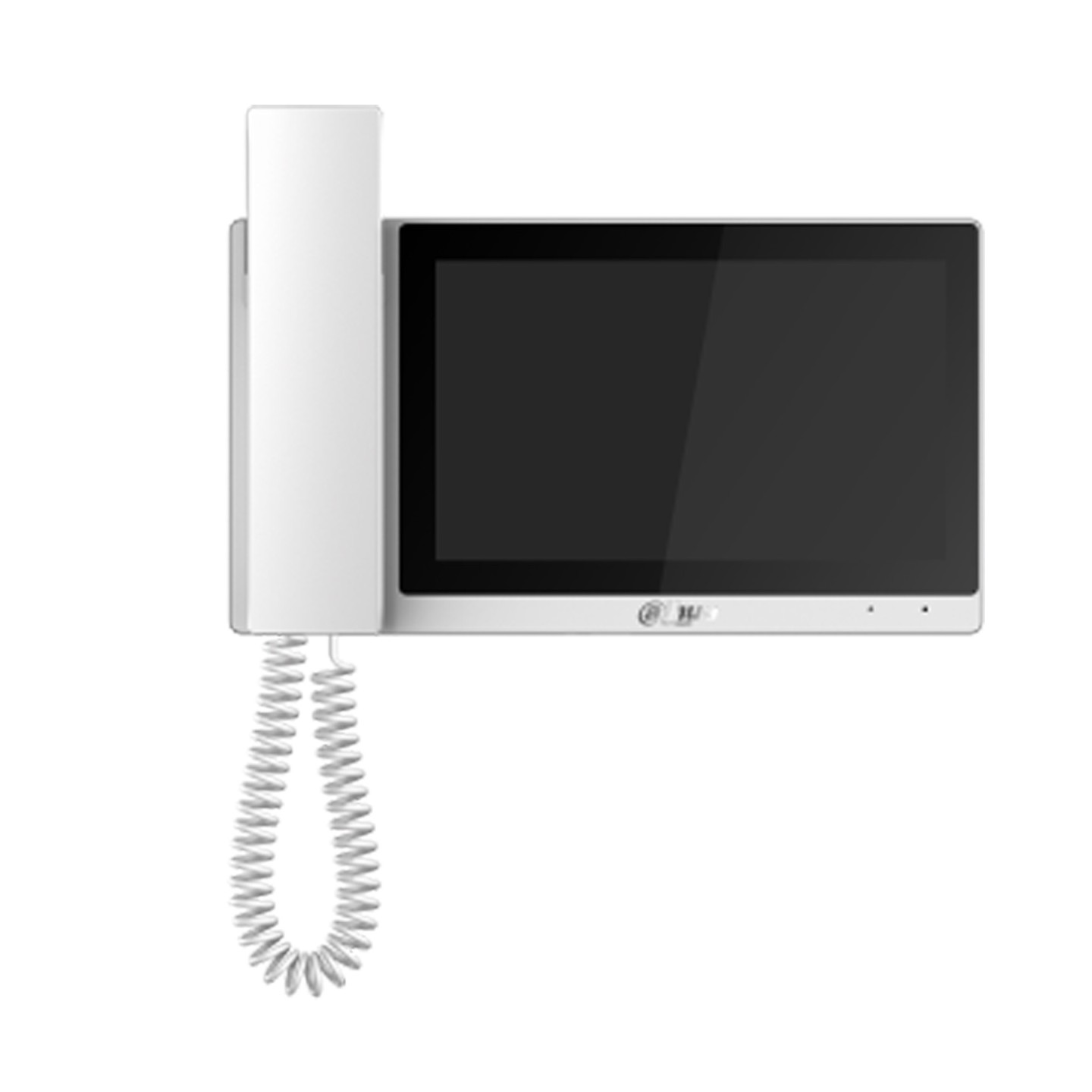

Dahua VD IP Doorphone Monitor - VTH5421EW-H
7-inch LCD display with 1024x600 resolution; 6 alarm inputs, 1 alarm output, 1 x 12V DC power output for peripheral alarm devices and sensors, 16 kbps audio stream.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | 12 V DC |
|---|---|
| Intercoms - Display (Indoor) | 7inch |
- 7 inch LCD, 1024 (H)×600(V)
- 6 alarm input ports
- 1 alarm output port
- 1 x 12V DC power output port provides power for peripheral alarm devices and sensors
- 16kbps audio stream
- You can answer calls hands free
- Support SOS alarm
- H.264
System
- Operation System : Embedded Linux operation system
- Interoperability : Support Onvif
- Internet Protocol : IPv4, DNS, RTSP, RTP, TCP, UDP, SIP
Basic
- Screen Type : Capacitive Screen
- Display : 7 inch TFT display
- Resolution : 1024(H)×600(V)
- Video Encoding : H.264
- Audio Encoding : PCM
- Audio Input : 1 channel
- Audio Output : 1 built-in speaker and 1 handset speaker
- Audio Mode : Full duplex communication
- Audio Enhancement : Echo suppression and cancellation/digital noise reduction
- Audio Bit Rate : 16KHz, 16Bit
- Status Indicator Light : 1 red indicator light flickers constantly during upgrade
Function
- Storage : SD card is supported and the maximum capacity is 32GB
- Communication Methods : Full digital
- Information Release : Text messages can be received and viewed on the indoor monitor (images can be received if SD card is inserted)
- Elevator Control : You can control the elevator through the indoor monitor
- Leave Photos and Messages : Yes (SD card is needed)
- Do Not Disturb Mode : Yes
- Extension Quantity : Villa: 9 extensions apartment: 4 extensions
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range : 2.4GHz
- Wireless Security Encryption : 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Port
- RS-485 : 1
- Alarm Input : 6 (digital quantity)
- Alarm Output : 1 (digital quantity)
- Power Output :1 12V/100mA power output port
- Door bell : Yes (Use alarm input port)
- Network : 1 RJ-45 100Mbps port
Alarm
- SOS : Yes
Performance
- Housing Material : PC+ABS
Regular
- Power Supply Mode : 12V DC 1A, standard PoE
- Installation Method : Surface mount (this equipment is only suitable for mounting at heights ≤ 2m)
- Certification : CE, FCC
- Accessory : Bracket
- Alarm cable : RS-485 cable
- Product Dimensions : 236.0mm×129.8mm×23.0mm
- Working Temperature : -10°C to +55°C (+14°F to +131°F)
- Working Humidity : 10%RH–90%RH (non-condensing)
- Working Altitude : Less than 3,000 meters
- Power Consumption : ≤2W (standby), ≤5W (working)
- Net Weight : 566g
- Gross Weight : 917g
| Connectivity | IP |
| Material | Plastic |
| Display | 7'' |
| Monitor Res | 1024x600 |
| Memory Slot | Micro SD, Max 32G |
