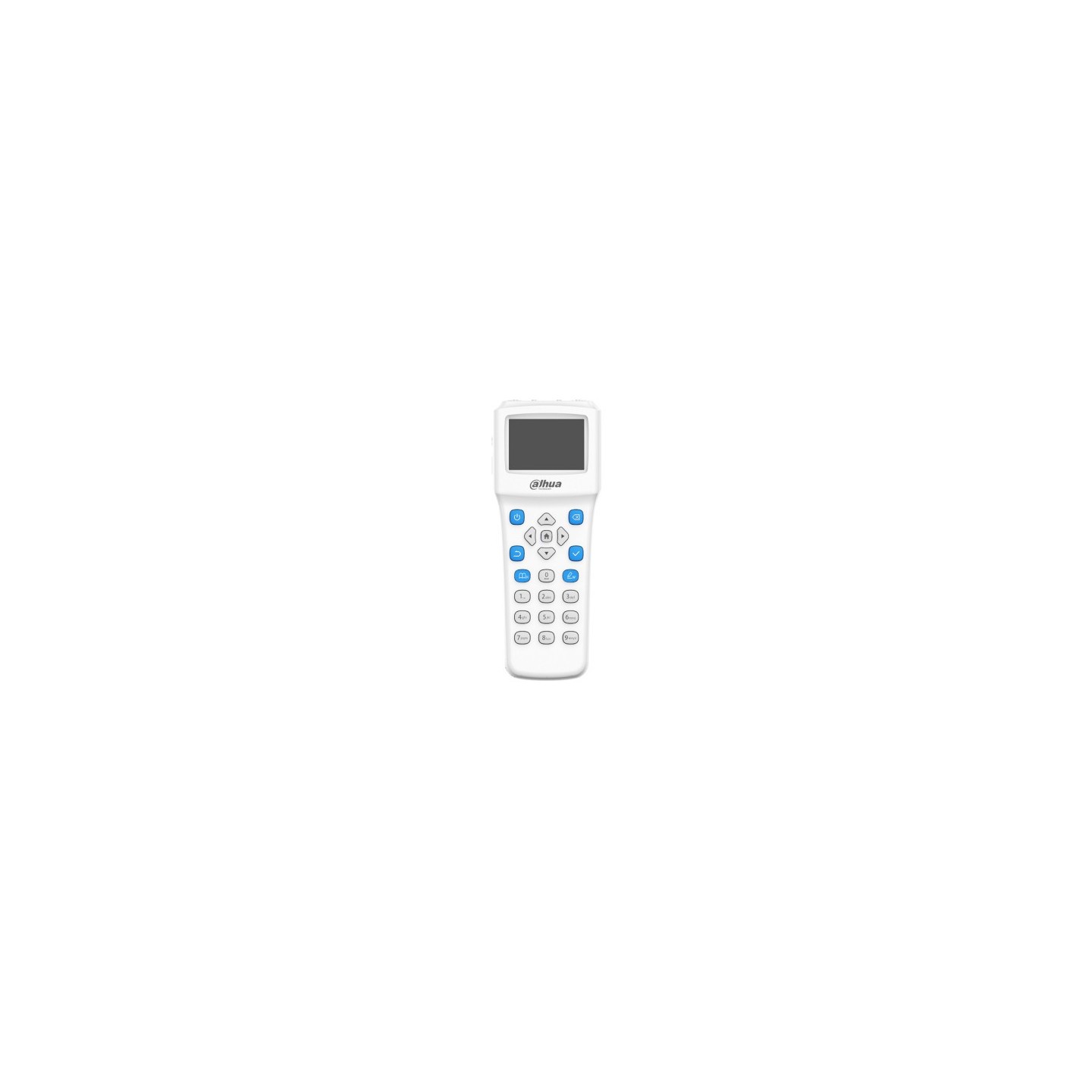

Dahua Addressable Fire Alarm Encoder - HY-BM-1712
Auto-address increment for consecutive devices with a backlit LCD for reading addresses; start/stop test and line troubleshooting; low-power idle mode. DC 6V; 16/24V output; -10 to 55°C; 95% RH; White.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Auto-address increment when addressing consecutive devices
- LCD display with backlight for reading/writing addresses
- Start/stop test; line troubleshooting (measuring line voltage and resistance)
- Low-power sleep mode when idle for long periods
- Working Power : DC 6 V
- Current Monitoring current : ≤ 1.5 mA; Operating current ≤ 60 mA
- Output Voltage : DC 16 V or DC 24 V
- Operating Temperature : −10 °C to +55 °C (14 °F to 131 °F)
- Storage Temperature : −20 °C to +65 °C (−4 °F to 149 °F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Color : White
- Dimensions : 160.0 mm × 47.3 mm × 31.4 mm
- Weight : 167 g
