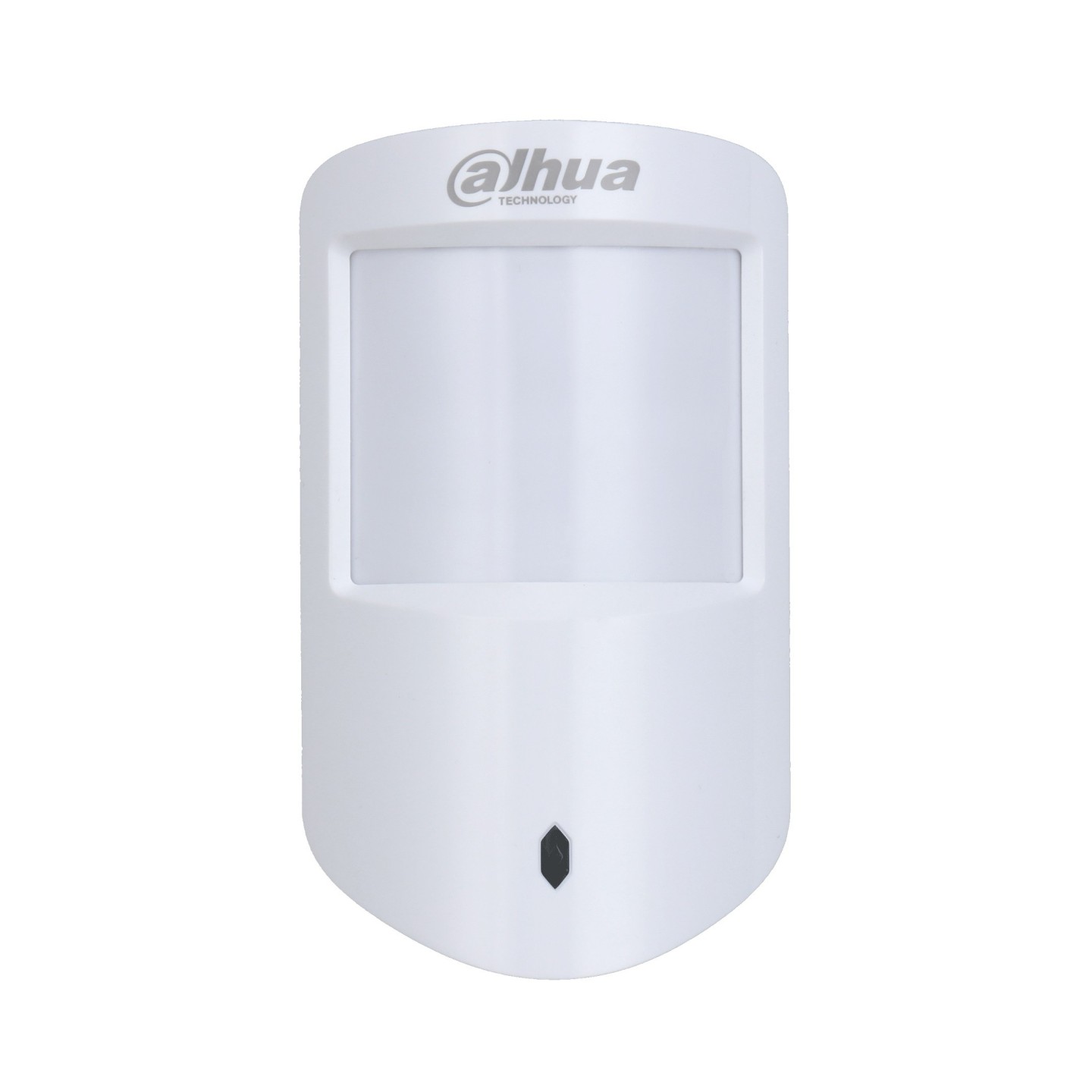

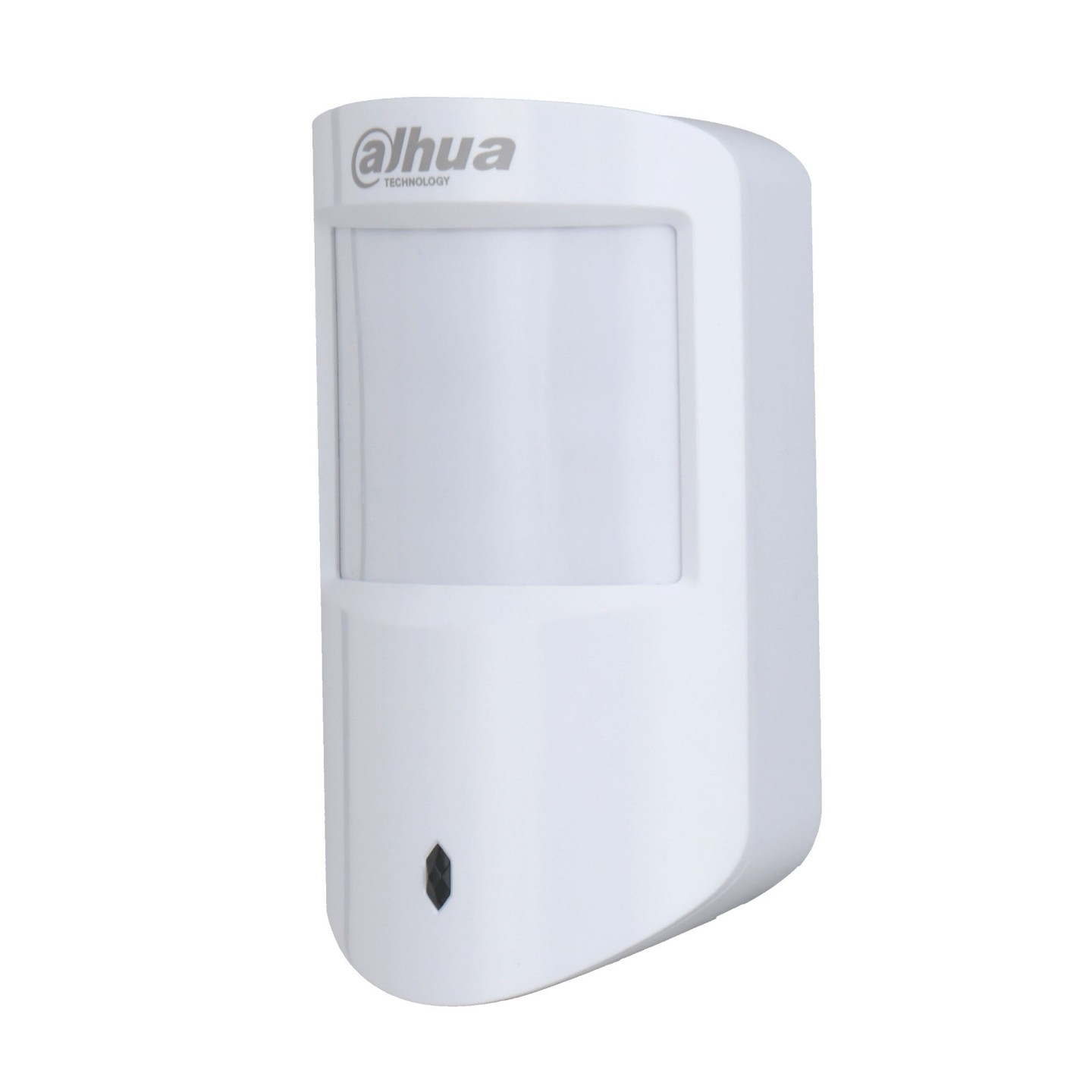

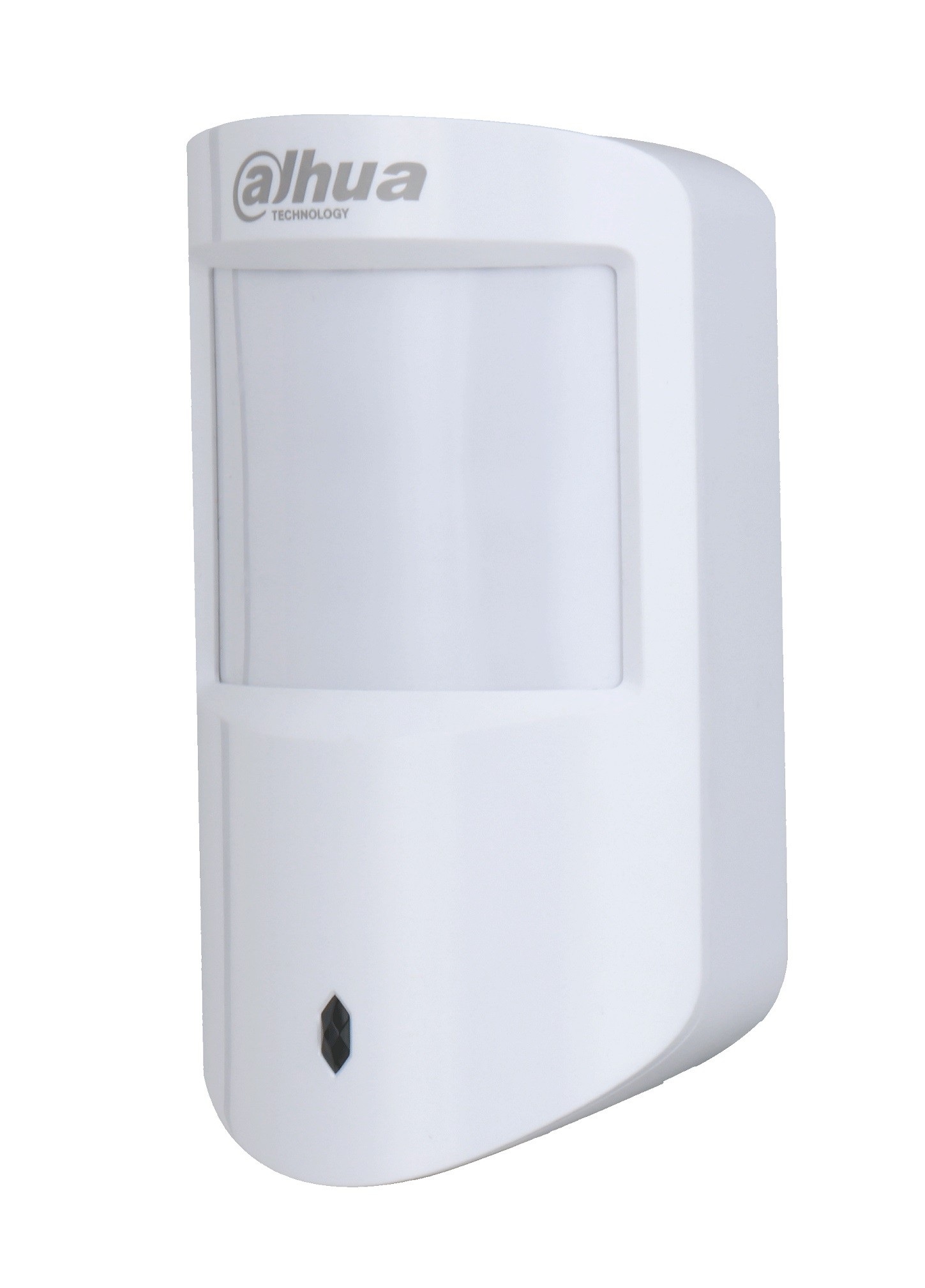

Dahua Alarm Wireless PIR Detector - ARD1233 - (868)
Dahua Wireless PIR detector.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Security Sensors - Type | PIR Motion |
|---|---|
| Security Sensors - Connectivity | Wireless (433/868 MHz) |
| Security Sensors - Power | Battery |
Wireless PIR detector
- Pet immunity function
- Auto temperature compensation
- 3-level sensitivity adjustment
- Signal strength detection
- Low battery alarm
- Temperature measurement
- Frequency hopping function and two-way communication technology ensure communication stability
- Cloud update and automatic recovery from update failure
Port
- Indicator Light : 1 × green alarm indicator
- Button : 1 × power button
Function
- Tamper Alarm : Yes
- Remote Upgrade : Cloud update
- Search : Signal strength detection
- Test Mode : Yes
- Low Battery Alarm : Yes
Wireless
- Carrier Frequency : 868.0 MHz–868.6 MHz
- Communication Distance : Up to 1,600 m in an open space
- Communication Mechanism : Two-way
- Encryption Mode : AES128
- Frequency Hopping : Yes
General
- Power Supply : CR123A battery
- Power Consumption : Max. 120 mW
- Operating Temperature : –10 °C to +55 °C (indoor)
- Operating Humidity : 10%–90% (RH).
- Dimensions : 104.0 mm × 60.0 mm × 50.0 mm (L × W × H)
- Package Dimensions : 135.0 mm × 98.5 mm × 56.8 mm (L × W × H)

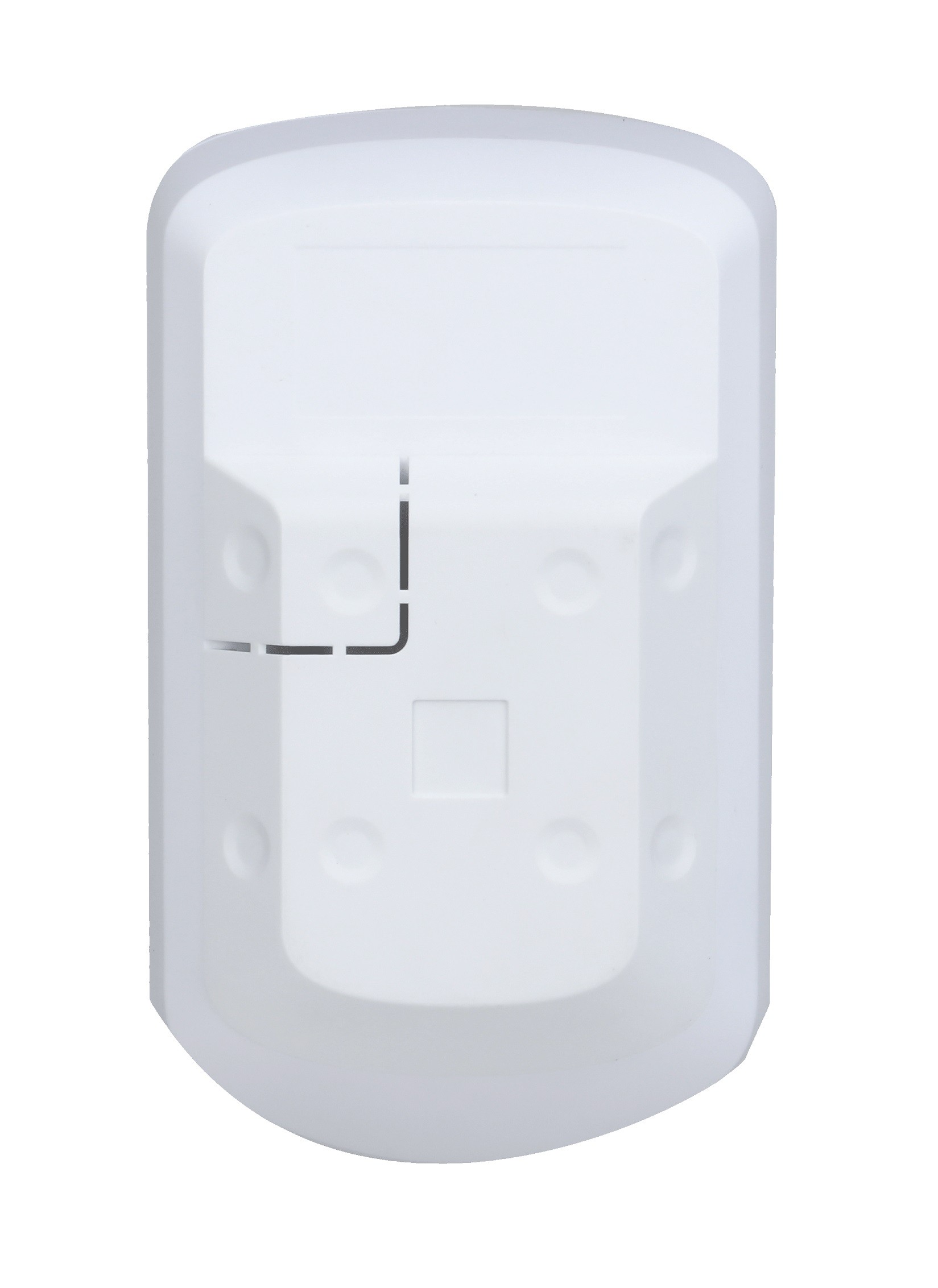

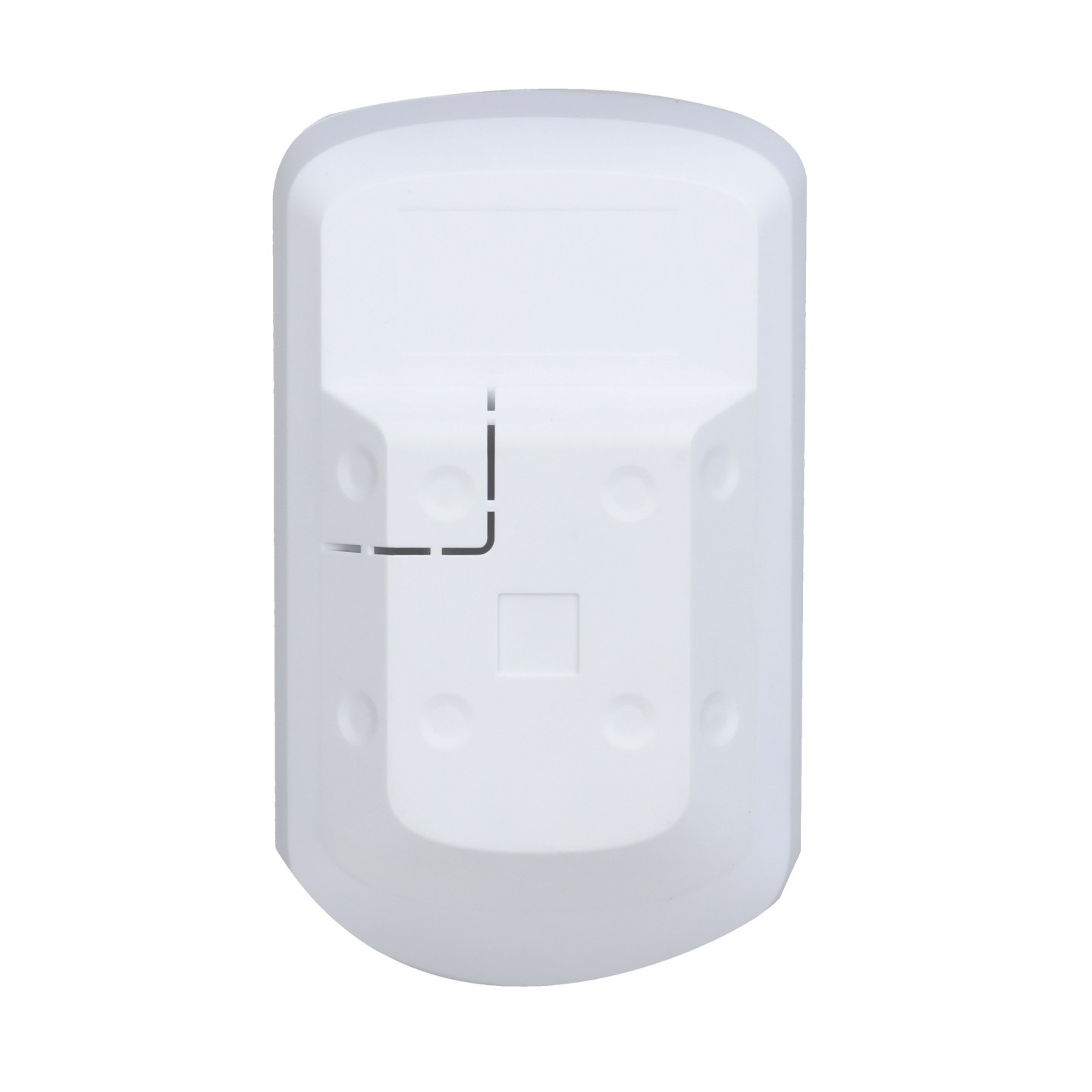

- Installation Mode : Wall mount
- Net Weight : 100 g
- Gross Weight : 170 g
- Certifications : CE
- Battery Life : 4 years
- Casing : PC + ABS
Temperature
- Measuring Range : –15 °C to +65 °C (indoor)
- Measuring Precision : ± 1 °C
- Resolution : 1 °C
Specification
- Detection Mode : PIR
- Sensor : Dual-element low-noise PIR sensor
- Detection Range : 12 m (90°) with installation height of 2.2 m
- Detection Speed : 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
- Pet Immunity Level : ≤ 18 kg
- White Light Resistance Level : 6500 lx
- Two-way Digital Temperature Compensation : Yes, no attenuation of detection distance in high temperature
- Sensitivity : 3 levels adjustable
| Connectivity | Wireless |
| Installation | Wall |
| Battery | Up to 4 Years |
| Communication | 2Way |
| Range | Up to 1600 meters |
| Certification | CE |
| Pet Immune | Up to 18 Kg |
