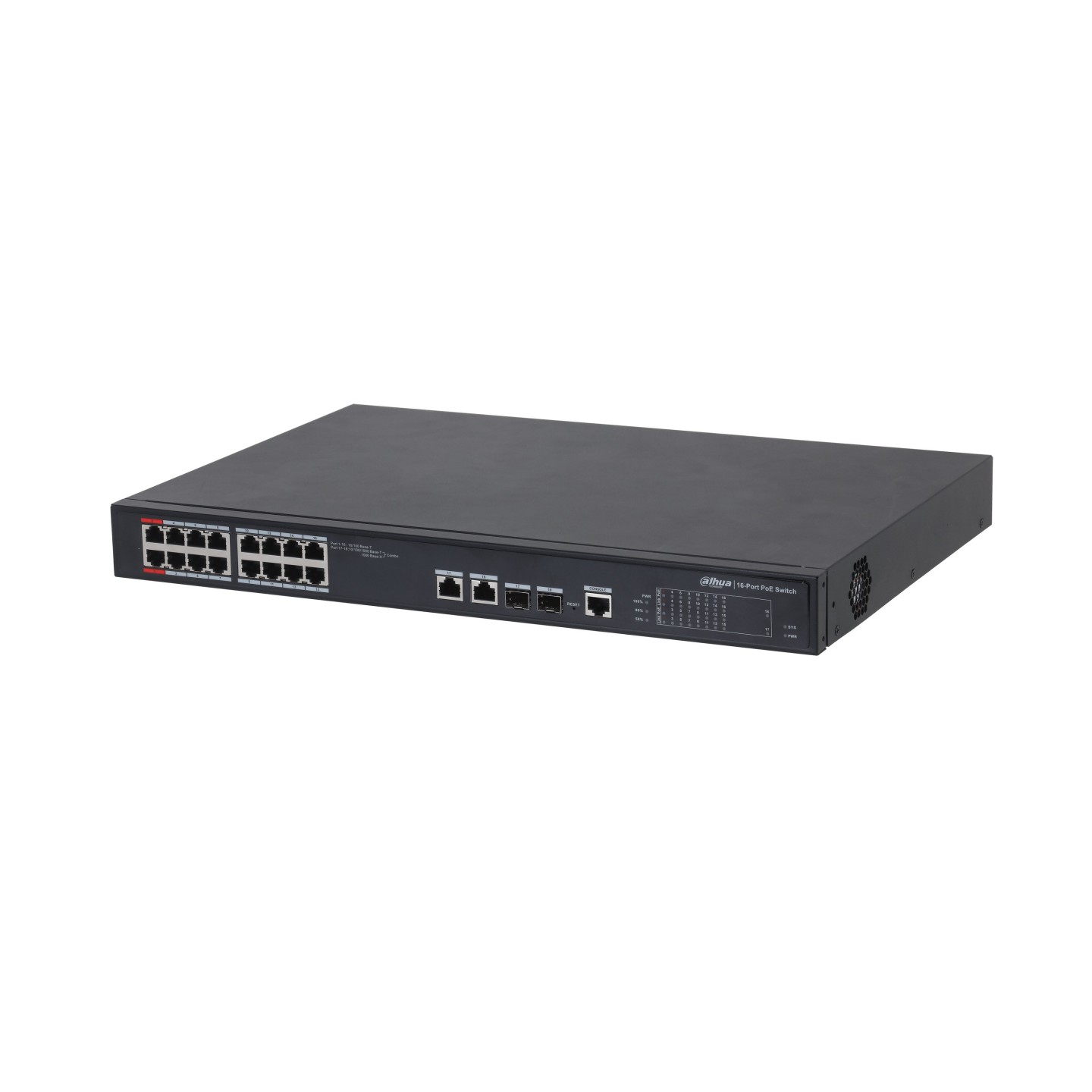

Dahua PoE Switch - PFS4218-16ET-240-V3 - 16ports 240W Managed
Intelligent PoE switch with web-based management, 16 PoE ports, 240W total, red port 90W (IEEE 802.3bt), 250 m PoE, PoE watchdog, plug-and-play.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | 10/100 (Fast Ethernet) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
- Intelligent PoE
- Red port supports 90W IEEE802.3bt
- Web management with friendly interface and easy operation
- 250 m long distance PoE transmission
- PoE watchdog
- Plug and play
Performance
- Layer : Layer 2
- Managed : Yes
- Switching Capacity : 8.8 Gbps
- Packet Forwarding Rate : 5.36 Mpps
- Packet Buffer Memory : 2.75 Mbit
- MAC Table Size : 4K
- Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;IEEE 802.3z
Hardware Feature
- Standard Power Supply : Yes
- PoE : Yes
- Ethernet Port : 16
- Optical Port : 2
- Ethernet Port Rate : 100 Mbps
- Optical Port Rate : 1 Gbps
- Number of Bussiness Card Slots : Port 1-16: 16 × RJ-45 10 M/100 M (PoE) / Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink) / Port 17-18: 2 × SFP 1000 M (uplink) (combo)
- Debugging : Console × 1
- Power Supply : 100V–240V AC
- Operating Temperature : –10 °C to +55 °
- Operating Humidity : 10% RH–90% RH
- Power Consumption : Idling: 10W / Full load: 240W
PoE
- PoE Standard : IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
- PoE Budget : Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 240W
- PoE Pin Assignment : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
- PoE Management : Power consumption management / Power on and power off
- Power down for overload / Green PoE / Legacy support
- Long Distance PoE Transmission : 250 m long-distance power supply
Function
- Spanning Tree Protocol : IEEE 802.1d (STP); 802.1w (RSTP)
- VLAN : IEEE802.1q Standard VLAN
- Flow Control : Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
- Link Aggregation : Static; LACP
- Port Mirroring : One-to-one; multiple-to-one
- Multicast : GMP snooping based on port
- DHCP : DHCP client
- Security : Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
- QoS : High and low priority / WRR / 802.1P / DSCP / Priority based on protocol
General
- ESD : Air discharge: 8kV / Contact discharge: 6kV
- Thunder-proof : Common mode: 4kV / Differential mode: 2kV
- Dimensions : 440 mm × 300 mm × 44 mm (L × W × H)
- Packaging Dimensions : Packing box: 527 mm × 412 mm × 110 mm (L × W × H) / Protective box: 584 mm × 549 mm × 446 mm (L × W × H)
Certification
- CE,FCC, UL
| Ethernet Speed | Fast Ethernet |
| Ethernet Ports | 16 |
| Poe Ports | 16 |
| Total PoE Power | 240W |
| Max. Watt per Port | 90W |
| Type | Managed |
| Mounting | Rackmounted |
| PoE Type | 802.3af/at |
| SFP Ports | 2 |
| Gigabit Uplink Ports | 2 x SFP/RJ45 Combo |
| Recommended for | VoIP Phones, IP Cameras |
