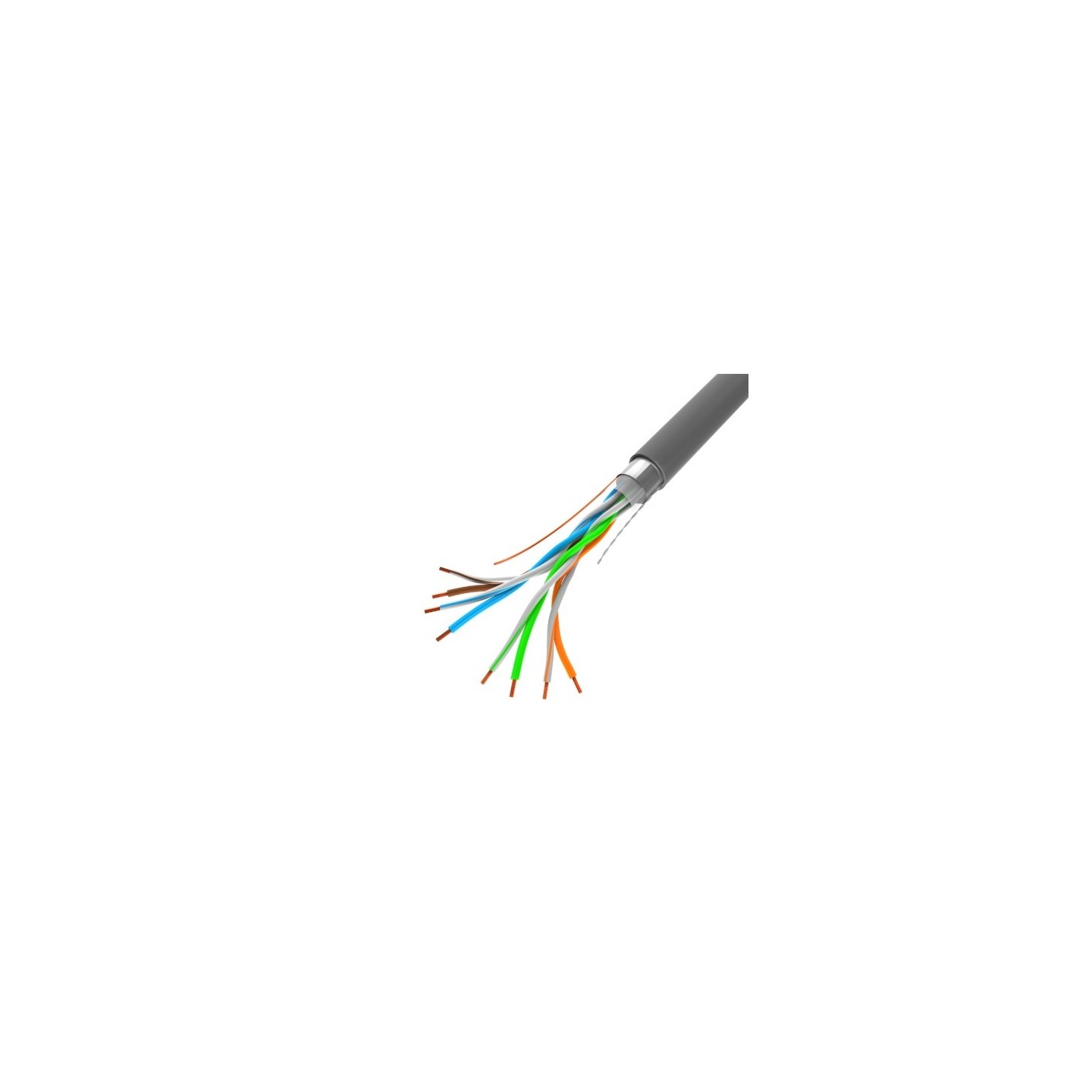

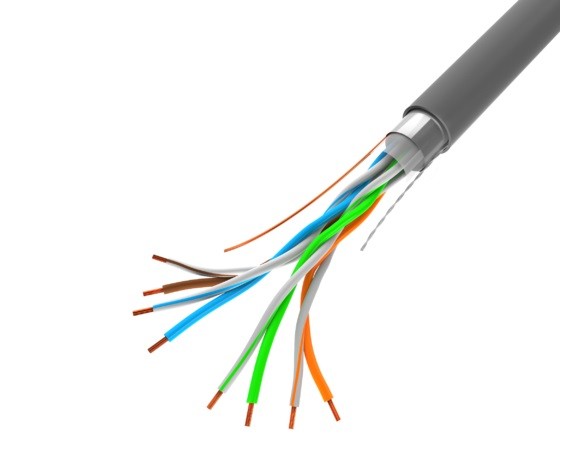

Lanberg CAT5e FTP CU Cable - LCF5-11CU-0305-S - CAT5e FTP CU Cable 305m Grey
Lanberg Cat5e FTP shielded LAN cable, 305 m, pure copper conductors (AWG24, 4x2x0.51 mm), grey.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Category | Cat5e |
|---|---|
| Ethernet Cables - Shielding | FTP |
| Ethernet Cables - Conductor | Solid Copper |
| Ethernet Cables - AWG | 24 AWG |
| Ethernet Cables - Length | Other |
- LAN cable category 5e FTP (shielded)
- Length 305m
- The wires are made of pure copper (CU 100% copper)
- AWG 24 (4*2*0.51mm)
- Conductor stranding: single wire
- Color: PANTONE COOL GRAY 5C
- Printed length counter at every meter of cable
- External PVC insulation: 6.0mm
- HDPE conductor insulation: 1.03mm
- Operation up to 100Mhz
- Recommended connector / guide diameter for braided cables: 1.1 mm

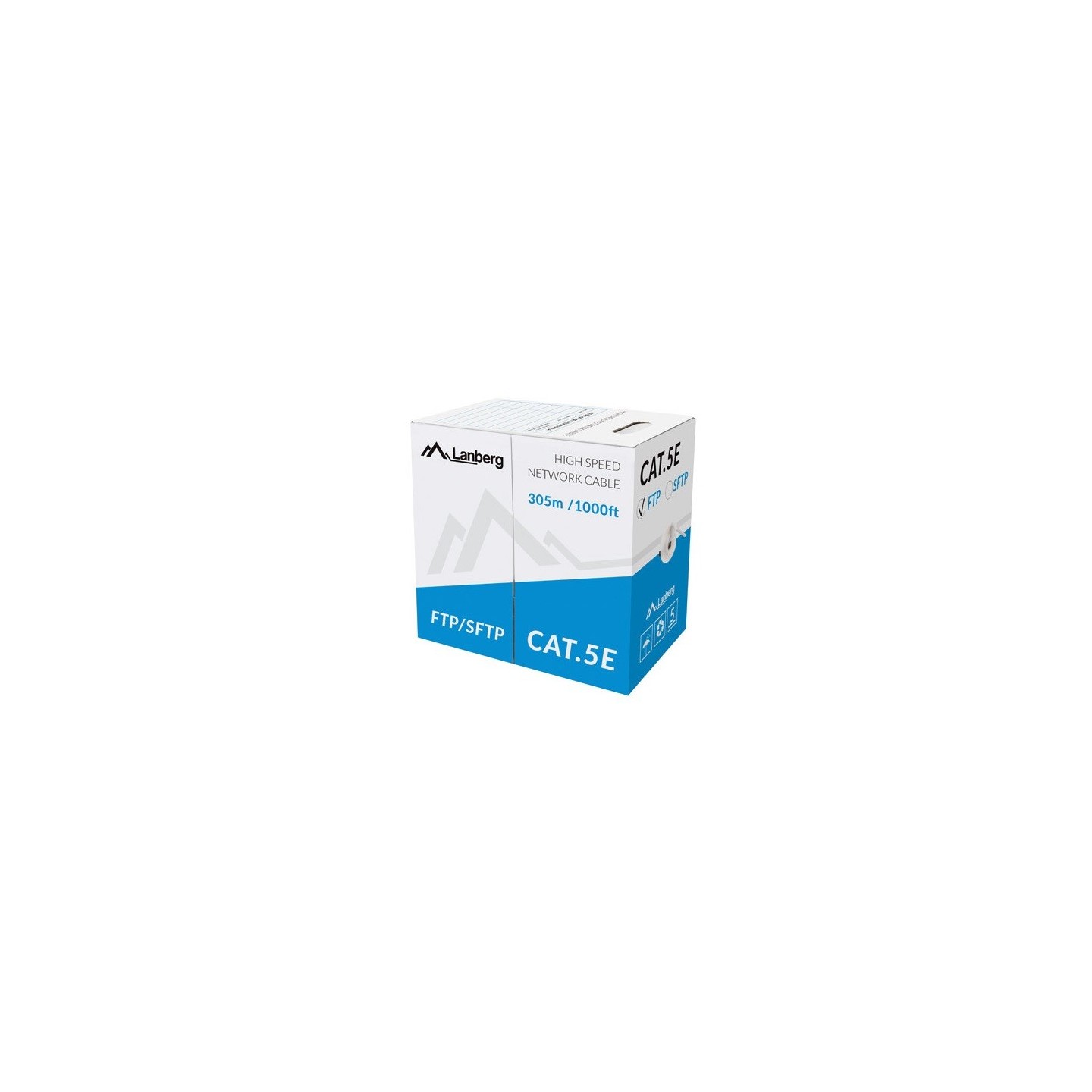

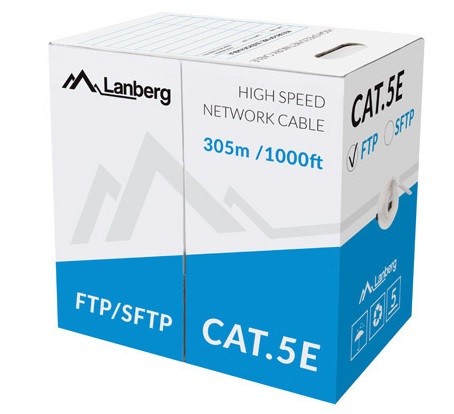

- Package: Color inner box with master carton
- Packaging dimensions (W x D x H): 43.5x43.5x50cm.(Inner box dimension: 42x42x24 cm)
Electrical characteristics (20 degrees):
- Direct-current resistance: 9.1/100m
- Pair-to-Ground capacitance: 160PF / 100m
- Characteristic impedance: 100±15
- Transport and storage temperature: 0 - 60 degrees
- Operating temperature: -20 - 75 degrees
- Working distance: 100m
| Type | Cat5e |
| Cable Type | FTP |
| Conductor | Pure Copper |
| Environment | Indoor |
| Length | 305m |
| Colour | Grey |
