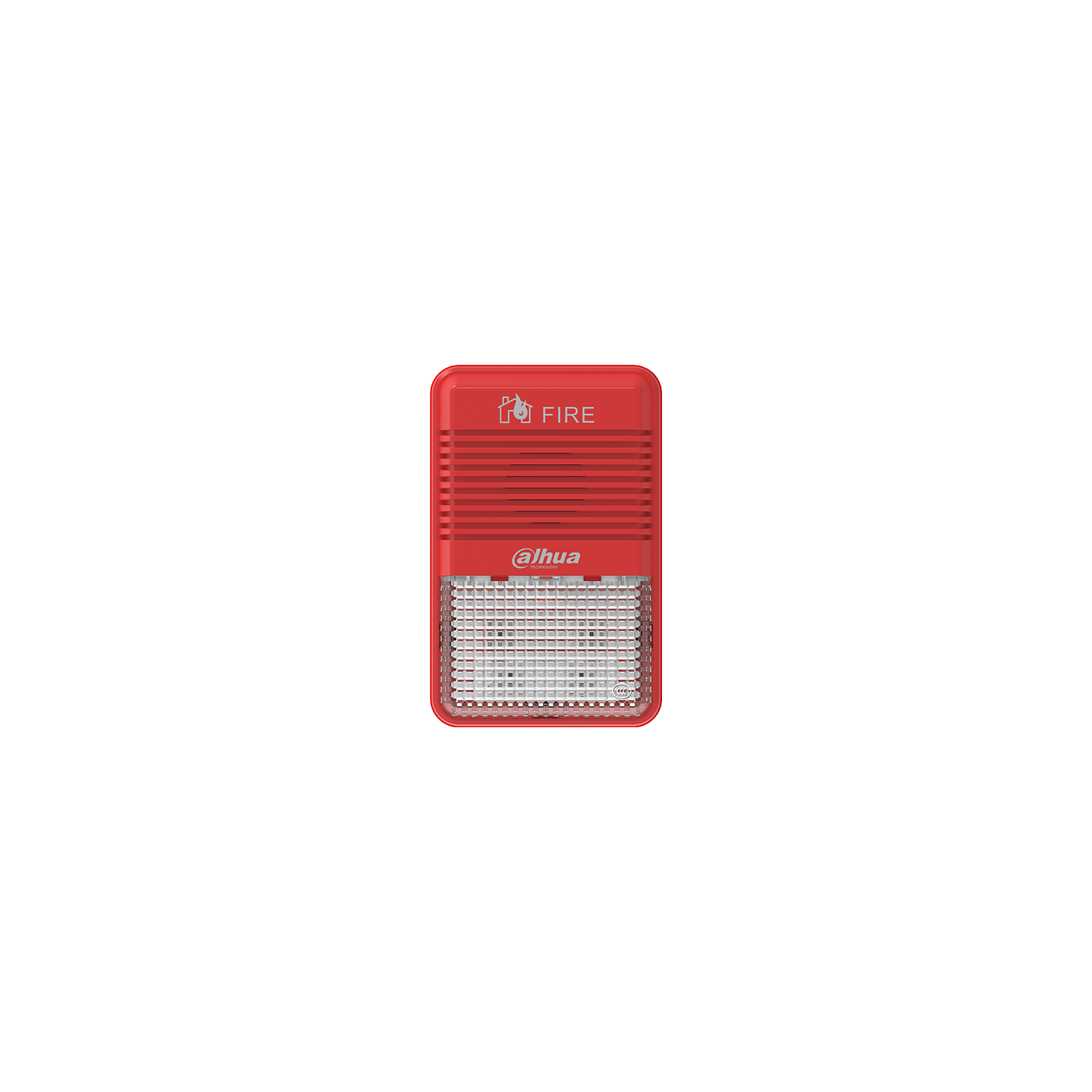

Dahua Addressable Fire Alarm Sounder - HY-1500-CTXF - Without Base
Dahua Addressable Fire Alarm Sounder HY-1500-CTXF, without base.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Convenient wiring: two-wire, polarity-free
- Reliable communication: built-in microprocessor, performance is stable
- Ultra-low consumption: ultra-low monitoring current and operating current
- Simple installation: with a plug-in structure, easy to install and construct
- Working Voltage : DC24V
- Working Current : Monitoring current: ≤ 120μA / Maximum operating current: ≤ 7mA
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Alarm Volume : 75 dB–115 dB @ 3 m (A)
- Modulation Cycle : 4 s–5 s
- Flash Rate : 1.5Hz–2.0Hz
- Communication Distance : 1500 m (4921.26 ft)
- Operating Temperature : –10°C to +55°C (+14°F to +131°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Color : Shell: Red / Lampshade: Clear white
- Dimensions : 125 mm × 80 mm × 40 mm (4.92" × 3.15" × 1.57")
- Weight (with base) : 118 g (0.26 lb)
- Compliance Standard : EN54-3, EN54-23
