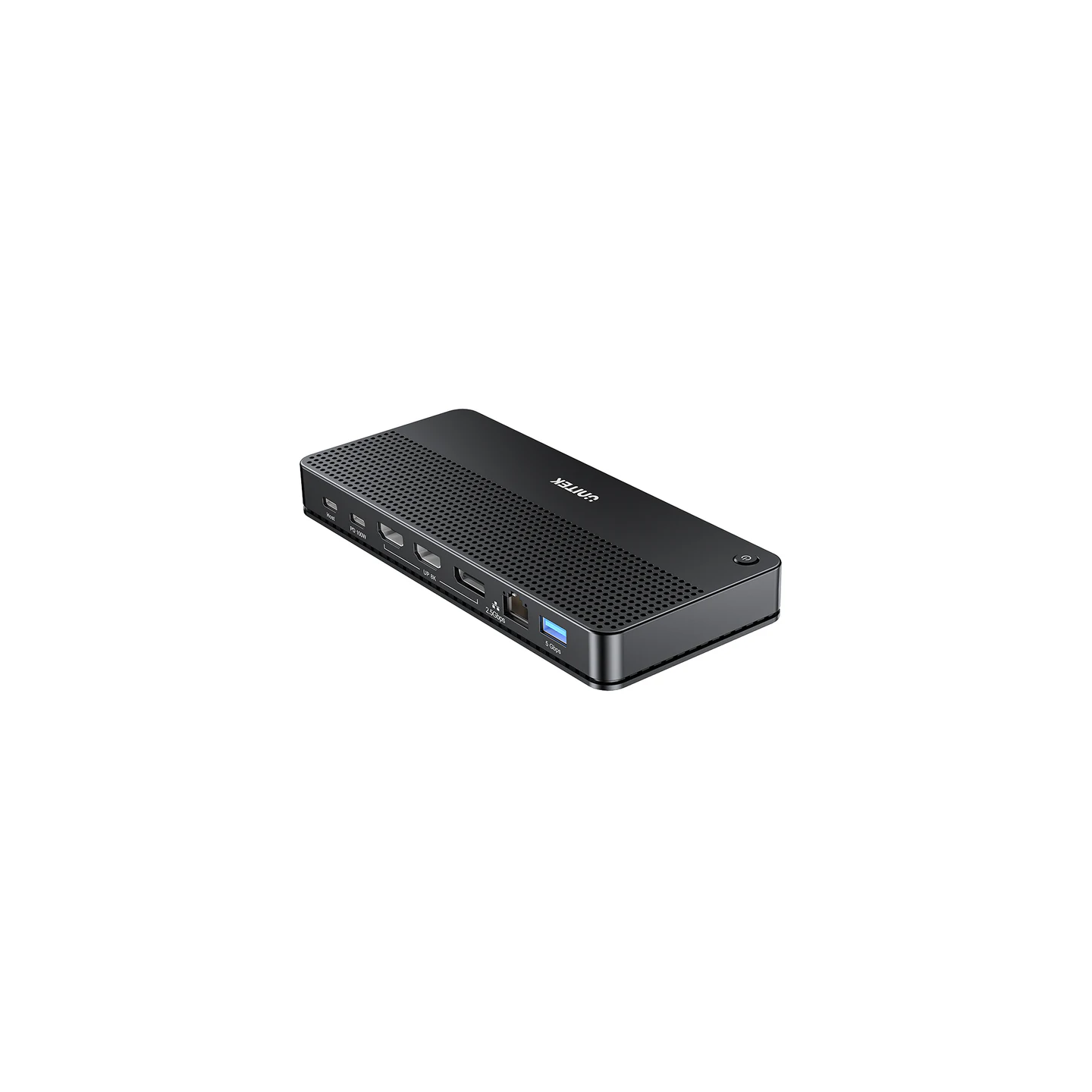

Unitek D1104A USB-C 13in1 8K Triple Display Docking Station USB3.2 & 2.5G Lan

SKU 35855 Brand Unitek EAN13 4894160051516
UNITEK USB-C Single 8K/ Triple 4K Docking Station allows you to connect to all the peripherals you need. With 100W Power Delivery and a maximum of three display output, this docking station turns your...
Docks & Hubs - Type USB-C Dock
Docks & Hubs - Host Interface USB-C (DP Alt-Mode)
Docks & Hubs - Power Delivery (PD) 100 W
Docks & Hubs - Video Outputs HDMI + DP
Docks & Hubs - Max Displays 3
Docks & Hubs - Max Resolution 8K60 (single)
Docks & Hubs - Ethernet 2.5GbE
Docks & Hubs - Audio Jack Yes

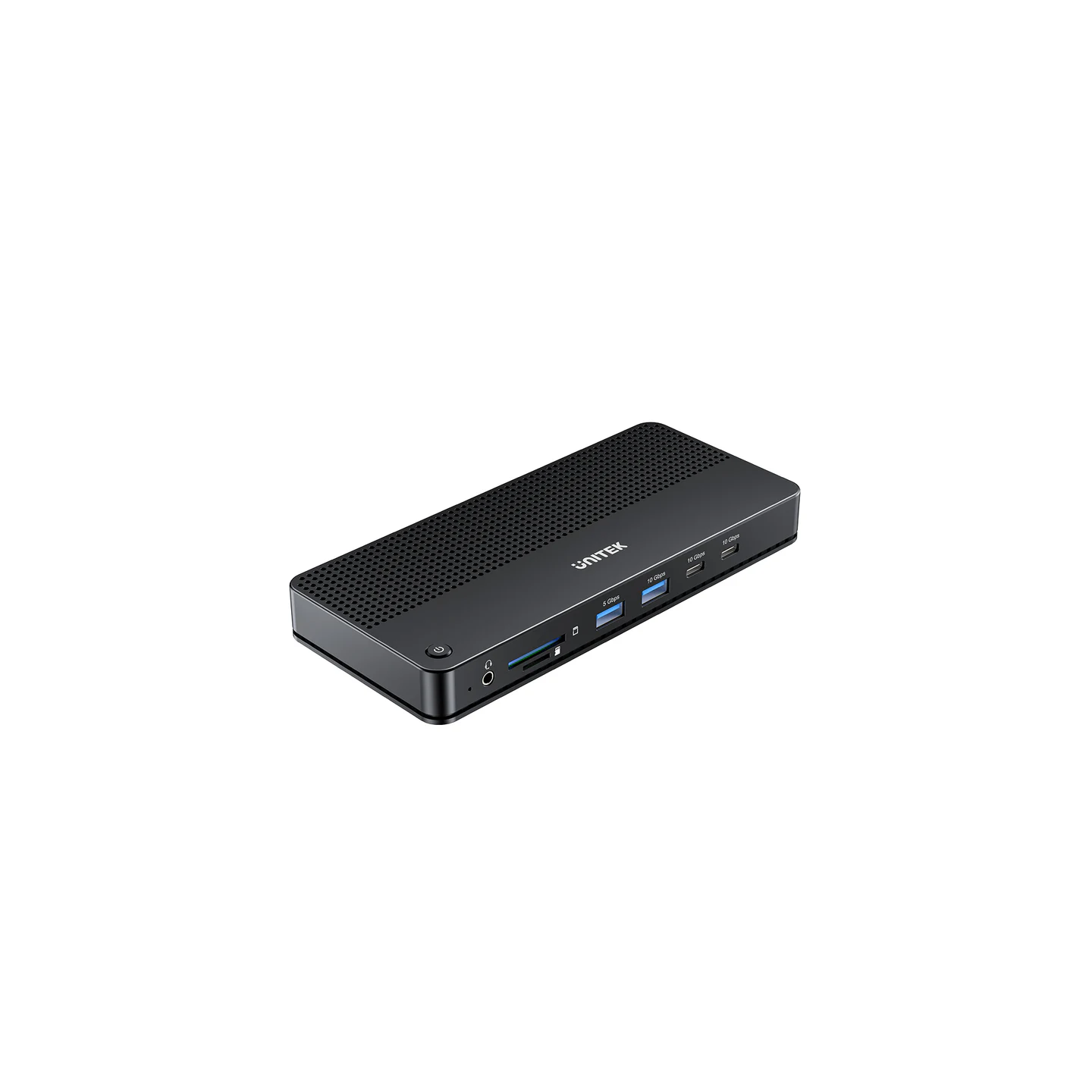

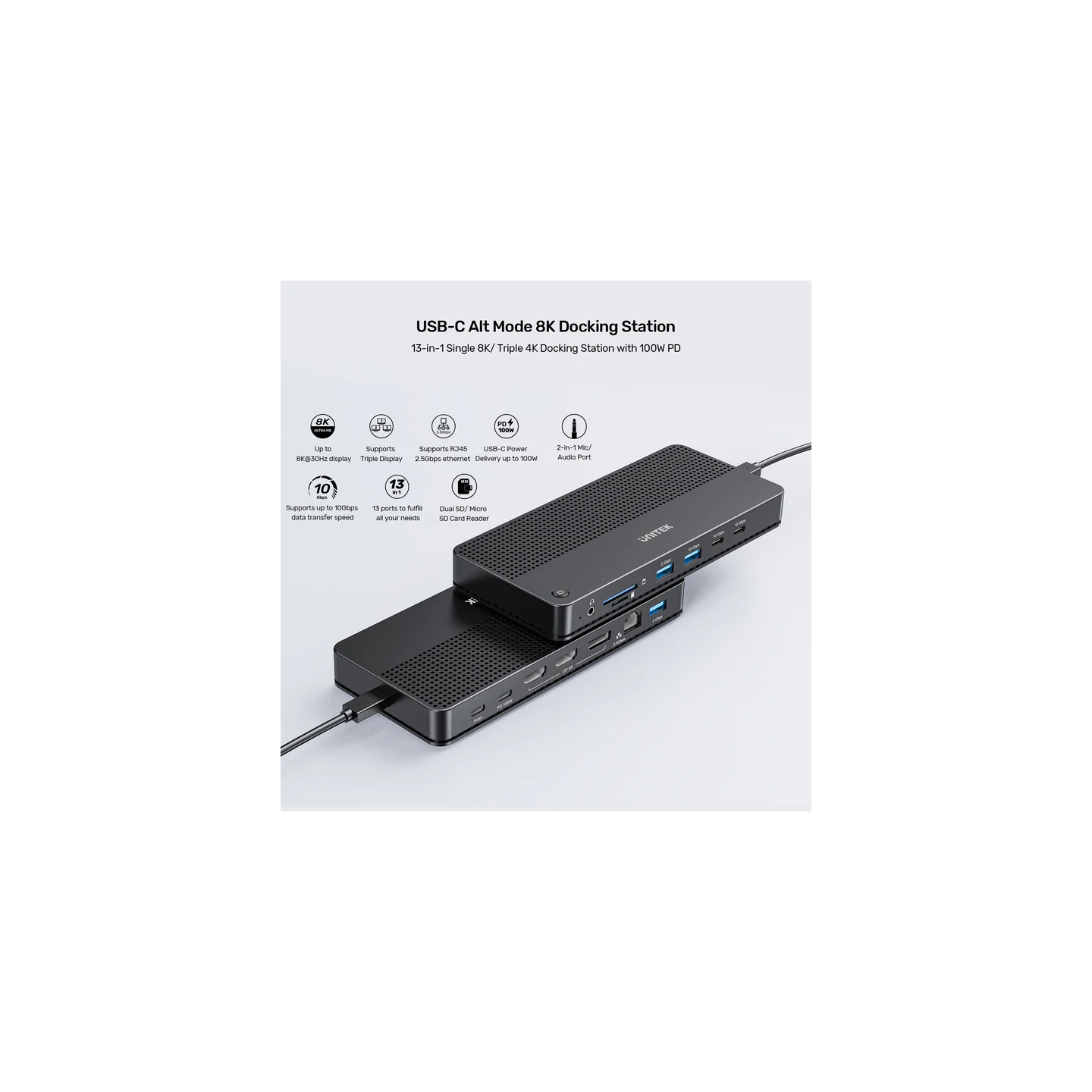

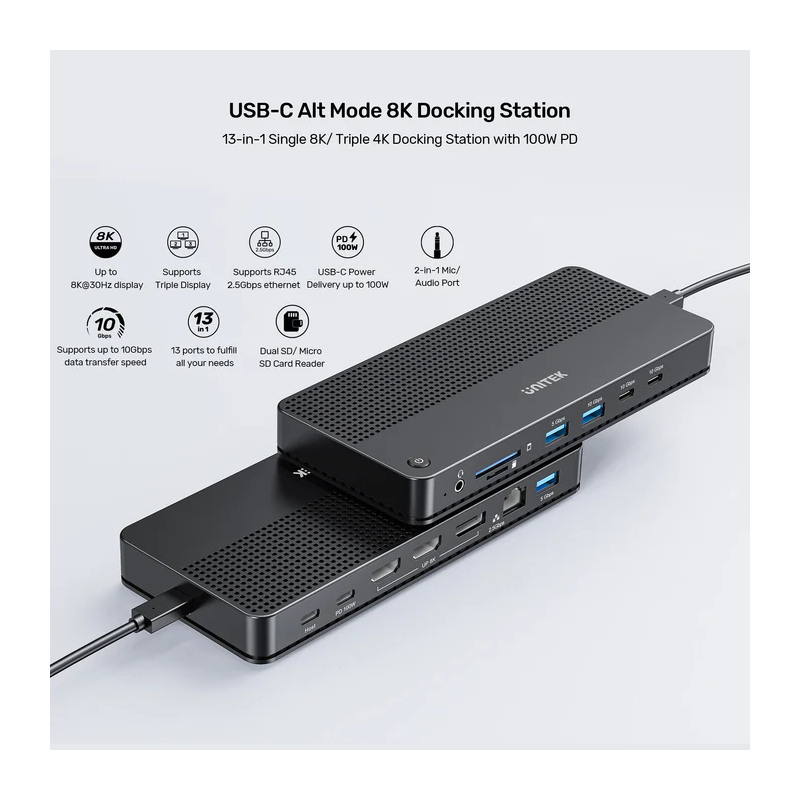

UNITEK USB-C Single 8K/ Triple 4K Docking Station allows you to connect to all the peripherals you need. With 100W Power Delivery and a maximum of three display output, this docking station turns your laptop(s) into a full workstation that can enhance productivity with a clean workspace.

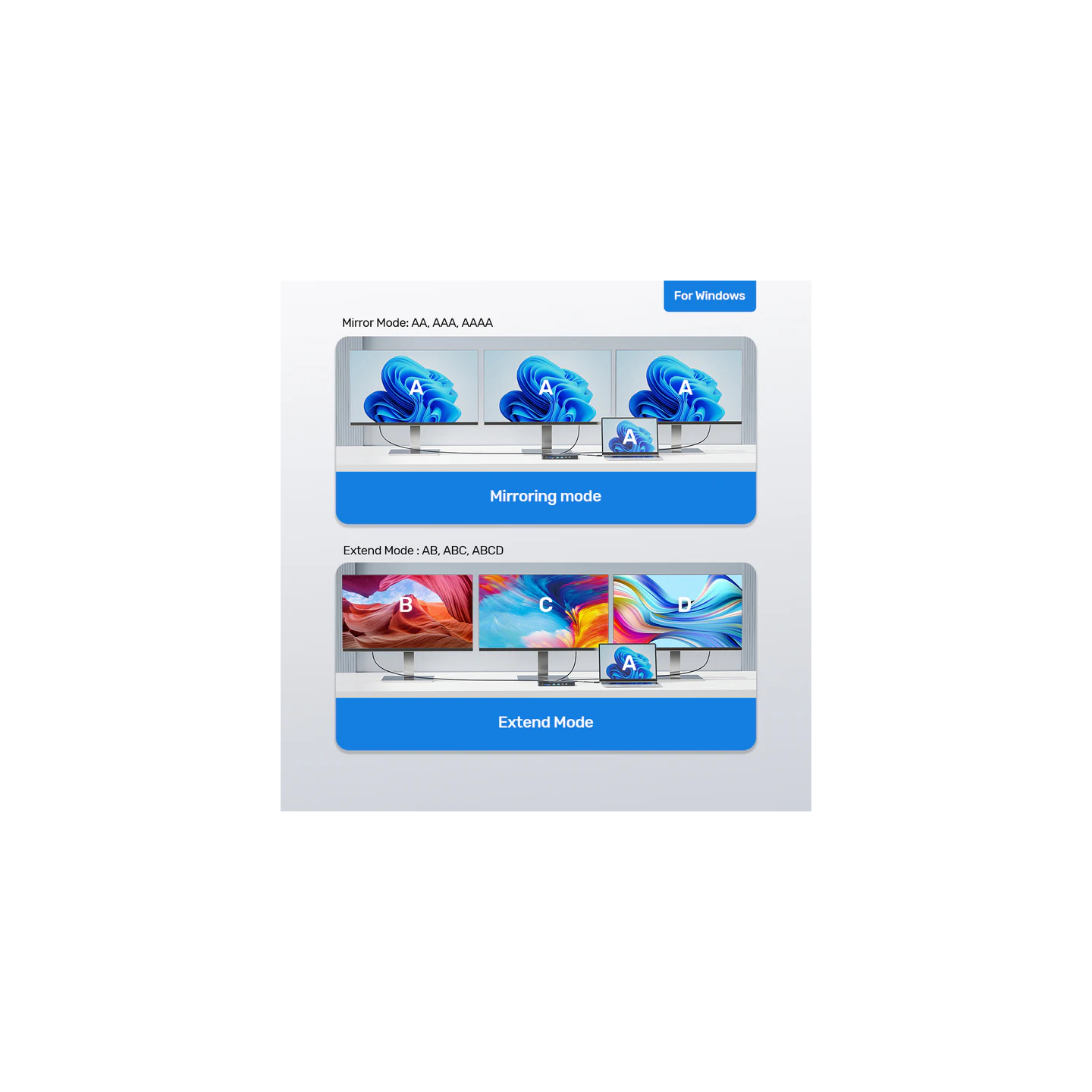

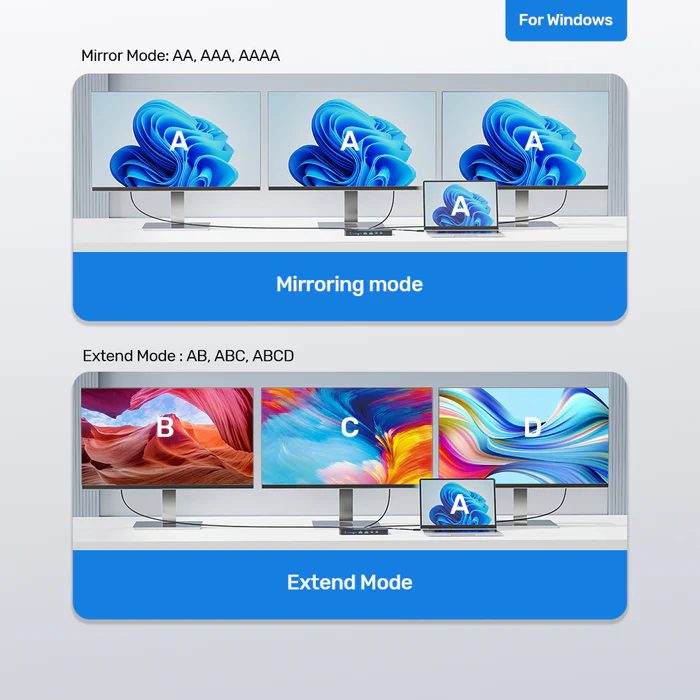

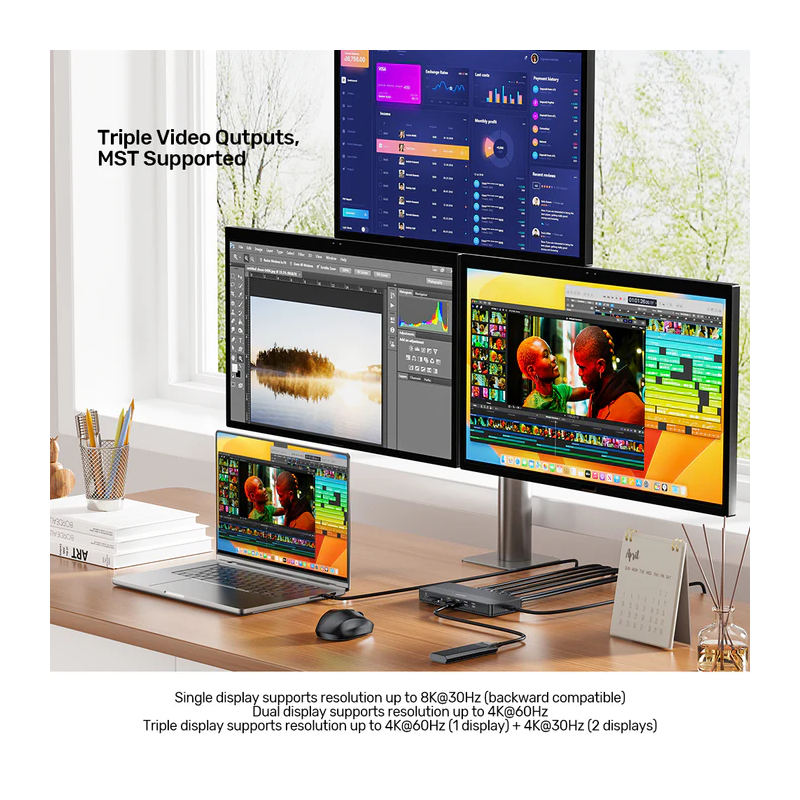

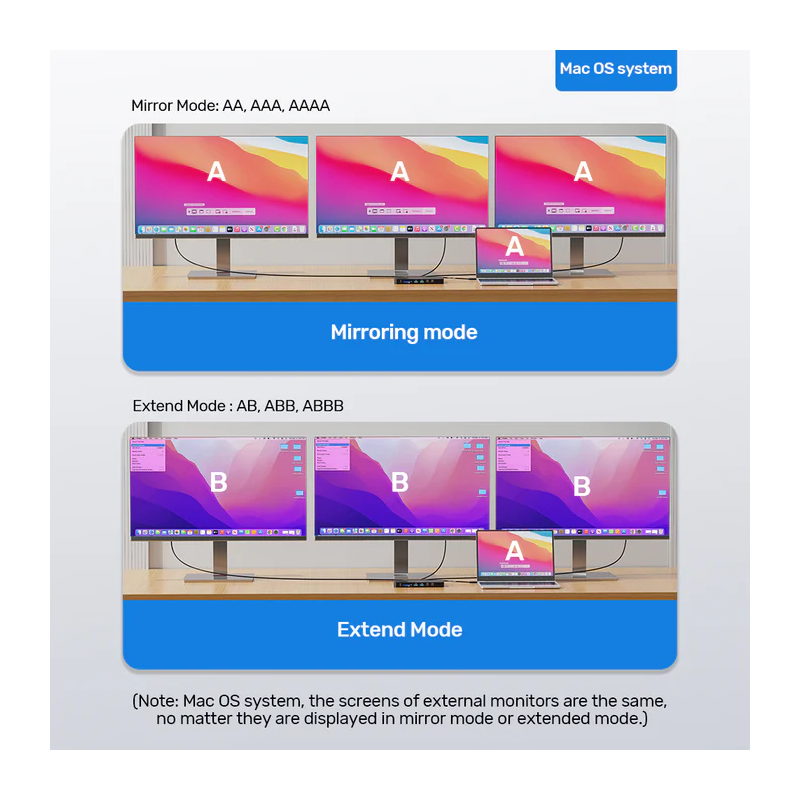

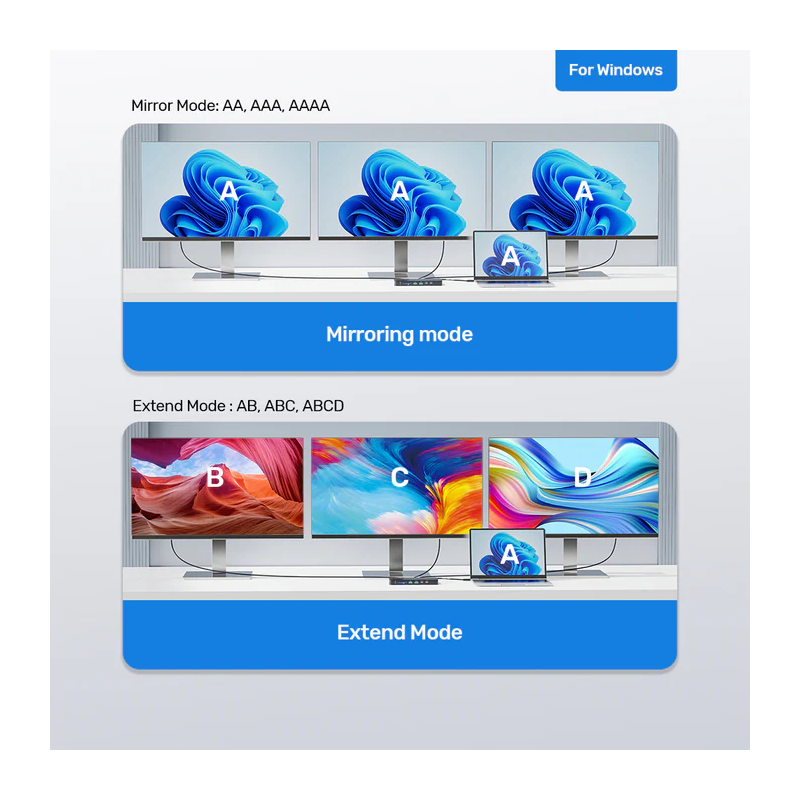

  • Single 8K/ Triple 4K Video Output - Single display output resolution up to 8K@30Hz, dual display output resolution up to 4K@60Hz, triple display output up to 4K@60Hz*1 + 4K@30Hz*2, MST supported.

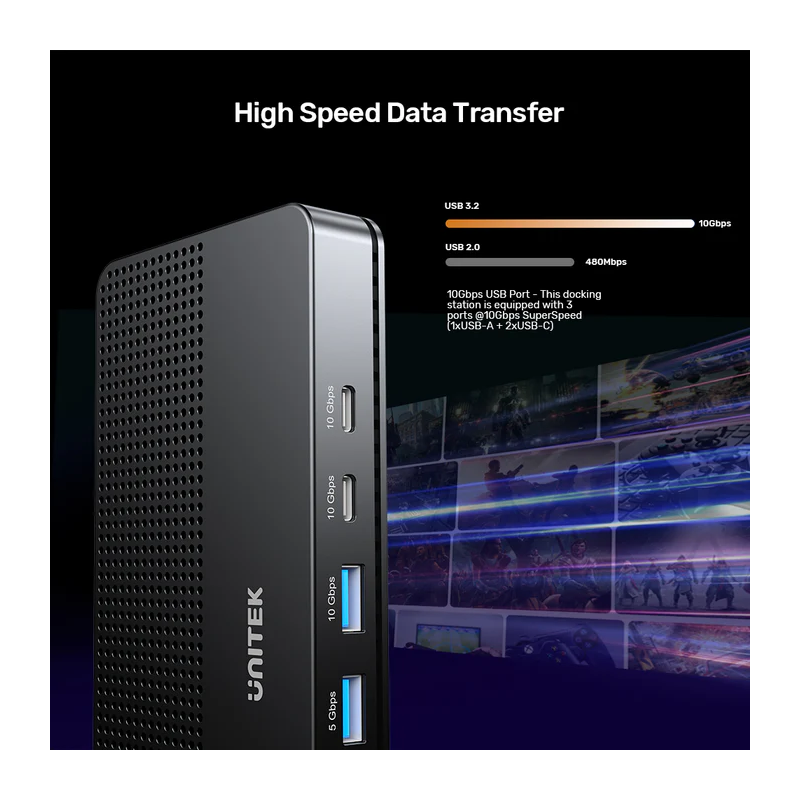

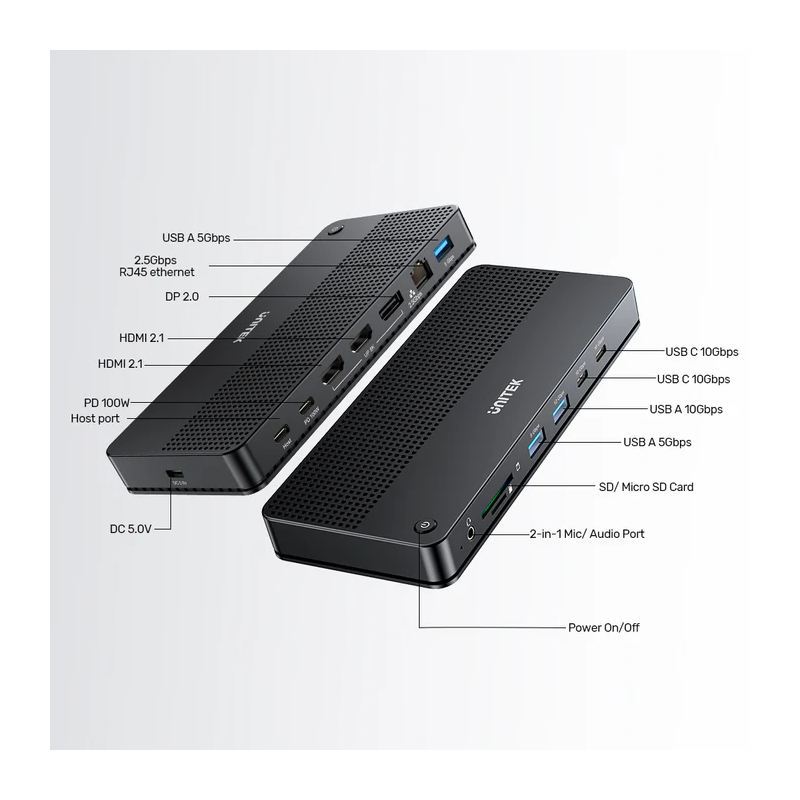

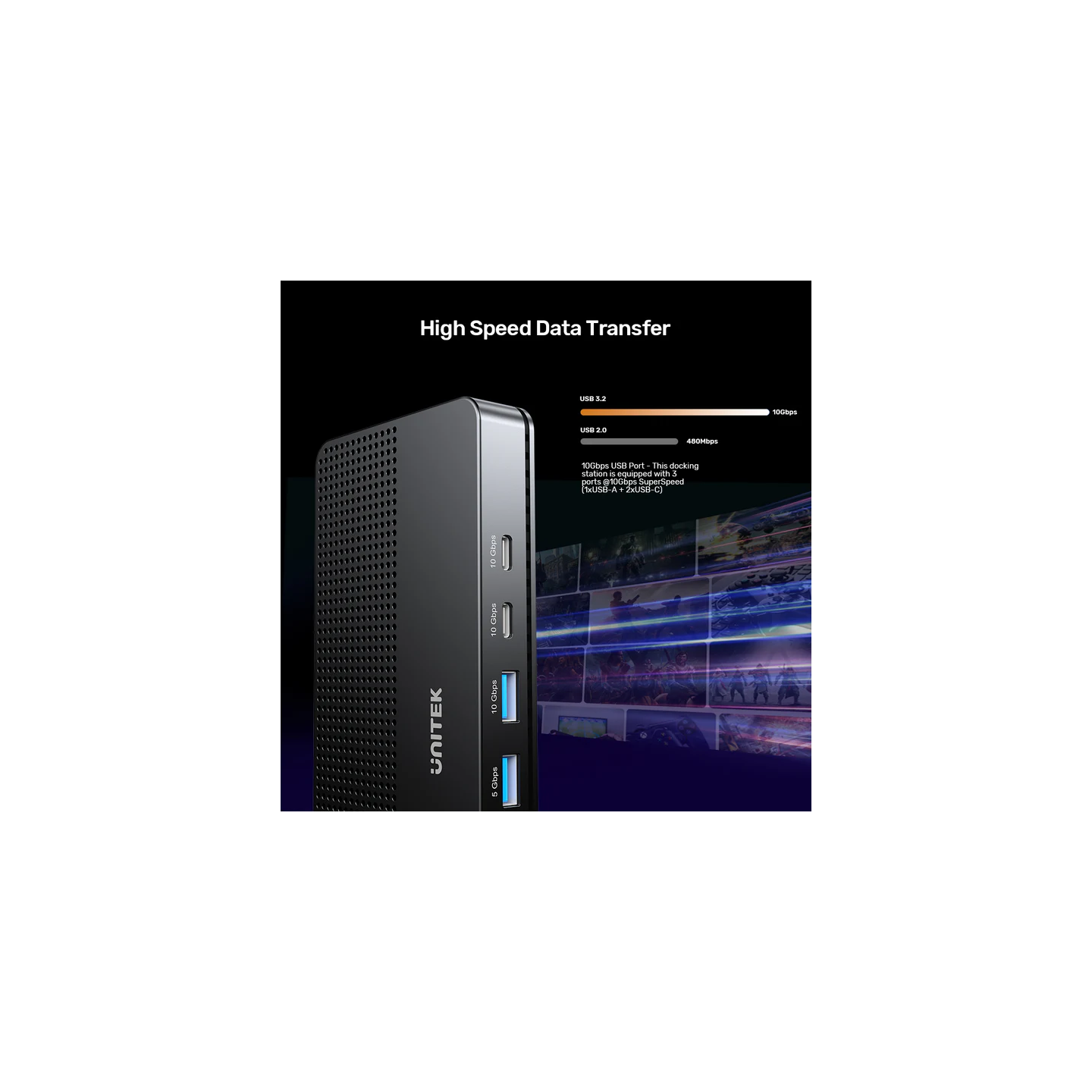

  • Ultrafast Data Transfer - 3 USB 10Gbps Ports (2 USB-C and 1 USB-A) and 2 USB 5Gbps Ports (2 USB-A).

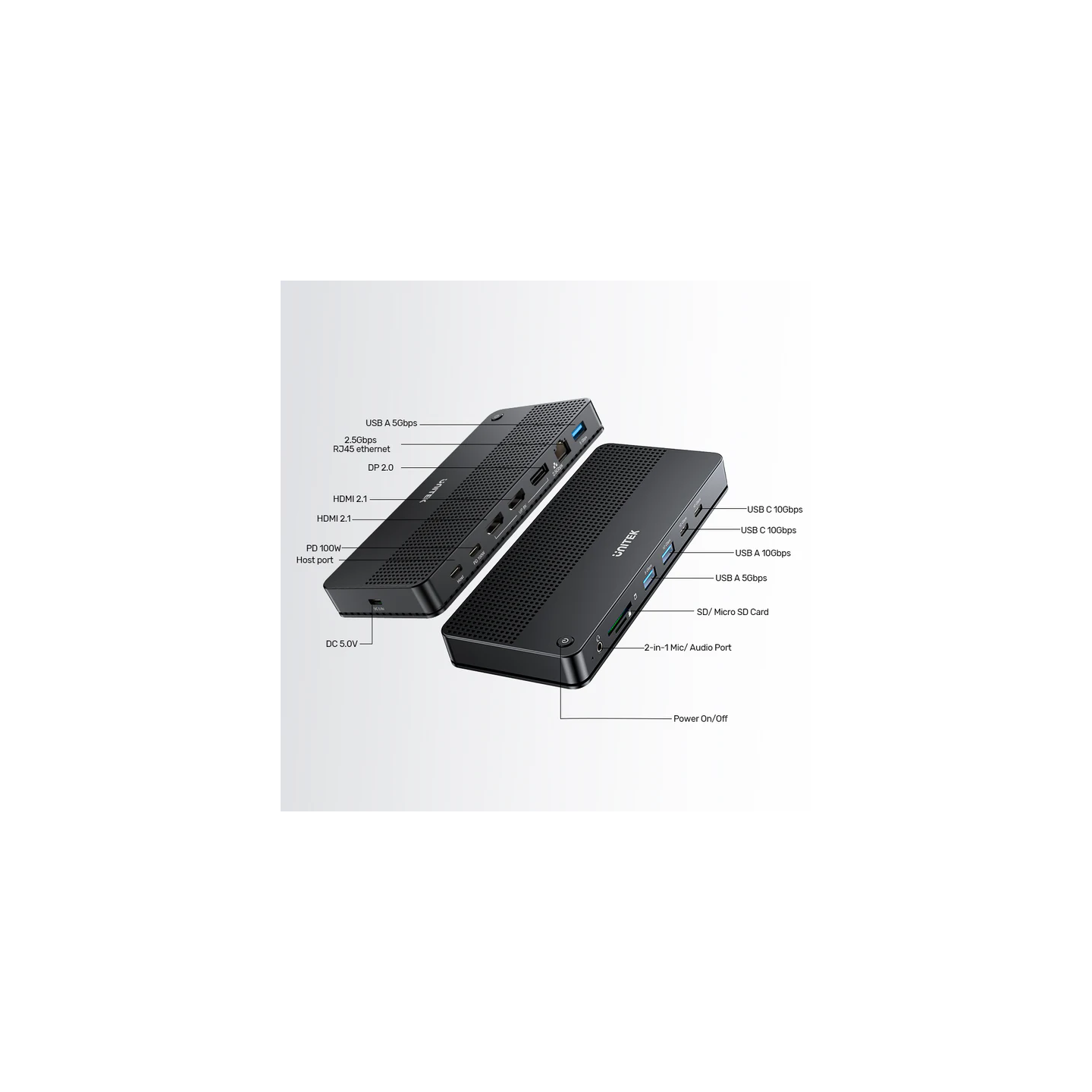

  • All the Ports You Need - Built in SD 4.0 and Micro SD 3.0 card slots, support 2 cards reading simultaneously. The two-in-one headphone and microphone port (3.5mm audio jack) saves desktop space and provides High-Quality Audio sound experience.

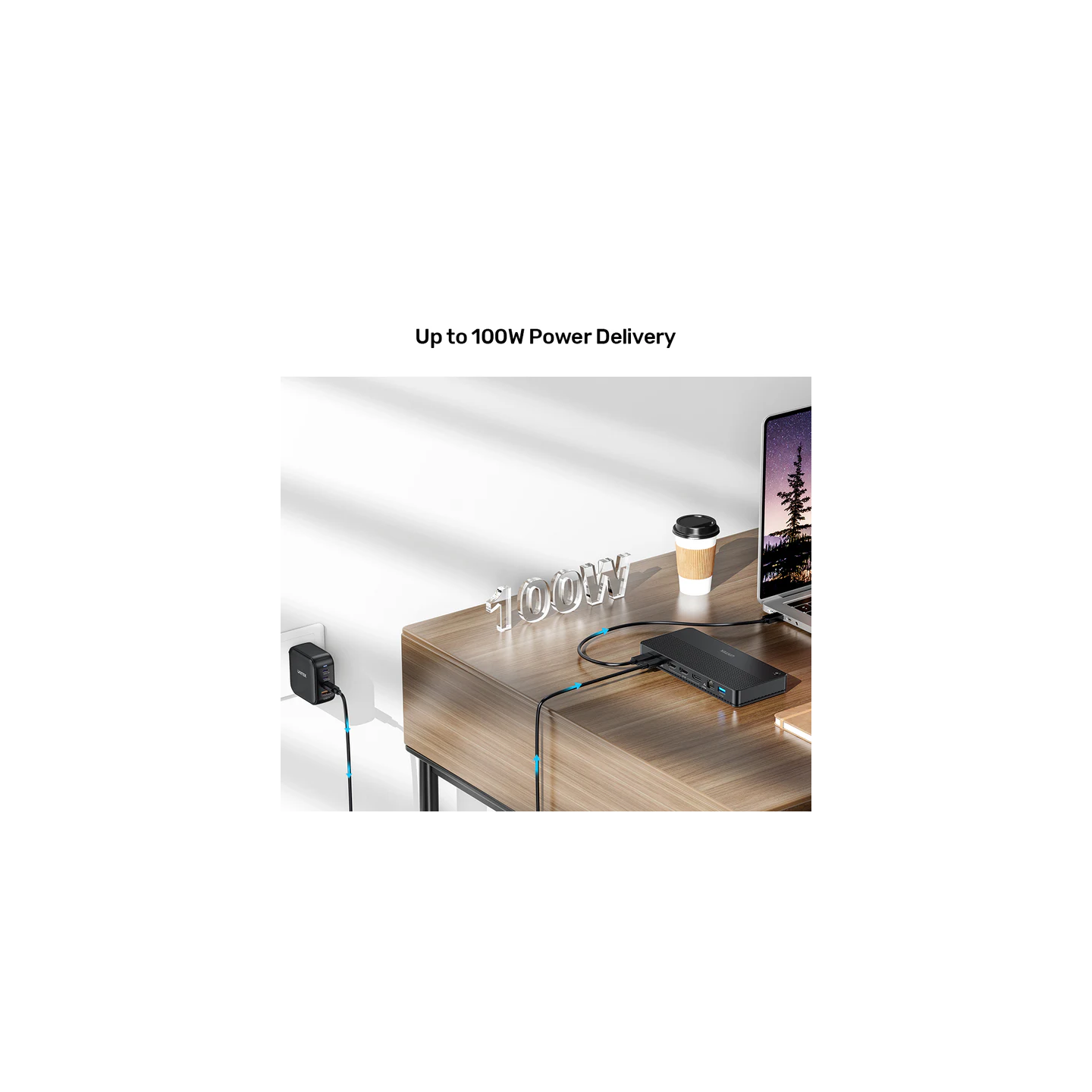

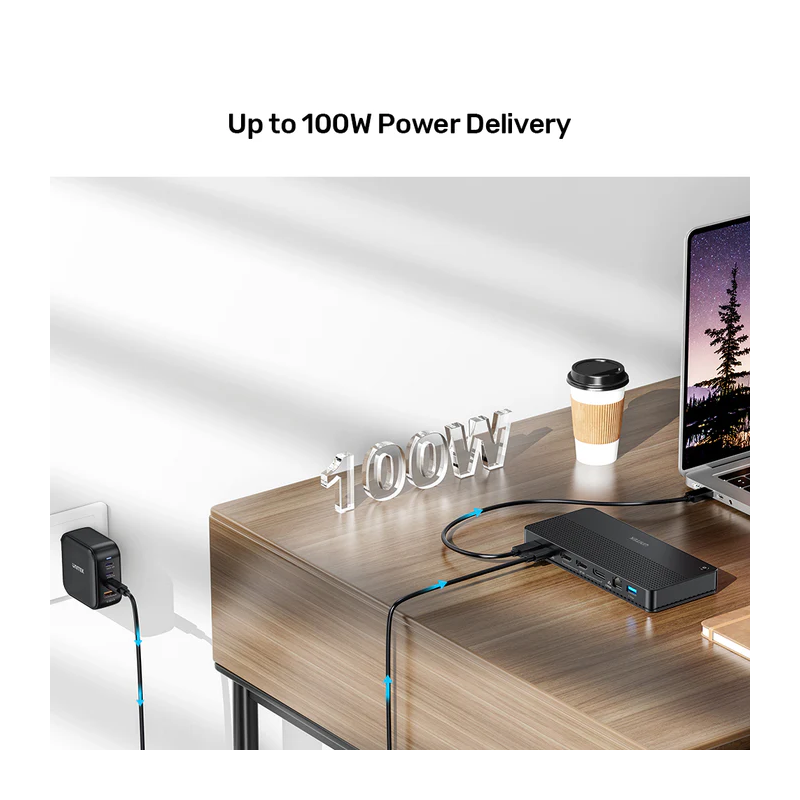

  • Fast Charge Supported - Capable of charging your devices with Power Delivery up to 100W.

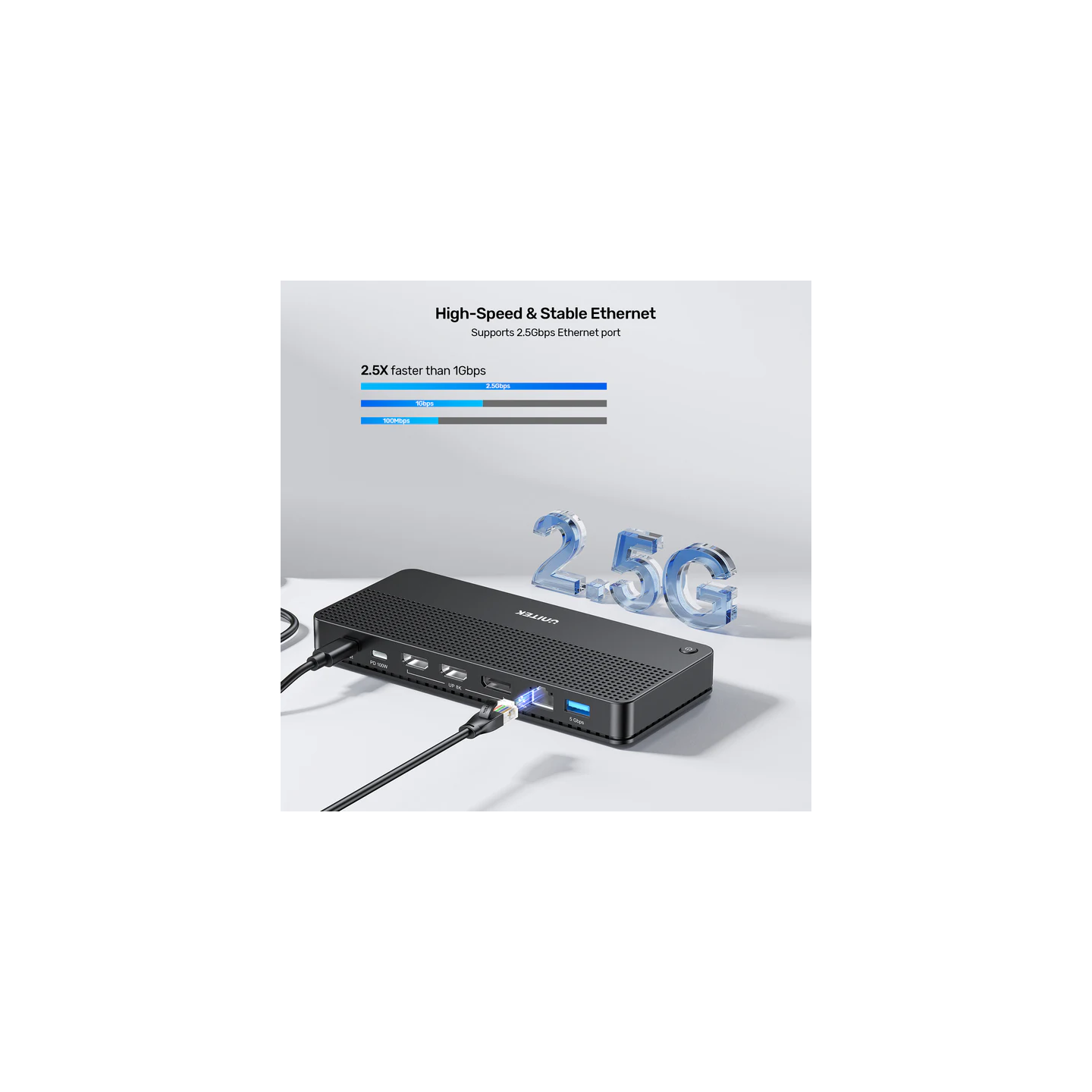

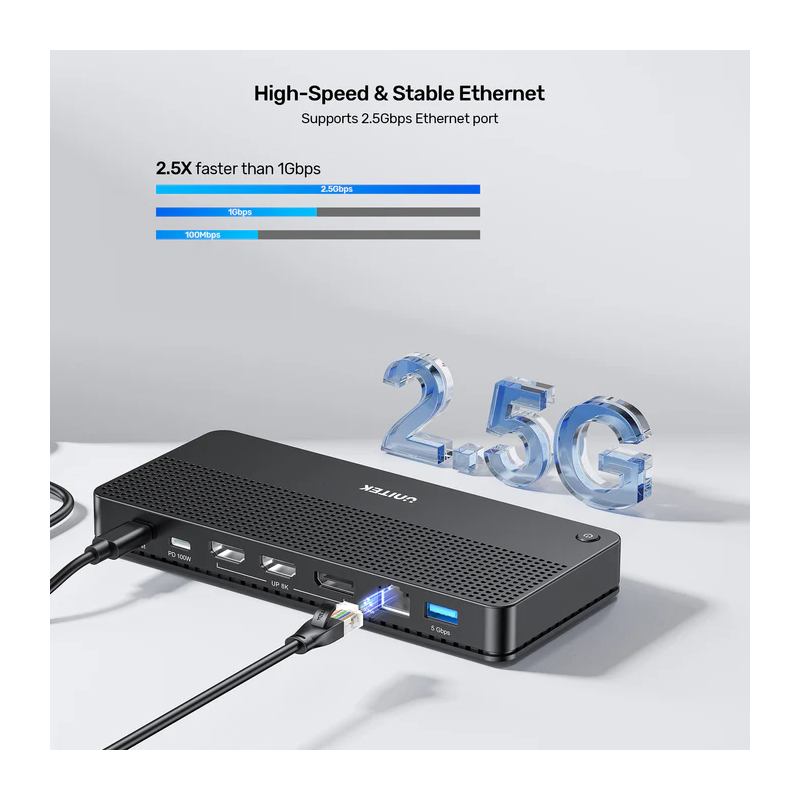

  • High-Speed & Stable Ethernet - This Docking Station features an RJ-45 Gigabit Ethernet port that supports 2.5Gbps.
  • Power Saving - UNITEK USB-C Single 8K/ Triple 4K Docking Station features power on/ off button. Users simply need to press and hold for 3 seconds to power on/ off the dock.
  • Dimensions: 180mm x 80mm x 20.5mm
  • Material / Color: ABS Housing/ Black

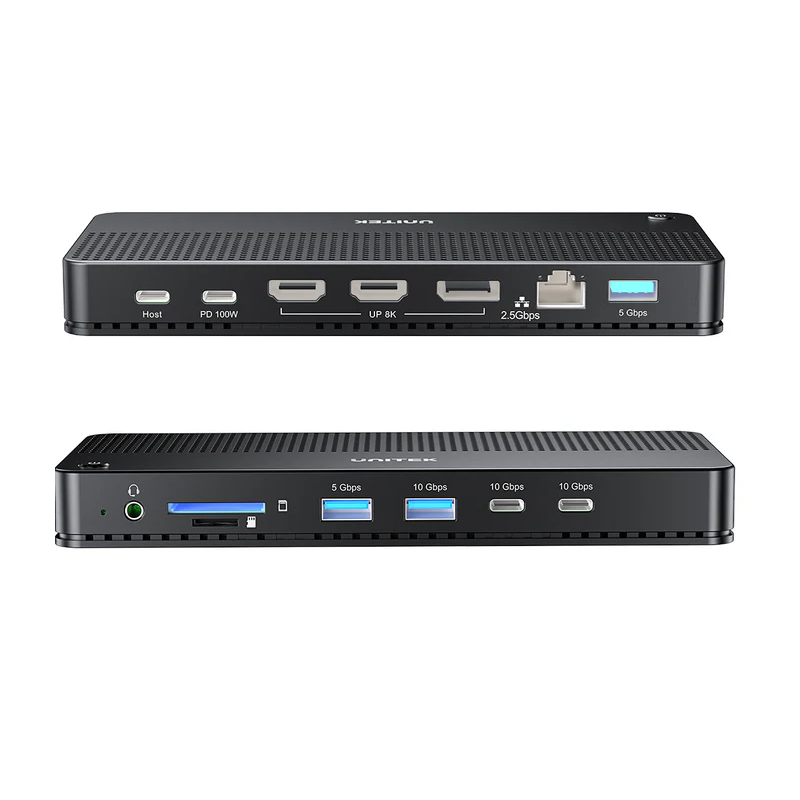

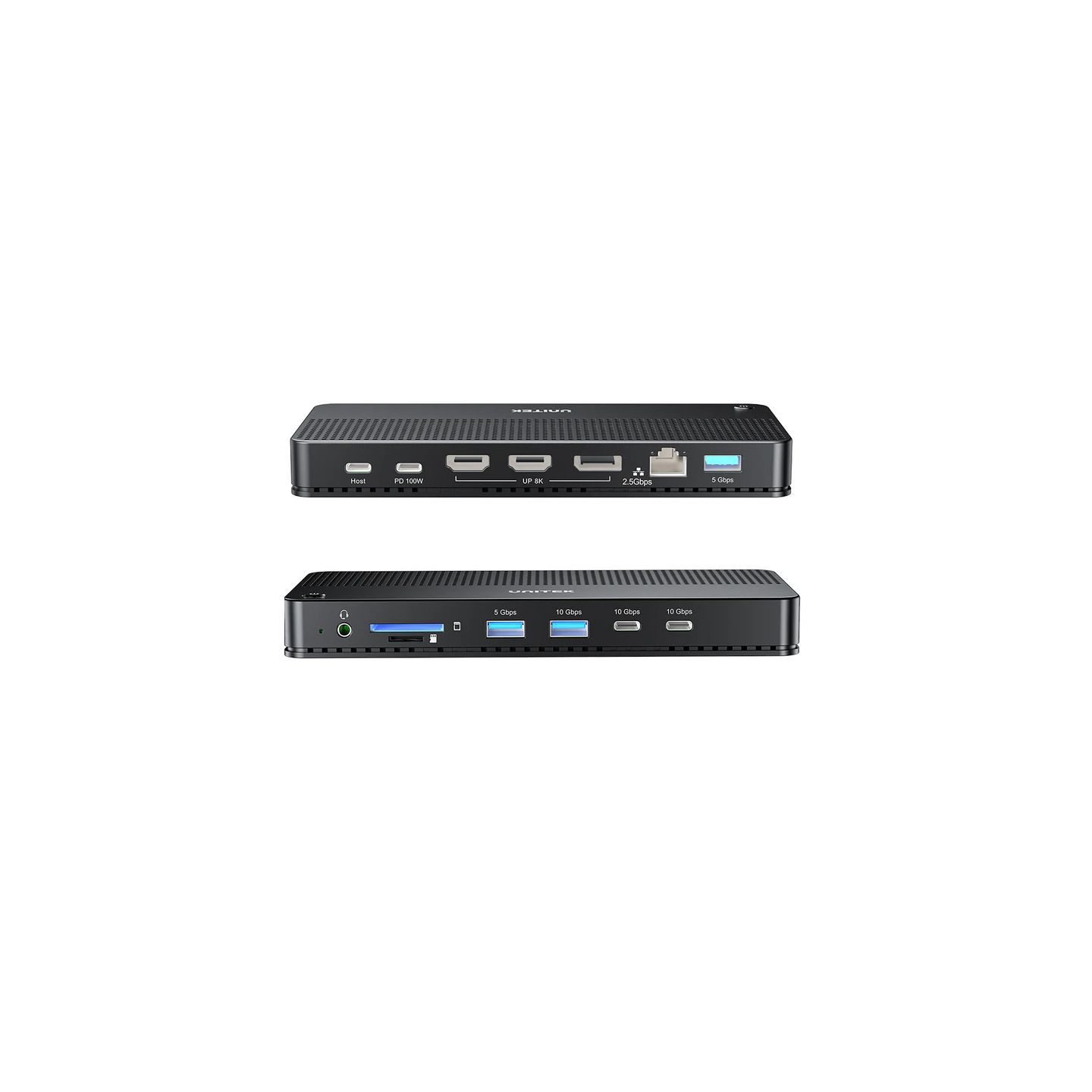

  • Video Ports: 2 x HDMI 2.1 + 1 x DP 2.0
  • Video: Output Single Display up to 8K@30Hz, Dual Display up to 4K@60Hz
  • Laptop Host Compatibility USB4, Thunderbolt 4/ 3, USB-C

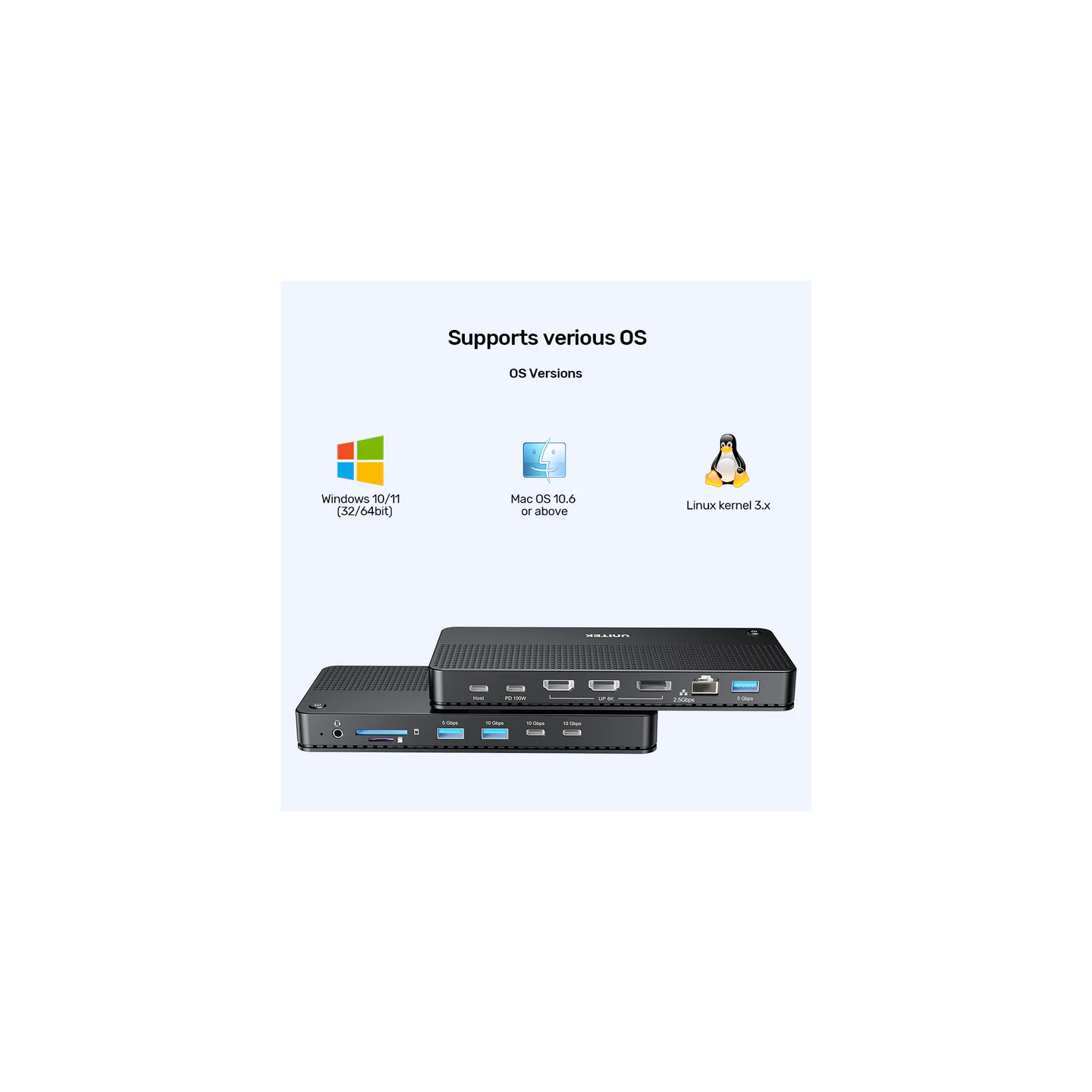

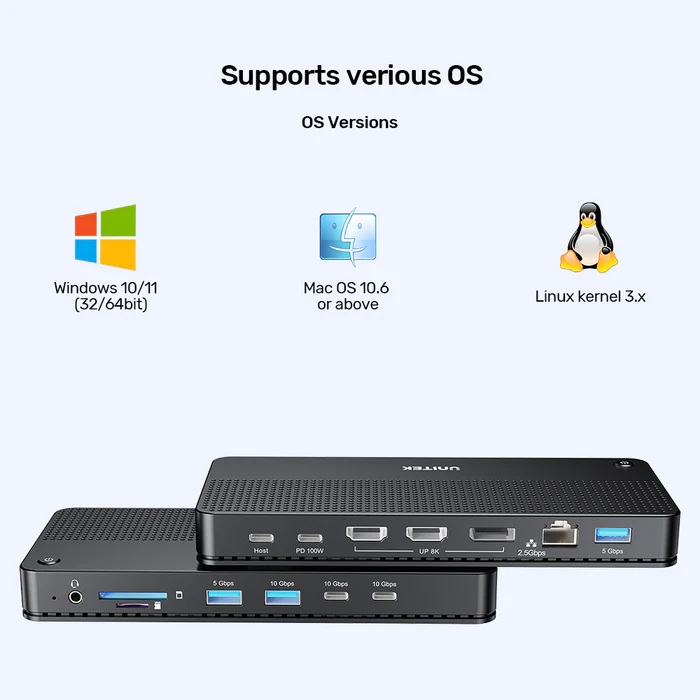

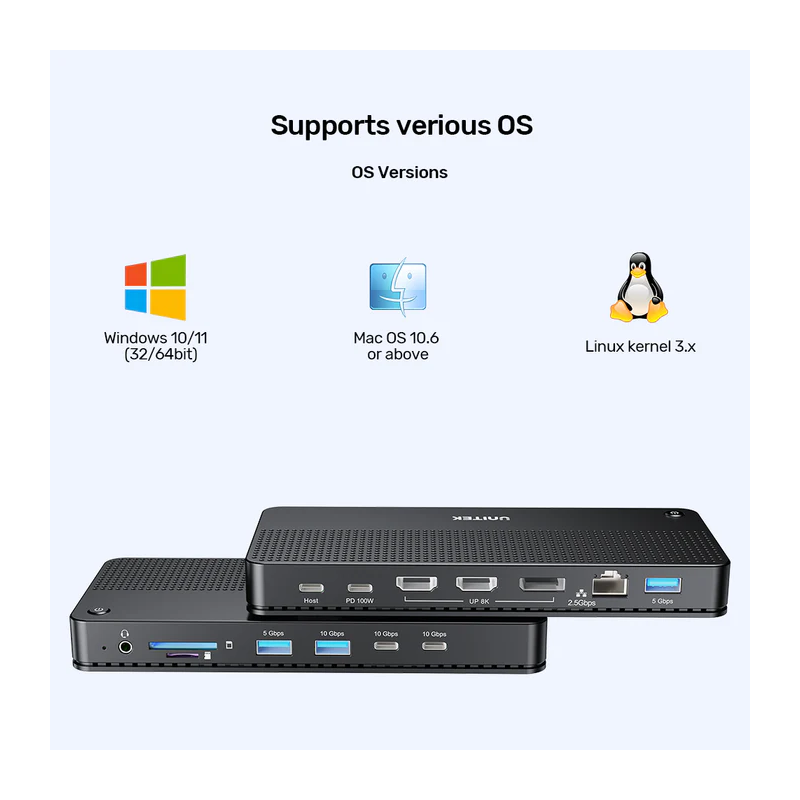

  • Operating System: Windows 10/ 11 (32/ 64bit) / Linux kernel 3.x/ Mac OS 10.6 or above
  • Cable Length: 100cm
  • Upstream: USB-C 10Gbps
USB TypeType C
USB Ports5
USB VersionUSB 3.2 Gen2

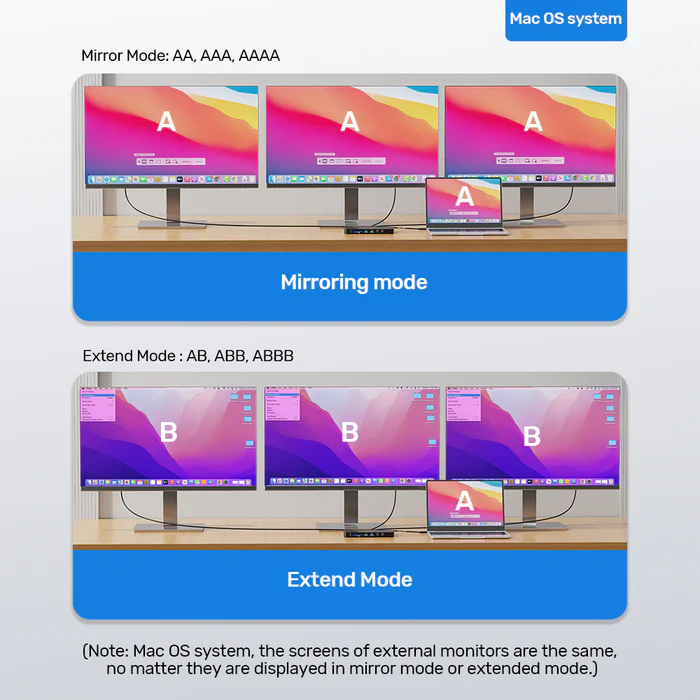

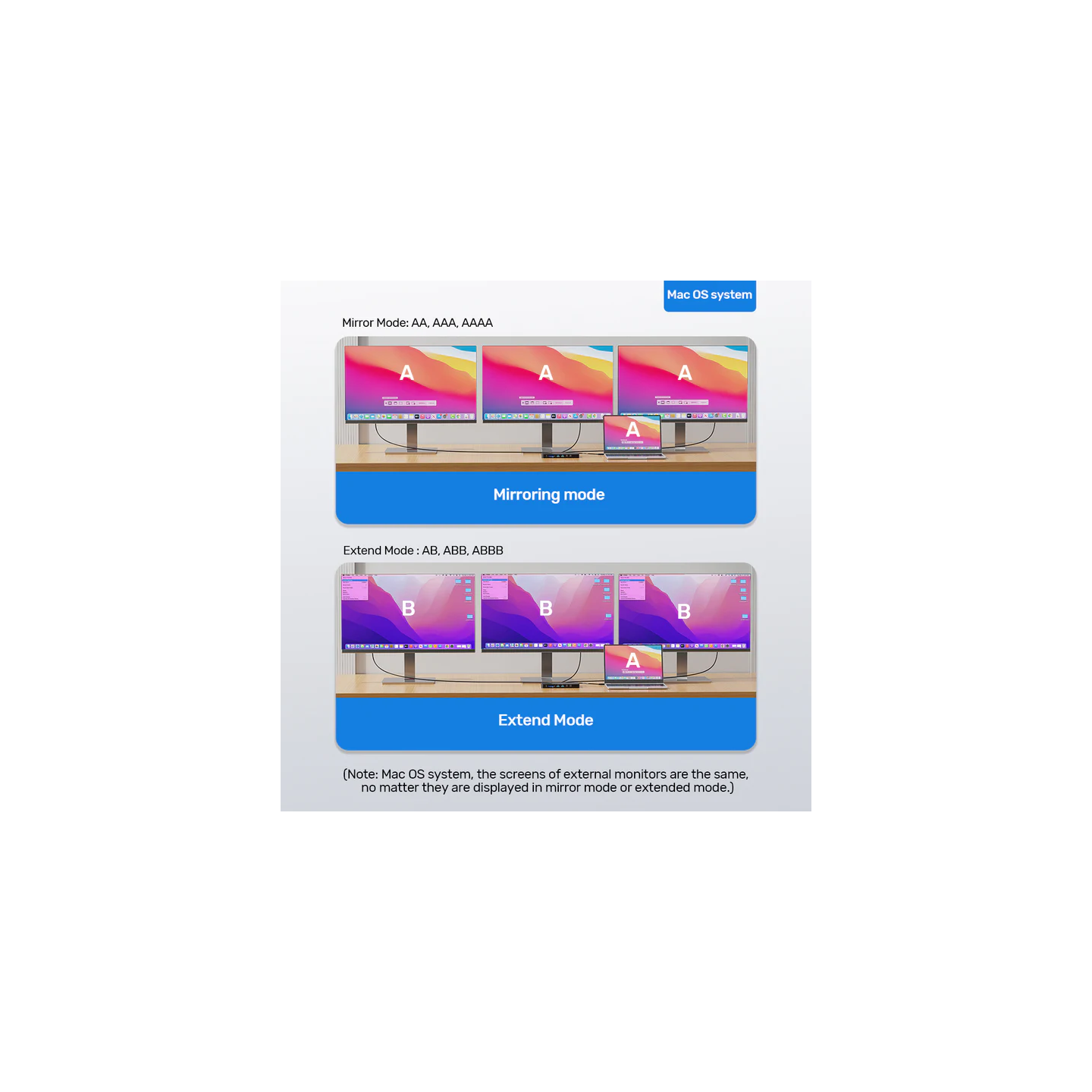

MST FunctionYes
HDMI Ports2
DisplayportYes
AudioYes
Card ReaderYes
Gigabit Lan2.5G
External PSU SupportYes
