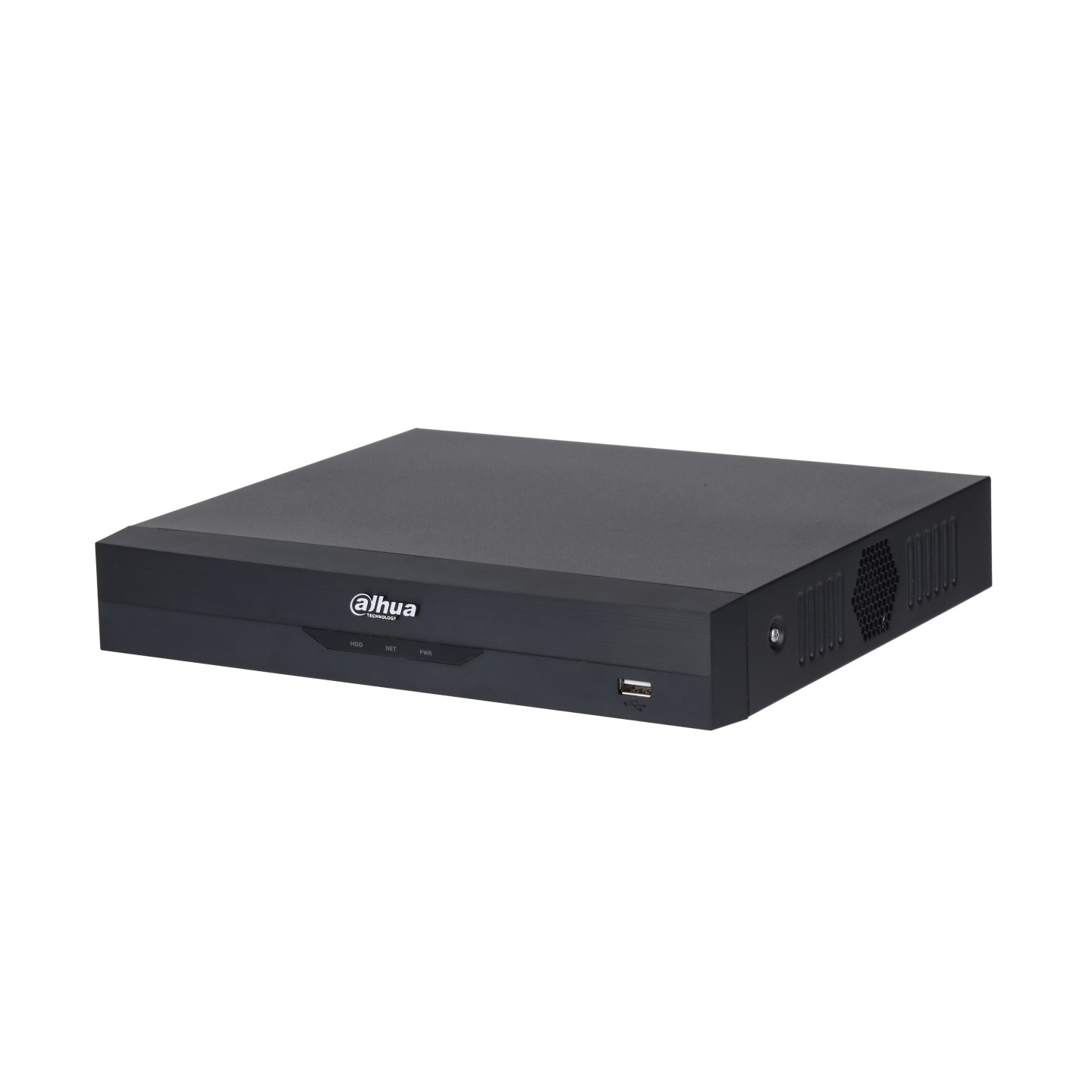

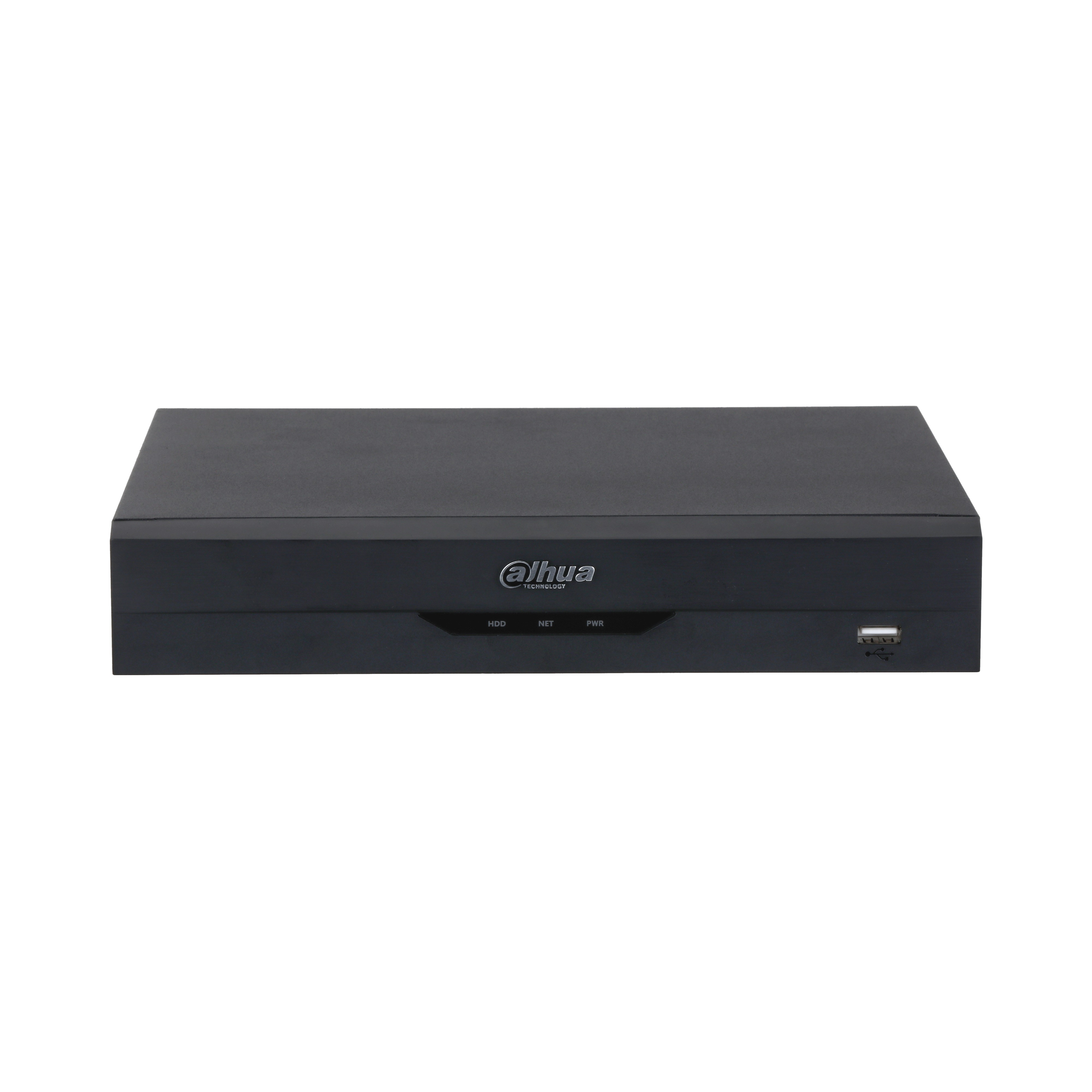

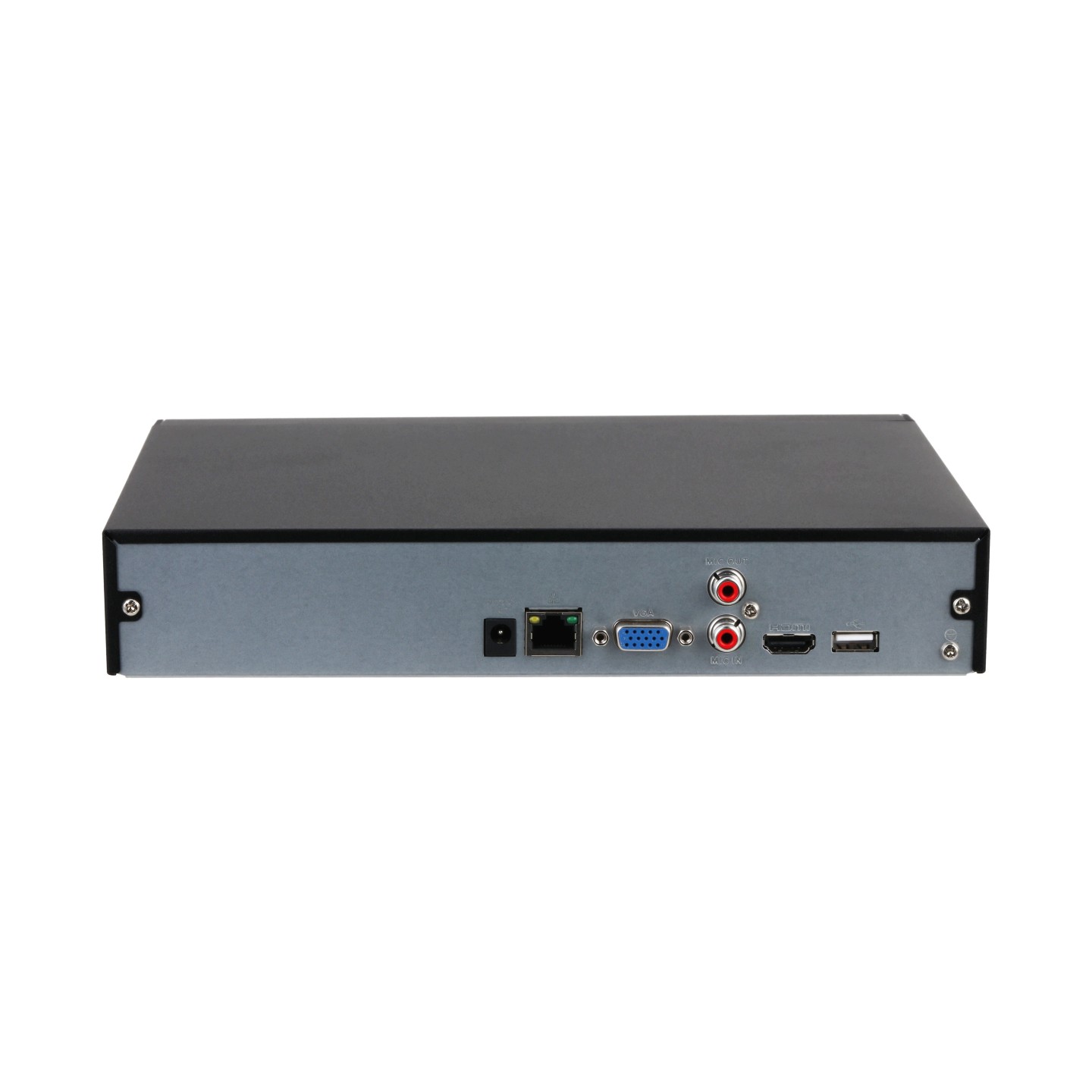

Dahua NVR - NVR4108HS-EI - 8ch 1HDD 80mbps H265
8-channel NVR with 1 HDD, 80 Mbps input; supports Smart H.265+/H.265/Smart H.264+/H.264 and adaptive decoding; up to 16x1080p@30fps.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Storage | NVR Only |
|---|
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 80 Mbps
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection / SMD Plus / people counting / stereo analysis / heat map
- Connected to the third-party network cameras
- Security baseline 2.3
System
- Main Processor
- Industrial-grade processor
- Operating System
- Embedded Linux
- Operating Interface
- Web; Local GUI
AI
- AI by Recorder : Face detection, face recognition, perimeter protection, and SMD Plus
- AI by Camera : Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
Perimeter Protection
- Perimeter Performance AI by Recorder (Number of Channels) : 2 channels, 10 IVS rules for each channel
- Perimeter Performance of AI by Camera (Number of Channels) : 8 channels
Face Detection
- Face Attributes : Gender; age group; glasses; expressions; face mask; beard
- Face Detection Performance of AI by Recorder (Number of Channels) : 1 channel (up to 12 face images/s each channel)
- Face Detection Performance of AI by Camera (Number of Channels) : 8 channels
Face Recognition
- Face Database Capacity : Up to 10 face databases with 200,00 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image
- Face Recognition Performance of AI by Recorder (Number of Channels) : 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s
- 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
- Face Recognition Performance of AI by Camera (Number of Channels) : 8 channels
SMD Plus
- SMD Plus by Recorder : 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera : 8 channels
Audio and Video
- Access Channel : 8 channels
- Network Bandwidth : 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
- Resolution : 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
- Decoding Capability : AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps / AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps
- Video Output : 1 HDMI : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 / 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
- Multi-screen Display : 1st Screen: 1/4/8/9 / 2nd Screen: 1/4/8/9
- Third-party Camera Access : Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
Compression Standard
- Video Compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- Audio Compression : G.711a; G.711u; PCM; G726
Network
- Network Protocol : HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
- Mobile Phone Access : iOS; Android
- Interoperability : ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
- Browser : Chrome; IE9 and later; Firefox
Recording Playback
- Multi-channel Playback : Up to 8 channels
- Record Mode : General, motion detection; intelligent; alarm
- Backup Method : USB device and network
- Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback
Alarm
- General Alarm : Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
- Anomaly Alarm : Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
- Intelligent Alarm : Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Alarm Linkage : Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
| AI Features | SMD,Face Detection,Perimeter Protection |
| Channels | 8 |
| Max Input/Record | 80Mbps/80Mbps |
| PoE Ports | No |
| Compression | Smart H.265+/H.265/ Smart H.264+/H.264 |
| HDD | 1 Disk Up to 16TB |
| Audio | 1 Input, 1 Output |
| Others | Audio In,Audio Out |
