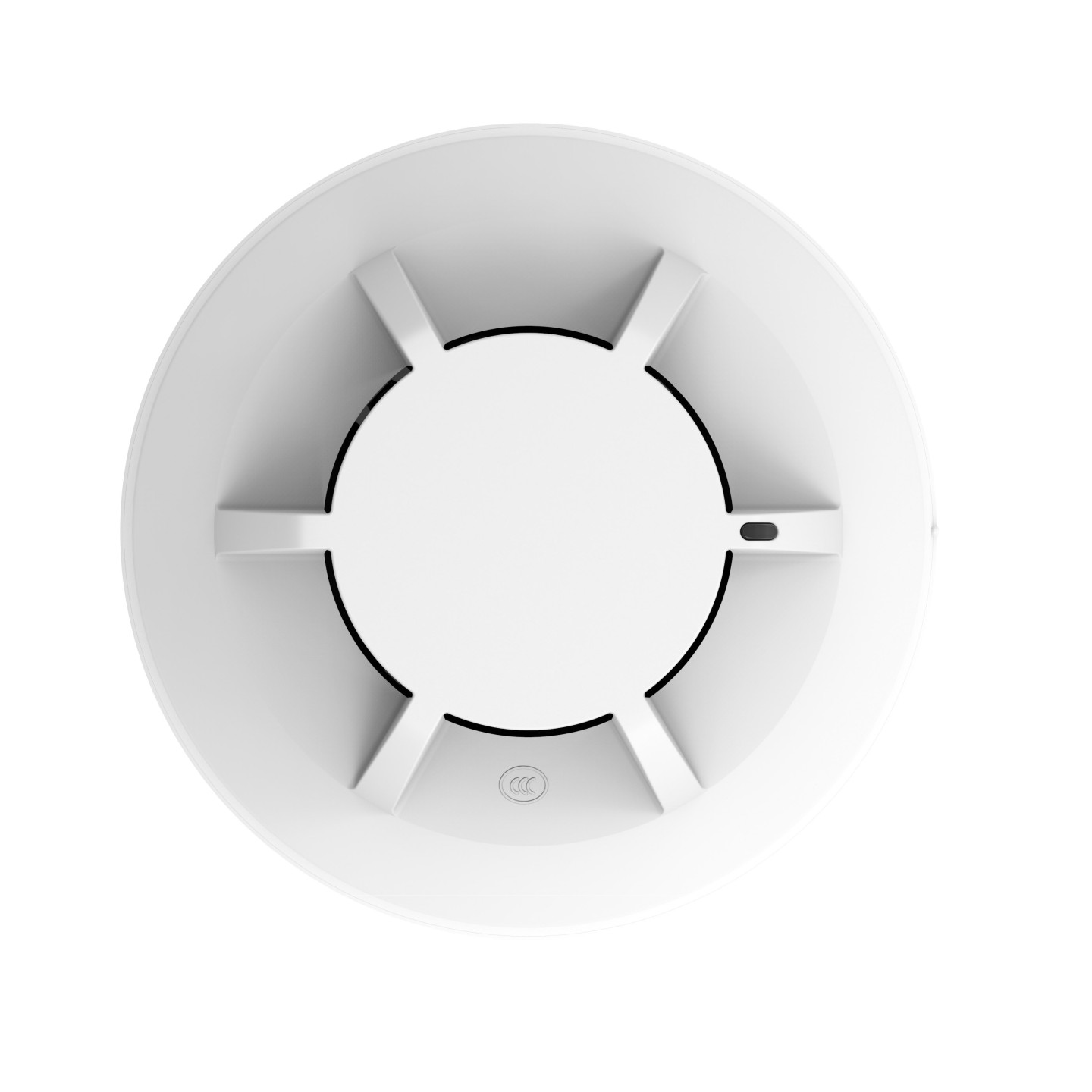

Dahua Addressable Fire Alarm Detector - HY-1301-CTXF - without Base (Smoke)
Two-wire, polarity-free wiring; reliable communication via built-in microprocessor; ultra-low monitoring and alarm current; sensitive smoke detection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smoke/CO Detectors - Detector Type | Smoke |
|---|
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- Detection performance: Accurate smoke detection by sensitive sensor
- Working Voltage : 24V DC
- Current : Monitoring current: ≤ 180μA / Maximum operating current: ≤ 280μA
- Indicator : Red / Polling: Flash 6 seconds / Alarm: Remain lit / Fault: Flash 2 seconds
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Communication Distance : ≤ 1500 m (4921.26 ft)
- Operating Temperature : –10°C to +50°C (+14°F to +122°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Color : White
- Dimensions (with base) : Φ100 mm × 50 mm (Φ 3.00" × 1.50")
- Weight (with base) : 102 g (0.22 lb)
- Compliance Standard : EN54-7
