NBMounts F150v2 TV Monitor Wall Mount Dual Arms 10x10 (Boxed)

SKU 35908 Brand NBmounts EAN13 6943223107283
Dual-arm wall mount for 17-35" TVs/monitors. Supports up to 10kg per arm, VESA 75x75/100x100. Features 130mm lift, 360° rotation, ±35-50° tilt, ±90° swivel, 85mm min-385mm max from wall.
Monitor Stands & Mounts - Supported Devices Monitor
Monitor Stands & Mounts - Screen Capacity 2 Screens
Monitor Stands & Mounts - Max Screen Size Up to 32 inch
Monitor Stands & Mounts - Mount Type Wall Mount
Monitor Stands & Mounts - VESA Compatibility 100x100 mm 75x75 mm
Monitor Stands & Mounts - Weight Capacity Heavy Duty (8-12 kg)
Monitor Stands & Mounts - Adjustment Type Mechanical Arm

The NBMounts F150v2 is a robust dual-arm wall mount designed for 17-35" LED, LCD TVs or monitors, offering versatile positioning for optimal viewing in home or office setups.

It supports loads from 2-10kg per arm with VESA 75x75 or 100x100mm compatibility. Key adjustments include 130mm height lift, full 360° screen rotation, tilt from +35° to -50°, and ±90° swivel. The mount extends from a minimum 85mm to 385mm from the wall, providing flexible reach.

  • Fits 17”-35” LED, LCD TVs or Monitors
  • Load Capacity 2-10 kg per arm
  • VESA 75x75, 100x100mm
  • Lift: 130mm

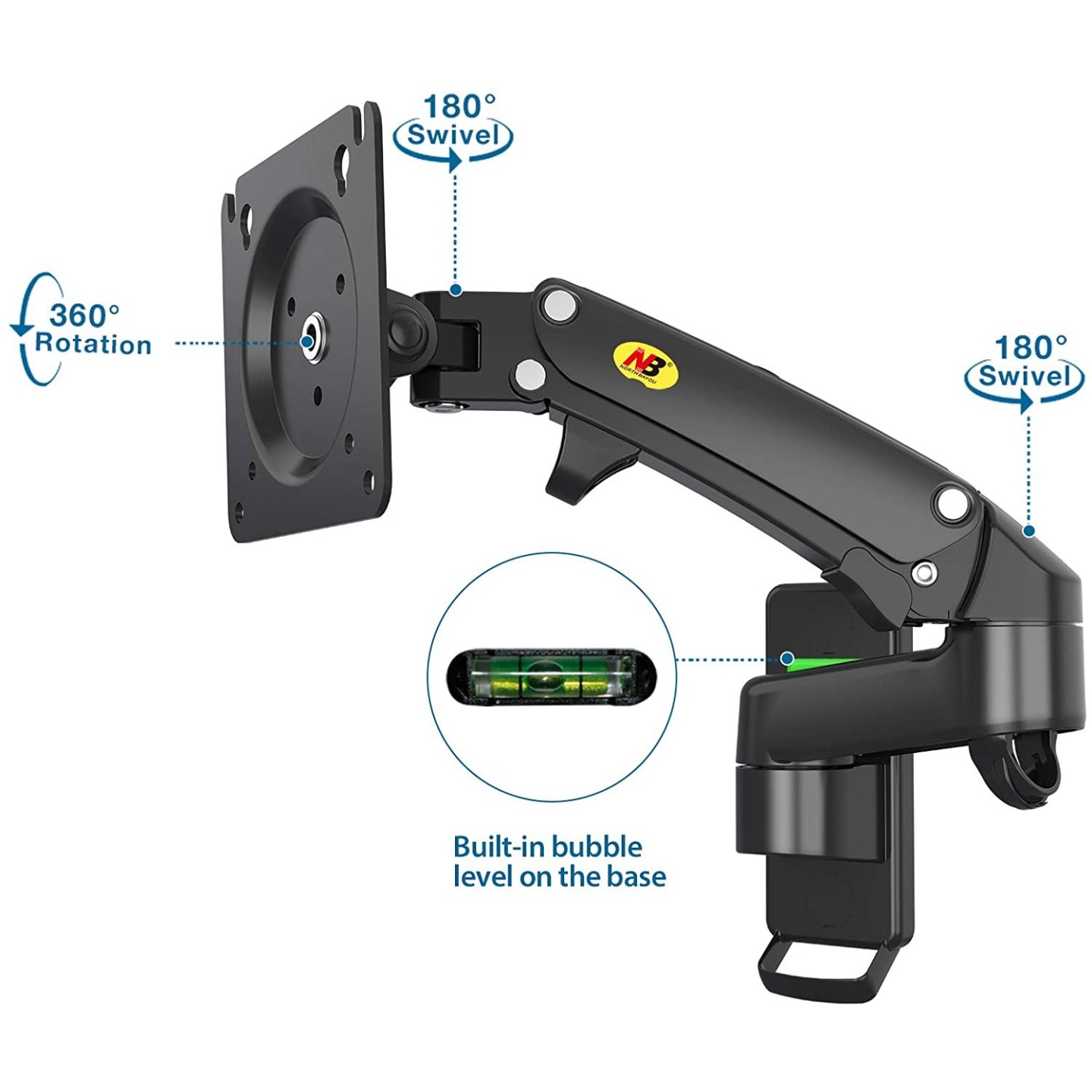

  • Rotation: 360°
  • Tilt: +35° to -50°
  • Swivel: ±90°
  • Min distance from wall: 85mm
  • Max extension: 385mm
Mounting TypeWall
Monitor ArmsDual
Supported Screen Size17-35 inch
Max VESA100 x 100 mm
VESA Compatibility75x75, 100x100 mm
Weight Capacity2-10 kg per arm
Height Adjustment130 mm lift
Rotation360°
Tilt+35° to -50°
Swivel±90°
Min Distance from Wall85 mm
Max Extension385 mm
ColourBlack
