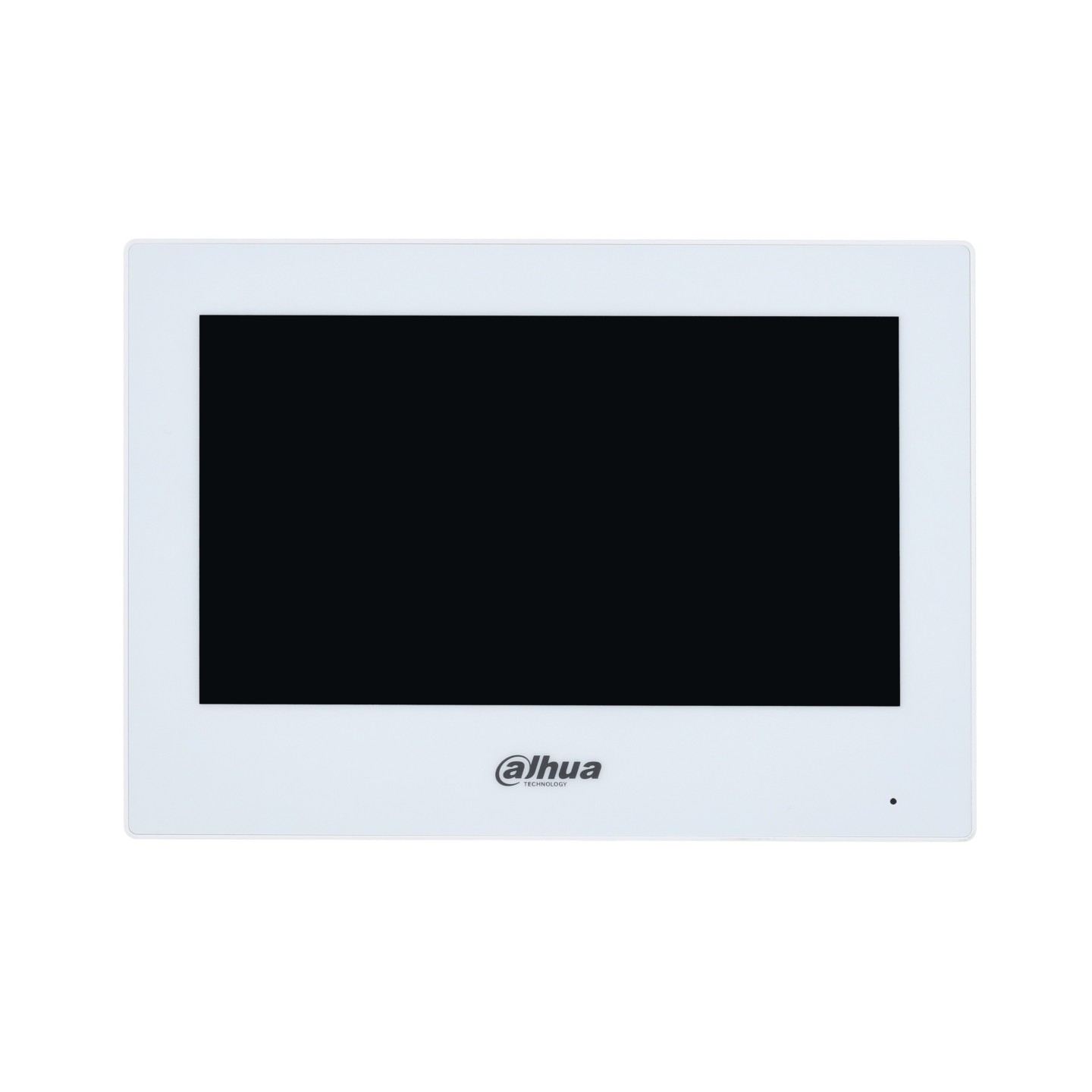

Dahua VD IP Doorphone Monitor - VTH2621GW-P
7-inch TFT capacitive touch screen with 1024x600 resolution; Wi-Fi and PoE; outdoor station and IPC monitor; H.265/H.264 decoding; 6-channel alarm input and 1-channel alarm output.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | PoE |
|---|---|
| Intercoms - Display (Indoor) | 7inch |
- 7" TFT capacitive touch screen, 1024 × 600
- 6-channel alarm input and 1-channel alarm output
- Wi-Fi
- Standard PoE
- Outdoor station and IPC monitor
- H.265 and H.264 video decoding
- High performance & cost-effective
System
- Main Processor : Embedded processor
- Operating System : Embedded Linux operating system
- Network Protocol : IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP
Basic
- Screen Type : Capacitive Touchscreen
- Display : 7" TFT
- Screen Resolution : 1024 × 600
- Audio Compression : G.711a; G.711u; PCM
- Audio Input : 1
- Audio Output : Built-in speaker
- Audio Mode : 2-way voice communication
- Audio Enhancement : Echo suppression
- Audio Bit Rate : 16 kHz; 16 Bit
Function
- Communication Mode : Full digital
- Information Release : Receive and view text information released by the management center
- DND Mode : Do not disturb period can be set; Do not disturb mode
- Number of Extensions : Villa: 9 / Apartment: 4
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range : 2.4 GHz
Performance
- Casing : PC + ABS
Port
- Alarm Input : 6
- Alarm Output : 1
- Power Output : 1 (12 V/200 mA)
- Door Bell : Yes (use any alarm input port)
- Network : One 10 /100 Mbps Ethernet
- Network : One 10 Mbps/100 Mbps Ethernet
Alarm
- SOS : Yes
General
- Color : White
- Power Supply : 12 VDC 1A / Standard PoE (36–57 V, 0.35 A)
- Installation : Surface Mount
- Certifications : CE, FCC
- Accessory : Bracket and alarm ribbon cable (included)
- Dimensions : 189.6 mm × 134.6 mm × 26.0 mm
- Operating Temperature : –10 °C to +55 °C
- Operating Humidity : 10%–95% RH (non-condensing)
- Operating Altitude : Beneath 3,000 m
- Power Consumption : Standby ≤ 2W; working ≤ 6W
- Net Weight : 335 g
- Gross Weight : 575 g
| Connectivity | IP |
| Display | 7'' |
| Recording | Photos & Video |
| Installation | Surface |
| Monitor Res | 1024x600 |
| POE | Yes |
