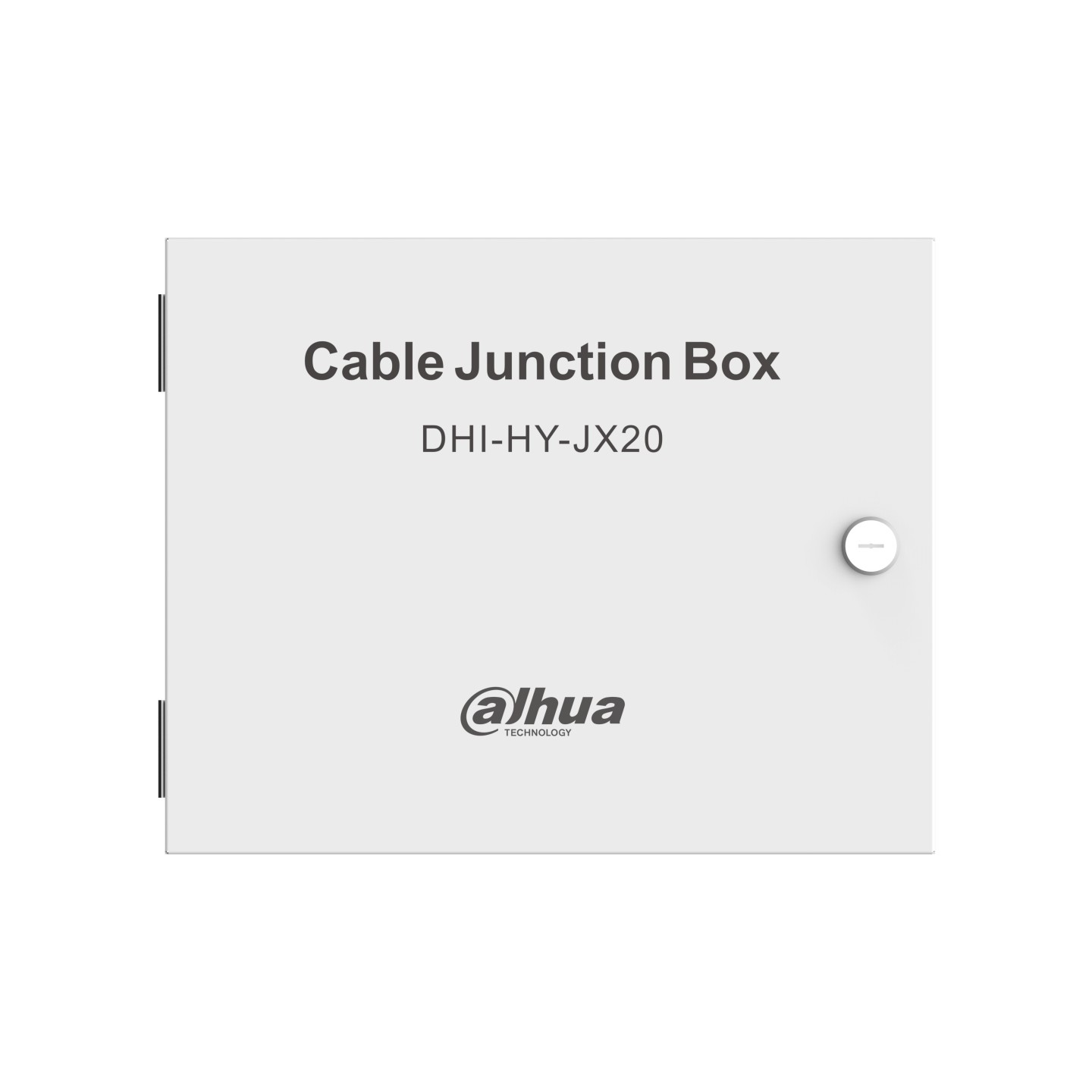

Dahua Addressable Fire Alarm Module Junction Box - HY-JX20-CTXF - 20 inputs-20 outputs
White cold-rolled steel, wall-mount junction box for 20-input/20-output Dahua addressable fire alarm modules; 300x240x100 mm, net 3 kg, IP20, -10 to 50 °C, 2-module capacity, 10 pcs per carton.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Convenient for wire splitting and transferring
- Built-in 20 groups of built-in terminal blocks
- Material : Cold-rolled steel sheet
- Dimensions : 300 mm × 240 mm × 100 mm (11.81" × 9.45" × 3.94")
- Color : White
- Net Weight : 3 kg (6.61 lb)
- Gross Weight : 3.6 kg (7.94 lb)
- Max. Module Quantity : 2
- Packaging Method : 10 pcs in each carton
- Operating Temperature : –10 °C to +50 °C (+14 °F to +122 °F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Protection : IP20
- Installation : Wall mount
