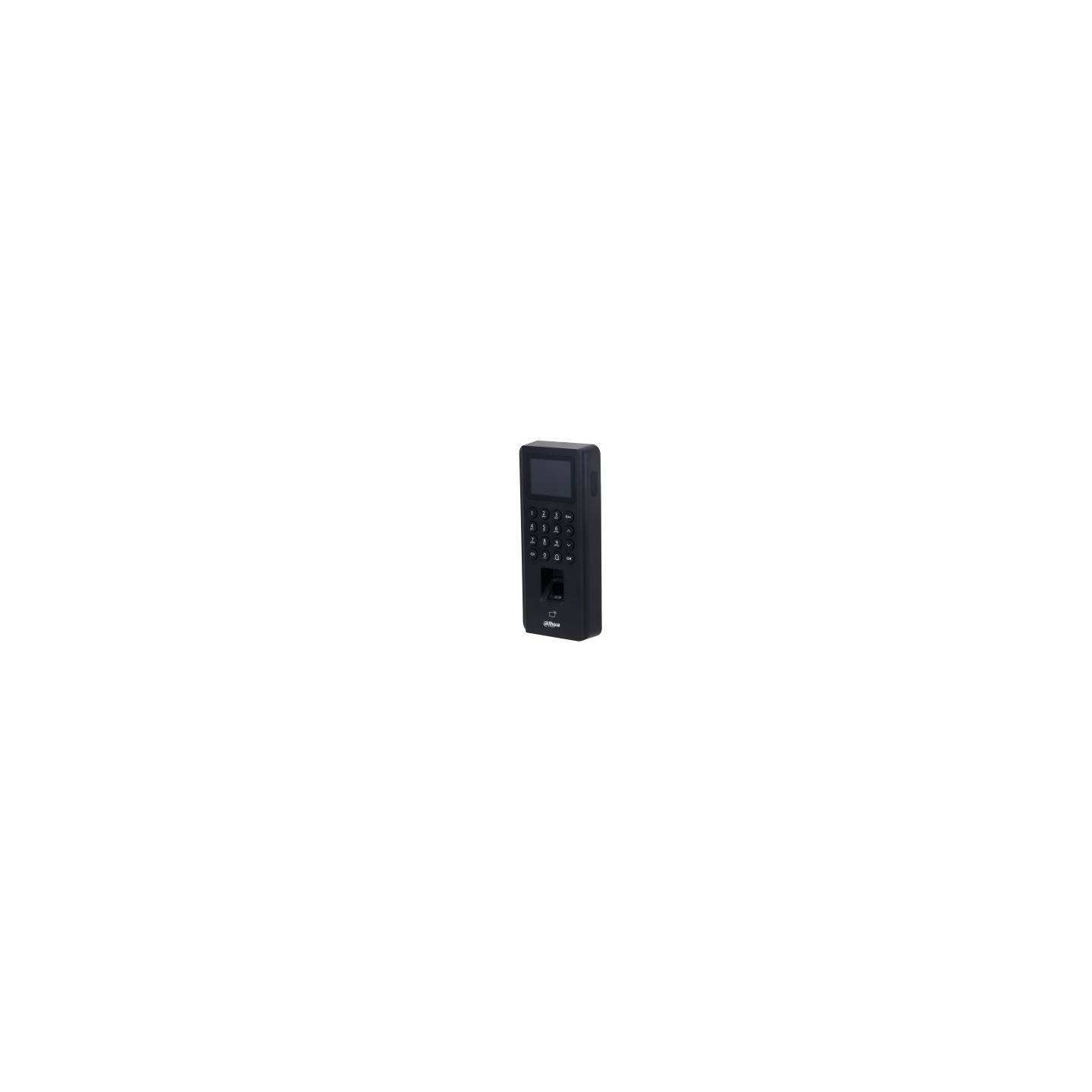

Dahua AC Standalone Fingerprint with Keypad and LCD display - ASI2212J-PW - Standalone

• 2.4" TFT display screen with a resolution of 240 × 320
• Audio prompts
• Supports 30,000 users, 30,000 cards, 30,000 passwords, 5,000 fingerprints, and 100,000 records
• The security module expansion is supported to enhance security and protect against the device being opened during a power failure
• Fingerprint/card/remote/password unlock and unlock through their combinations
• Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm, illegal password exceeding threshold alarm and external alarm
• Supports guest users, patrol users, blocklist users, VIP users, general users, and others
• TCP/IP and Wi-Fi communication; auto registration, P2P registration, and DHCP
• Supports online update and USB update
• Supports PoE to provide power to the access controller, and the access controller provides power to both a card reader (12 V 200 mA at most) and a electromagnetic lock (12 V, 500 mA at most)

System

• Main Processor : Embedded Processor
• Button Type : Mechanical
• Network Protocol : UDP; TCP; IPv4; P2P
• OSDP Protocol : Yes
• Interoperability : ONVIF; CGI
• SDK and API : Yes

Basic

• Product Type : Standalone
• Display Screen : 2.4" LCD
• Screen Type : LCD
• Screen Resolution : 240 (H) × 320 (V)
• Voice Prompt : Yes
• Backlight : Yes
• Casing Material : PC+ABS

Function

• Verification Method : Configuration of card, remote, password, fingerprint combination unlock and multi-user combination unlock
• Unlock Mode : Card, remote, password, fingerprint unlock, unlock through their combinations. and multi-user combination unlock
• Card Type : Mifare cards (IC card)
• Period List : 128 periods
• Holiday Period : 128 periods
• Network Update : Yes
• First User Unlock : Yes
• Remote Verification : Yes
• Restricted List/Trusted List : Yes
• Peripheral Card Reader : 1 × RS-485 card reader or 1 × Wiegand card reader
• Multi-user Authentication : Yes
• Multi-factor Authentication : Yes
• Web Configuration : Yes
• Auto Registration : Yes

Performance

• Card Reading Distance : 0 cm–6 cm
• Fingerprint Sensor Type : Optical
• Fingerprint Verification Mode : 1:N
• Fingerprint Comparison Time : 1 s

User

• User (Card) Type : Normal user; VIP users; patrol users; guest user; blocklist user; other user

Capacity

• User Capacity : 30,000
• Fingerprint Capacity : 5,000
• Card Capacity : 30,000
• Password Capacity : 30,000
• Record Capacity : 100,000

Port

• RS-485 : 1
• Wiegand : 1
• USB : 1 × USB 2.0
• Network Port : 1 × RJ-45 100 Mbps self-adaptive Ethernet port
• Alarm Input : 2
• Alarm Output : 2
• Alarm Linkage : Yes
• Doorbell : 1
• Exit Button : 1
• Door Status Detection : 1
• Lock Control : 1

Alarm

• Anti-pass Back : Yes
• Tamper Alarm : Yes
• Duress Alarm : Yes
• Door Sensor Timeout : Yes
• Intrusion : Yes
• Illegal Card Exceeding Threshold : Yes
• Duress Fingerprint : Yes

General

• Power Adapter : Optional
• Power Supply : Stanard PoE / 12 VDC (the device can provide power to the lock)
• Power Consumption : ≤12 W
• Product Dimensions : 205 mm × 86 mm × 30 mm (H × W × W)
• Packaging Dimensions : 254 mm × 131 mm × 75 mm (H × W × W)
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 0%–95% (RH), non-condensing
• Operating Altitude : 0 m–3,000 m
• Operating Environment : Indoor
• Gross Weight : 0.45 kg
• Installation  Surface Mount
• Installation Angle : Straight

Certifications

• CE; FCC
