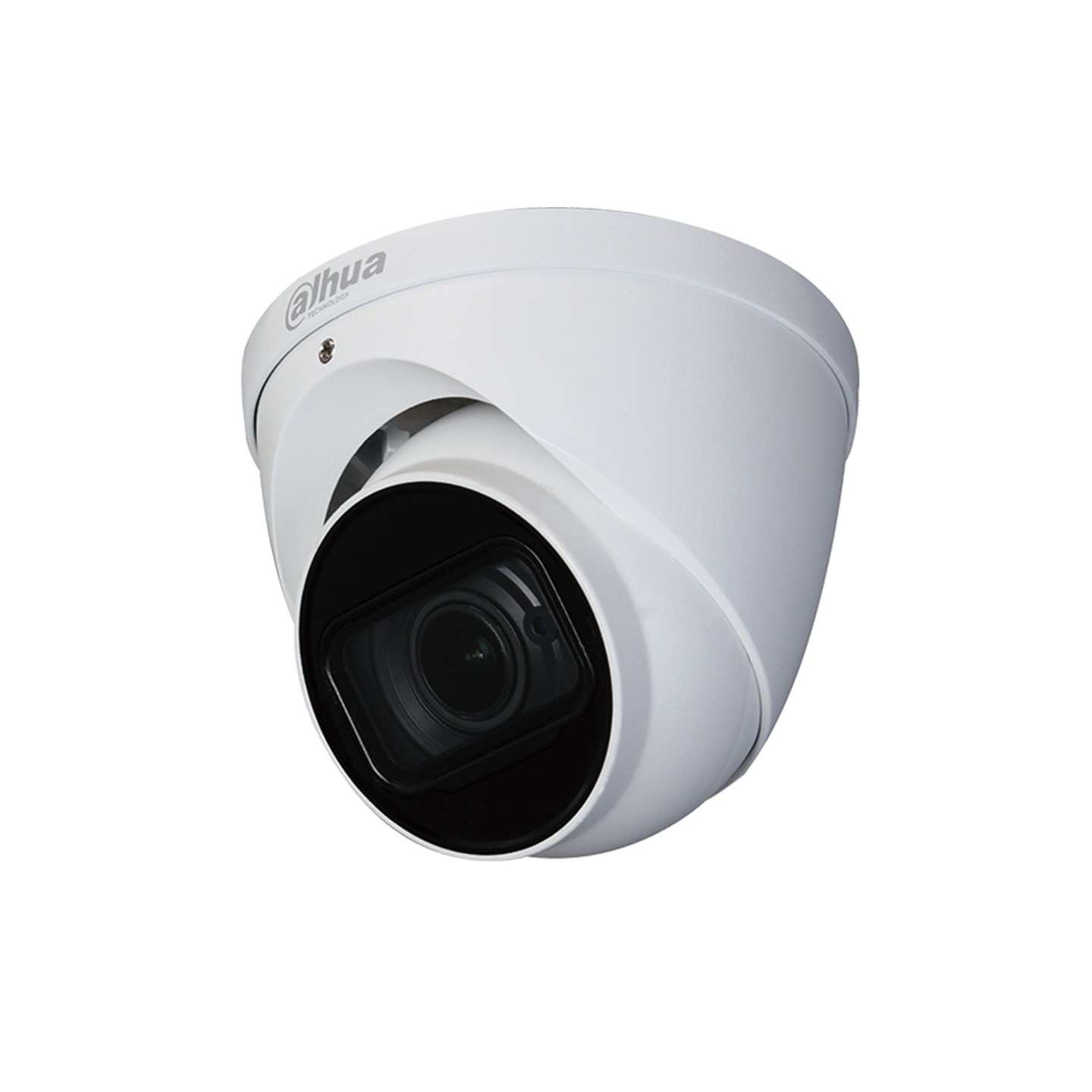

Dahua HDCVI 8.0MP Dome Motorised 2.7-13.5mm - HDW1801T-Z-A - 8.0MP Dome Motorised 2.7-13.5mm
8.0MP HDCVI dome with 120dB true WDR, 3DNR, up to 4K; motorised 2.7-13.5mm lens; built-in mic; 60m IR; IP67; 12V DC; switchable CVI/CVBS/AHD/TVI.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- 120dB True WDR, 3DNR
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- Auto focus, 2.7-13.5mm motorized lens
- Built-in mic (-A)
- Max. IR length 60m, smart IR
- IP67, 12V ±30% DC
- Junction Box : PFA130-E,PFB203W,PFA152-E
Camera
- Image Sensor : 1/2.7 inch CMOS
- Effective Pixels : 3840 (H)× 2160 (V), 4K
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/3s–1/100000s / NTSC: 1/4s–1/100000s
- S/N Ratio : >65dB
- Minimum Illumination : 0.03Lux/F2.0, 30IRE, 0Lux IR on
- IR Distance : Distance up to 60m
- IR On/Off Control : Auto; manual
- IR LED Number : 2
Lens
- Lens Type : Motorized vari-focal
- Mount Type : φ14
- Focal Length : 2.7mm-13.5mm
- Max. Aperture : F1.7
- Angle of View : Horizontal: 105°–33° / Vertical: 56°–18° / Diagonal : 126°–38°
- Iris Type : Fixed iris
- Auto Focus : Yes
- Close Focus Distance : 0.8m
Video
- Frame Rate : CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; / AHD: 4K@15fps; / TVI: 4K@15fps; / CVBS: 960H
- Resolution : 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
- Day/Night : Auto switch by ICR
- BLC : BLC/HLC/WDR
- WDR : DWDR
- White Balance : Auto; manual
- Gain Control : Auto; manual
- Noise Reduction : 2D & 3D NR
- Smart IR : Yes
- Electronic Defog : Yes
- Digital Zoom : 4X
- Mirror : Off/On
- Privacy Masking : Off/On (8 area, rectangle)
Certifications
- CE (EN55032, EN55024, EN50130-4,EN60950-1)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
- UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
- Audio Port : One channel built-in mic (-A)
- Video Port : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
- Power Supply : 12V ±30% DC
- Power Consumption : Max 7.8W (12V DC, IR on)
Environment
- Operating Temperature : -30°C to +60°C (-40°F to 140°F);<95% (non-condensation)
- Storage Temperature : -30°C to +60°C (-40°F to 140°F);<95% (non-condensation)
- Protection Grade : IP67
Structure
- Casing : Metal throughout the whole casing
- Camera Dimensions : Φ122.0mm×104.8mm
- Net Weight : 0.58Kg
- Gross Weight : 0.73Kg
| Housing Type | Dome |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Camera Resolution | 8.0 MP |
| Lens Type | Motorised |
| Lens Size | 2.7-13.5mm |
| IR Distance | Up to 60m |
| WDR | 120dB true WDR |
| Audio | Built-in Mic |
