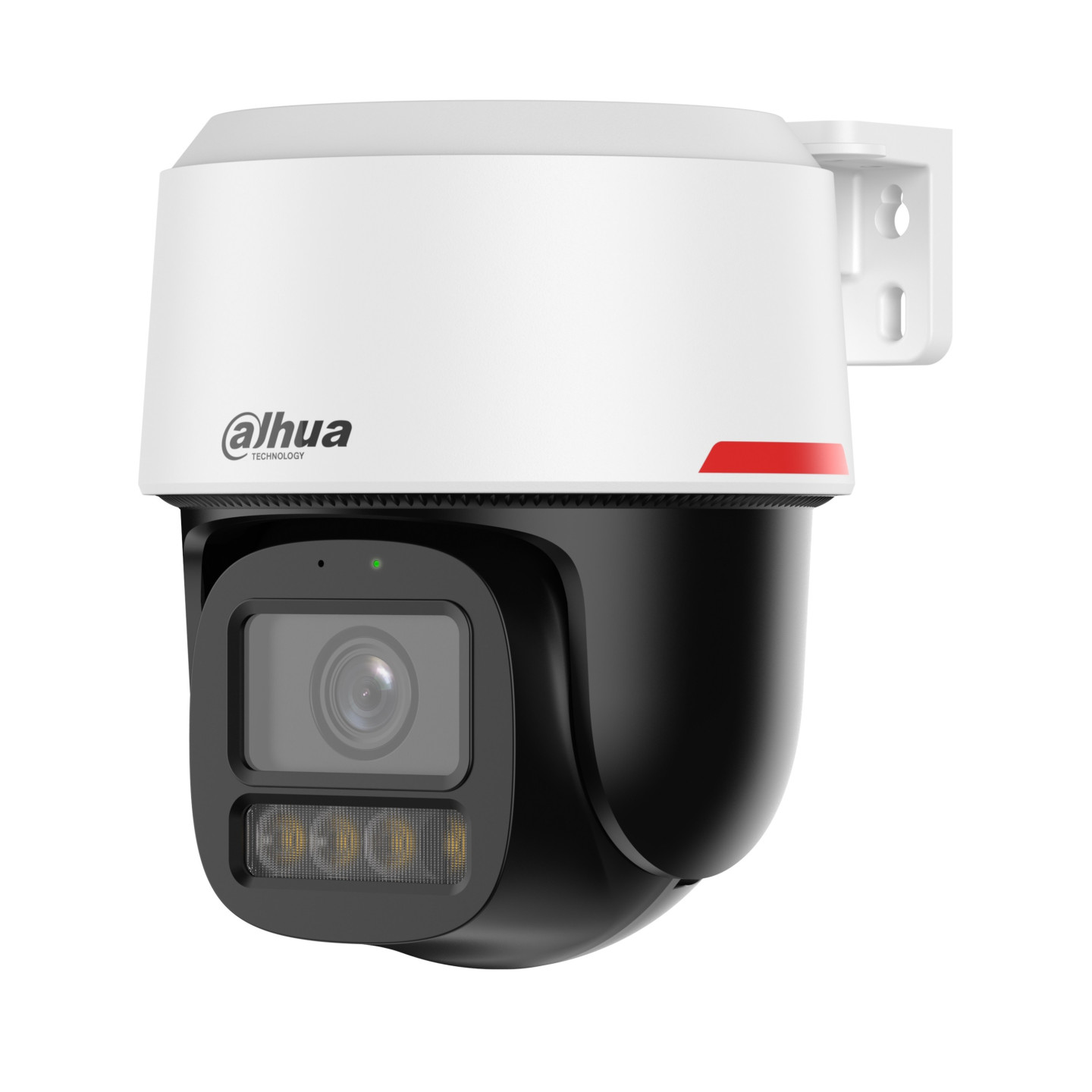

Dahua IP 4.0MP Dome PT Entry Level 3.6mm Dual Illumination WDR PT2449C1-S-PV-PRO

• 1/1.8" 4Megapixel CMOS.
• WizColor Technology.
• Max. 25/30 fps@4MP.
• H.265 Encoding.
• SMD 3.0.
• Perimeter Protection.
• Two-way Talk.
• Auto Tracking Lite.
• Tour.
• IP66 Protection.

• Image Sensor : 1/1.8" CMOS
• Pixel : 4MP
• Max. Resolution : 2688 (H) × 1520 (V)
• ROM : 256 MB
• RAM : 256 MB
• Electronic Shutter Speed : 1–1/100,000 s
• Scanning System : Progressive
• Min. Illumination : 0.0005 lux@F1.0 (Color, 30 IRE);
• 0 lux (Illuminator on);
• Illumination Distance : 3.6 mm: 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control : Auto; Manual; Off
• Illuminator Number : 4 (Warm light)

• Focal Length : 3.6 mm
• Max. Aperture : F1.0
• Field of View : 3.6 mm: H: 97°; V: 52°; D: 114°
• Close Focus Distance : 3.6 mm: 2.6 m (8.53 ft)

• Pan/Tilt Range : Pan: 0° to 345°; / Tilt: 0° to 90°
• Manual Control Speed : Pan: 0.1°–34.5°/s; Tilt: 0.1°–36.4°/s
• Preset Speed : Pan: 0.1°–33.8°/s; Tilt: 0.1°–36.3°/s
• Preset : 80
• Tour : 8 (up to 6 presets per tour; the stay duration for each preset is 60 to 360 sec and tour interval is 900 to 3,600 sec)
• Power-off Memory : Yes
• Idle Motion : Preset;Tour

• IVS : Tripwire; intrusion
• Human Detection : Yes
• Vehicle Detection : Yes

• Smart Tracking : Auto Tracking Lite
• SMD : SMD 3.0
• Active Deterrence : Light Warning
• Warm light warning : Flash duration: 5 s–30 s;
• Flash frequency: high, medium, low
• Sound Warning : Offers 3 sound alarm. / Sound can be set from 0%–100%. / Play times can be set from 1-10.

• Video Compression : Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
• Streaming Capability : 2 streams
• Resolution : 4M (2688 × 1520);4M (2560 × 1440);3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704×576);VGA(640 × 480); CIF(352 × 288)
• Video Frame Rate : Main stream: 2560 × 1440@(1–25/30 fps) / Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 8 kbps–6,400 kbps / H.265: 3 kbps–3,840 kbps
• Day/Night : Color/B/W
• BLC : Yes
• WDR : 120 dB
• HLC : Yes
• White Balance : Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
• Gain Control : Auto; Manual; Gain Priority
• Noise Reduction : 2D NR; 3D NR
• Motion Detection : Yes
• Region of Interest (RoI) : Yes
• Defog : Electronic
• Digital Zoom : 16 ×
• Image Rotation : 180°
• S/N Ratio : ≥55 dB

• Audio Compression : PCM, G.711A, G.711Mu
• Built-in MIC : Yes
• Built-in Speaker : Yes

• Network Port :RJ-45 (10/100 Base-T)
• Network Protocol:HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;NTP;DHCP;DNS;DDNS;IPv6;SSL;QoS;FTP;ICMP;IGMP;ARP;RTCP;RTP;RTMP
• Interoperability : ONVIF (Profile S & Profile G & Profile T);CGI;SDK
• Streaming Method : Unicast/Multicast
• User/Host : 20 (total bandwidth: 64 M)
• Storage : Micro SD card (Up to 512 GB); FTP
• Browser : IE: IE 7 and later versions; Chrome; Firefox; Safari
• Management Software : DMSS;NVR
• Mobile Client : iOS;Android

Function

• Abnormal Sound Alarm : Yes

• Certifications : CE

• Audio Input : 1 channel (built-in mic)
• Audio Output : 1 channel (built-in speaker)
• Alarm Linkage : Capture; recording; audio; light
• Alarm Event : Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

• Power Supply : 12 VDC, 1A ± 10% PoE (802.3af)
• Power Consumption : PoE: Basic: 3.6 W Max: 9.5 W (illuminator + PTZ)
• Power Adapter : Optional

• Operating Temperature : –30 °C to +55 °C (–22 °F to +131 °F)
• Operating Humidity : ≤95%
• Protection : IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection

• Product Dimensions : 153.5 mm × Φ129.3 mm (6.04" × Φ5.09")
• Net Weight : 0.8kg (1.76 lb)
• Gross Weight : 1.2kg (2.64 lb)
