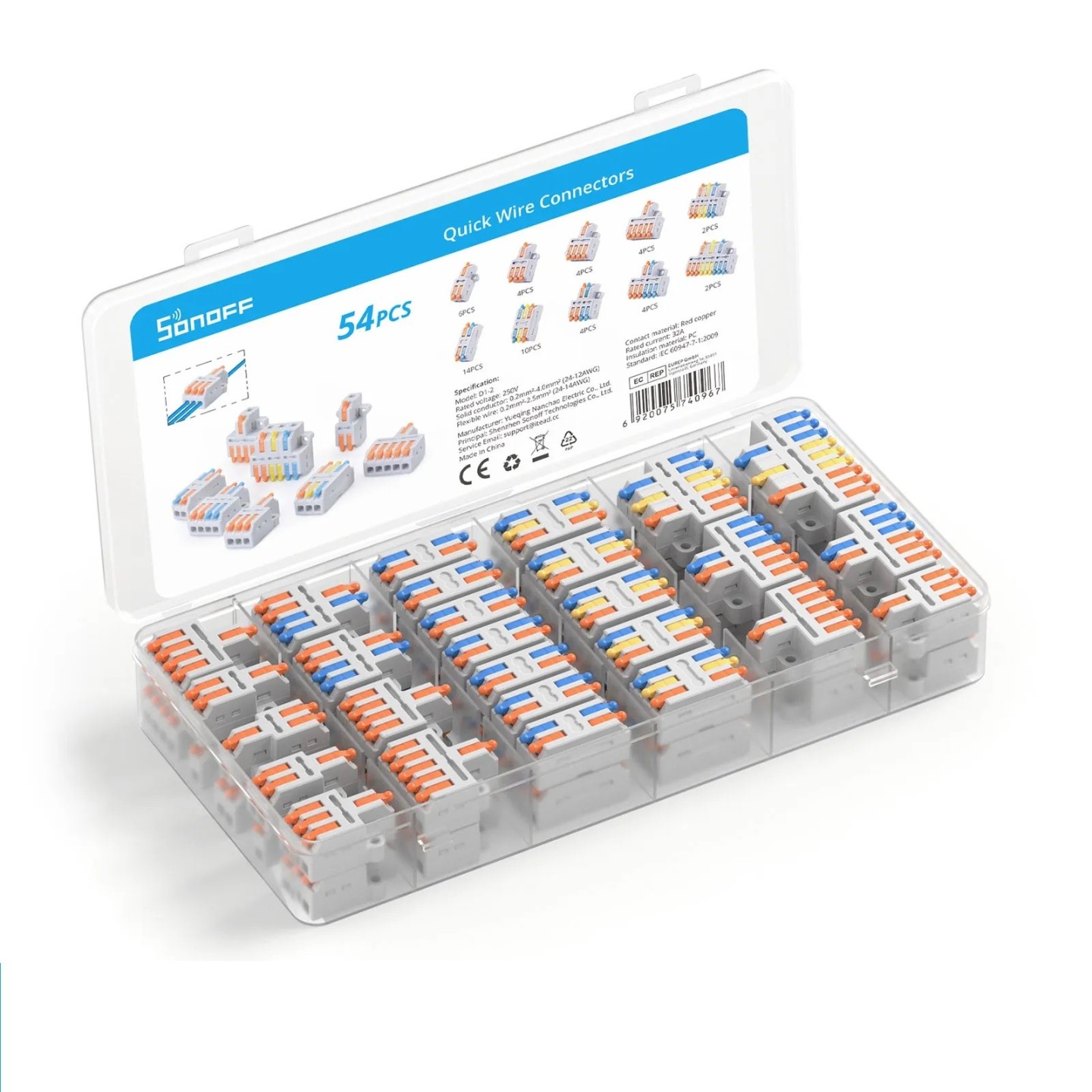

Sonoff Quick Wire Connectors - D1-2 - Quick Wire Connectors (54 pcs)
Flame-retardant, high-temperature shell; copper-tinned conductors for strong conductivity and corrosion resistance; quick, tool-free wiring with side screw holes; suitable for motors and electrical wiring.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

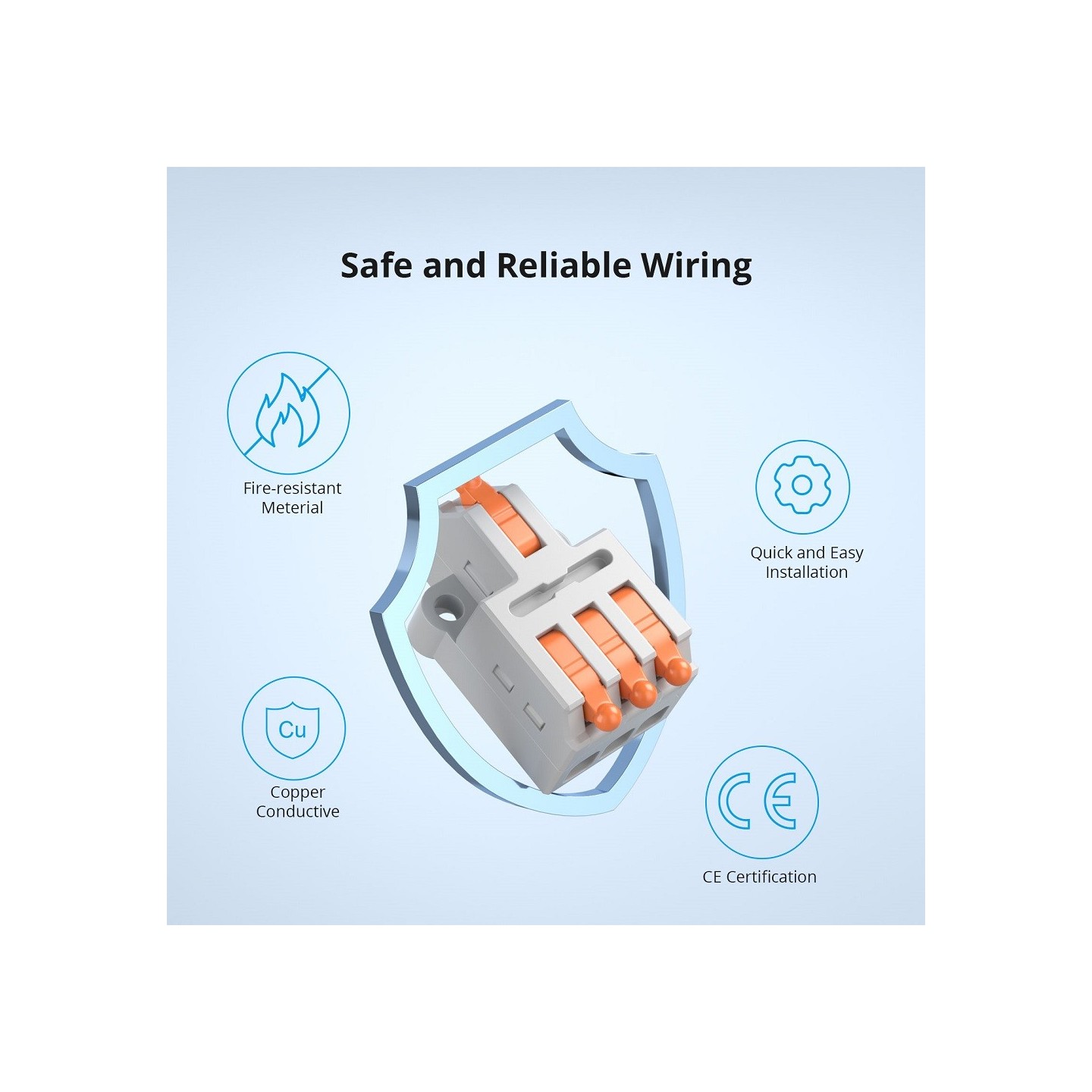

- 【Safe and durable】 The quick wire connectors shell is made of flame retardant material, high-temperature resistance, reducing potential safety hazards. the conductor is tinned with pure copper, strong conductivity, rust resistance, and corrosion resistance. which is very good at preventing the thermal cycling release of wires connected together.

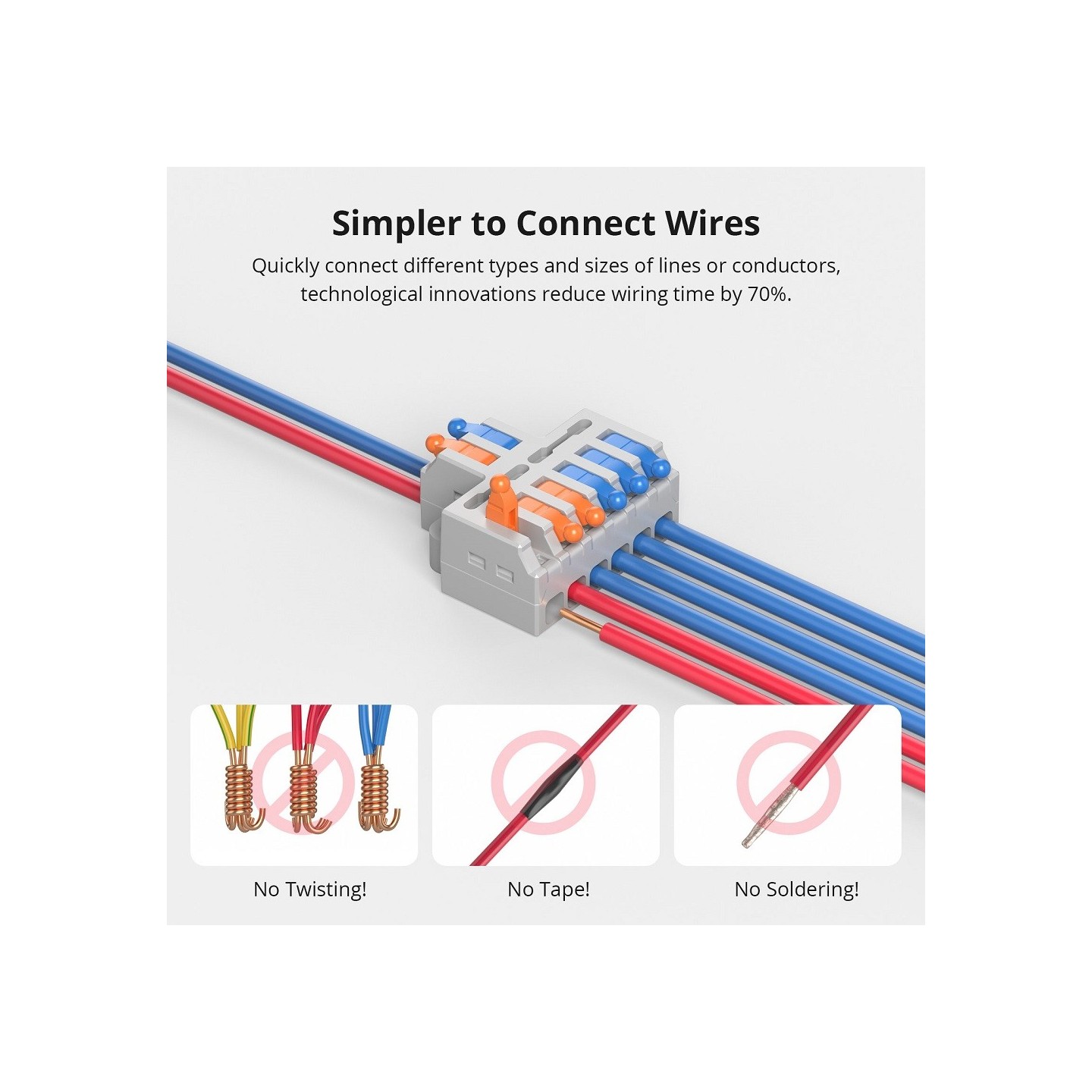

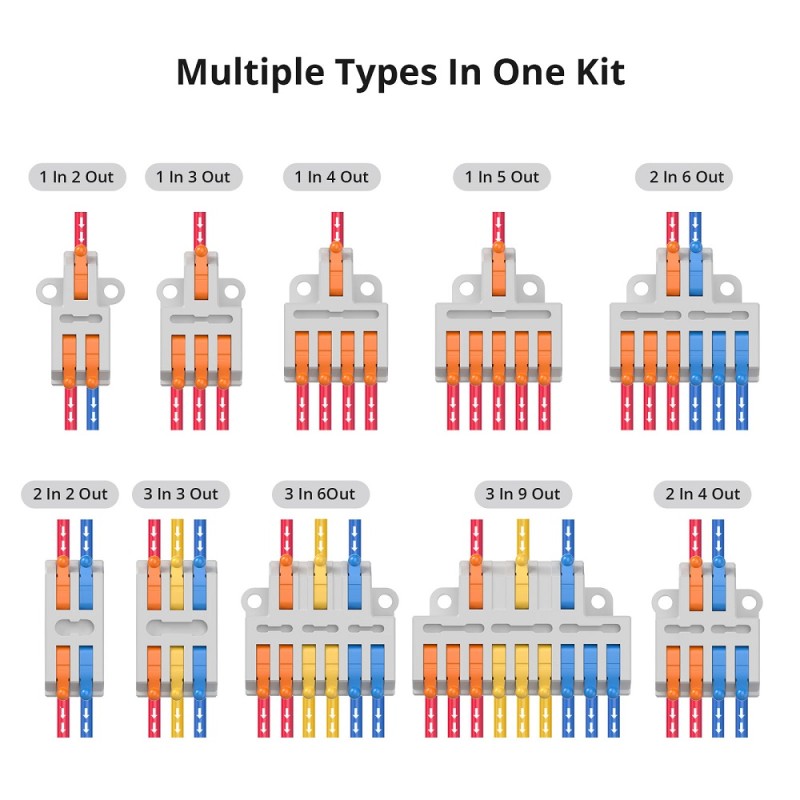

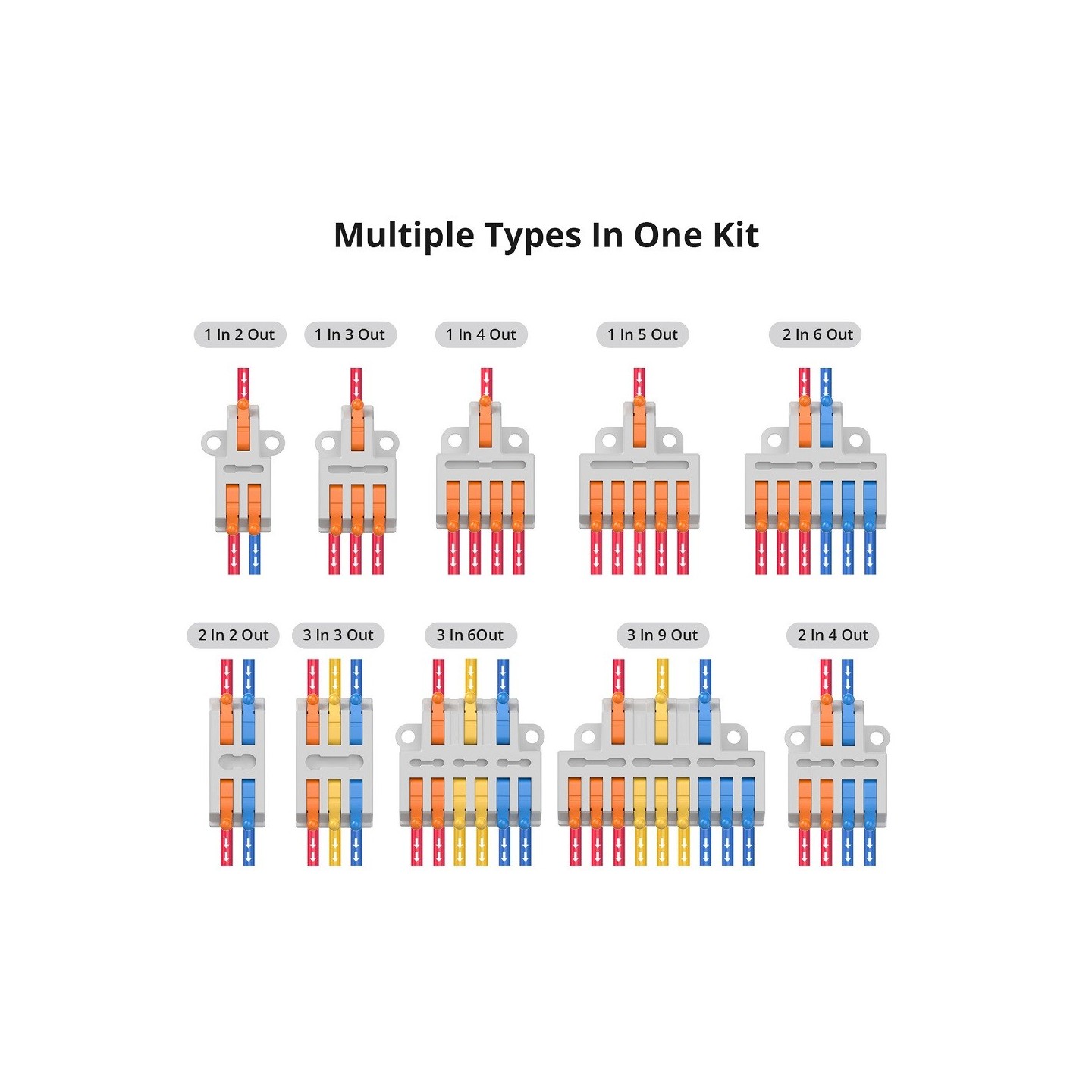

- 【High efficiency】 The connectors with different conductors are designed to be compact and practical and can connect multiple sets of wires in a very short time instead of taking much effort soldering and wrapping wires in electrical tape.

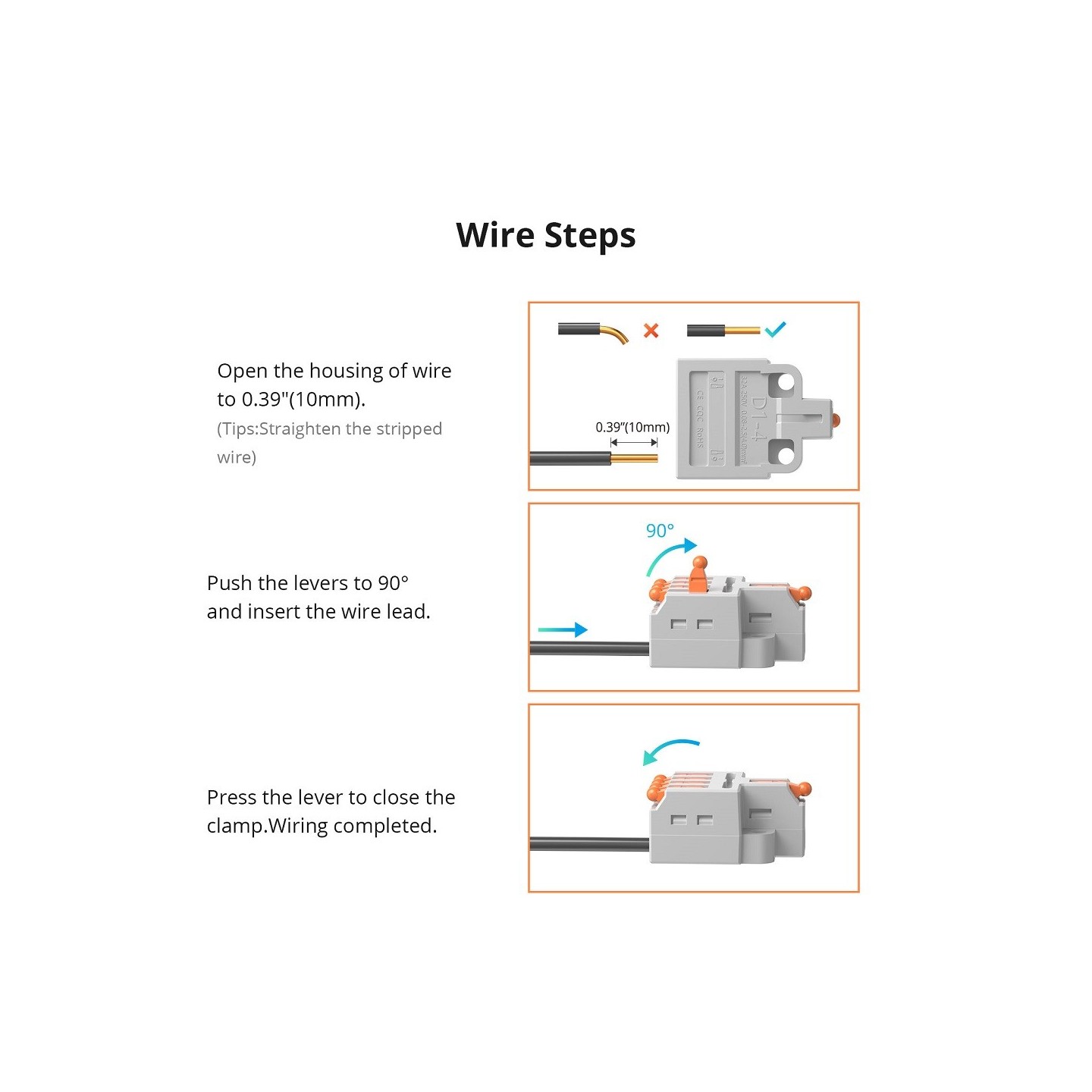

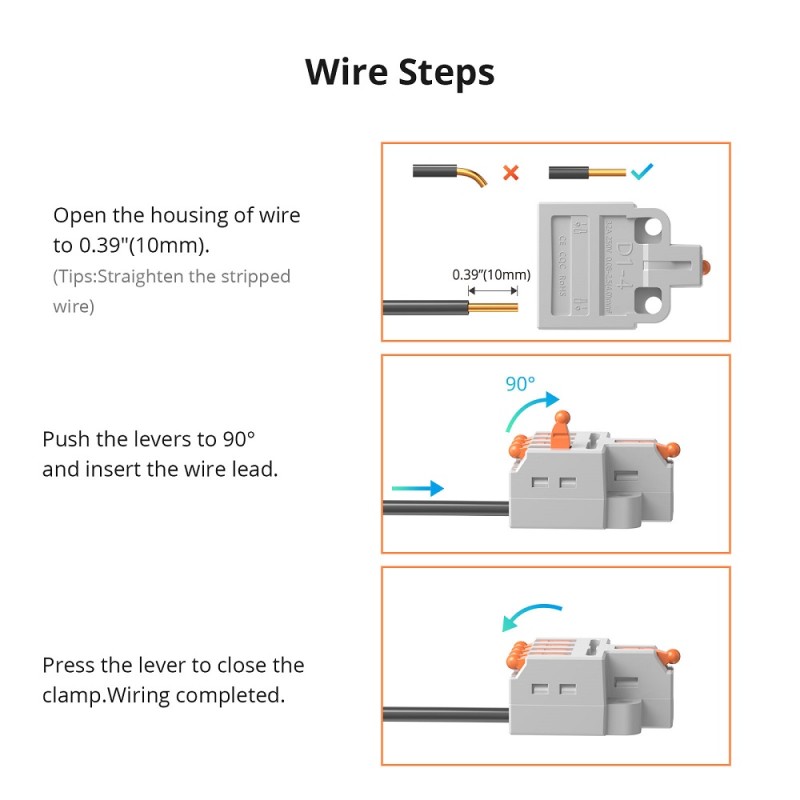

- 【Easy to use】There are screw holes on both sides of the quick connector, which is convenient for fixing the wiring, and simple but efficient. just open the wrench of the quick wire connectors, insert the wire, and press the wrench, the wiring is completed, and the wiring can be completed more efficiently and quickly.
- 【Compatibility】Widely applied for motor, electrical control, power supply, home appliance, machinery, and other electrical connections. Suitable for hardwire 0.08-4.0mm²/ AWG28-12, soft wire 0.08-2.5mm²/AWG28-14.
- 【Practical connectors kit】It is used for building and everyday household wiring: lights, sockets, switches, cars, loudspeakers, electrical boxes, fan controls, etc.
- Rated voltage : 250V
- Solid conductor : 0.2mm²-4.0mm²(24-12AWG)
- Flexible wire : 0.2mm²-2.5mm²(24-14AWG)
- Contact material : Red copper
- Rated current : 32A
- Insulation material : PC
- Size : 210x112x30mm
