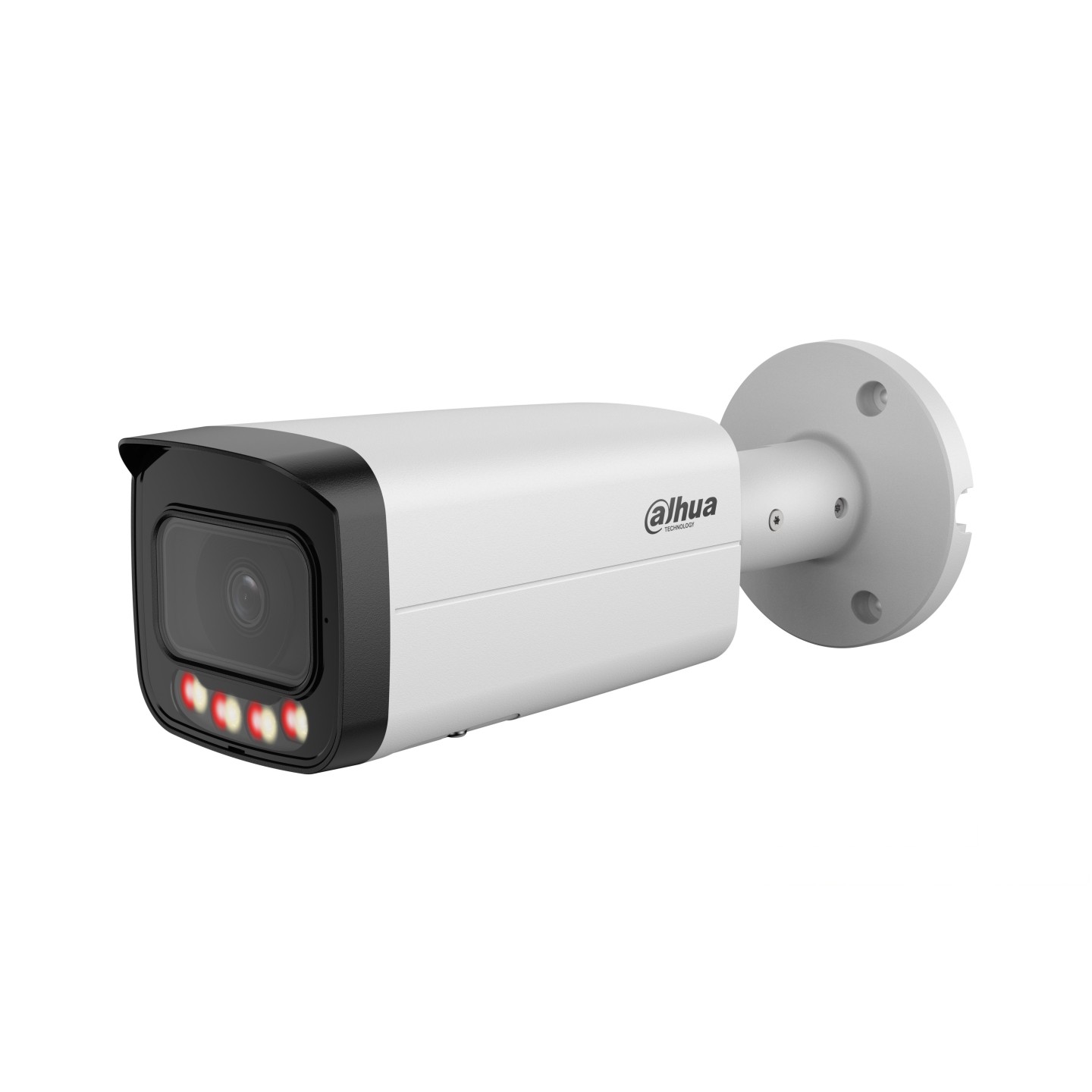

Dahua IP 12.0MP Bullet 2.8mm Dual Illumination - HFW21249T-AS-IL - WDR

• 12-MP 1/2.5" CMOS image sensor, low luminance, and high definition
• image.
• Outputs max. 12 MP (4480 × 2512)@15 fps, and supports 5 MP
• (3072 × 1728)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in multi-core light, the max. IR distance is 30 m and the max. warm
• light distance is 30 m.
• Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,
• applicable to various monitoring scenes.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various
• bandwidth and storage environments.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the
• classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, video tampering, audio
• detection, no SD card, SD card full, SD card error, network
• disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out(Only - AS supports); audio: 1 in, 1 out(Only - AS
• supports); supports max. 256 G Micro SD card; built in Mic.
• 12 VDC/PoE power supply, easy for installation.
• IP67, IK10 (optional) protection.
• SMD Plus.

Camera

• Image Sensor: 1/2.5" CMOS
• Max. Resolution: 4480 (H) × 2512 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: 0.008 lux@F1.6 (Color, 30 IRE) / 0.0008 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance: / Up to 30 m (98.43 ft) (Warm light) / Up to 30 m (98.43 ft) (IR)
• Illuminator On/Off Control: Auto; Manual
• Illuminator Number: 4 (Multi-core (IR + warm) light)

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm; 3.6 mm
• Max. Aperture: F1.6
• Field of View: 2.8 mm: H: 112°; V: 58°; D: 136°
• Iris Control: Fixed
• Close Focus Distance: 2.8 mm: 3.5 m (11.48 ft)

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire (supports vehicle and human classification and accurate detection)
• SMD: SMD Plus
• Smart Search: Works with Smart NVR to refine intelligent search, event extraction, and merging of event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
• Smart Codec: Smart H.265+; Smart H.264+
• Video Frame Rate:
• Main stream: 4480 × 2512@(1–15 fps) / 3072 × 1728@(1–25/30 fps)
• Sub stream: 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps)
• Values above are maximum per stream; total limited by encoding capacity.
• Streaming Capability: 2 streams
• Resolution: 12M (4480 × 2512); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080);
• Bit Rate Control: VBR; CBR
• Video Bit Rate: H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: DWDR
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Smart Dual Light: Yes
• Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 areas
• LDC: Yes

Audio

• Built-in MIC: Yes, built-in Mic
• Audio Compression: G.711a; G.711Mu; PCM; G.726

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm (Only -AS supports)

Network

• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
• Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI
• User/Host: 20 (Total bandwidth: 48 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS
• Browser: IE; Chrome; Firefox
• Management Software: Smart PSS Lite; DSS; DMSS
• Mobile Client: Android; iOS
• Security: Session security; WSSE; Account lockout; Trusted execution; Generation and importing of X.509 certification; 802.1x; Security logs; Digest; Security warning; IP/MAC filtering; HTTPS; Trusted upgrade; Syslog; Trusted boot

Certification

• Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

• Audio Input: 1 channel (RCA port) (Only -AS supports)
• Audio Output: 1 channel (RCA port) (Only -AS supports)
• Alarm Input: 1 channel in: wet contact, 5 mA 3–5 VDC (Only -AS supports)
• Alarm Output: 1 channel out: wet contact, 300 mA 12 VDC (Only -AS supports)

Power

• Power Supply: 12 VDC (±30%); PoE (802.3af)
• Power Consumption:
• Basic: 2.3 W (12 VDC); 3.0 W (PoE)
• Max.: 8.7 W (12 VDC); 10.1 W (PoE) (H.265 + intelligence on + illuminator intensity)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ≤95% (RH), non-condensing
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity: ≤95% (RH), non-condensing
• Protection: IP67; IK10 (optional)

Structure

• Casing Material: Metal
• Product Dimensions: 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
• Net Weight: -S: 0.62 kg (1.37 lb); -AS: 0.72 kg (1.59 lb)
• Gross Weight: -S: 0.87 kg (1.92 lb); -AS: 0.97 kg (2.14 lb)
