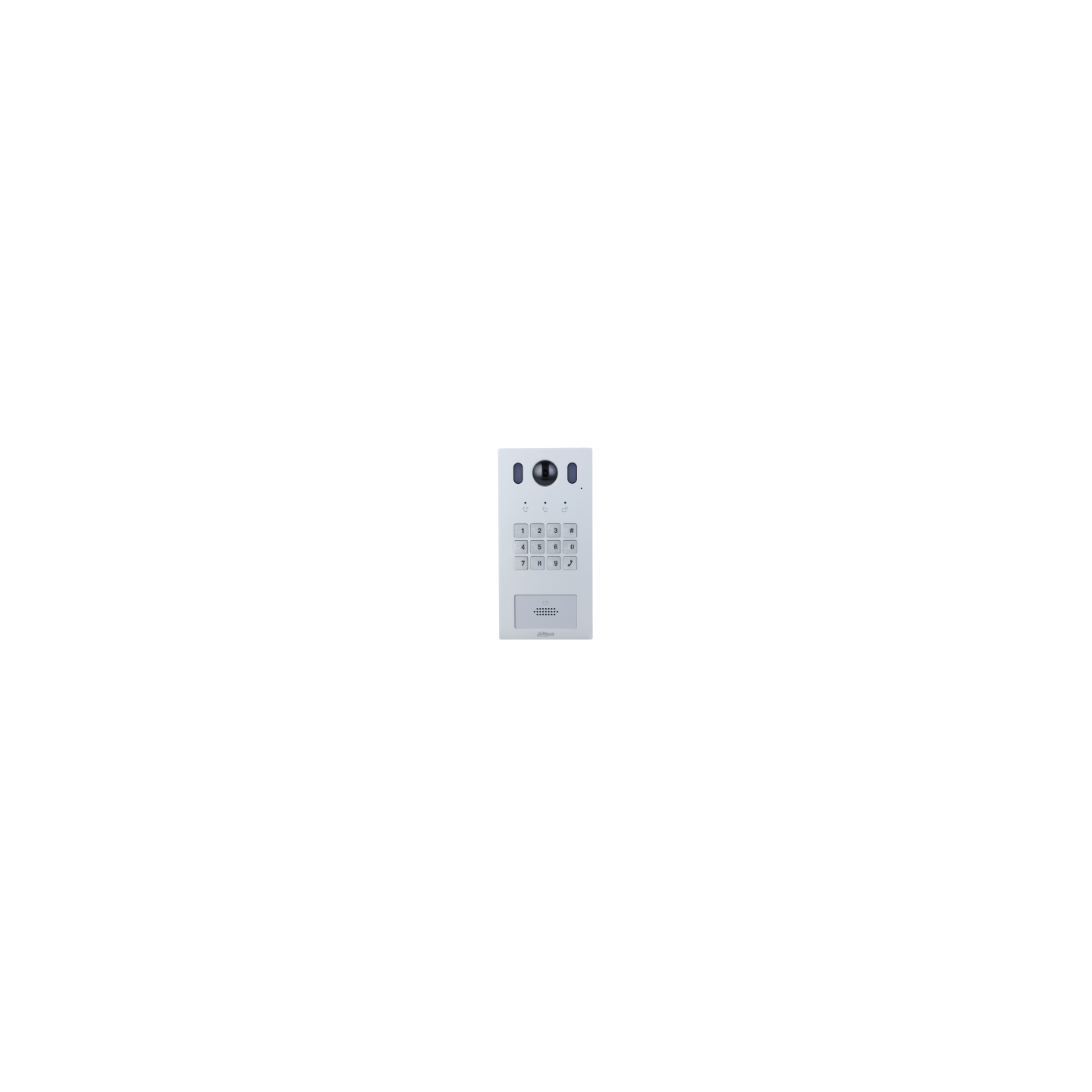

Dahua VD IP Doorphone Villa Camera - VTO3222E-P - Dahua VD IP Doorphone Villa Camera
Durable aluminum doorphone with a mechanical keypad, 2MP IP camera, supports 5,000 users and 10,000 cards, and multiple unlock methods.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | PoE |
|---|---|
| Intercoms - Access | Keypad |
| Intercoms - Camera | 1080p |
- Highly durable and elegant, it is made of aluminum panel，and has a mechanical keypad.
- 2MP HD camera.
- Supports 5,000 users and 10,000 cards.
- Supports multiple unlock methods including password, IC card, and unlocks remotely.
- Connects card readers and controllers through Wiegand.
- Provides 12 VDC, 600 mA power.
- IP65 rated (silicone sealant is required for the shell, see the quick start guide).
- IK08 rated.
- Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
- Main Processor : Embedded Processor
- Operating System : Embedded Linux OS
- Button Type : Mechanical
- Number of Buttons : 12
Basic
- Camera : 1/2.9" 2 MP CMOS
- Field of View : H:140°,V:80°, D:160°
- WDR : 120 dB
- Noise Reduction : 3D NR
- Video Compression : H264，H265
- Video Resolution : Main stream: 720p,WVGA, D1, CIF : Sub stream: 1080p,WVGA, D1, QVGA, CIF
- Video Frame Rate : 25 fps
- Light Compensation : Auto white light
- Day/Night : Color/B/W
- Audio Compression : G.711a, G.711u, PCM
- Audio Input : 1
- Audio Output : Built-in Speaker
- Audio Mode : Two-way audio
- Audio Enhancement : Echo suppression/digital noise reduction
- Audio Bit Rate : 16 KHz, 16 bit
Function
- Communication Mode : Digital 2-wire
- Unlock Mode : Card swiping;password;remote
- Card Type : Mifare card
- Auto Snapshot : Yes (SD card inserted in VTH or FTP server is configured for VTO)
- Leave Videos : Yes (SD card is inserted in the indoor monitor or door station)
- Storage : Supports Micro SD card (up to 256 GB)
- Web Configuration : Yes
RFID
- Modulation Type : AM
- Frequency Range : 13.56 MHz
- Max. Transmission Power : 42dBuA/m @10m
Performance
- Card Reading Distance : 0 cm–3 cm (0"–1.18")
- Casing Material : Aluminum
- Capacity
- Card Capacity : 10000
Port
- RS-485 : 1
- Wiegand : 1
- Alarm Input : 1
- Alarm Output : 1
- Power Output : 1 port,12 V/600 mA
- Door Bell : 1
- Exit Button : 1
- Lock Control : 1
- Network Port : 1 × RJ-45 port，10Mbps/100Mbps network port
Alarm
- Tamper Alarm : Yes
General
- Appearance Color : Silver
- Power Supply : 48 VDC, 0.4 A, PoE (802.3af/at)
- Power Adapter : Optional
- Installation : Flush Mount;Surface Mount
- Certifications : CE
- Protection : IK08, IP65 (silicone sealant is needed, see the quick start guide)
- Operating Temperature : –40 °C to +60 °C (–40 °F to +140°F)
- Operating Humidity : 10%–90% (RH), non-condensing
- Operating Environment : Outdoor
- Operating Altitude : Beneath 3000 m (9842.52 ft)
- Power Consumption : ≤ 5 W (standby), ≤ 7 W (working)
- Gross Weight : 692 g (1.53 lb)
- Storage Temperature : 0 °C to +40 °C (+32 °F to +104 °F)
- Storage Humidity : 30%–75%(RH)
| Connectivity | IP |
| Image Sensor | 2MP CMOS |
| Material | Aluminum |
| Angle of View | D:160°, H:140° |
| IP Rating | IP65, IK08 |
| Access Type | RFID & Keypad |
| POE | Yes |
