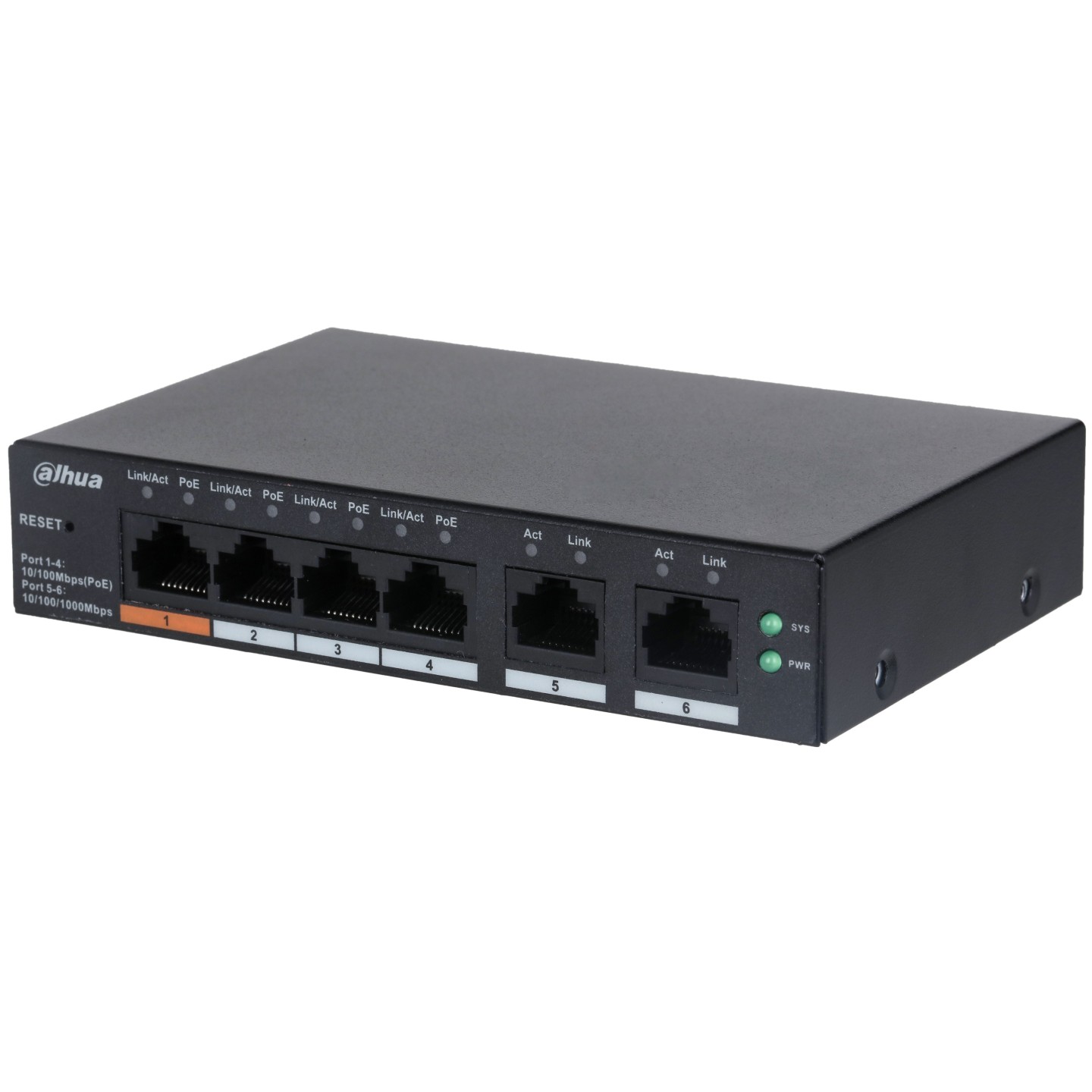

Dahua PoE Cloud Gigabit Switch - CS4006-4GT-60 - 4port +2UP 60W
Dahua PoE Cloud Gigabit Switch CS4006-4GT-60 with 4 PoE ports + 2 uplink, 60W total PoE.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Port Speed | Gigabit (10/100/1000) |
|---|---|
| Network Switches - PoE Budget | less than or equal to60 W |
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Hardware
- Included Power Adapter : Yes
- PoE : Yes
- Ethernet Port : 4
- Ethernet Port Speed : 10/100/1000 Mbps
- Ethernet Port Uplink Speed : 10/100/1000 Mbps
- Description of Function Slots : Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
- Reset Button : 1
- Power Supply : External power supply: 53 VDC, 1.226 A
- Operating Temperature : –10 °C to +55 °C
- Operating Humidity : 5%–95% (RH), non-condensing
- Storage Temperature : –40 °C to +70 °C
- Storage Humidity : 5%–95% (RH), non-condensing
- Power Consumption : Idling: ≤2.5 W Full load: 65 W
Performance
- Layer : Layer 2
- Management Type : Yes
- Smart Managed Switch : Yes
- MTBF : 222.36 years
- Switching Capacity : 12 Gbps
- Packet Forwarding Rate : 8.93 Mpps
- Packet Buffer Size : 4 Mbit
- Jumbo Frame : 15K Byte
- MAC Table Size : 8K
- VLAN Number : 32
- Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
Feature
- PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE
- PoE Power : Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W
- PoE Power Consumption Management : Yes
- PoE Pin Assignment : 1,2,4,5（V+）,3,6,7,8（V-）
- Long Distance PoE Transmission : Yes
- VLAN Function : Port-based VLAN
- IEEE 802.3x Flow Control : Yes
- DHCP Function : DHCP Client
- Equipment Management : Web management; App management
General
- Statics Protection : Air discharge: 8 kV; Contact discharge: 6 kV
- Lighting Protection : Common mode: 4 kV; Differential mode: 2 kV
- Net Weight : 0.29 kg
- Gross Weight : 0.94 kg
- Product Dimensions : 130 mm × 90 mm × 26 mm (L × W × H)
- Packaging Dimensions : 265 mm × 238 mm × 76 mm (L × W × H)
- Casing Material : Sheet metal
- Installation : Desktop mount; wall mount
| Ethernet Speed | Gigabit |
| Ethernet Ports | 6 |
| Long Distance POE | Up to 250 Meters |
| Poe Ports | 4 |
| Power | 60W |
| Total PoE Power | 60W |
| Max. Watt per Port | 60W |
| Type | Cloud Managed |
| Housing | Metal |
| Mounting | Desktop/Wall |
| PoE Type | 802.3af/at |
| Gigabit Uplink Ports | 2 x RJ45 |
| Recommended for | Professional IP Cameras |
