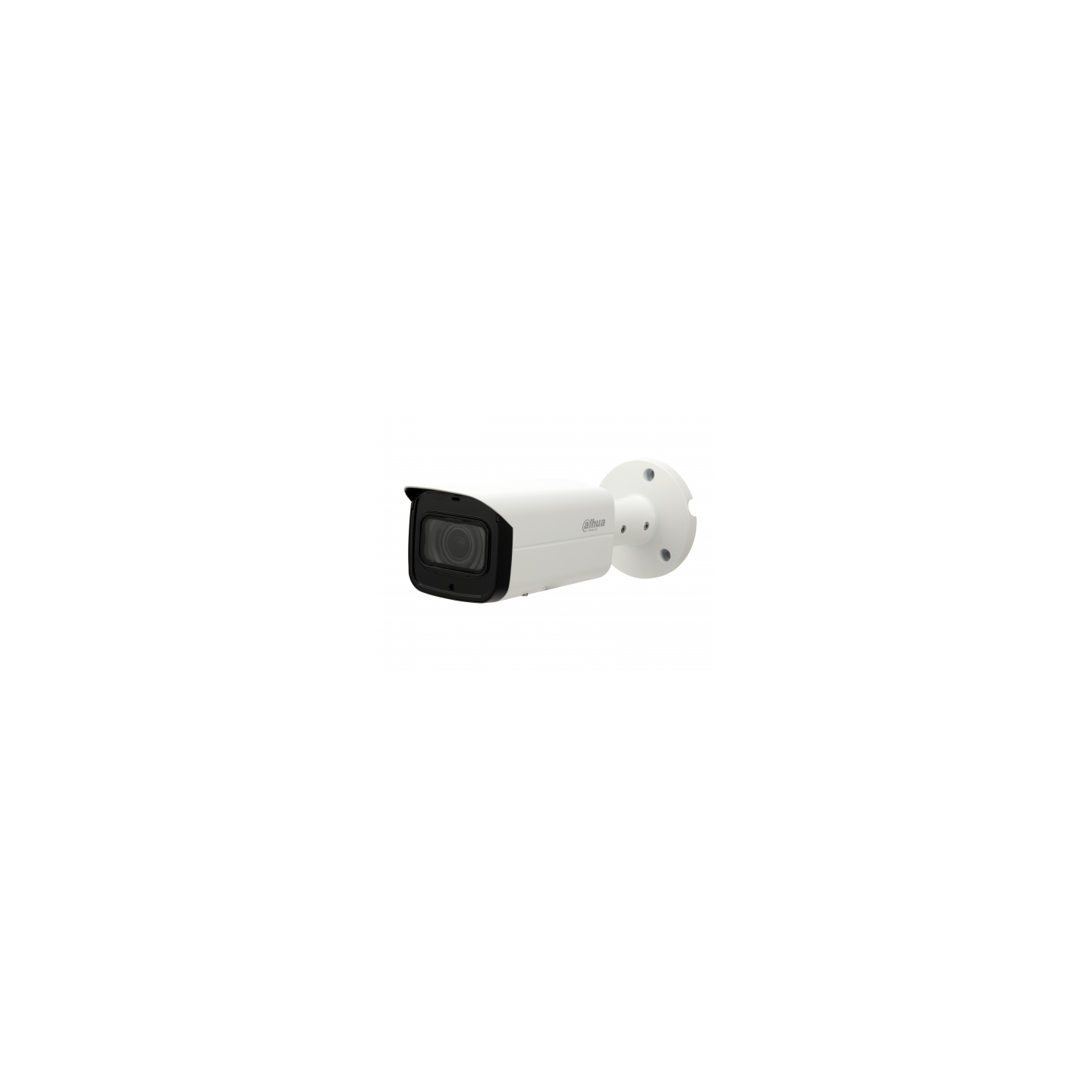

Dahua IP Camera - HFW1431T-ZS - 4.0MP Bullet 2.8-12mm WDR
4MP IP Bullet camera with 2.8-12mm motorised lens and 120dB WDR; H.265 high compression.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Bullet |
|---|---|
| IP Cameras - Resolution | 4 MP (2K) |
- 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
- H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 50 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Supports max. 256 GB SD card
- 12V DC/PoE power support
- IP67 protection
- Image Sensor : 1/3 ”4Megapixel progressive CMOS
- Effective Pixels : 2688 (H) ×1520 (V)
- ROM : 128 MB / RAM : 128 MB
- Scanning System : Progressive
- Electronic Shutter Speed : Auto/Manual 1/3 s–1/100000 s
- Min. Illumination : 0.03 Lux @ F1.7
- IR Distance : 50 m (164.0 ft)
- IR On/Off Control : Auto/Manual
- IR LEDs Number : 2
Lens
- Lens Type : Motorized vari-focal
- Mount Type : φ14
- Focal Length : 2.8 mm–12 mm
- Max. Aperture : F1.7
- Field of View :Horizontal: 98°–31° / Vertical: 55°–18° / Diagonal: 116°–36°
- Iris Type : Fixed aperture
- Close Focus Distance : 0.8 m
Video
- Video Compression : H.265; H.264; H.264B; MJPEG
- Smart Codec : Yes
- Video Frame Rate : Main Stream:2688 × 1520 (1 fps–20 fps),2560 × 1440 (1 fps–25/30 fps) / Sub Stream : 704 × 576 (1 fps–20/25 fps),704 × 480 (1 fps–20/30 fps)
- Stream Capability : 2 streams
- Resolution : 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440);2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×480); VGA (640 × 480); CIF (352 × 288/352 ×240)
- Bit Rate Control : CBR; VBR
- Video Bit Rate H.264: 32 Kbps–6144 Kbps / H.265: 12 Kbps–6144 Kbps
- Day/Night : Auto(ICR)/Color/B/W
- BLC : Yes
- HLC : Yes
- WDR : 120 dB
- White Balance : Auto/natural/street lamp/outdoor/manual/regional
- custom
- Gain Control : Manual/Auto
- Noise Reduction : 3D DNR
- Motion Detection : OFF/ON (4 areas, rectangular)
- Region of Interest : (RoI) Yes (4 areas)
- Smart IR : Yes
- Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520resolution.)
- Mirror : Yes
- Privacy Masking : 4 areas
Network
- Network : RJ-45 (10/100 Base-T)
- Protocol : HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
- Interoperability ONVIF : (Profile S/Profile G/Profile T); CGI; Milestone;
- User/Host : 20
- Edge Storage : Dahua Cloud; FTP; SFTP; Micro SD card (support max.256 GB); NAS
- Browser : IE / Chrome / Firefox
- Management Software : Smart PSS; DSS; DMSS
- Mobile Phone : IOS; Android
Certification
- CE-LVD: EN60950-1
- CE-EMC: Electromagnetic Compatibility Directive
- 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
Power
- Power Supply : 12V DC/POE (802.3af)
- Power Consumption : < 7.4W
Environment
- Operating Conditions : -30°C to +60°C (-22°F to +140°F)/less than≤95%
- Strorage Conditions : -40°C to +60°C (-40°F to +140°F)
- Ingress Protection : IP67
| Camera Resolution | 4.0MP |
| Housing Type | Bullet |
| Lens | Motorised |
| Lens Size | 2.8-12mm |
| IR Distance | Up to 50m |
| WDR | 120dB true WDR |
