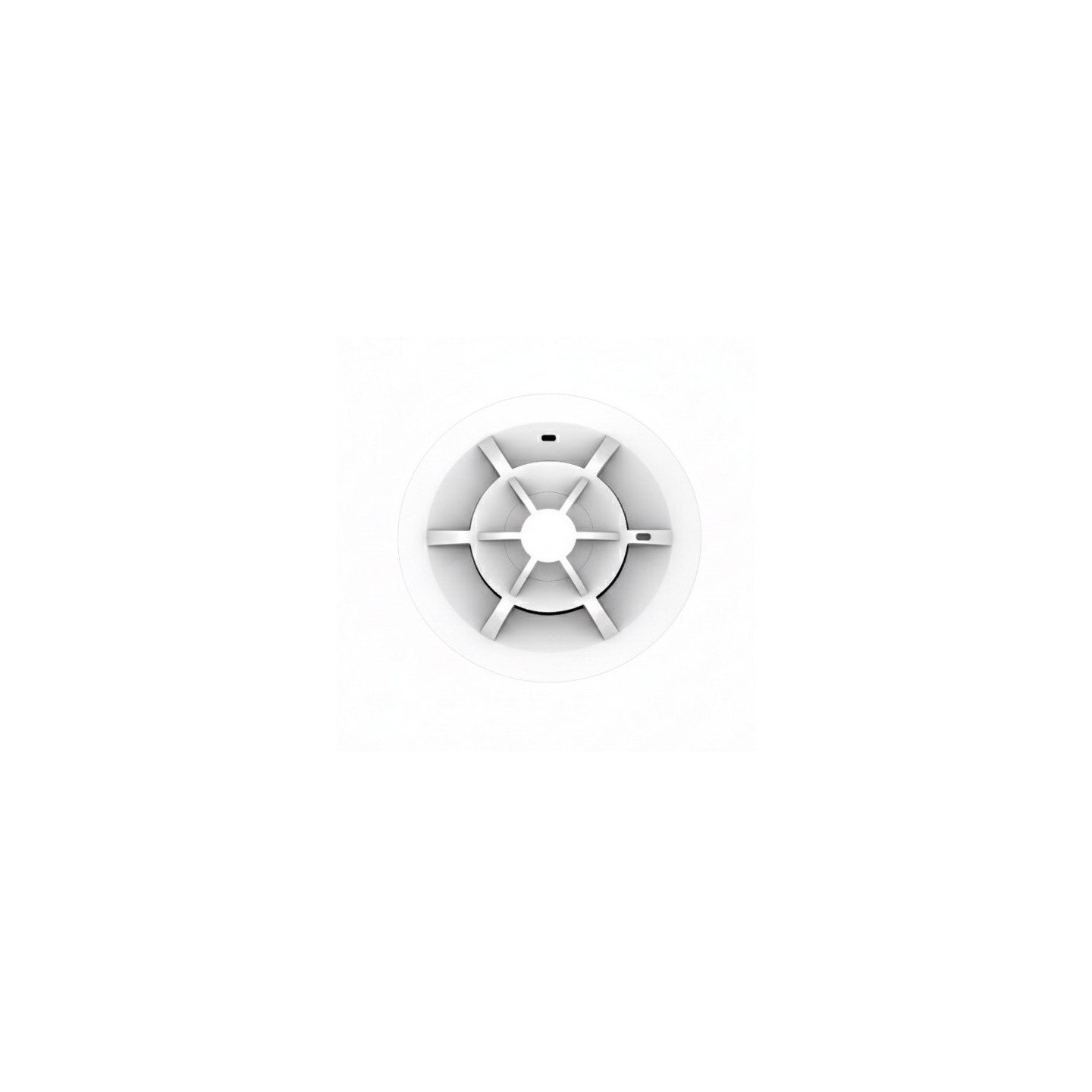

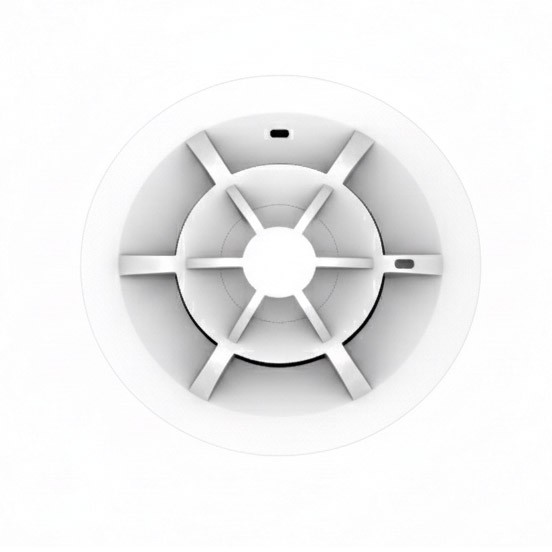

Dahua Addressable Fire Alarm Detector - HY-1320 - without Base (Smoke & Heat)
Addressable two-wire smoke and heat detector without base; 24 VDC, built-in microprocessor for stable performance and ultra-low power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smoke/CO Detectors - Detector Type | Smoke |
|---|
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- Detection performance: Split-spectrum optical smoke sensor and sensitive thermistor
- Designed in accordance with EN54-5 and EN54-7 standards
- Power : 24 VDC
- Current: Monitoring current: ≤150 μA; Alarm current: ≤240 μA
- Indicator : Red Indicator:/Polling: Flashes every 6 seconds/Alarm: Remains lit/Fault: Flashes every 2 seconds
- Alarm Threshold for Heat Detection : A2R (54 °C to 62 °C) (129 °F to 144 °F)
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Communication Distance : ≤1500 m (4921.26 ft)
- Operating Temperature : –10 °C to +50 °C (+14 °F to +122 °F)
- Storage Temperature : –20 °C to +65 °C (–4 °F to +149 °F)
- Operating Humidity : ≤95% RH (no condensation)
- Color : White
- Dimensions (with Base) : Φ100 mm × 68.7 mm (Φ3.00" × 2.70")
- Weight (with Base) : 106.3 g (0.23 lb)
- Compliance Standard : EN54-5; EN54-7
