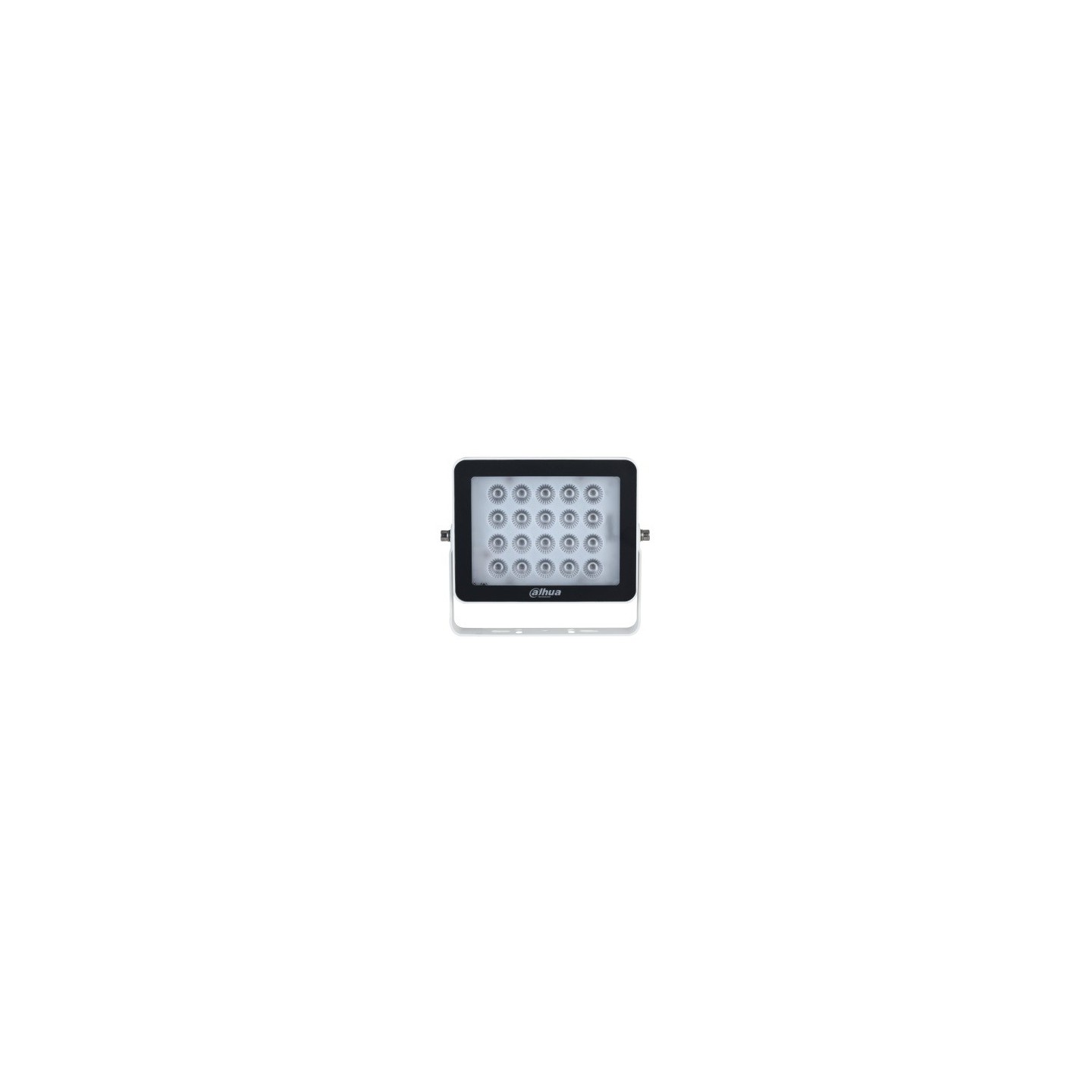

Dahua IR Camera Led Illuminator - PFM522P-D1-IR
Dahua IR LED illuminator with 20 LEDs at 850 nm, 13 W, 12 VDC, IP66 rated, aluminum alloy housing, explosion-proof, multi-mount installation options.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Weather Rating | IP66 |
|---|
- Built with a die cast aluminum cover, it is highly durable and has a long lifespan
- One-piece lens that provides balanced lighting and is elegantly designed
- Explosion-proof
- 12 VDC power supply
- IP66 rated
- Multiple installation methods including pole mount, plane mount and wall mount
Protection
- Vanda-proof : IK10
- Protection ; IP66
- Surge Protection Grade : Common mode: ±6 kV; Different mode: ±4 Kv
Basic
- Light Source : LED
- LED Quantity : 20
- View distance : 15 m–50 m
- View angle : 20°
- Wavelength : 850 nm
- Brightness : 10%–100% (continuously adjustable)
- Enable Threshold : 30 lux
Power
- Rated Power : 13 W
- Power Supply : 12 VDC
Port
- RS-485 : 1
Structure
- Material : Aluminum alloy
- Product Dimensions : 186.4 mm × 160 mm × 31.5 mm (L × W × H)
- Color : White
- Net Weight : 0.76 kg
- Gross Weight : 1.0 kg
- Installation : Wall mount; pole mount; plane mount
- Product Dimensions : 242 mm × 210 mm × 84 mm (L × W × H)
- Packaging Dimensions : 430 mm × 250 mm × 212.5 mm (L × W × H)
Environment
- Operating Temperature : –30 °C to +70 °C
- Operating Humidity : 0%–90% (RH), non-condensing
- Storage Temperature : –30 °C to +70 °C
- Storage Humidity : 10%–90% (RH), non-condensing
Certifications
- CE LVD: EN 62368-1
- CE EMC: EN55032 EN55024 EN55035 EN61000-3-2 EN61000-3-3
- FCC: FCC part15B
