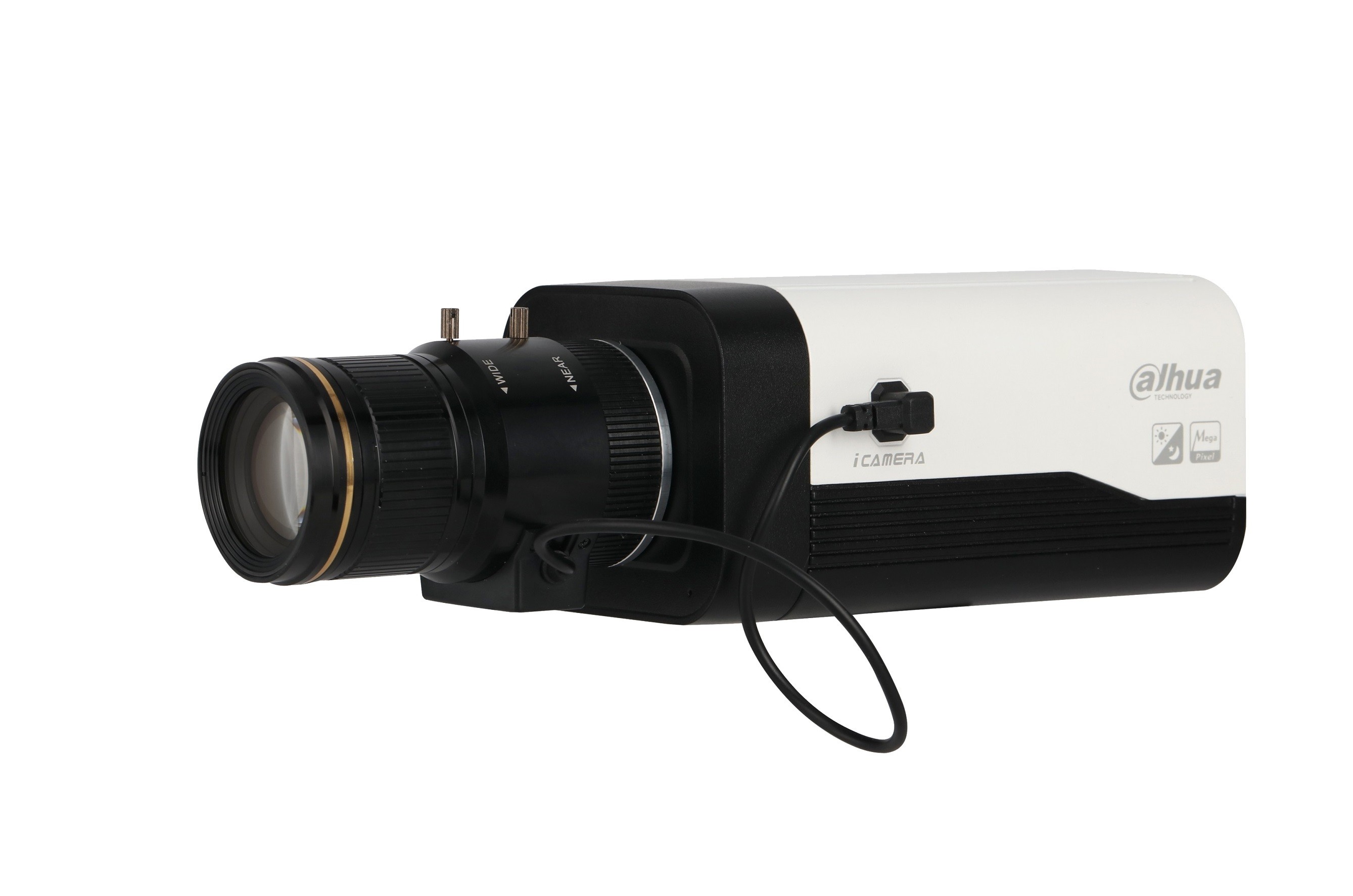

Dahua IP 2.0MP Box WDR Network Camera - HF8231F-E - Dahua IP 2.0MP Box WDR Network Camera

• 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
• H.265&H.264 triple-stream encoding
• 50/60fps@1080P(1920×1080)
• WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) &DMSS
• Auto back focus(ABF)
• Micro SD memory, PoE

Camera

• Image Sensor : 1/1.8” 2Megapixel progressive scan CMOS
• Effective Pixels : 1920(H)x1080(V)
• RAM/ROM : 1024MB/128MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
• Minimum Illumination : 0.003Lux/F1.2(Color,1/3s,30IRE) / 0.03Lux/F1.2(Color,1/30s,30IRE) / 0.0009Lux/F1.2(B/W,1/3s,30IRE) / 0.01Lux/F1.2(B/W,1/30s,30IRE)
• S/N Ratio : More than 50dB
• IR Distance : N/A
• IR On/Off Control : N/A
• IR LEDs : N/A

Lens

• Lens Type : N/A
• Mount Type : C/CS
• Focal Length : N/A
• Max. Aperture : N/A
• Angle of View : N/A
• Optical Zoom : N/A
• Focus Control : N/A
• Close Focus Distance : N/A

Intelligence

• Event Trigger : Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
• General Intelligence : Tripwire, Intrusion, Object Abandoned/Missing, People Counting, Heat Map, Face Detection

Video

• Compression : H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
• Smart Codec : Support H.265+/H.264+
• Streaming Capability : 3 Streams
• Resolution : 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)
• Frame Rate : Main Stream: 1080P(1~50/60fps) / Sub Stream: D1 (1 ~ 50/60fps) / Third Stream: 1080P(1~50/60fps)
• Bit Rate Control : CBR/VBR
• Bit Rate : H.264: 24~ 10240Kbps / H.265: 14~ 6144Kbps
• Day/Night : Auto(ICR) / Color / B/W
• BLC Mode : BLC / HLC / WDR(120dB)/ SSA
• White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detection : Off / On (4 Zone, Rectangle)
• Region of Interest : Off / On (4 Zone)
• Electronic Image Stabilization (EIS) : Support
• Smart IR : N/A
• Defog : Support
• Digital Zoom : 16x
• Flip : 0°/90°/180°/270°
• Mirror : Off / On
• Privacy Masking : Off / On (4 Area, Rectangle)

Audio

• Compression : G.711a/ G.711Mu/ AAC/ G.726

Network

• Ethernet : RJ-45 (100/1000Base-T)
• Protocol : HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
• Interoperability : ONVIF Profile S&G, API
• Streaming Method : Unicast / Multicast
• Max. User Access : 10 Users/20 Users
• Edge Storage : NAS
• Local PC for instant recording : Mirco SD card 128GB
• Web Viewer : IE, Chrome, Firefox, Safari
• Management Software : Smart PSS, DSS, DMSS
• Smart Phone : IOS, Android

Certifications

Certifications

• CE (EN 60950:2000)
• UL:UL60950-1
• FCC: FCC Part 15 Subpart B

Interface

• Video Interface : 1 port(BNC,1Vp-p,75Ω )
• Audio Interface : 2/1 channel In/Out, 1 Built-in Mic
• RS485 : 1 port
• Alarm : 2 channel In: 5mA 5VDC / 2 channel Out: 1A 30VDC / 0.5A 50VAC
• Power Out : 165mA 12VDC

Electrical

• Power Supply : DC12V, AC24V, PoE(802.3af)(Class 0)
• Power Consumption : < 10W

Environmental

• Operating Conditions : -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
• Storage Conditions : -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
• Ingress Protection : N/A
• Vandal Resistance : N/A

Construction

Casing : Metal

• Dimensions : 161.6mm×85.5mm×74.0mm
• Net Weight : 0.72Kg
• Gross Weight : 0.92Kg
