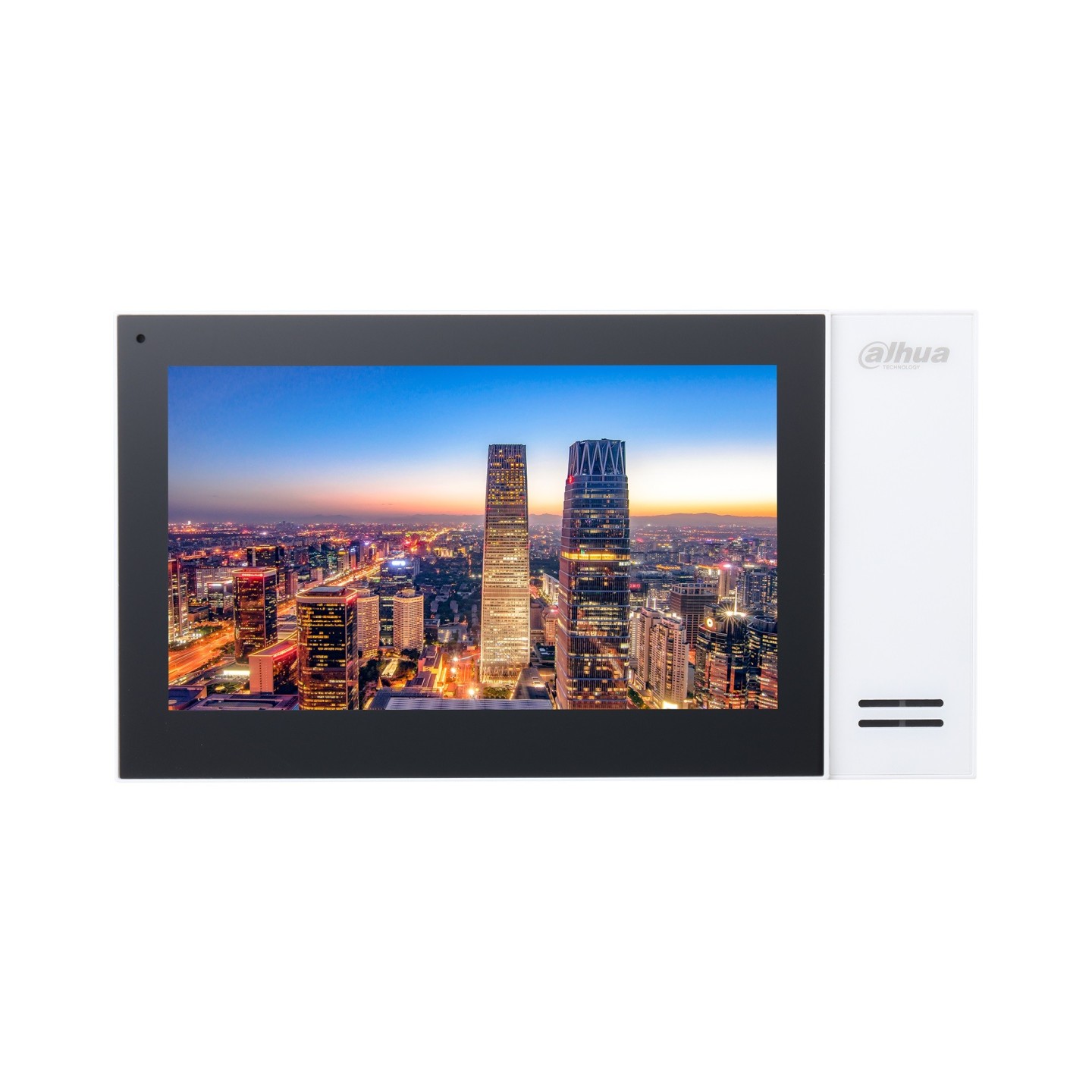

Dahua VD IP Doorphone Monitor - VTH2421FW-P - IP Doorphone Monitor
7" TFT capacitive touch screen, 1024x600; IP doorphone monitor with PoE, SIP firmware, alarm integration, supports 8GB SD card.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | PoE |
|---|---|
| Intercoms - Display (Indoor) | 7inch |
- 7" TFT Capacitive touch screen, 1024 x 600
- IPC surveillance
- Alarm integration
- High performance & Cost-effective
- Support 8GB SD card
- Support standard PoE
- Works only with SIP Firmware
- Main Processor : High performace embedded processor
- Operating System : Embedded LINUX OS
- Screen Type : Capacitive screen
- Display : 7-inch TFT screen
- Resolution : 1024 × 600
- Video Compression : H.264
- Audio Compression : G.711A/G.711U/PCM
- Audio Input : 1 channel all-direction microphone
- Audio Output : Built-in 1.5W loudspeaker
- Audio Mode : Support dual-way bidirectional talk
- Audio Enhancement : Support echo cancellation/DNR
- Audio Bit Rate : 16 kbps
- Communication Mode : Full digital
- Information Release : Support to receive and view notifications issued by center
- Leave Videos or Text Messages : Support
- DND Mode : Support to set DND period
- Sub-station Quantity : 9
- Alarm Input : 6 channel (switch quantity)
- Alarm Output : 1 channel
- Network : 1 RJ-45
- SOS Alarm : Support
- Casing : PC+ABS
- Appearance Color : White
- Power Supply : Power Supply
- Installation : Wall mount
- Accessories : Default bracket / Default alarm cable
- Dimensions : 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85")
- Operating Temperature : -10°C to +55°C (+14°F to +131°F)
- Operating Humidity : 10%RH-95%RH
- Power Consumption : Standby≤4W, work≤6W
- Gross Weight : 0.35 Kg (0.77 lb)
- Power supply mode : PoE
- Storage : Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G
| Connectivity | IP |
| Material | Plastic |
| Display | 7'' |
| Recording | Photos & Video |
| Monitor Res | 1024x600 |
| Memory Slot | Micro SD, Max 32G |
| POE | Yes |
