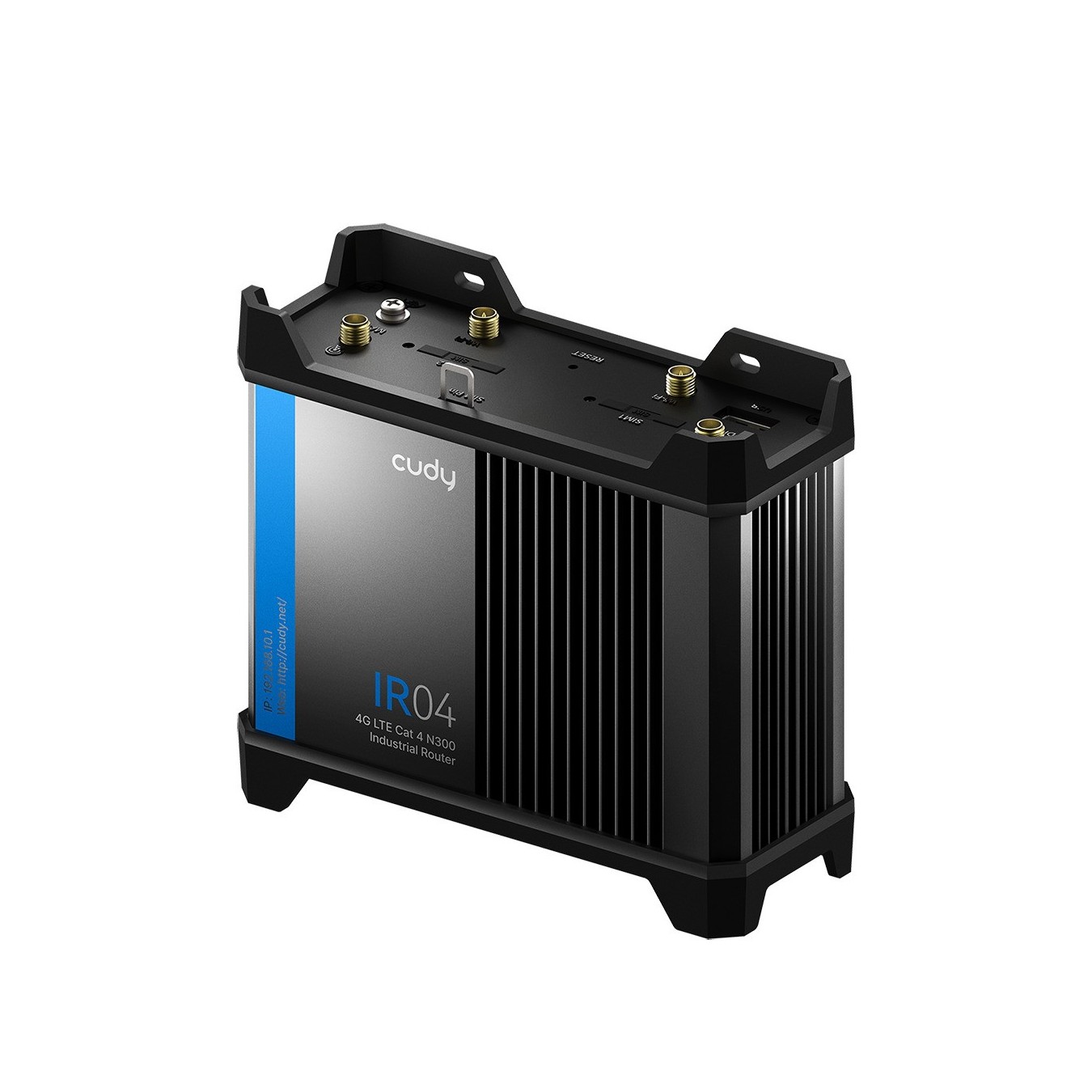

Cudy IR04_EU 4G LTE CAT4 N300 Industrial Wi-Fi Dual-SIM Router (Boxed)
Industrial 4G LTE CAT4 router with dual-SIM failover, N300 Wi-Fi (2.4GHz), 4x Gigabit Ethernet, serial RS232/422/485 ports. Rugged IP30 metal housing (-40~75°C), DIN-rail/wall mount, PoE 24-57V for vehicles, factories, maritime.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Industrial Gateway Mobile 4G/5G Router |
|---|---|
| Routers - Special Features | Dual SIM Failover Support PoE Support |
| Routers - LAN Ports | 4 |
| Routers - Wi-Fi Standard | Wi-Fi 4 (802.11n) |
| Routers - Bands | Single-band (2.4 GHz) |
The Cudy IR04_EU is a robust industrial 4G LTE CAT4 router designed for reliable connectivity in extreme environments like moving vehicles, manufacturing plants, maritime vessels, oil & gas sites, and mining operations. It delivers max 150 Mbps download speeds via 4G Cat.4 with dual mini-SIM slots for seamless failover and load balancing.
Featuring 802.11n N300 Wi-Fi (2.4 GHz, 2x2 MIMO) for up to 300 Mbps wireless coverage and 4x 10/100 Mbps Ethernet ports (1 WAN/LAN, 3 LAN), it supports serial connectivity (RS232/422/485), digital I/O, and power via 4-pin DC with ignition sensing or 802.3at/af Passive PoE (24~57V). The IP30-rated aluminum housing withstands -40~75°C temperatures, shock/vibration per EN61373, with Level 4 EMC protection.
- 4G Cat. 4 (150 Mbps DL / 50 Mbps UL), 2x Mini SIM (2FF)
- Wi-Fi 300 Mbps 2.4 GHz, 2x RP-SMA antennas

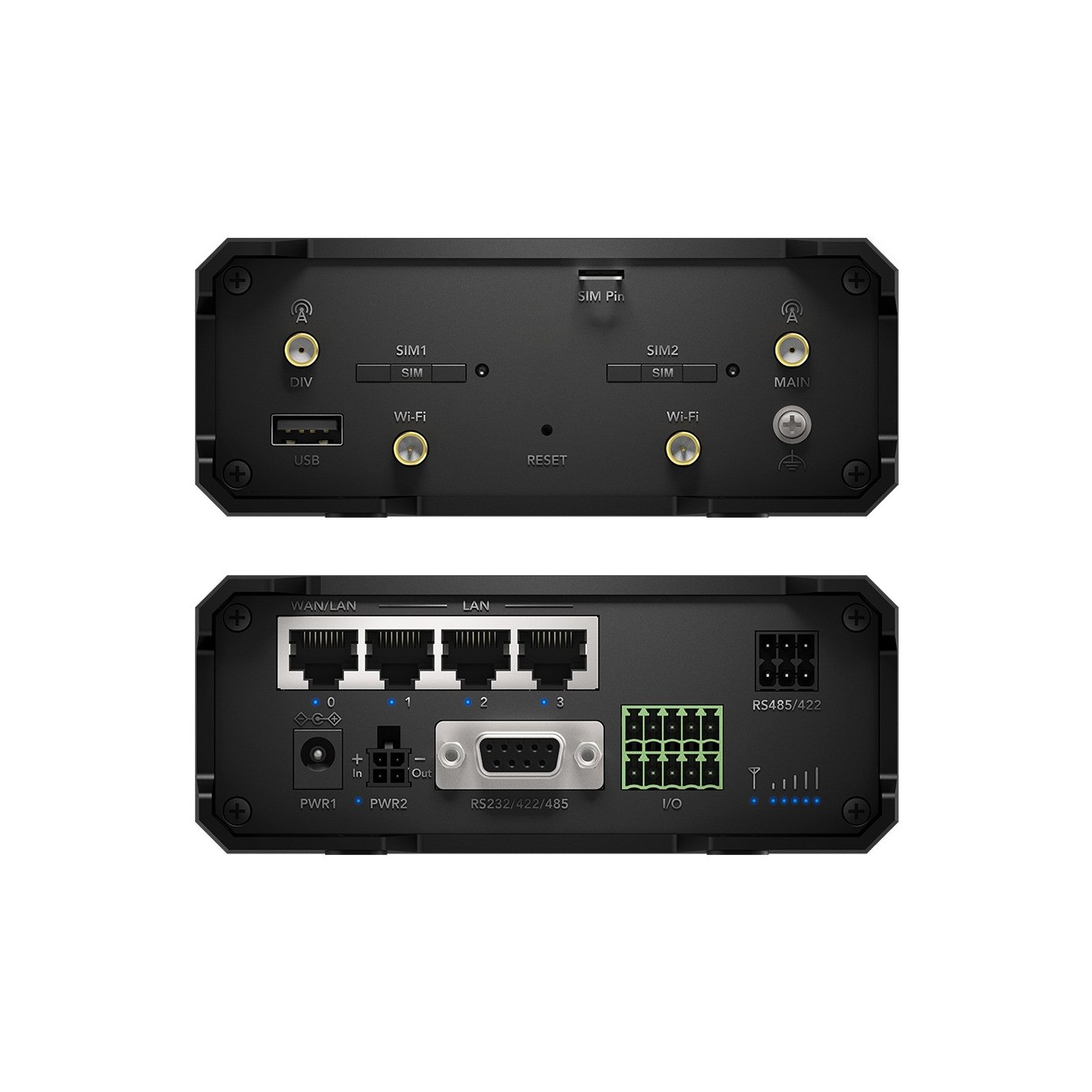

- 4x 10/100 Ethernet, Serial RS232/422/485, IO ports
- Power: 4-PIN DC ignition sensing, PoE 24~57V
- Rugged: IP30, -40~75°C, DIN-Rail/Wall-Mount
- CPU 580 MHz MIPS, 128 MB RAM, 16 MB Flash
| Type | 4G/LTE |
| Wi-Fi Technology | Wi-Fi 4 |
| Wi-Fi Speed | N300 |
| Ethernet Ports | 4x 10/100 Mbps (1 WAN/LAN, 3 LAN) |
| System Memory | 128MB RAM |
| Flash Memory | 16 MB NOR Flash |
| CPU | 580 MHz Single-Core MIPS |
| USB Port | Yes |
| Poe In | Yes (802.3at/af, 24~57V Passive PoE) |
| Cellular Standard | 4G LTE Cat. 4 (150 Mbps DL / 50 Mbps UL) |
| SIM Slots | 2x Mini SIM (2FF) |
| Antennas | 2x Detachable LTE (SMA), 2x Detachable WiFi (RP-SMA) |
| WiFi Bands | 2.4 GHz (300 Mbps, 2x2 MIMO) |
| Serial Port | RS232/422/485 |
| Operating Temperature | -40~75°C (-40~167°F) |
| Mounting | DIN-Rail, Wall-Mount |
| Ingress Protection | IP30 |
