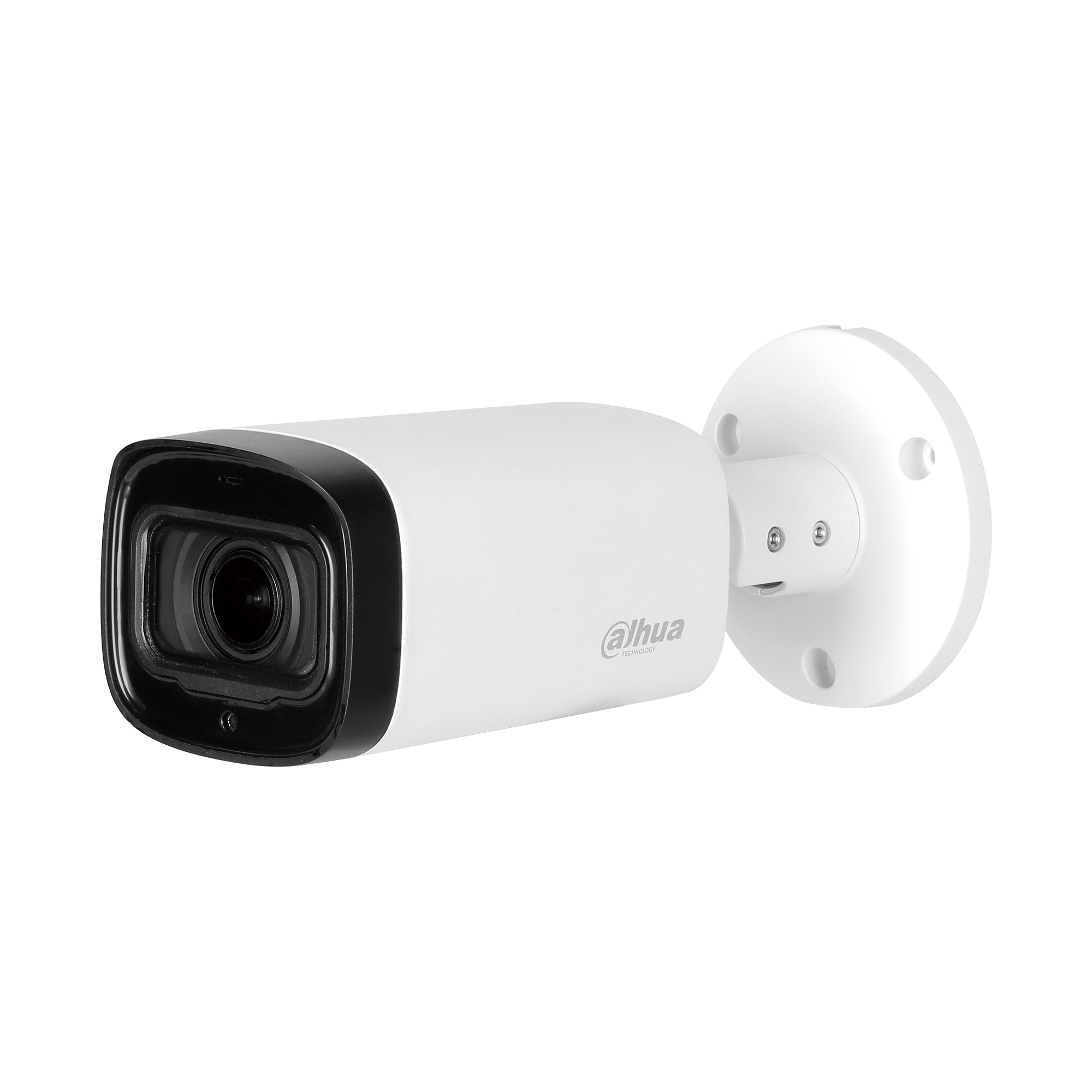

Dahua HDCVI 2.0MP Bullet 2.7-12mm Starlight Motorized - HFW1231R-Z-A -
Dahua HDCVI 2.0MP Bullet with Starlight, 2.7-12mm motorized lens with auto focus; 130dB true WDR, 3D NR; CVI/CVBS/AHD/TVI switchable; IP67, 12V DC; built-in mic; IR up to 80m; 30fps@1080P.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Max. 30 fps@1080P
- Starlight, 130dB true WDR, 3D NR
- Auto focus, 2.7 mm–12 mm motorized lens
- CVI/CVBS/AHD/TVI switchable
- Super Adapt
- Built-in mic
- Max. IR length 80 m, Smart IR
- IP67, 12V DC
Camera
- Image Sensor : 1/2.8" CMOS
- Effective Pixels : 1920(H)×1080(V), 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s
- Minimum Illumination : 0.002Lux/F1.5, 30IRE, 0Lux IR on
- S/N Ratio : More than 65dB
- IR Distance : Up to 80m
- IR On/Off Control : Auto
- IR LEDs : 4
Lens
- Lens Type : Motorized vari-focal / Auto Focus
- Lens Mount : φ14
- Focal Length : 2.7 mm–12 mm
- Max. Aperture : F1.5
- Field of View : Diagonal: 38°– 123° / Horizontal: 33°–102° / Vertical: 19°–53°
- Iris Control : Fixed
- Close Focus Distance : 0.5 m
Video
- Resolution : 1080P (1920×1080) / 960H (960 × 576/960 × 480)
- Frame Rate : CVI : PAL: 1080P@25fps; NTSC: 1080P@30fps; / AHD : PAL: 1080P@25fps; NTSC: 1080P@30fps; / TVI : PAL: 1080P@25fps; NTSC: 1080P@30fps; / CVBS : PAL: 960×576H; NTSC: 960×480H;
- Day/Night : Auto (ICR)
- BLC Mode : BLC / HLC / DWDR
- WDR : 130dB
- Gain Control : Auto / Manual
- Noise Reduction : 3D NR
- White Balance : Auto/Area WB
- Smart IR : Auto / Manual
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
Certifications
- CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
- UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Electrical
- Power Supply : 12V DC ±30%
- Power Consumption : Max 9.4W (12V DC, IR on)
Environmental
- Operating Temperature : –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
- Storage Temperature : –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
- Ingress Protection & Vandal Resistance : IP67
Construction
- Casing : Metal throughout the whole casing
- Camera Dimensions : 209.6 mm × 90.4 mm × 90.4 mm
- Net Weight : 0.55 kg
- Gross Weight : 0.76 kg
| Housing Type | Bullet |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Camera Resolution | 2.0MP |
| Lens Type | Varifocal |
| Lens Size | 2.7-12mm |
| IR Distance | Up to 80m |
| WDR | 130dB true WDR |
| Starvis | YES |
| Audio | Built-in Mic |
