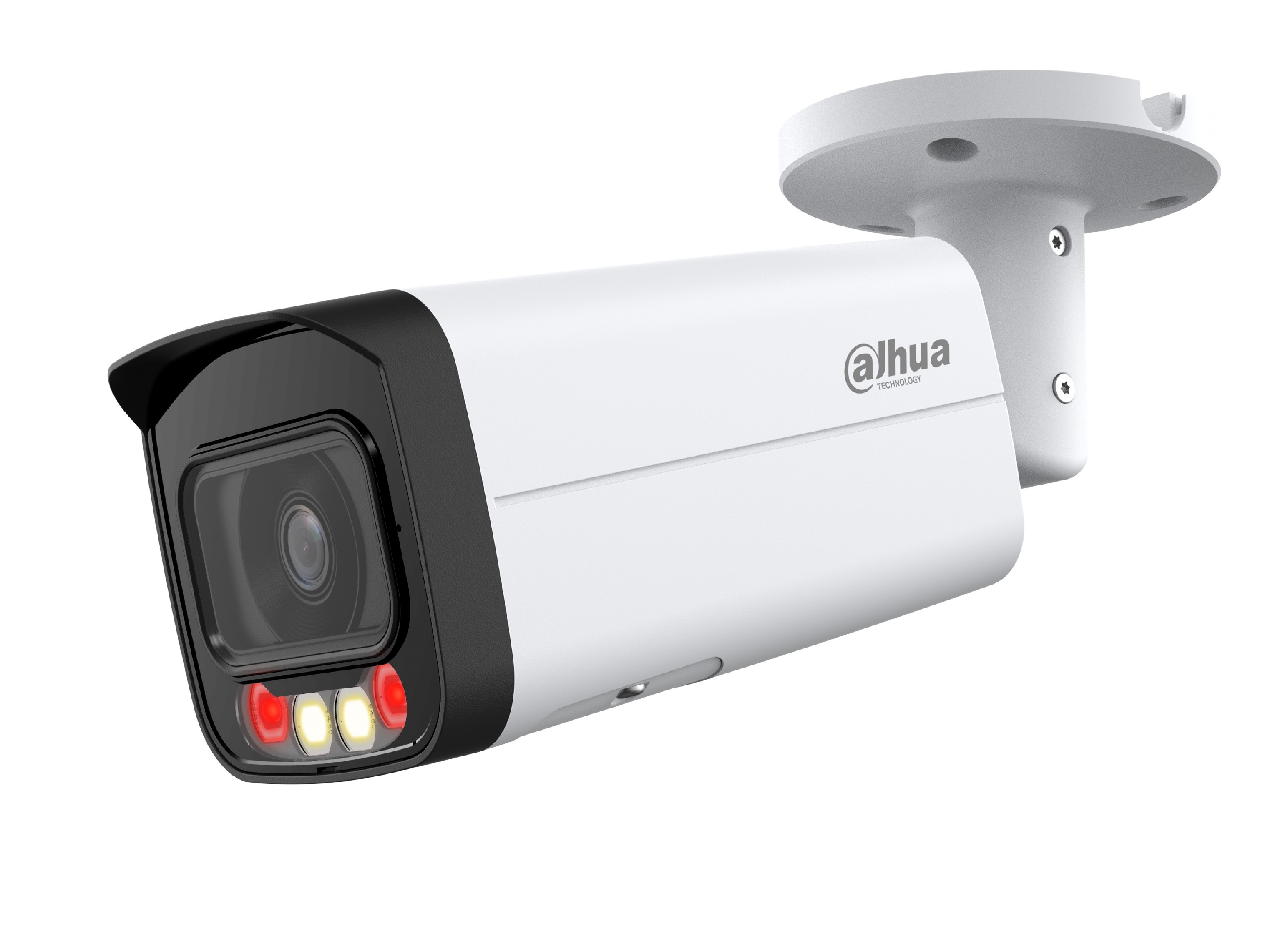

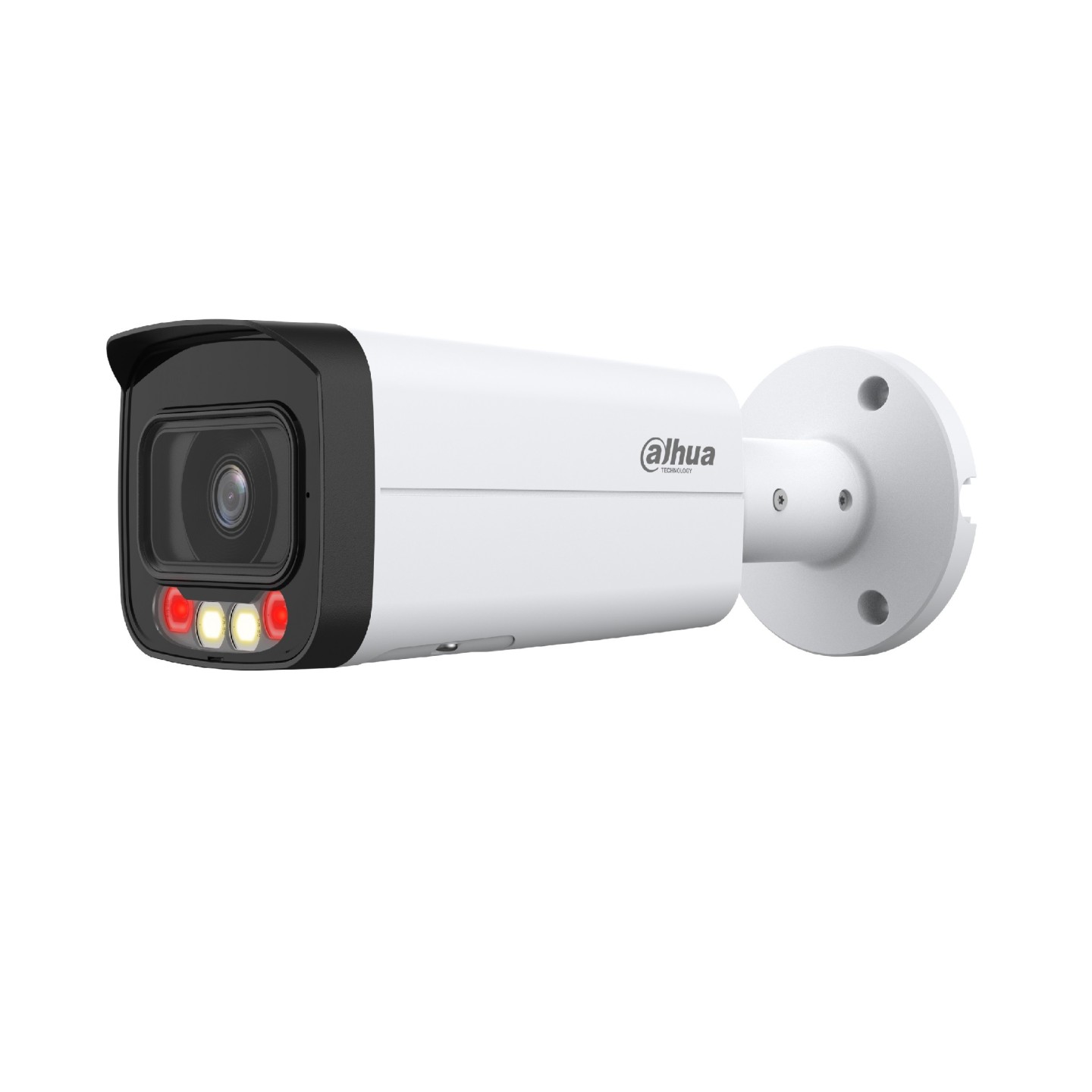

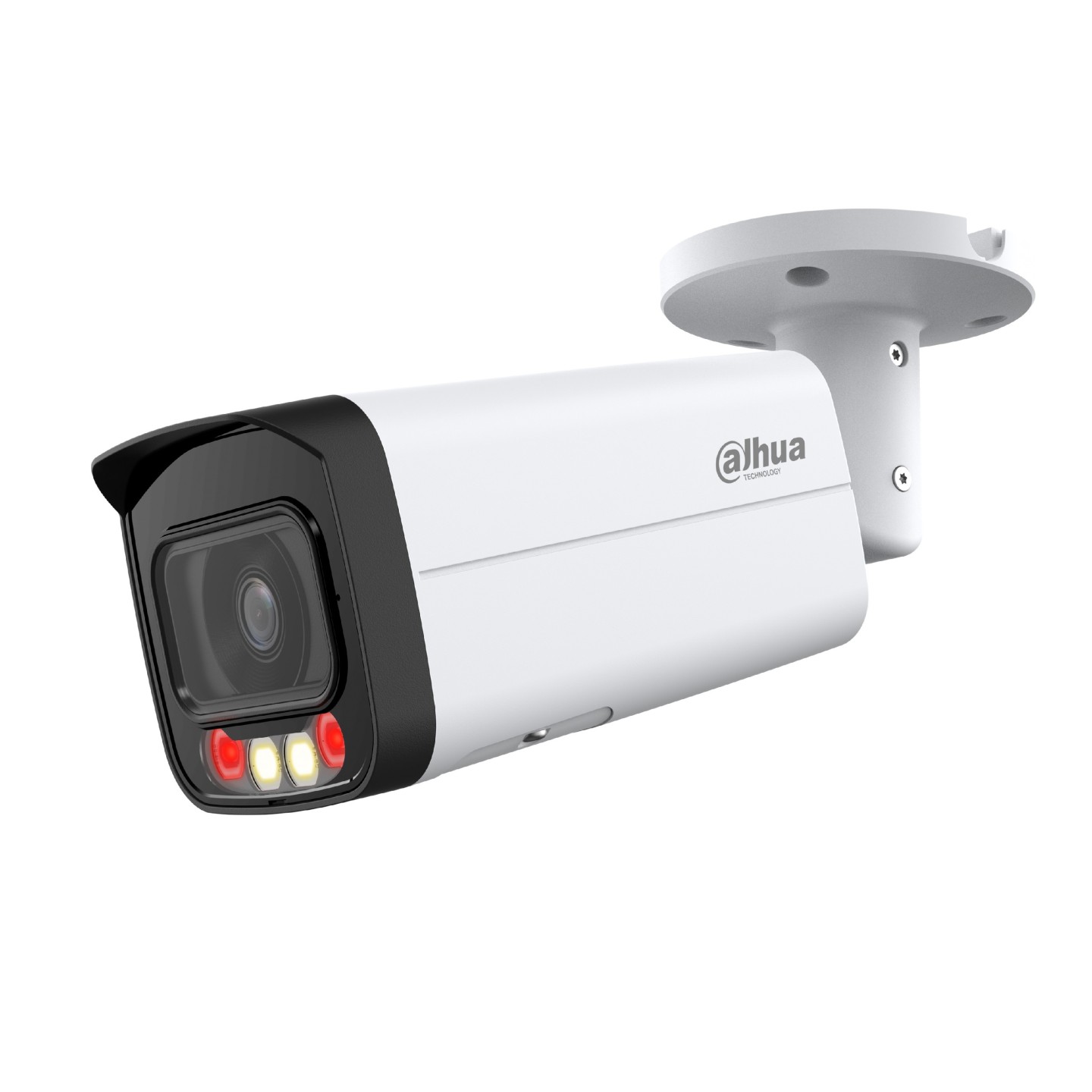

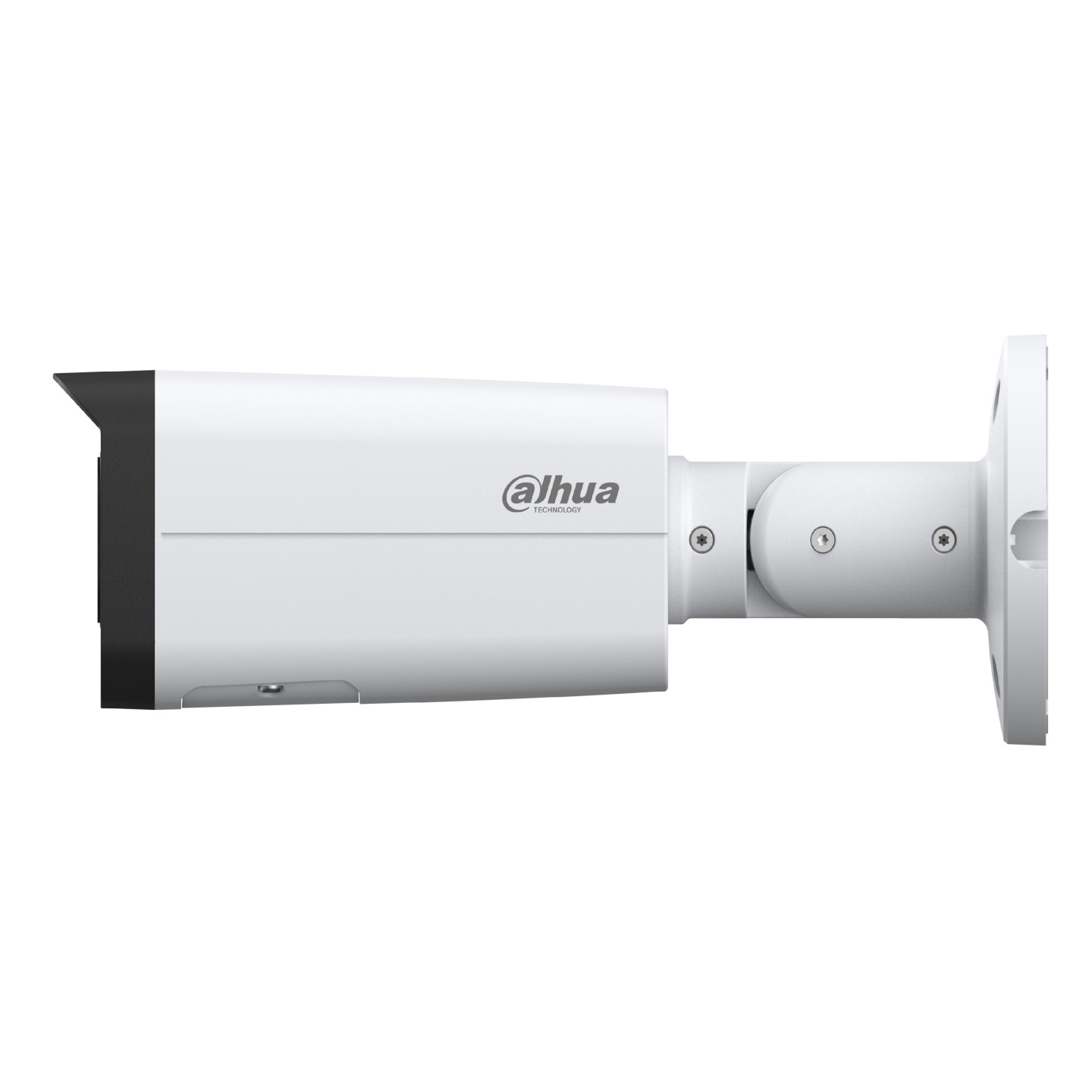

Dahua IP 8.0MP Bullet 3.6mm WDR - HFW2849T-AS-IL-0360B - 8.0MP Bullet 3.6mm WDR

• 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
• Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in warm light and IR LED, the max. IR light distance is 60 m and max. warm light is 50 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC
• 12 VDC/PoE power supply, easy for installation
• IP67, IK10 (optional) protection
• SMD Plus

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 3840 (H) × 2160 (V)
• ROM : 128 MB
• RAM : 256 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.008 Lux@F1.6 (Color, 30 IRE) / 0.0008 Lux@F1.6 (B/W, 30 IRE)/ 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : up to 60 m  (IR); up to 50 m (Warm light)
• Illuminator On/Off Control : Auto; Manual
• Illuminator Number : 2 (IR LED); 2 (Warm light)

Lens

•  Lens Type : Fixed-focal
•  Lens Mount M12
•  Focal Length :  3.6 mm
• Max. Aperture : F1.6
• Field of View : 3.6 mm: H: 87°; V: 49°; D: 100°
• Iris Control : Fixed
• Close Focus Distance : 3.6 mm: 1.9 m

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• Video Frame Rate : Main stream: 3840 × 2160@(1–20 fps )/2688×1520@(1–25/30 fps)
• Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability : 2 streams
• Resolution : 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×480); VGA (640 ×480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 kbps–8192 kbps / H.265: 12 kbps–8192 kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto; Manual
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; G.726; PCM

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P
• Interoperability : ONVIF (Profile S/Profile T/Profile G); CGI
• User/Host : 20 (Total bandwidth: 48 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 GB)
• Management Software : SmartPSS Lite;DSS;DMSS
• Browser : IE; Chrome; Firefox
• Mobile Client : iOS; Android
• Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Certification

• Certifications : CE-LVD: EN62368-1 / CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU / FCC: 47 CFR FCC Part 15, Subpart B / UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

• Audio Input : 1 channel (RCA port)
• Audio Output : 1 channel (RCA port)
• Alarm Input : 1 channel in: 5 mA 3–5 VDC
• Alarm Output : 1 channel out: 300 mA 12 VDC

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption : Basic: 2.6 W (12 VDC); 3.4 W (PoE) / Max. (H.265+ max. resolution + max. stream+ WDR + illuminator intensity + IVS): 7 W (12 VDC); 8.3 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C
• Storage Humidity : ≤95%
• Protection : IP67; IK10 (optional)
• Anti-corrosion Level : Low
• Structure
• Casing Material : Metal
• Product Dimensions : 238.5 mm × 90.7 mm × 90.7 mm (L × W × H)
• Net Weight : 0.72 kg
• Gross Weight : 0.97 kg
