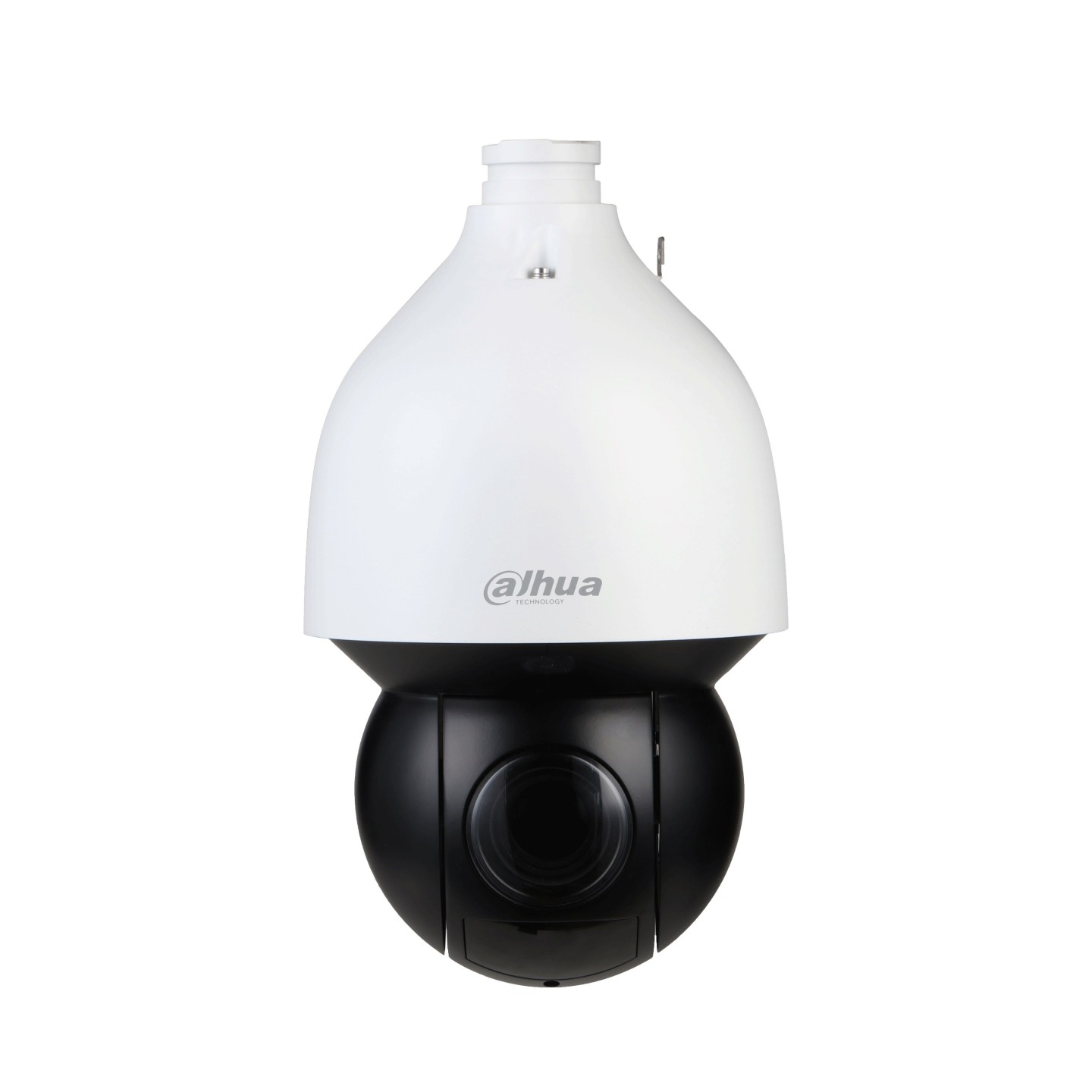

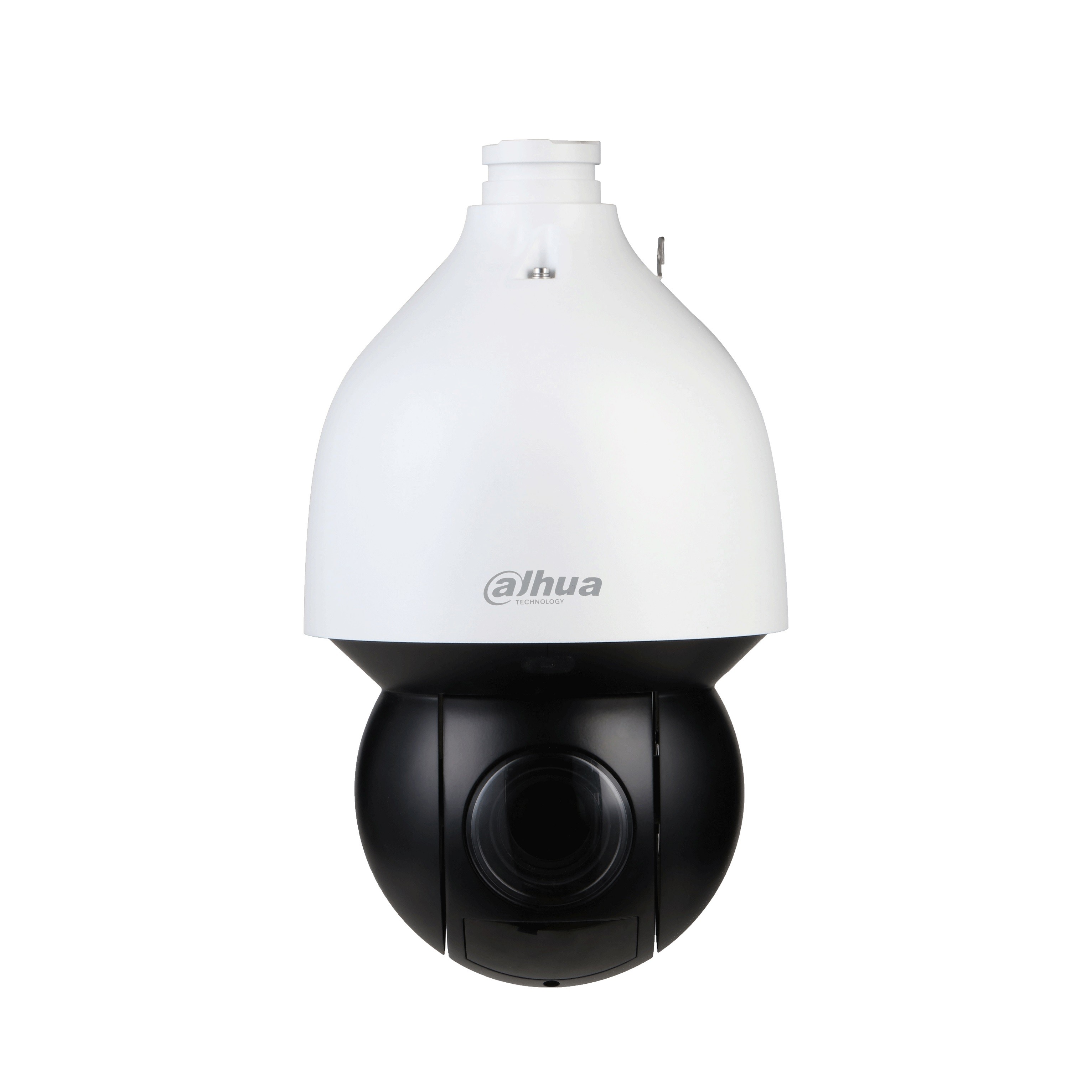

Dahua IP 2.0MP PTZ 4.8-120mm Starlight WizSense - SD5A225GB-HNR - IP 2.0MP PTZ 4.8-120mm Starlight WizSense

• 1/2.8" 2Megapixel STARVIS™ CMOS
• Powerful 25x optical zoom
• Max. 25/30 fps@2M
• IR distance up to 150 m
• Auto Tracking 3.0
• Face Detection
• SMD 4.0
• Quick Pick
• PoE+
• IP67, IK10

Camera

• Image Sensor: 1/2.8” STARVIS™ CMOS
• Effective Pixels: 1920 (H) × 1080 (V)
• RAM/ROM: 1G/4G
• Scanning System: Progressive
• Electronic Shutter Speed: 1/3s~1/30,000s
• Minimum Illumination: Color: 0.005 Lux@F1.6 / B/W: 0.0005 Lux@F1.6 / 0 Lux (IR on)
• IR Distance: Distance up to 150m
• IR On/Off Control: Zoom Prio,Auto/Manual/Smart IR
• IR LEDs: 4

Lens

• Focal Length: 4.8 mm–120 mm
• Max. Aperture: F1.6 ~ F3.5
• Angle of View: H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
• Optical Zoom: 25x
• Focus Control: Auto/Semi-Auto/Manual
• Close Focus Distance: 0.1 m–1.5 m
• Iris Control : Auto/Manual/Fixed

PTZ

• Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
• Manual Control Speed: Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
• Preset Speed: Pan: 400° /s; Tilt: 300° /s
• Presets: 300
• Pattern : 5
• Scan : 5
• Speed Adjustment : Support
• Power-off Memory : Support
• Idle Motion : Preset/Tour/Pattern/Scanning
• Protocol : DH-SD / Pelco-P/D(Auto recognition)

Intelligence

• IVS (Perimeter Protection) : Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
• Face Detection : Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots
• Auto Tracking : Yes
• Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
• SMD : Yes

Video

• Compression : H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+
• Streaming Capability : 3 streams
• Resolution : 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
• Frame Rate : Main stream: 1080p/1.3 M/720p (1–50/60 fps) / Sub stream 1: D1/CIF (1–25/30 fps) / Sub stream 2: 1080p/1.3M/720p/D1/CIF (1–25/30 fps)
• Bit Rate Control : Variable/Constant
• Bit Rate : H.264: 3 Kbps–20480 Kbps / H.265: 3 Kbps–20480 Kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Support
• WDR : 120 dB
• HLC : Support
• White Balance : Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
• Gain Control : Auto/Manual
• Noise Reduction : 2D/3D
• Motion Detection : Support
• Region of Interest (RoI) : Support
• Image Stabilization : Electronic
• Defog : Electronic
• Digital Zoom : 16x
• Flip : 180°
• Privacy Masking : Up to 24 areas, and up to 8 areas in the same view
• S/N Ratio : ≥ 55 dB

Audio

• Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

• Ethernet: RJ-45 (10Base-T/100Base-TX)
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP/SUPPLIER (DAHUA) (IP), UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability: ONVIF, PSIA, CGI
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 users
• Edge Storage: NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 128GB
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: Smart PSS, DSS
• Smart Phone: IOS, Android

Certifications

• CE: EN55032/EN55024/EN50130-4
• FCC: Part15 subpartB, ANSI C63.4-2014
• UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

• Alarm I/O : 2/1
• Audio I/O : 1/1
• Two-way Audio : Yes
• Alarm Linkage : Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email
• Alarm Event : Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Electrical

• Power Supply: DC 24V/2,5A, PoE+(802.3at)
• Power Consumption: Basic: 13 W / Max.: 22 W (illuminator + PTZ working)

Environmental

• Operating Conditions: -40°C ~ 70°C (-40°F ~ +158°F)
• Operating Humidity : ≤95%
• Ingress Protection: IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection

Construction

Dimensions: Φ190 mm × 332 mm
Net Weight: 4.7kg
Gross Weight: 8kg
