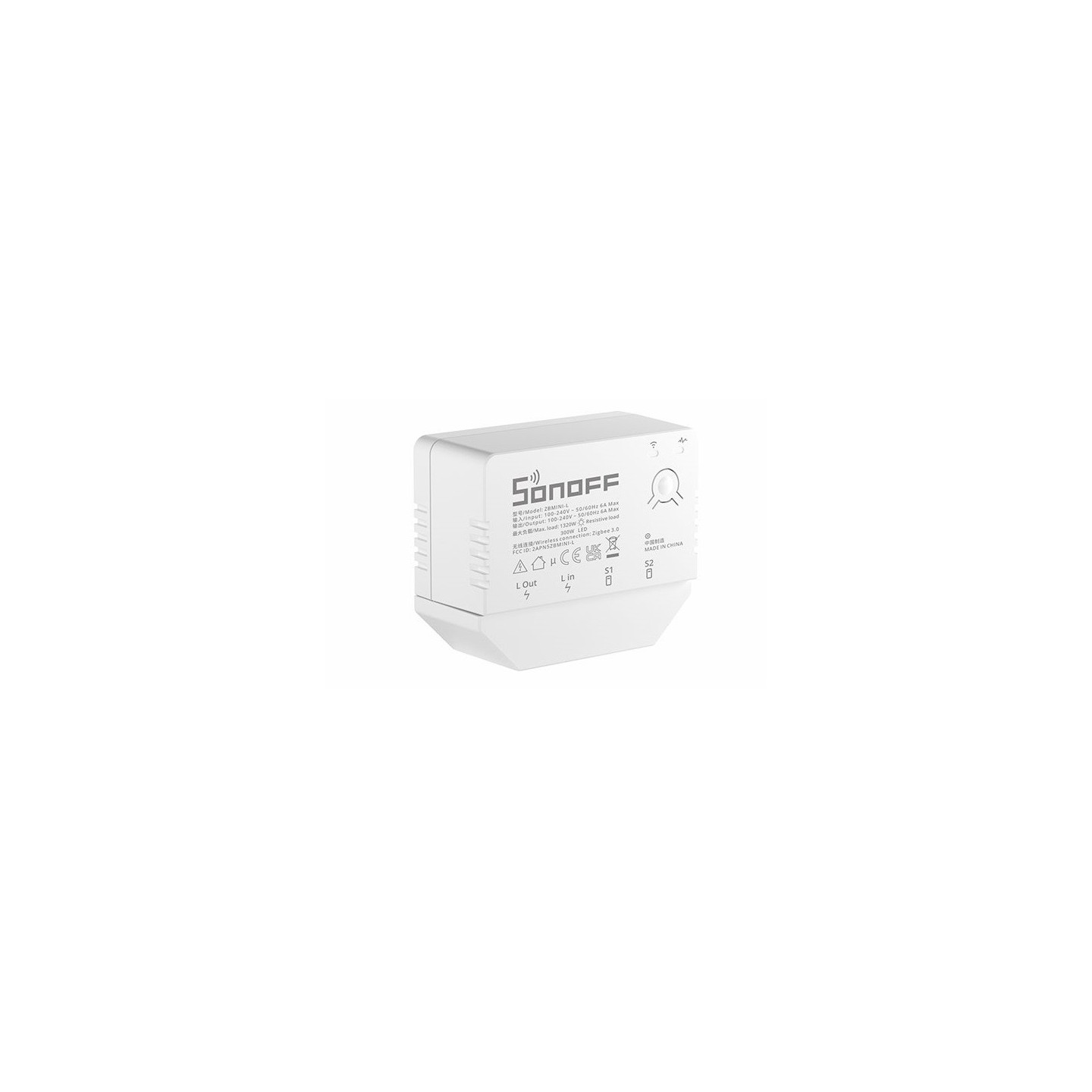

Sonoff Zigbee 3.0 Smart Switch - ZBMINI-L - Zigbee 3.0
No neutral required; single-live-wire Zigbee 3.0 smart switch with external rocker switch support; DIN rail mount optional; 6A, 1380W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smart Switches - Neutral Required | No |
|---|---|
| Smart Switches - Protocol | Zigbee |

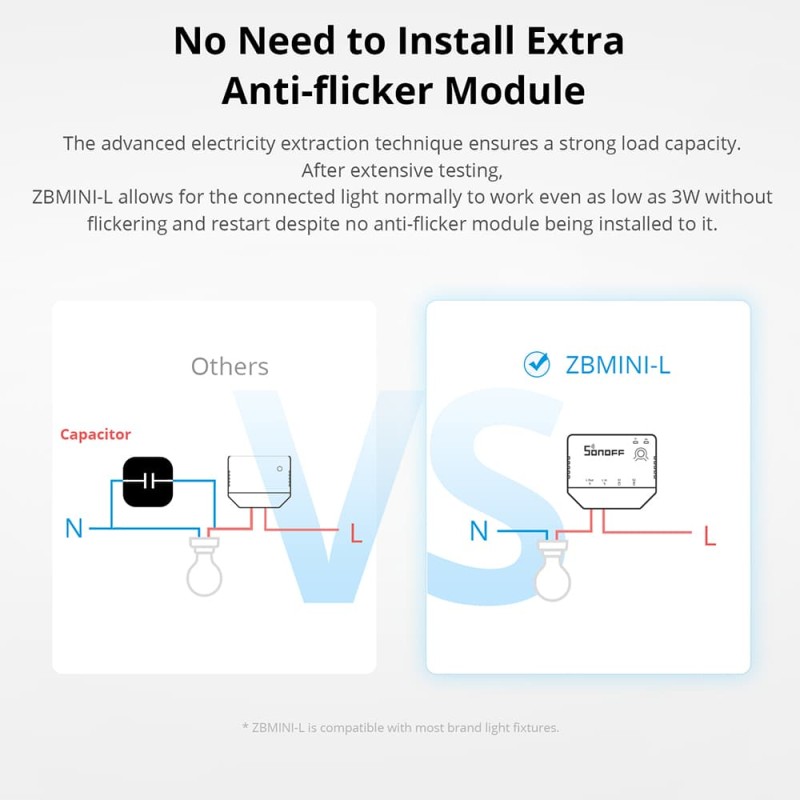

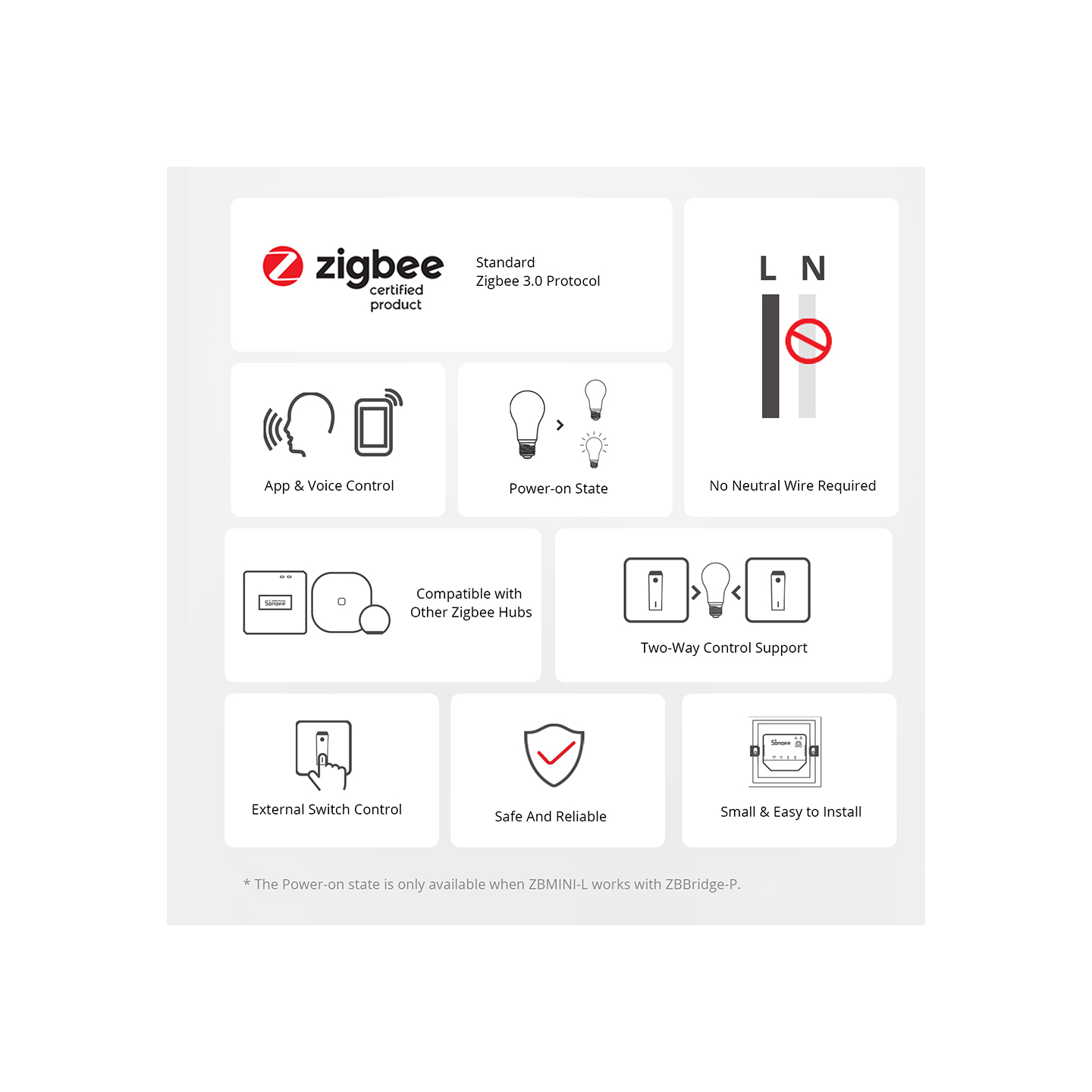

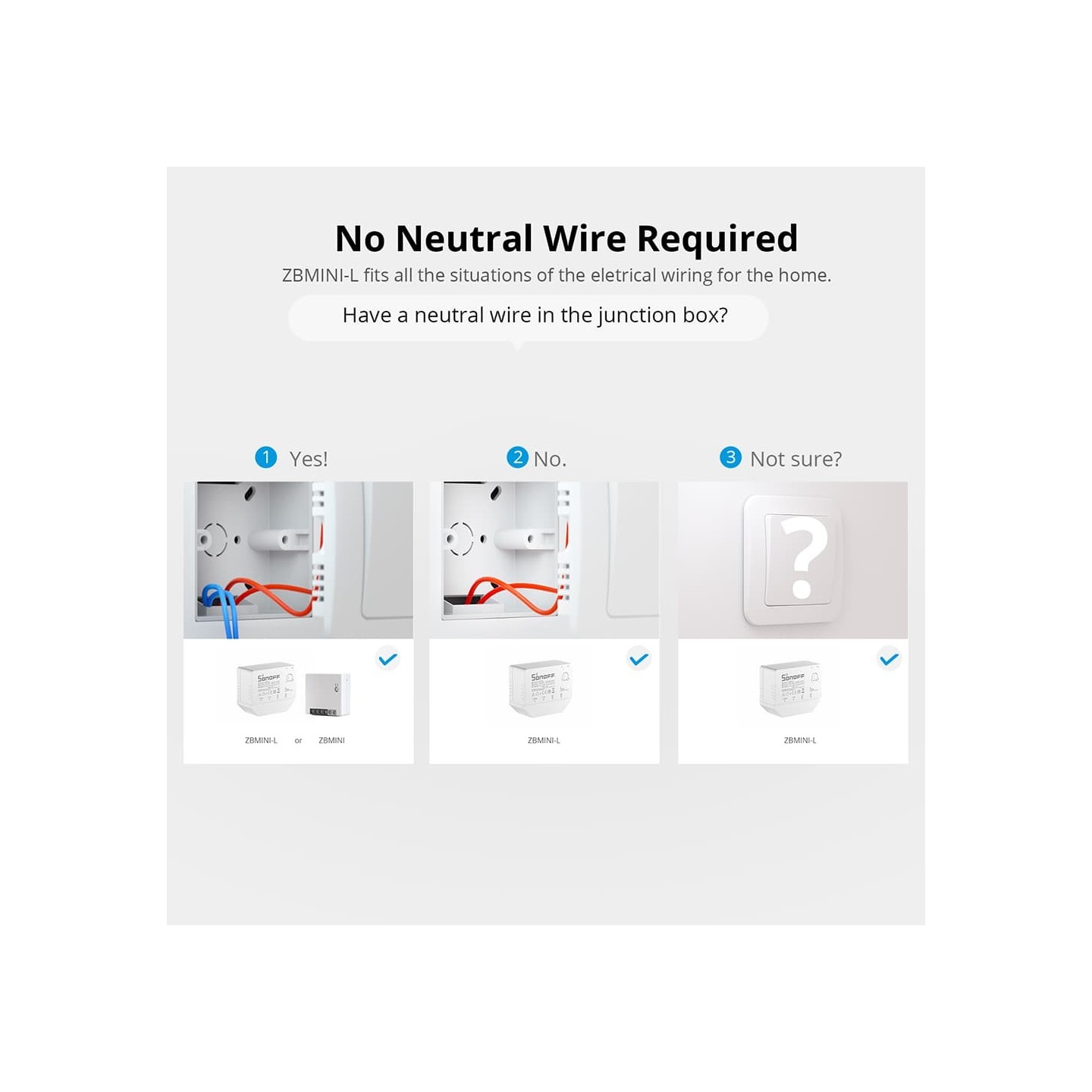

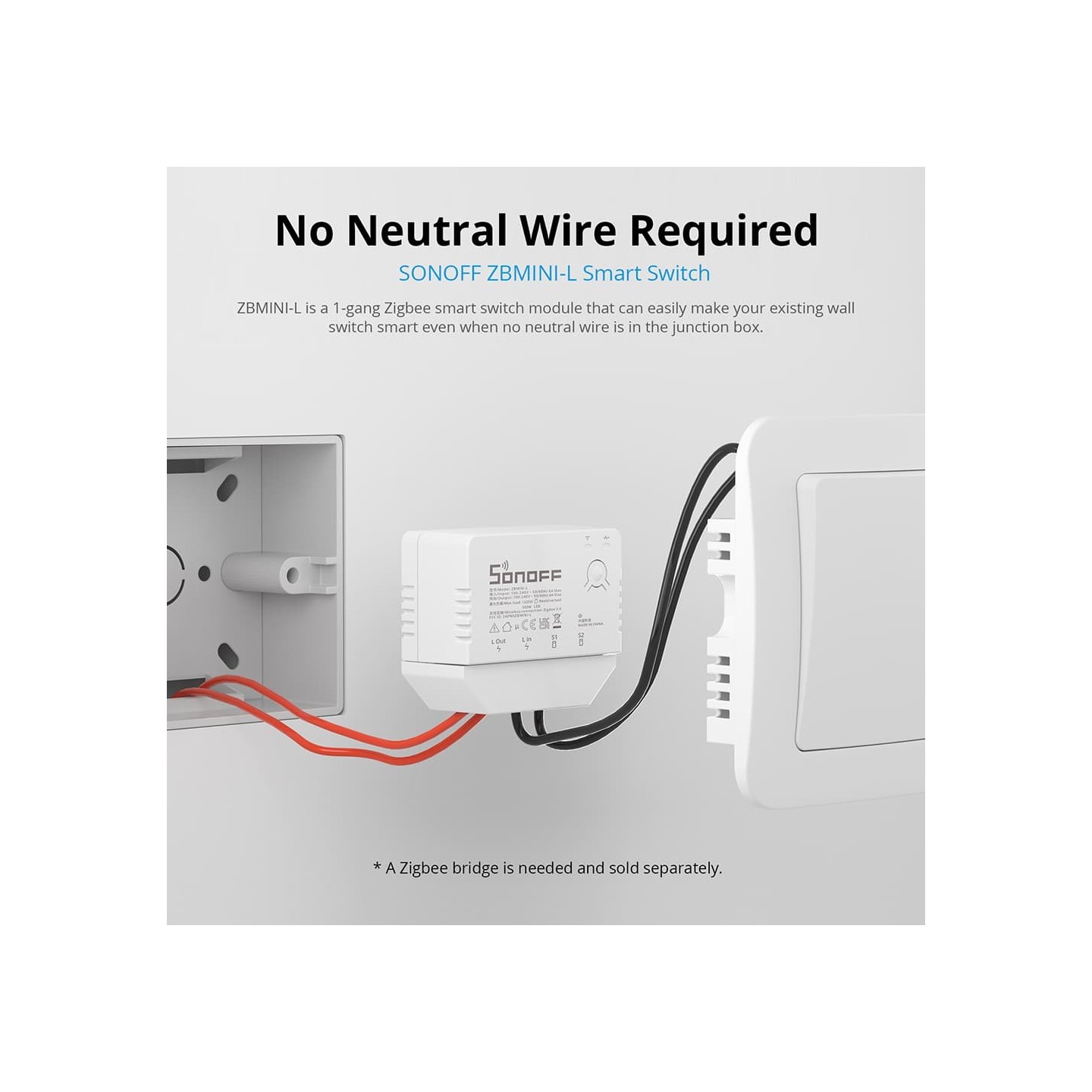

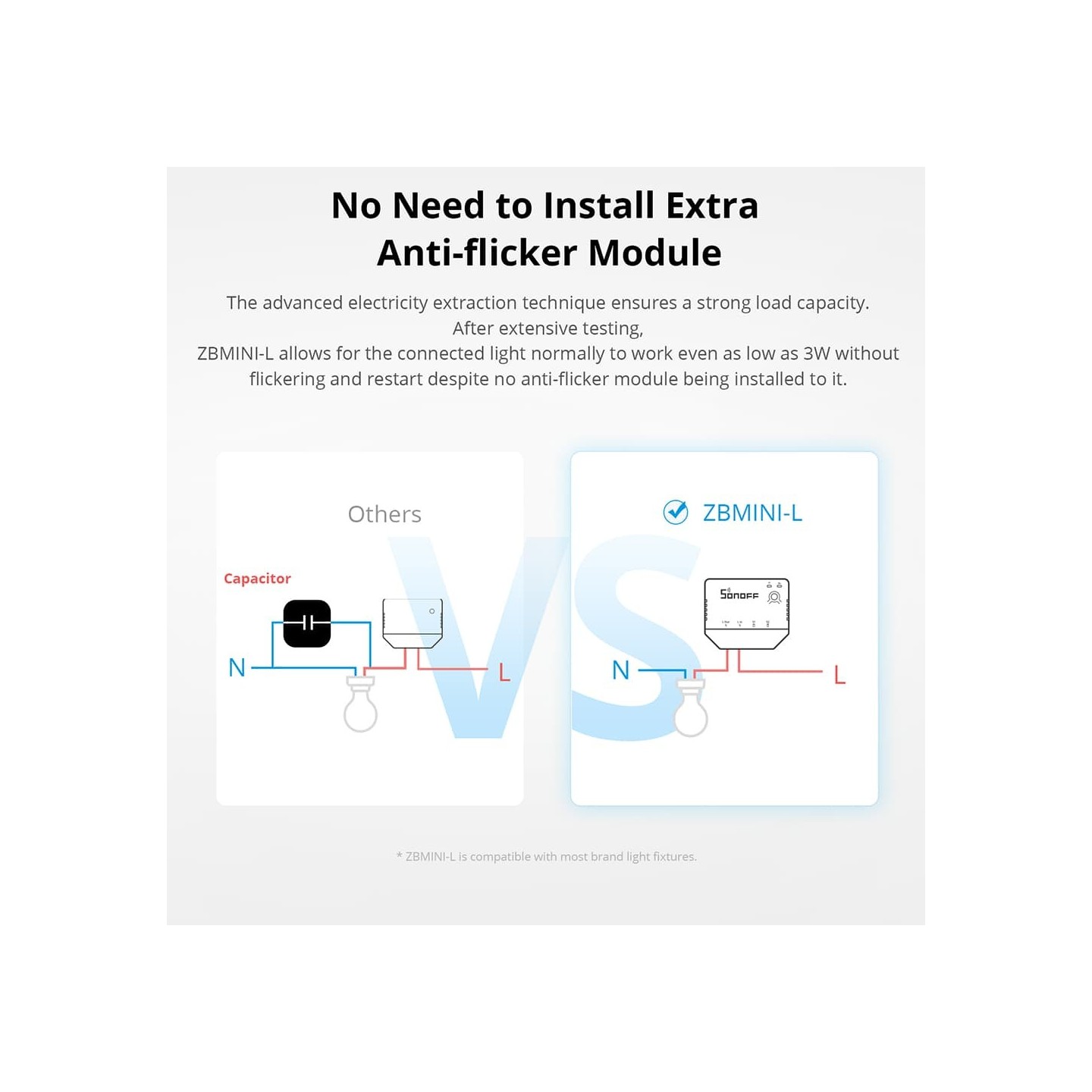

- No Neutral Wire Required : Single live wire Zigbee 3.0 protocol smart switch, fits all the situations of the electrical wiring for the home

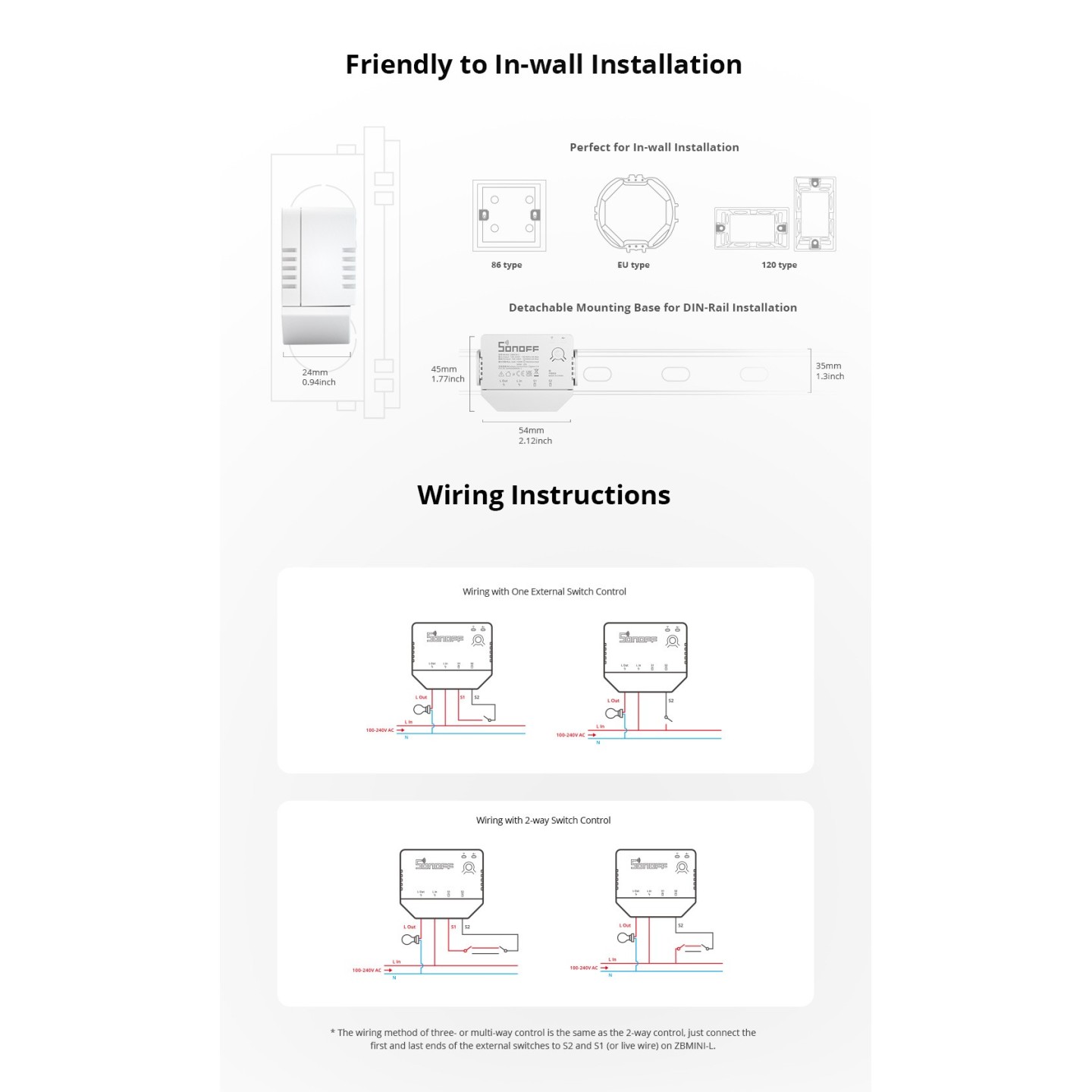

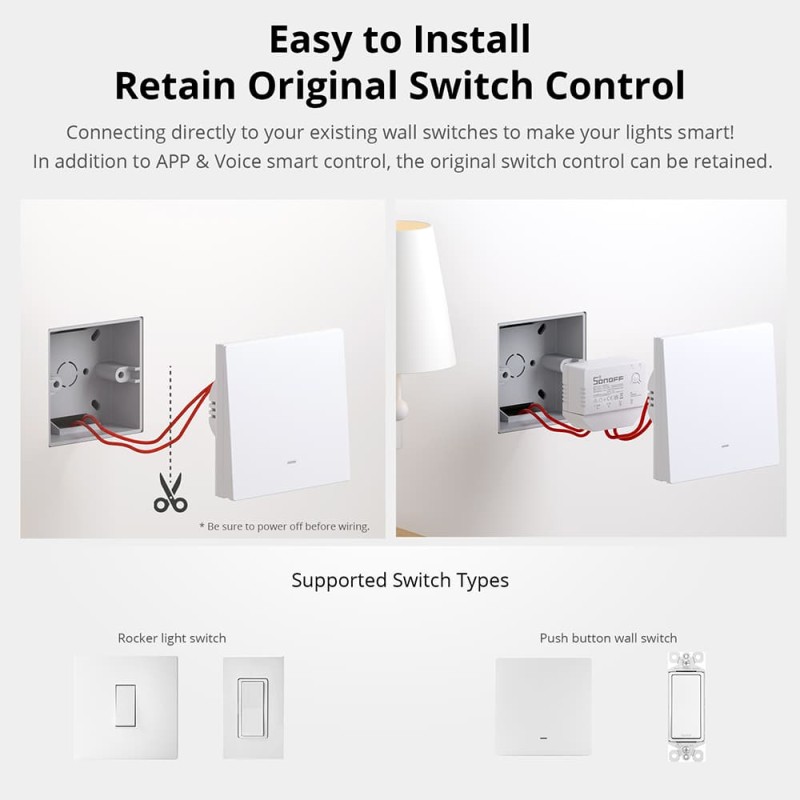

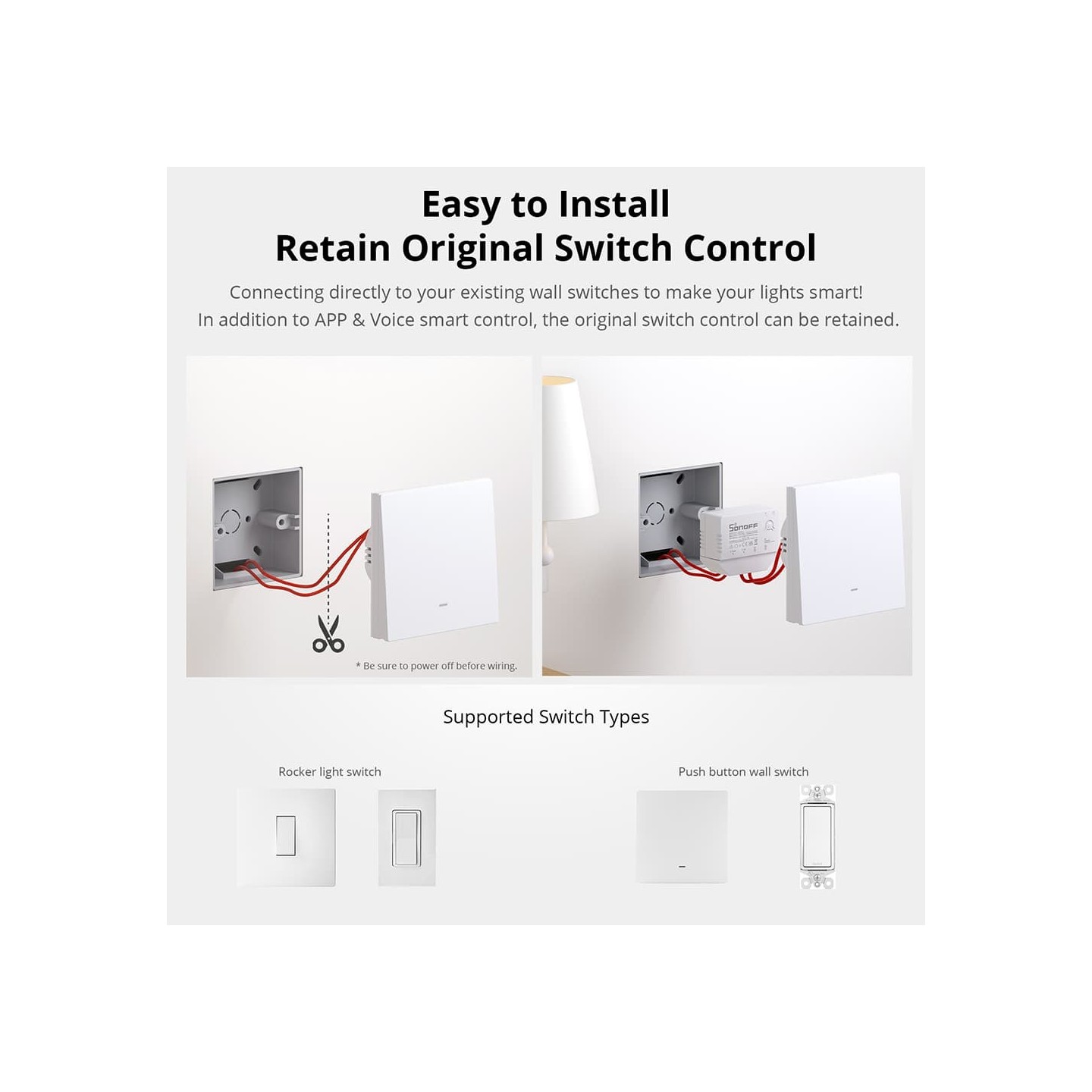

- External Switch Connected : Supported rocker light switch and push-button wall switch

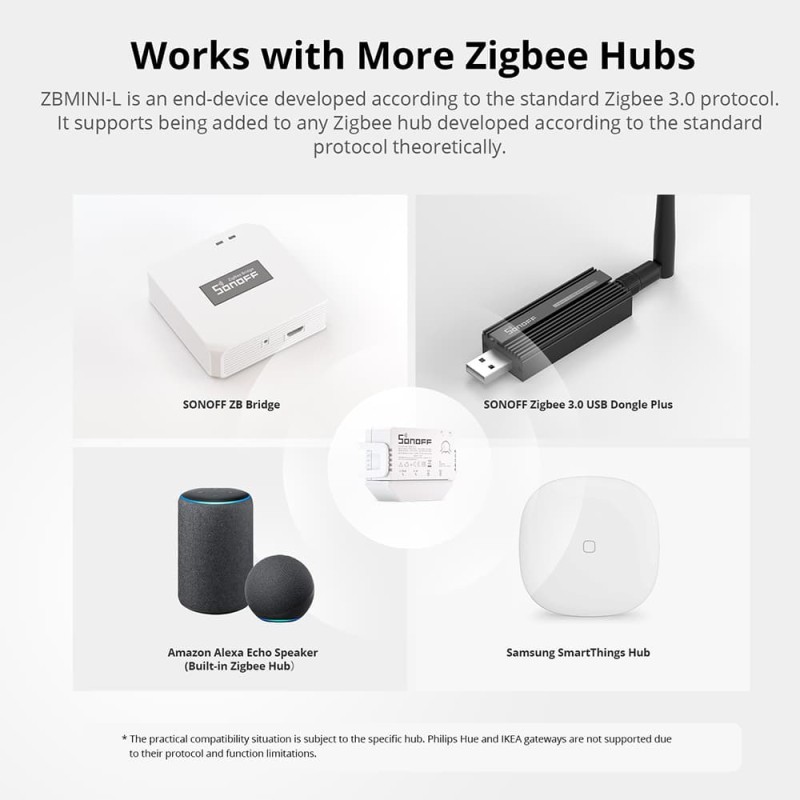

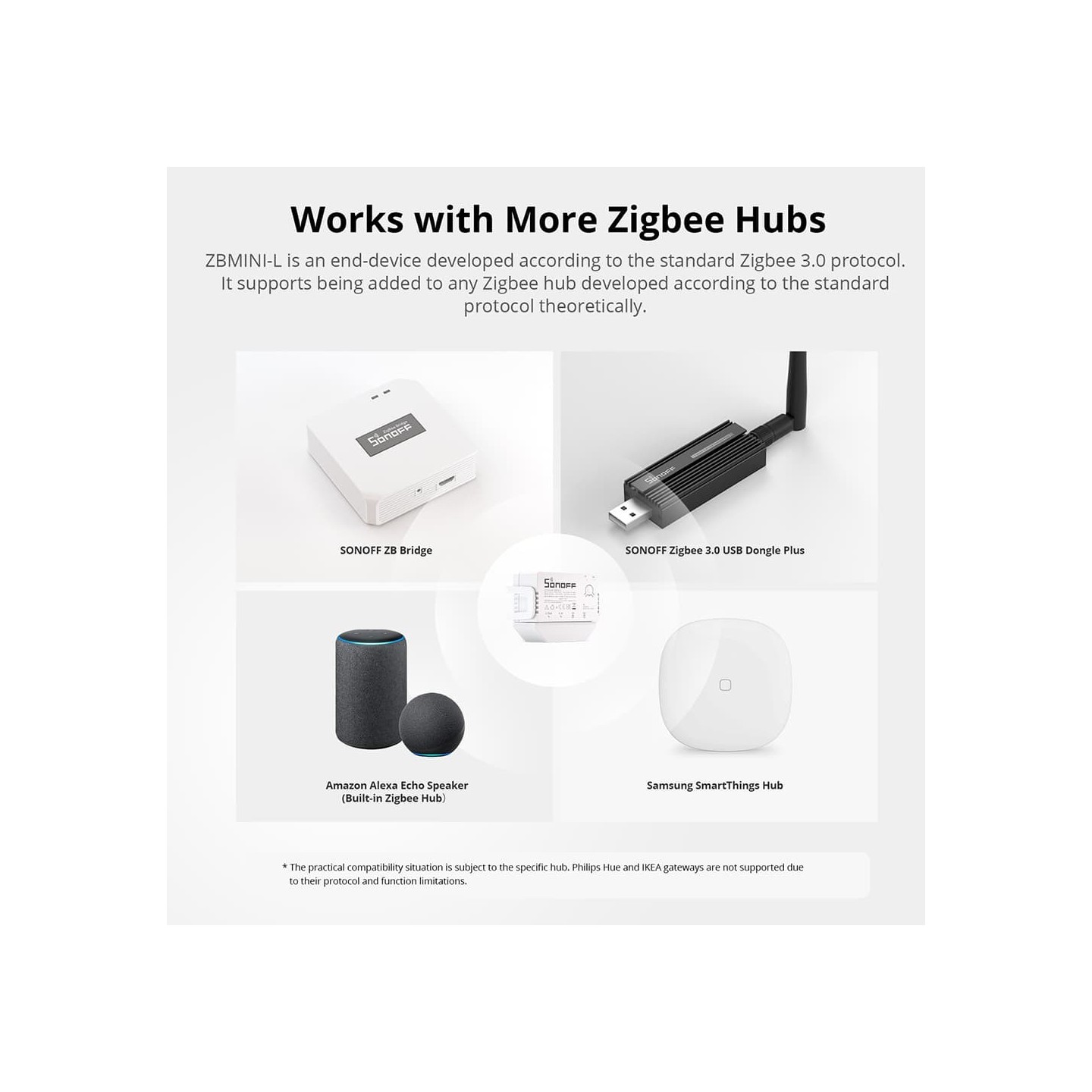

- Compatible with other Zigbee Hubs : Supports being added to any Zigbee hub developed according to the standard protocol, including Amazon Alexa Echo Speaker (Built-in Zigbee Hub), Samsung SmartThings Hub, SONOFF Zigbee Bridge Pro, ZBBridge, SONOFF Zigbee Dongle Plus

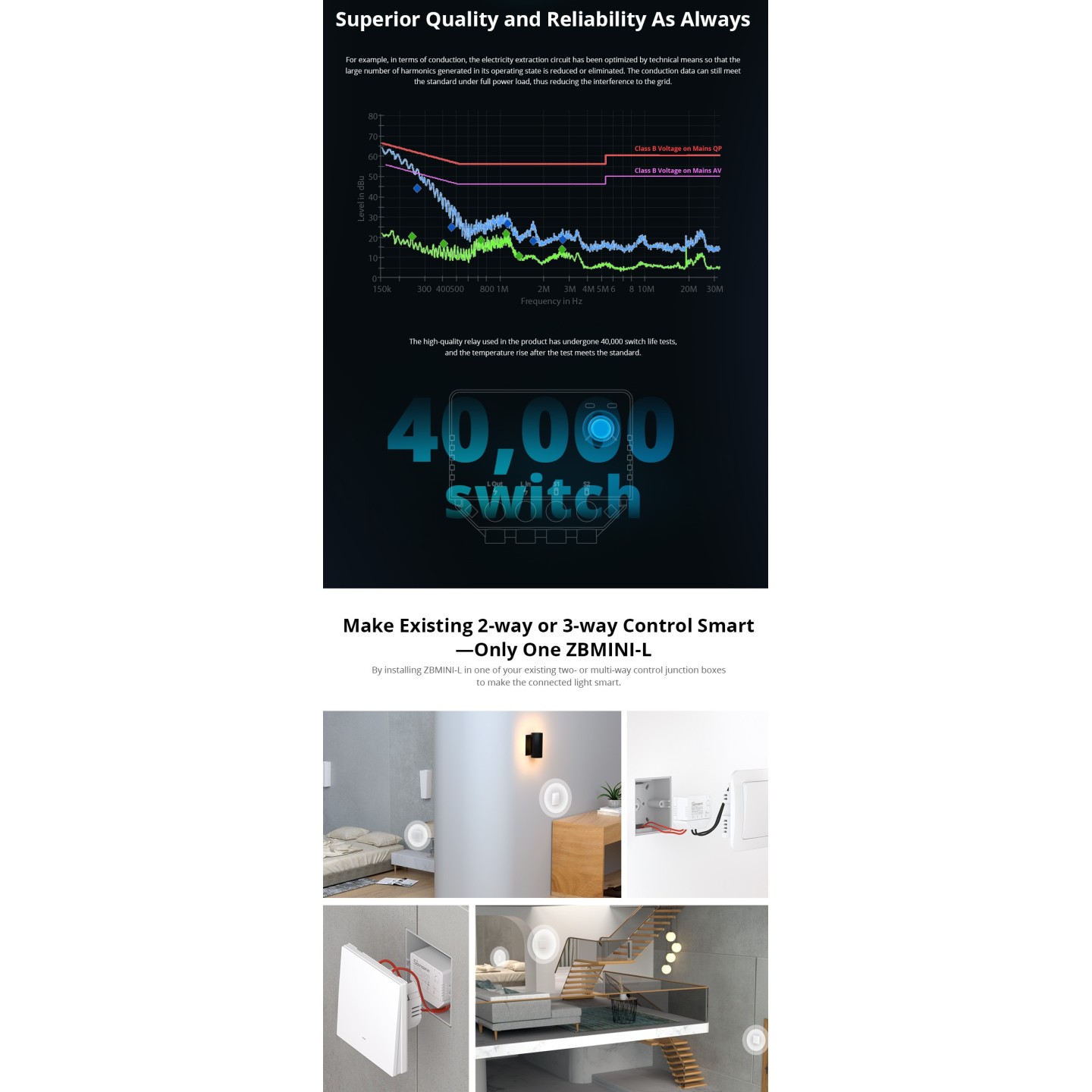

- Two-way Control : By installing ZBMINI-L in one of your existing two- or multi-way control junction boxes to make the connected light smart

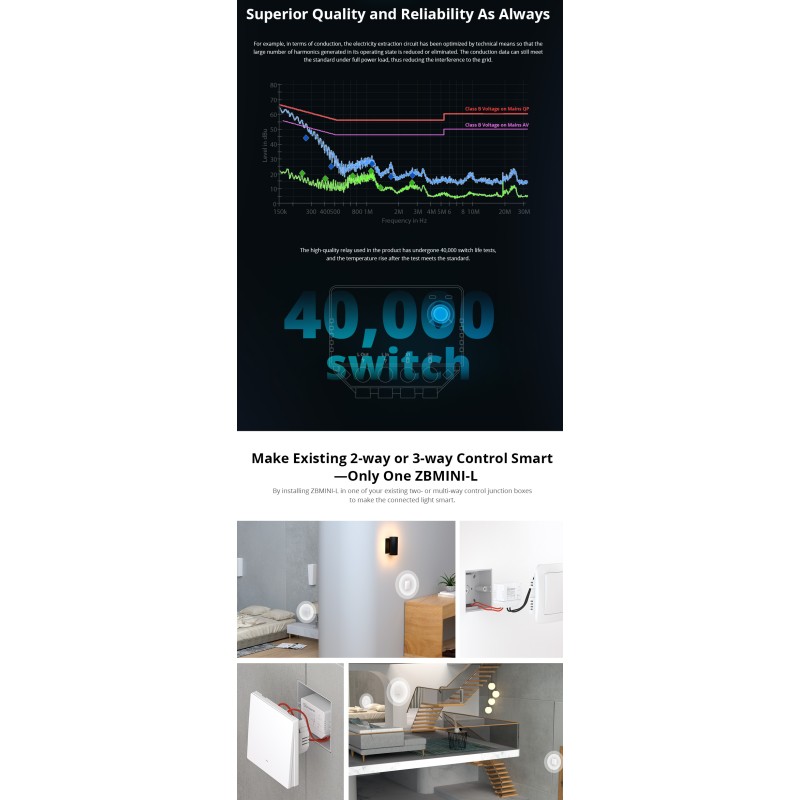

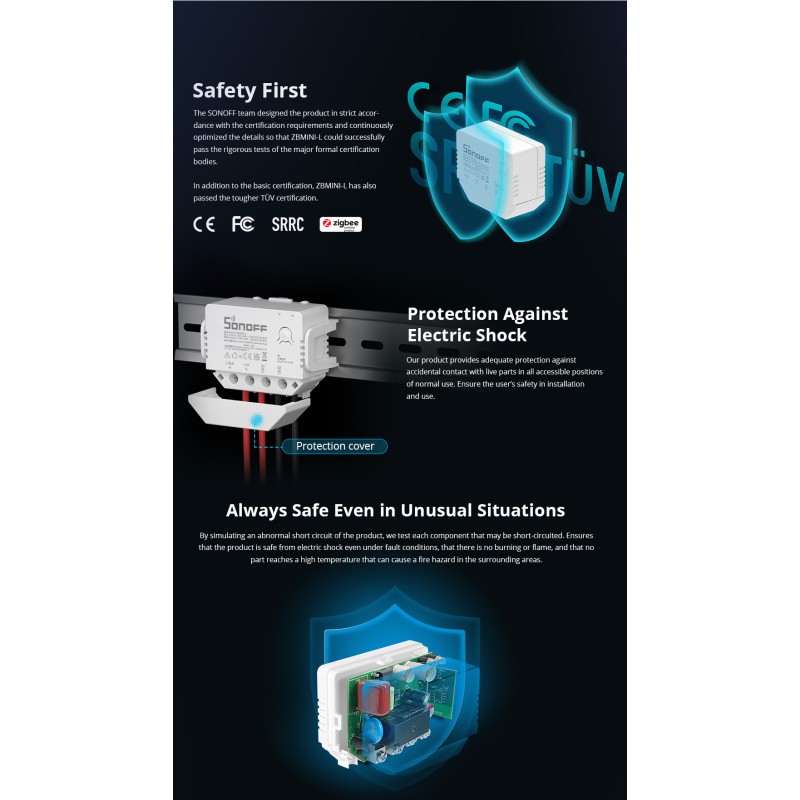

- Safety and Reliability : In addition to the CE, FCC certification, ZBMINI-L has also passed the TÜV certification

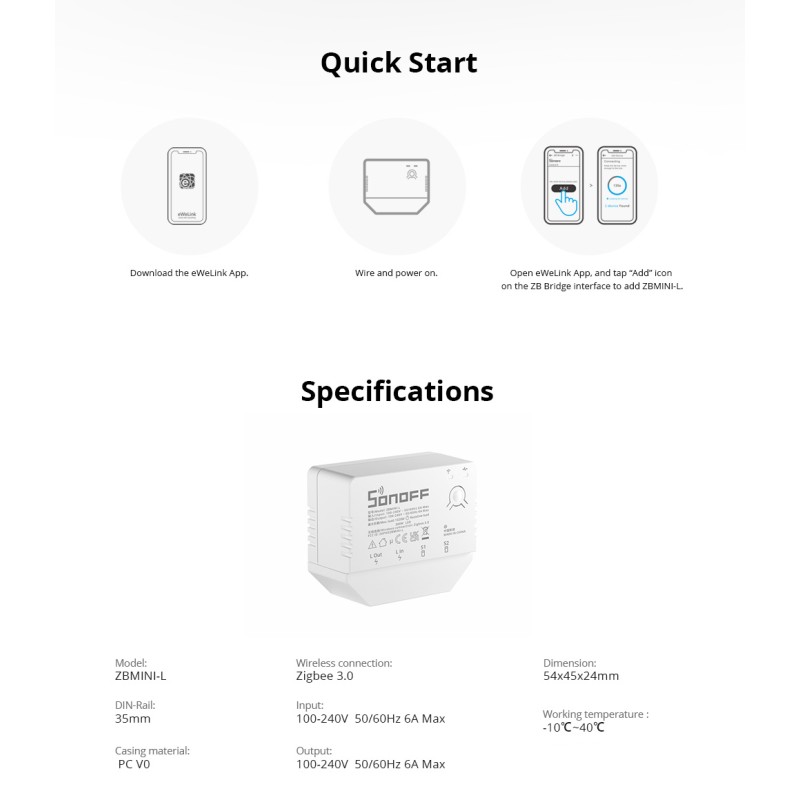

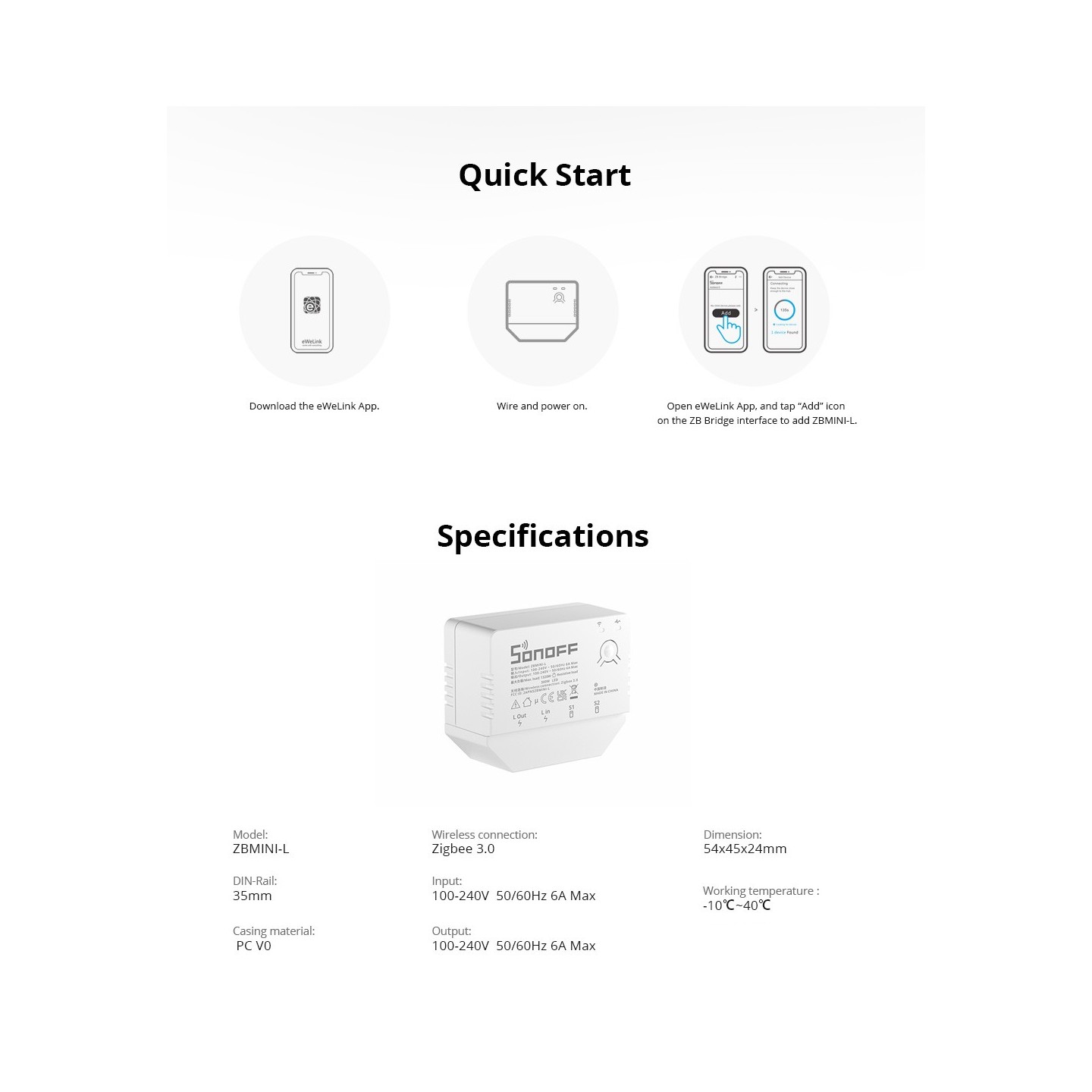

- Input : 100-240V/AC/50/60Hz-6A-Max
- Output : 100-240V/AC/50/60Hz-6A-Max
- Max load : Resistive load :1380W Max @230V, 720W Max @120V / LED:300W Max @230V, 150W Max @120V
- Communication distance : Up to 50m (Empty environment)
- Wireless connection : Zigbee 3.0
- Working temperature : -10~40℃
- Casing material : PC V0
- Product Size : 54x45x24mm
- Certification : TUV/CE/FCC/UKCA/RoHS
| Current | 6A |
| Type | Smart Switch |
| Din Rail Mount | Optional (With DIN Rail Tray) |
| Output | 1 X Line Out/1 X Dry Contact |
| Mode | Interlock/self-locking/inching |
| Wattage | 1380W |
