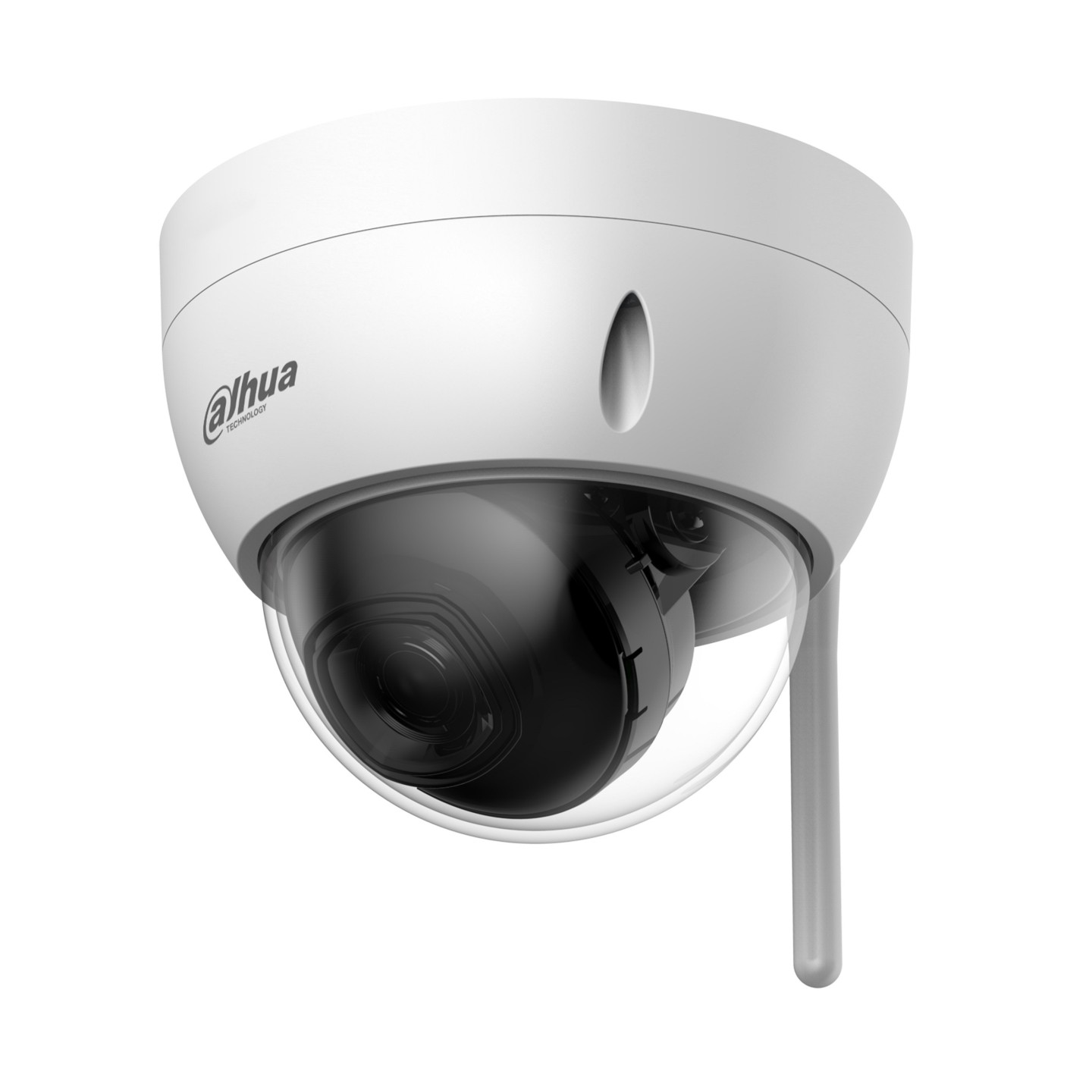

Dahua IP 4.0MP Wifi Dome 2.8mm - HDBW1430DE-SW - 4.0MP Wifi Dome 2.8mm

• 4-MP 1/3" CMOS image sensor, low luminance, and high definition image
• Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED
• SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
• DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
• Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
• Supports max. 256 G Micro SD card
• 12 VDC power supply
• IP67, IK10 protection

Camera

• Image Sensor : 1/3" CMOS
• Max. Resolution : 2560 (H) × 1440 (V)
• ROM : 16 MB
• RAM : 64 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.025 lux@F2.0 (Color,30 IRE) / 0.0025 lux@F2.0 (B/W,30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : 30 m (IR LED)
• Illuminator On/Off Control : Auto; Manual
• Illuminator Number : 3 (IR LED)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm
• Max. Aperture : F2.0
• Field of View : 2.8 mm : Horizontal: 90°; Vertical: 50°; Diagonal: 107°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 1.0 m

Video

• Video Compression : H.264B; H.264; H.264H; H.265
• Smart Codec : Smart H.265+;Smart H.264+
• Video Frame Rate : Main stream : 2560 × 1440@ (1–20 fps) / Sub stream:704 × 576@ (1–25 fps) / 704 × 480@ (1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
• Stream Capability : 2 streams
• Resolution : 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H264 : 24 kbps–4096 kbps / H265 : 9 kbps–4096 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• WDR : DWDR
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Image Rotation : 0°/180°
• Mirror : Yes

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human)

Network

• Network Port : RJ-45 (10/100 Base-T)
• Wi-Fi : IEEE802.11b/g/n 2.4–2.4835 GHz
• Wireless Range : Up to 80 m (The performance varies based on actual environment)
• SDK and API : Yes
• Cyber Security : Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X.509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade
• Network Protocol : IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP
• Interoperability : ONVIF (Profile S/Profile G); CGI; P2P
• User/Host : 6 (Total bandwidth: 36 M)
• Storage : Micro SD card (support max. 256 GB, sold separately)
• Browser : IE/Chrome/Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Client : iOS; Android

Certification

• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• CE-RED: Radio Equipment Directive 2014/53/EU;
• FCC: 47 CFR FCC Part 15, Subpart B;
• FCC ID: FCC PART 15C

Power

• Power Supply : 12 VDC
• Power Consumption : Basic: 2 W (12 VDC) / Max. (H.265+IR intensity): 4.9 W (12 VDC)

Environment

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤95%
• Storage Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
• Protection : IP67; IK10

Structure

• Casing : Metal
• Product Dimensions : Φ110.7 mm × 88.7 mm
• Net Weight : 414 g
