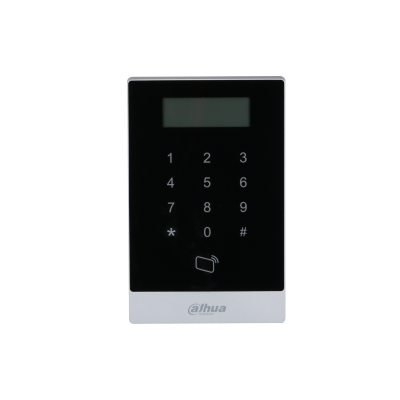

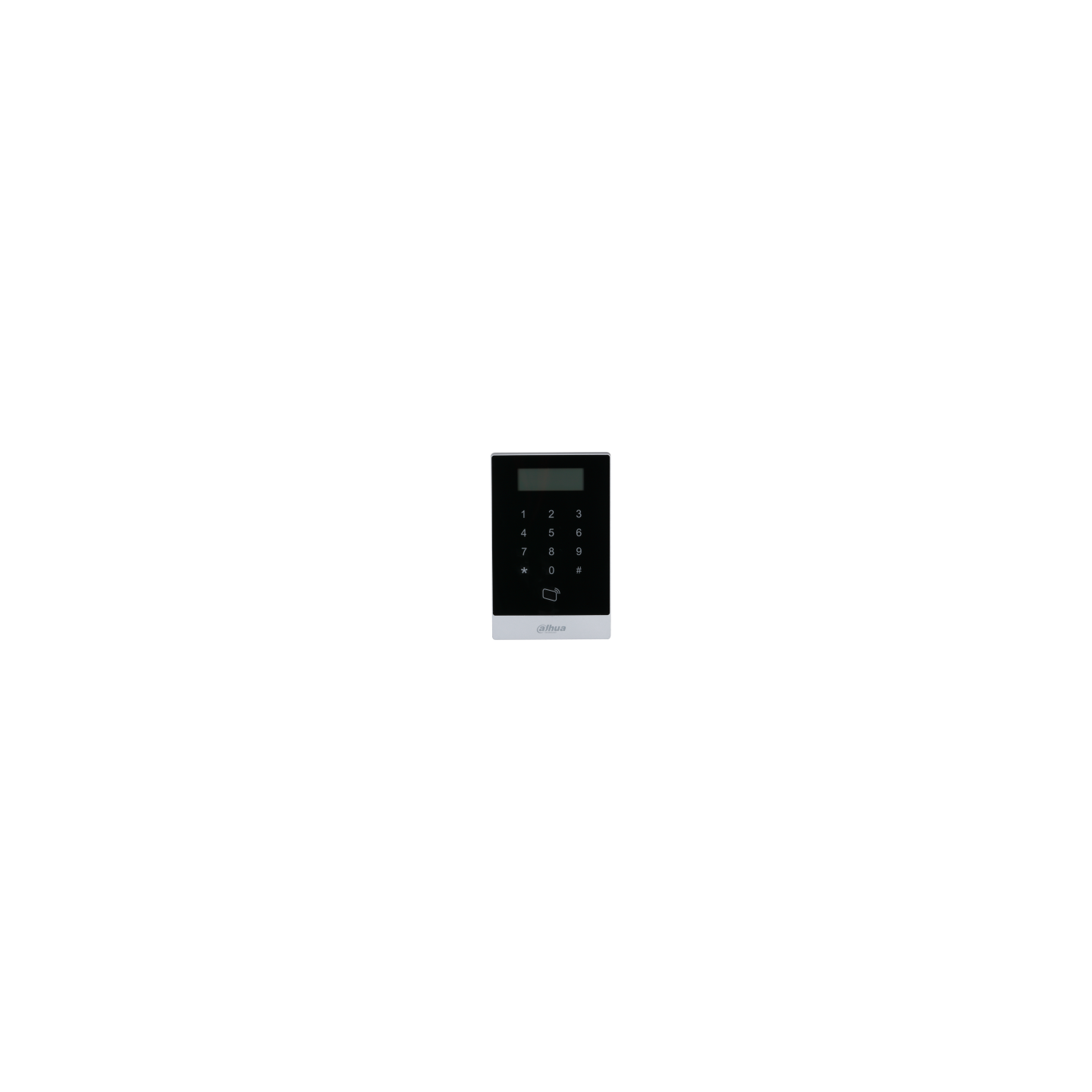

Dahua AC Standalone Keypad with LCD Display - ASI1201A-ME - Standalone Keypad with LCD Display

•  Made from PC and ABS materials, and acrylic.
• Comes with an STN display with a resolution of 123 (H) × 32 (V).
• Supports 30,000 users, 30,000 passwords, 30,000 cards, and 150,000 records.
• Offers multiple unlock methods including card and password. You can also combine them to create your own personal unlock methods.
• Provides touch keypad with backlighting.
• Contactless card reading for IC cards and ID cards.
• Supports RS-485 communication and Wiegand communication.
• Buzzer and indicator light.
• Tamper alarm.
• Controller mode and card reader mode.
• Offers multiple types of alarms such as duress, intrusion, unlock timeout, and excessive use of illegal card.
• Cards can be issued to many types of users such as normal, VIP, patrol, guest, and blocklist users.
• Supplies power to 1 lock (12 V, 1 A or lower) or 1 card reader (12 V, 200 mA or lower).
• Supports security extension modules for access control, preventing doors from being forcefully opened.
• Online update.
• TCP/IP connection and auto registration.
• Ideal for use indoors.
• Supports surface mount and 86 mm Junction Box Mount.
• Compatible with the platforms of SmartPSS Lite and DSS Pro.

System

• Main Processor: Embedded Processor

• Button Type: Touch button

• Network Protocol: TCP/IP

• OSDP Protocol: Yes

Basic

• Product Type: Standalone

• Display Screen: STN display screen

• Screen Type: Non-touchscreen

• Screen Resolution: 123 (H) × 32 (V)

• Buzzer: Yes

• Backlight: Yes

• Casing Material: PC and ABS

Function

• Verification Method: Card; Password; Remote

• Period List: 128 groups

• Holiday Period: 128 groups

• Network Update: Yes

• First User Unlock: Yes

• Remote Verification: Yes

• Peripheral Card Reader: Includes 1-channel RS-485 card reader and 1-channel Wiegand card reader

• Issuing Card by Master Card: Yes

• Multi-user Authentication: Yes

• Auto Registration: Yes

RFID

• Card Type: IC card; ID card

Performance

• Card Reading Distance:

  • IC card: 0 mm–60 mm (0"–2.36")

  • ID card: 0 mm–30 mm (0"–1.18")

User

• User (Card) Type: Normal user

Capacity

• User Capacity: 30,000

• Card Capacity: 30,000

• Password Capacity: 30,500 (Includes 30,000 user passwords and 500 public passwords)

• Record Capacity: 150,000

Port

• RS-485: 1

• Wiegand: 1 (Wiegand input is 26, 34, or 66 bits self-adaptive; Wiegand output is 34 bits by default, configurable to 26 or 66 bits)

• Network Port: 1-channel 10/100 Mbps Ethernet port

• Alarm Input: 1 channel

• Alarm Output: 1 channel

• Alarm Linkage: Yes

• Exit Button: 1 channel

• Door Status Detection: 1 channel

• Lock Control: 1 channel

• Power Output Port: 1 channel

Alarm

• Anti-pass Back: Yes

• Tamper Alarm: Yes

• Duress Alarm: Yes

• Door Sensor Timeout: Yes

• Intrusion: Yes

• Illegal Card Exceeding Threshold: Yes

General

• Power Adapter: Optional

• Power Supply:

  • DC 12 V 1 A (The access standalone does not supply power to the lock)

  • DC 12 V 2 A (The access standalone supplies power to the lock. The current of the lock can only reach up to 1 A. If it exceeds, the current will be distributed based on the actual amount of current.)

• Power Consumption: ≤12 W (When the access standalone does not supply power to the lock, the power is ≤12W. When it does supply power to the lock, it is calculated based on the actual amount of power of the lock.)

Dimensions

• Product Dimensions: 150.6 mm × 96.6 mm × 16.5 mm (5.93" × 3.80" × 0.65") (H × W × D)

• Packaging Dimensions: 195 mm × 135 mm × 56 mm (7.68" × 5.31" × 2.20") (H × W × D)

• Transport Package Dimensions: 604 mm × 290 mm × 314 mm (23.78" × 11.42" × 12.36") (H × W × D)

Operating Environment

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 0%–90% (RH), non-condensing

• Operating Altitude: 0 m–1,300 m (0 ft–4265.09 ft)

• Operating Environment: Indoor

• Gross Weight: 346 g (0.76 lb)

Accessory

• The bracket is included.

Installation

• Mounting: Surface Mount; 86 mm Junction Box Mount

Certifications

• Certifications: CE

Storage Environment

• Storage Temperature: –30 °C to +80 °C (–22 °F to +176 °F)

• Storage Humidity: 30%–75% (RH), non-condensing
