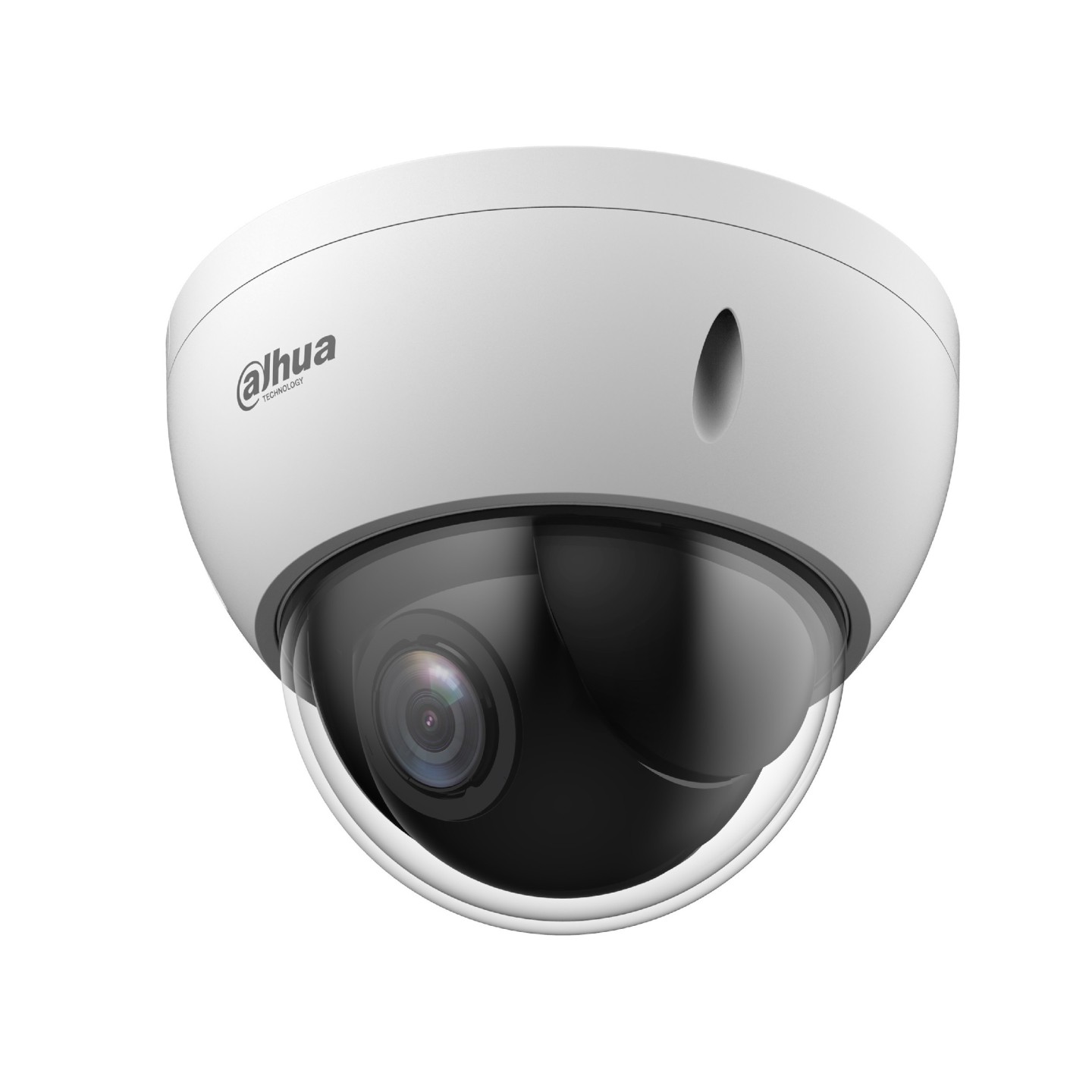

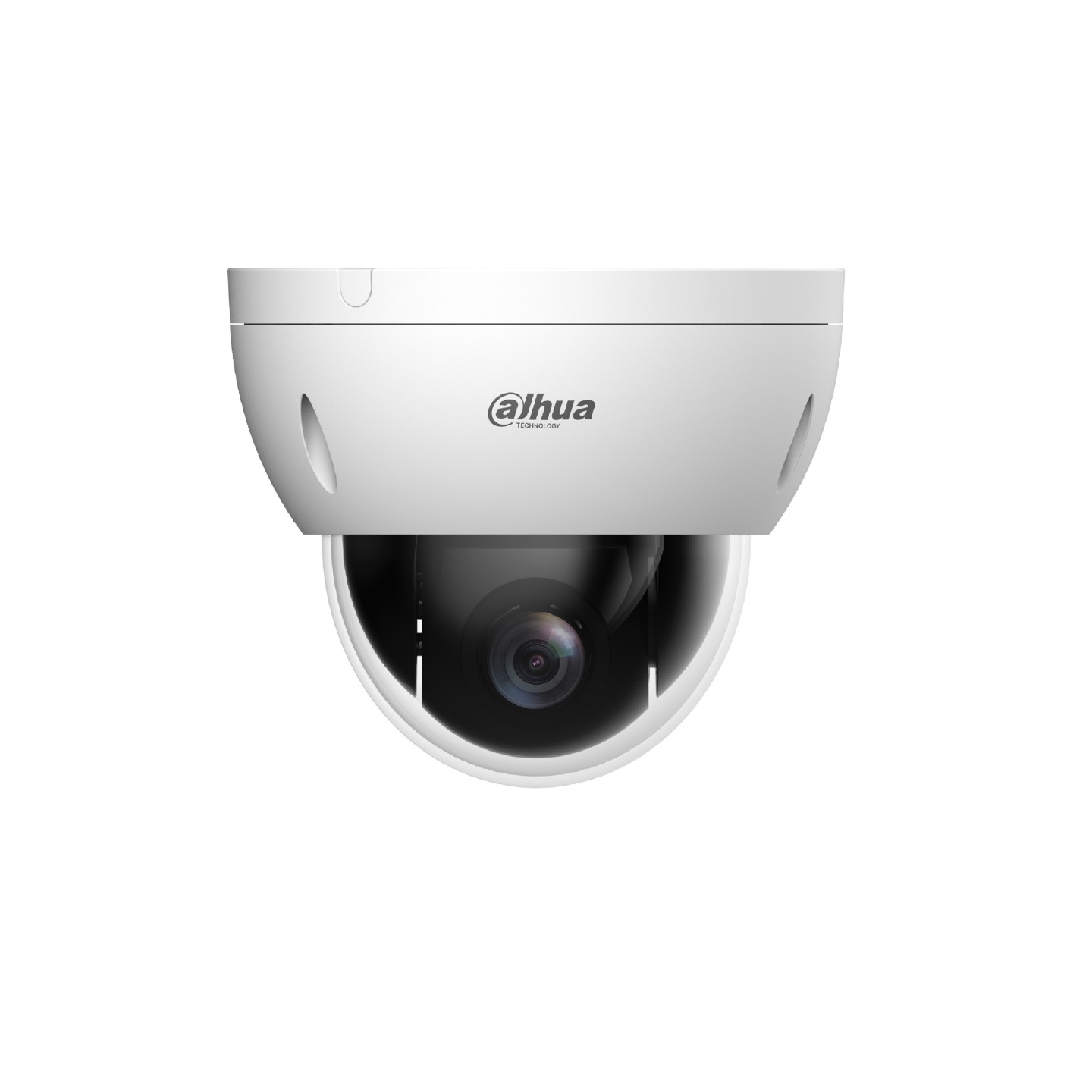

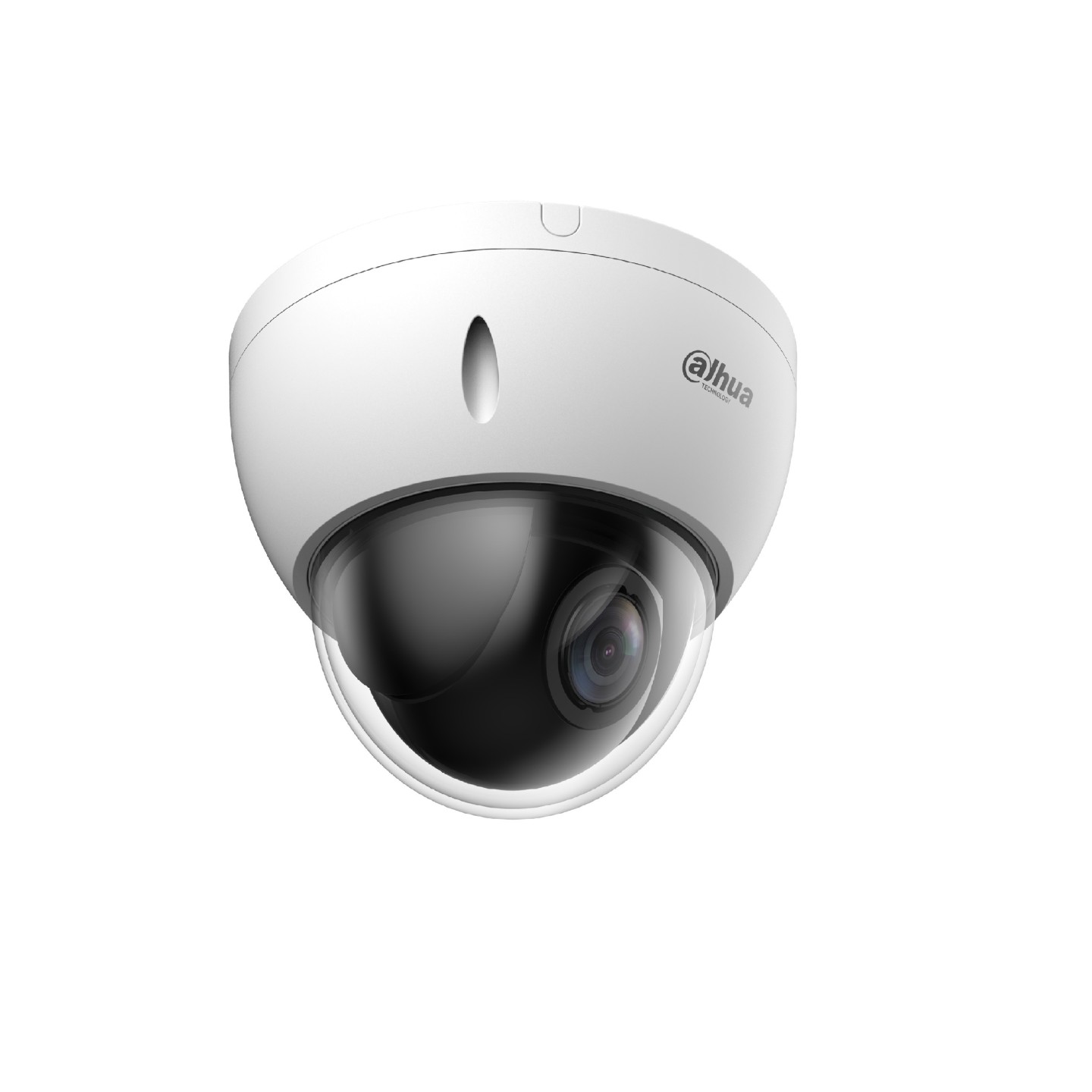

Dahua IP 2.0MP PTZ 4x Dome - SD22204DB-GNY - 2.0MP PTZ 4x Dome

• 1/2.8" CMOS
• Powerful 4x optical zoom
• Max. 25/30fps@1080P
• Max 100°/s pan speed
• Supports face detection
• Support PoE
• IP66, IK10
• SMD 3.0
• 6000V lightning-proof

Camera

• Image Sensor : 1/2.8" CMOS
• Pixel : 2 MP
• Max. Resolution : 1920 (H) × 1080 (V)
• ROM : 128 MB
• RAM : 256 MB
• Electronic Shutter Speed : 1/1 s–1/30,000 s
• Scanning System : Progressive
• Min. Illumination : Color: 0.005 lux@F1.6 / B/W: 0.0005 lux@F1.6

Lens

• Focal Length : 2.8 mm–12 mm
• Max. Aperture : F1.6–F3.0
• Field of View : H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6°
• Optical Zoom : 4×
• Focus Control : Auto; semi-auto; manual
• Close Focus Distance : 1.5 m
• Iris Control : Fixed

PTZ

• Pan/Tilt Range : Pan: 0° to 355° / Tilt: 0° to +90°
• Manual Control Speed : Pan: 0.1°/s–100°/s  / Tilt: 0.1°/s–60°/s
• Preset Speed : Pan: 100°/s; Tilt: 60°/s
• Preset : 300
• Tour : 8 (up to 32 presets per tour)
• Pattern : 5
• Idle Motion : Pattern; Preset; Tour
• PTZ Protocol : SD Pelco-P/D(Auto recognition)

Intelligence

• IVS (Perimeter Protection) : Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
• Face Detection : Supports face detection, face track, snapshot, and face enhancement; / Supports face cutout: Face, one-inch photo;
• Capturing strategies include real-time capturing and quality first.
• SMD : Yes

Video

• Video Compression : H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
• Streaming Capability : 3 streams
• Resolution : 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480)
• Video Frame Rate : Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 2048 kbps–8192 kbps / H.265: 768 kbps–6400 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• WDR : DWDR
• HLC : Yes
• White Balance : Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
• Gain Control : Auto; manual
• Noise Reduction : 2D NR; 3D NR
• Motion Detection : Yes
• Region of Interest (RoI) : Yes
• Image Stabilization : Yes
• Defog : Electronic defog
• Digital Zoom : 16×
• Image Rotation : 180°
• S/N Ratio : ≥ 55 dB

Network

• Network Port : RJ-45 (10/100 Base-T)
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
• Interoperability : ONVIF(Profile S&G&T); P2P; CGI; SDK
• Streaming Method : Unicast/Multicast
• User/Host : 20 (total bandwidth: 64 M)
• Storage : FTP; Micro SD card (512 GB); NAS
• Browser : IE 9 and later versions / Chrome 41 and later versions / Firefox 50 and later versions / iOS 10 and later versions
• Management Software : DSS; DMSS
• Mobile Client : iOS; Android

Certification

• Certifications : CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4 / FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

• Alarm Linkage : Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email
• Alarm Event : Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

• Power Supply : 12 VDC, 1 A ± 10% / POE (802.3af)
• Power Consumption : Basic: 2.3 W / Max.: 6.1 W

Environment

• Operating Temperature : –30 °C to +60 °C
• Operating Humidity : ≤ 95%
• Storage Temperature : –30 °C to +60 °C
• Storage Humidity : ≤ 95%
• Protection : IP66, IK10

Structure

Product Dimensions : 89 mm × Φ122 mm

Net Weight : 0.5 kg

Gross Weight : 0.7 kg
